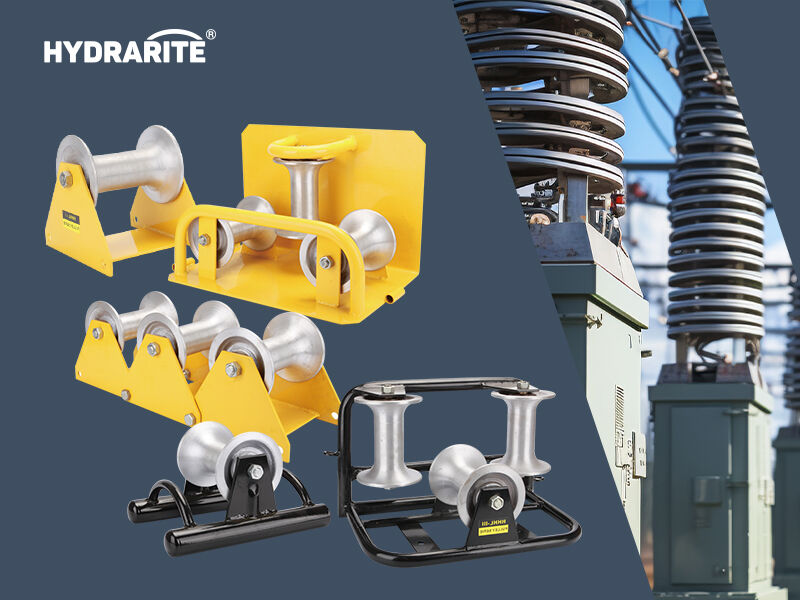

What Factors Affect Cable Pulling Speed?

Conduit Conditions and Friction: The Primary Speed Limiter in Cable Pulling

Surface roughness, contamination, and debris buildup increasing pulling resistance

When conduits have rough spots inside, mineral buildup, or just plain old dirt accumulation, they create a lot more friction when pulling cables through them. This kind of mess can really slow things down - sometimes cutting pulling speeds in half compared to what we see with nice clean paths. The research backs this up too: studies found that even small amounts of dust and particles make a big difference. For example, just half a millimeter of sediment buildup raises the required pulling force around 15%. Water makes matters worse because it sticks stuff together, particularly in older pipes where rust has created tiny abrasive surfaces. All these factors together determine how fast we should safely pull cables through. Going beyond those limits puts the cable jackets at risk for wear and tear, and could damage the conductors themselves. To avoid problems, most technicians use mechanical brushes or blow compressed air into the conduits first. A good practice is to run a duct inspection camera afterward to check if everything looks ready for installation.

Duct integrity assessment: identifying obstructions, deformations, and misaligned couplings before cable pulling

Thorough pre-installation inspections are essential to avoid mid-pull failures. Technicians should map conduit routes using profilometry tools to detect three critical issues:

• Deformations: Crushed sections exceeding 10% diameter reduction
• Misalignments: Coupling offsets causing °5° deflection angles
• Obstructions: Foreign objects reducing internal clearance below 50%

Industry research shows that about 73% of installation problems come from defects that go unnoticed at first glance. When technicians monitor tension levels in real time during test pulls, they get important baseline numbers. Any sudden changes usually point to something wrong underneath the surface. Fixing these issues before they cause bigger problems means using tools like hydro-jetting equipment or robotic cutters. This helps keep friction levels where they should be and maintains pulling speeds within what manufacturers recommend. Keeping records of when defects were found and how they got fixed creates valuable reference points for maintenance work down the road.

Cable Path Geometry and Mechanical Constraints in Cable Pulling

Bend radius, number of turns, and elevation changes: modeling speed reduction per degree and cumulative impact

When cables go around sharp corners, the pulling resistance goes way up. Each time there's a 90 degree turn, the speed drops somewhere between 15% and 30% because of all that extra pressure against the sides. Most industry guidelines actually set specific rules about how big those turns need to be, usually something like 10 to 20 times the cable's diameter. This helps keep the outer covering from getting squished and protects the delicate fibers inside. Things get even trickier when dealing with elevation changes. Going uphill requires roughly double what it takes for flat surfaces according to various mechanical models we've seen. And here's another thing worth noting: our monitoring systems show that when total angular movement passes 270 degrees, most modern pullers will automatically slow down. They do this so the tension doesn't exceed about 25 pounds on fiber optic cables, which is considered safe for these sensitive materials.

Conduit fill ratio and cable diameter: applying the 40% rule to maintain safe, efficient cable pulling speed

Most electricians follow the 40% conduit fill guideline when it comes to how fast they can pull cables through pipes. Go beyond that threshold and things get really tough because the cables start rubbing against the sides of the conduit, creating way more friction. Some tests using drag coefficients show friction can jump as much as three times what it normally is. When working with thinner cables like 6 mm instead of thicker ones at 12 mm, installers generally find they can pull them about 25% quicker through the same size conduit. This happens simply because there's less surface area touching the pipe walls. For installations where the fill stays below 35%, speeds around 1.5 meters per second are pretty standard without needing any special lubrication. But once the fill gets up to 50% or higher, most technicians will need some kind of mechanical help just to get past half a meter per second safely during installation.

Tension, Lubrication, and Cable Integrity: Balancing Speed with Safety in Cable Pulling

Lubricant selection and application: how viscosity, coverage, and compatibility boost cable pulling speed

Good lubrication can cut down on friction by about 60 percent, which means cables pull through much faster and safer during installations. Thick viscosity lubes work best when dealing with rough or damaged conduits since they maintain that protective film even under stress from high shear forces. Medium viscosity products are generally fine for regular, clean runs where there's not so much wear and tear. Getting full coverage across all surfaces is really important though. If parts get missed, those spots become friction hotspots that actually increase resistance somewhere between 35 to maybe 50 percent. Before applying any lube, check if it plays well with different cable jackets like LSZH, PVC or polyethylene materials because some combinations can slowly break down insulation over time. Proper application lets technicians achieve around 25 to 40 percent faster pulling speeds while still staying within safe limits, so it's definitely worth considering as a practical way to boost productivity without breaking the bank.

Tensile load limits and real-time tension monitoring: preventing fiber damage when optimizing cable pulling speed

Fibers can actually get permanently damaged at around half a percent elongation, which happens way before anyone notices any visible strain on them. Tension monitoring systems help prevent this kind of damage by giving workers warnings when pulling forces start getting close to dangerous levels, usually somewhere between 60% and 75% of what manufacturers rate as maximum tensile strength. These calibrated sensors along the line give continuous readings about how much force is being applied during pulls, so operators can adjust speeds accordingly. Keeping things within safe tension ranges keeps cables intact and allows for running at top speeds without wasting time. If we reduce pull force too much just because we're worried about damage, productivity drops roughly 30%. The importance of getting these numbers right becomes even more apparent when working around bends in the cable path. At those points, tension can jump to twice what it normally would be in straight sections, making accurate monitoring absolutely essential.

FAQ

• What factors contribute to increased friction in conduits?
  Increased friction can be due to surface roughness, contamination, debris buildup, rough spots inside, mineral buildup, and dirt accumulation.
• How can you assess duct integrity before cable pulling?
  Duct integrity can be assessed by mapping conduit routes with profilometry tools to detect deformations, misalignments, and obstructions.
• What is the significance of the 40% rule in conduit fill ratio?
  The 40% rule helps maintain safe, efficient cable pulling speeds as exceeding this ratio can significantly increase friction.
• How does lubricant viscosity affect cable pulling speed?
  Thicker viscosity lubricants help reduce friction in rough or damaged conduits, while medium viscosity lubricants work for regular clean runs.
• Why is real-time tension monitoring important during cable pulling?
  Real-time monitoring helps prevent fiber damage by warning about dangerous pulling force levels and allows adjusting the speeds accordingly.
