Description

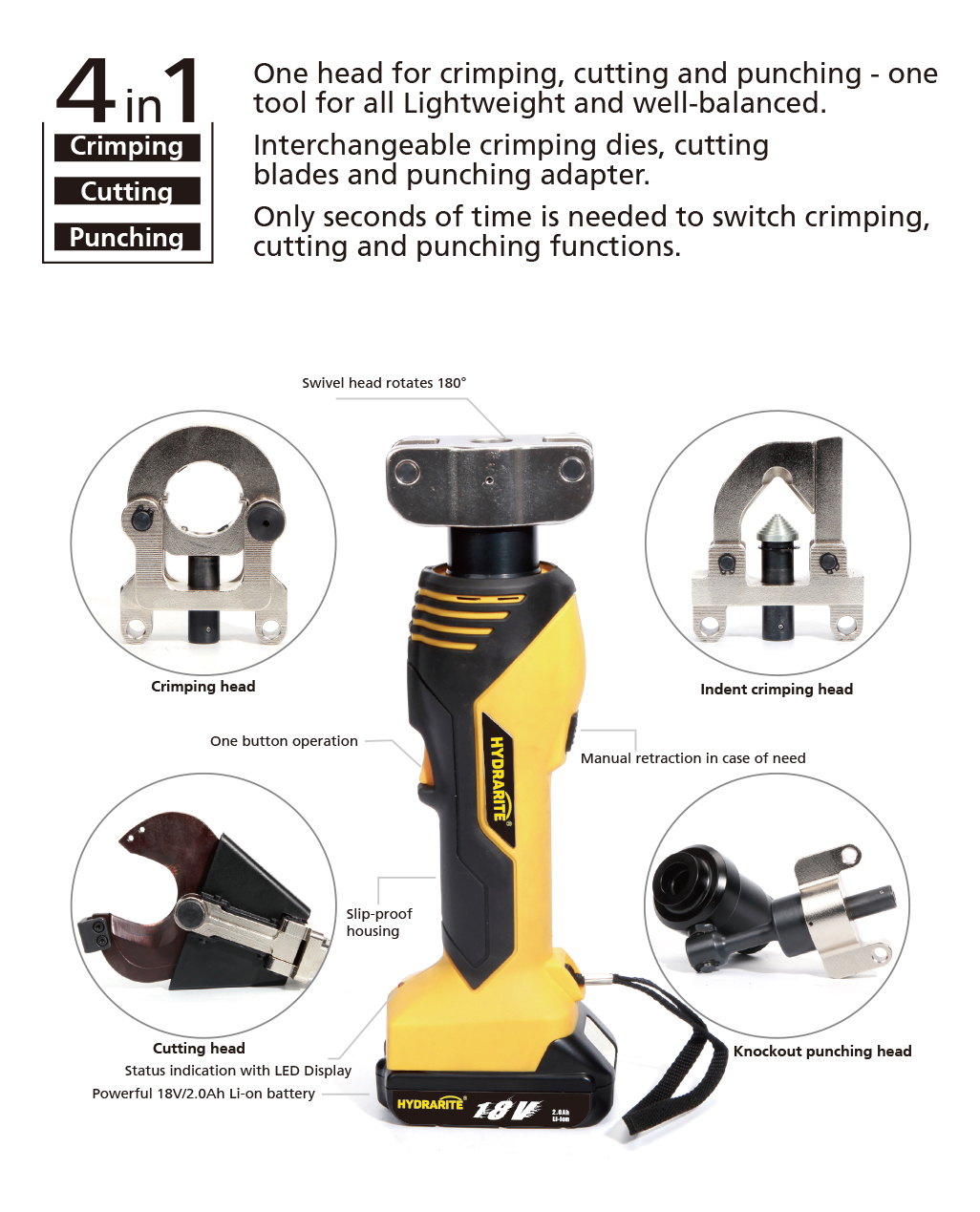

Battery Powered Universal Tool, HHZD-4H
| Model | Hydraulic Ram Output | Ram stroke | Battery capacity | Cutting range | Crimping range | Punching range | Battery | Charging time |
| HHZD-4H | 7 Ton | 38mm | 40 cutting cycles 160 crimping cycles 50 punching cycles |
Ø50mm(Cu/Al and armoured cable) | 16-300 mm² | Ø22-Ø60mm | 18V/2.0Ah Li-ion | 0.5 hours |

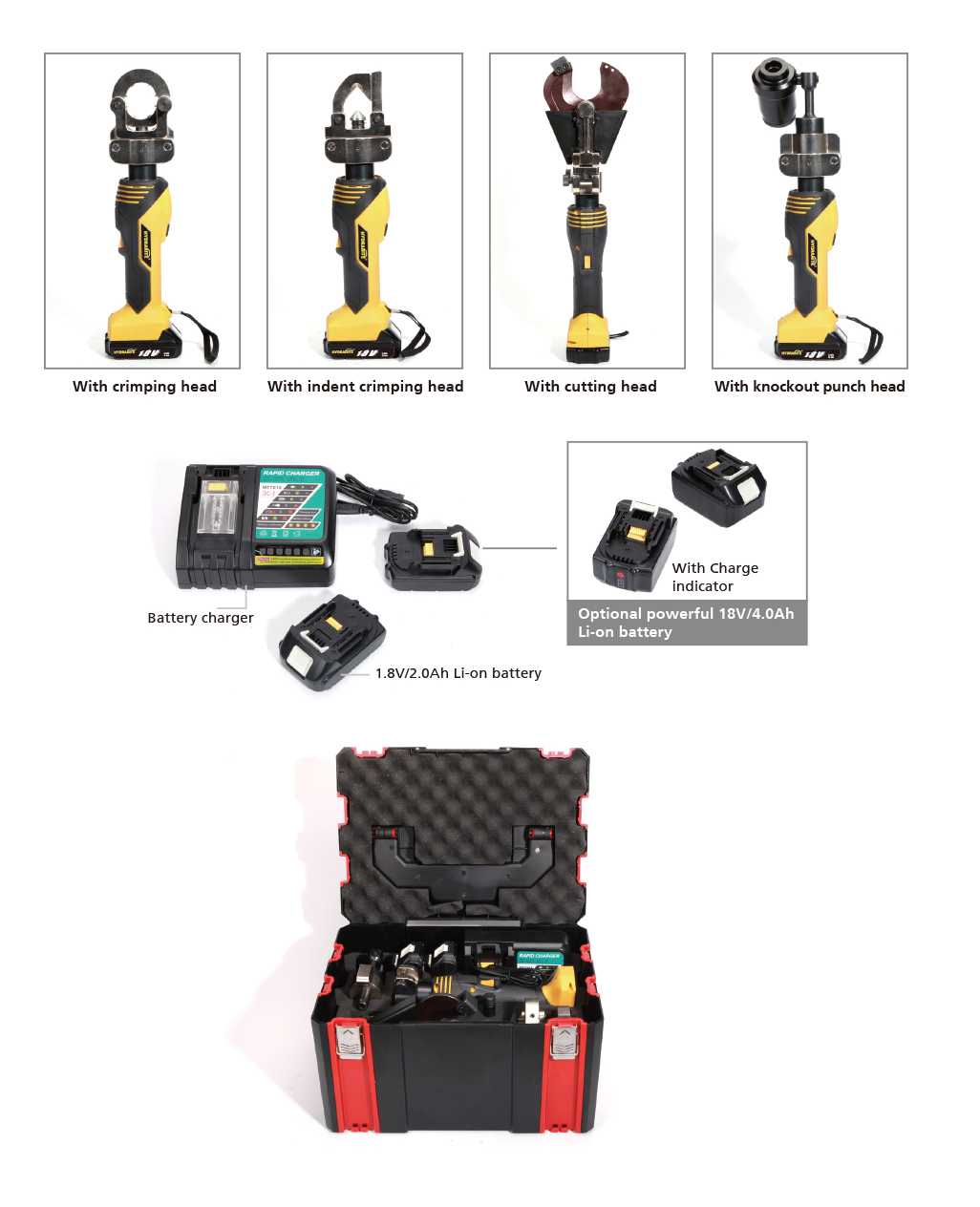

| Accessories | ||||
| Crimping dies | 16,25,35,50,70,95,120,150,185,240,300 mm² | |||
| Punching dies | 22,27,34,43,49,60 mm | |||
| Qty of battery | 2 pcs | |||
| Charger | 1 pc | |||
| Blade | 1 set | |||
| Adapter for crimping | 1 pc | |||
| Adapter for punching | 1 pc | |||
| Draw stud M20×1.5 | 1 pc | |||
| Draw stud M10×1 | 1 pc | |||
| Spacer | 1 pc | |||
| Seals | 1 set | |||
| Weight(Kg) | 21.4 | |||
| Packing size(mm) | 585×500×170 | |||
