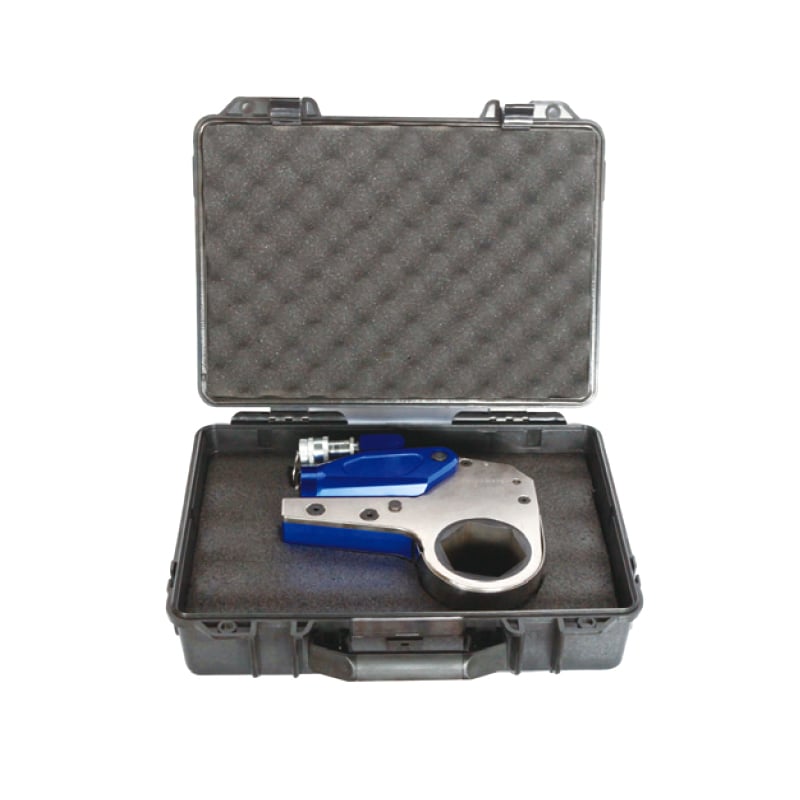

Low Profile Hydraulic Torque Wrench

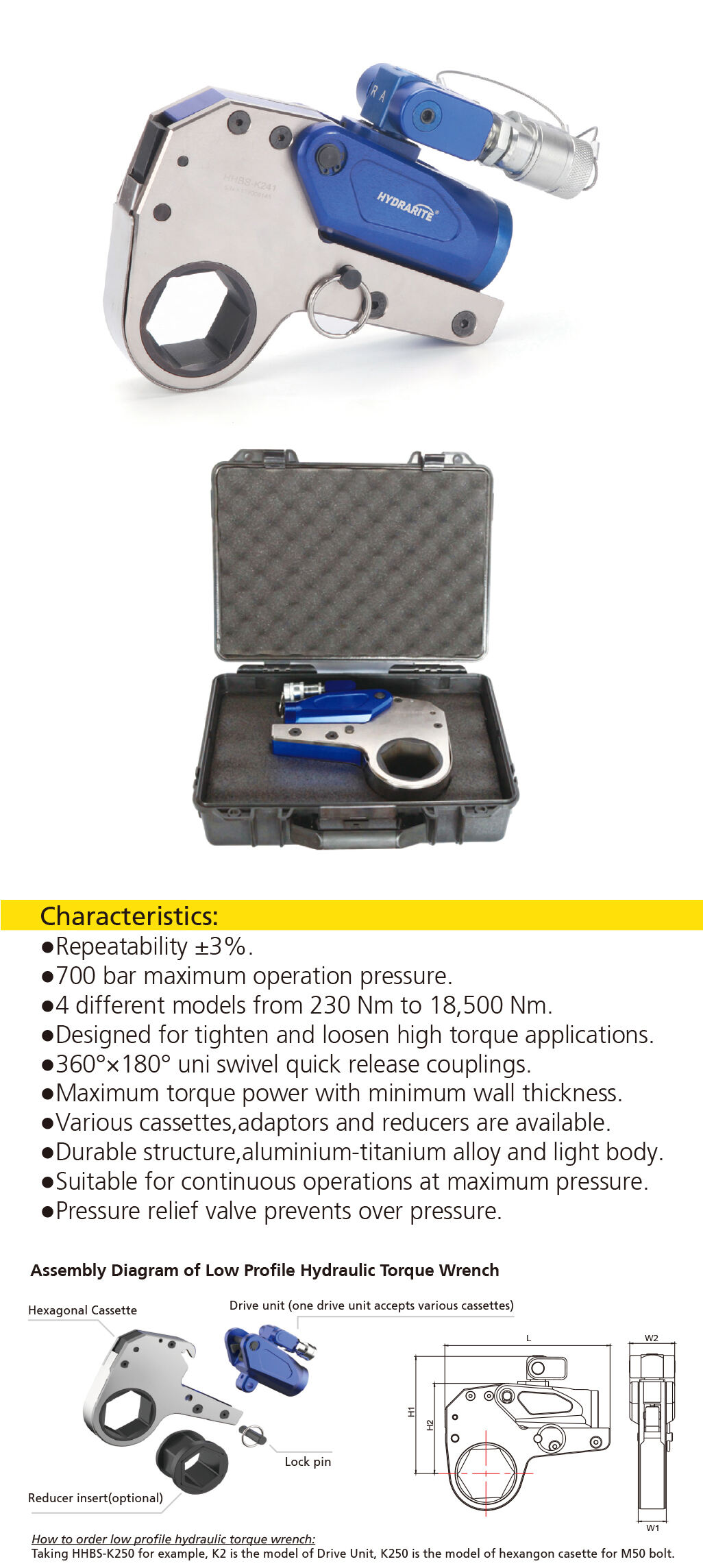

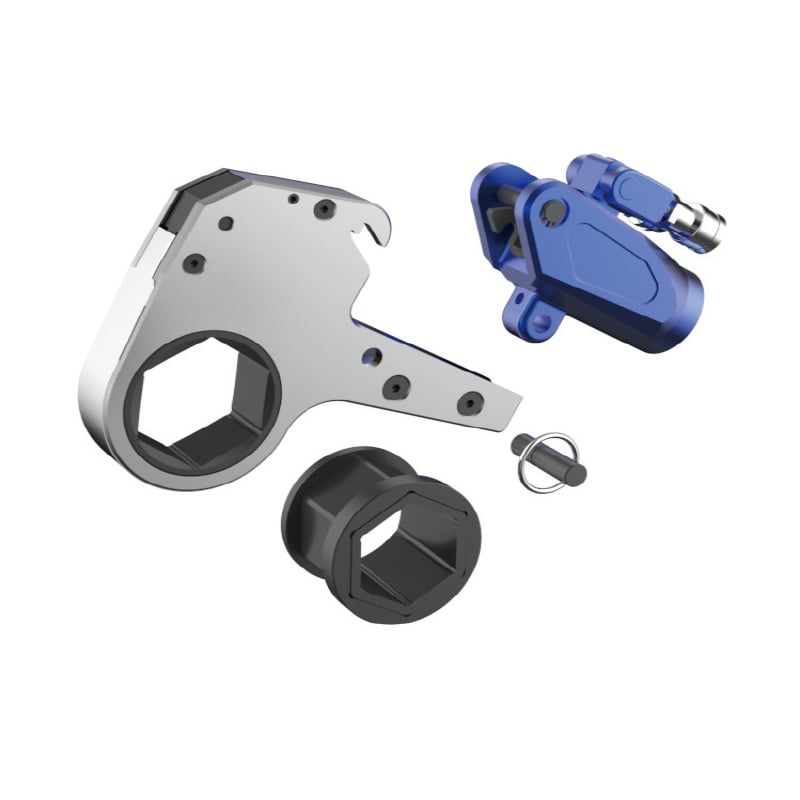

This robust tool offers repeatability of ± 3% and operates at a maximum pressure of 700 bar, making it ideal for high torque applications. Available in four models with torque capacities ranging from 230 Nm to 18,500 Nm, it provides versatility for various tasks. The 360°x180° uni swivel quick release couplings ensure easy handling and adaptability. Despite its maximum torque power, it maintains a minimal wall thickness for accessibility in tight spaces. Constructed from a durable aluminum-titanium alloy, it is lightweight yet strong, suitable for continuous operations at maximum pressure. A pressure relief valve prevents overpressure, enhancing safety. The tool is compatible with various cassettes, adaptors, and reducers, making it a versatile choice for demanding applications.

Description

Max working pressure 700bar

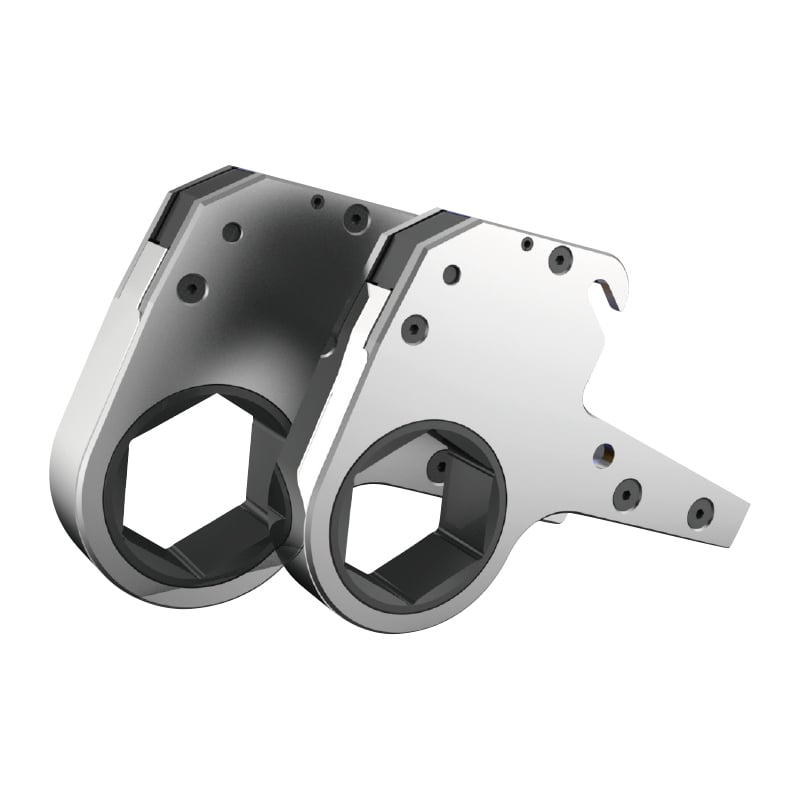

Low profile design fit in restricted access areas

Drive Unit made of aluminum-titanium alloy

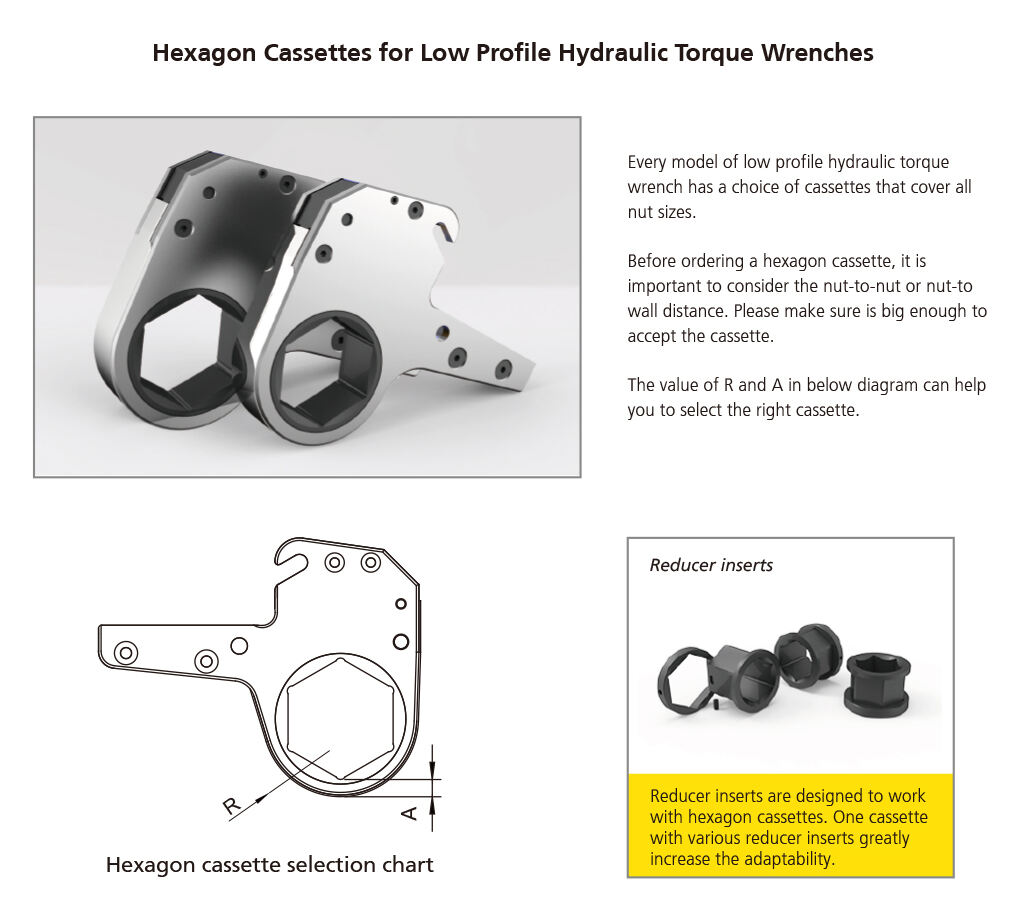

Replaceable hexagon cassette


Model No.of drive unit	Torque(Nm)		Hexagon Nut A/F(mm)	Weight of drive unit(kg)	Weight of hexagon cassette(kg)	Dimensions(mm)
Model No.of drive unit	Min	Max	Hexagon Nut A/F(mm)	Weight of drive unit(kg)	Weight of hexagon cassette(kg)	L	H1	H2	W1	W2
HHBS-K2	232	2328	19～55	1	1.6	196.4	125.9	102.3	32	51
HHBS-K2	241	2414	60	1	1.7	196.4	128.5	105	32	51
HHBS-K4	585	5858	34～65	2	4.4	245	177	135.7	42	66
HHBS-K4	647	6474	70～80	2	4.6	246	187	145.7	42	66
HHBS-K8	1094	10941	41～95	3.3	8	300	207	169	53	83
HHBS-K8	1177	11774	100～105	3.3	8.4	301	216	178	53	83
HHBS-K14	1852	18521	50～117	5.5	11.6	361	239	204	64	99


Hexagon cassette for HHBS-K2				Hexagon cassette for HHBS-K4				Hexagon cassette for HHBS-K8				Hexagon cassette for HHBS-K14
Model No.	R	A	Max Torque	Model No.	R	A	Max Torque	Model No.	R	A	Max Torque	Model No.	R	A	Max Torque
K219	27	16	2328	K434	36	16	5858	K841	46	22	10941	K1450	60	31	18521
K222	27	14	2328	K436	36	15	5858	K846	46	19	10941	K1455	60	28	18521
K227	27	11	2328	K441	39	15	5858	K850	46	17	10941	K1460	60	25	18521
K230	29	12	2328	K446	42	15	5858	K855	50	18	10941	K1465	60	22	18521
K232	29	11	2328	K450	44	15	5858	K860	52	17	10941	K1470	60	19	18521
K234	31	11	2328	K455	46	14	5858	K865	55	17	10941	K1475	63	19	18521
K236	31	10	2328	K460	50	15	5858	K870	58	17	10941	K1480	66	19	18521
K241	34	10	2328	K465	53	15	5858	K875	60	17	10941	K1485	69	19	18521
K246	37	10	2328	K470	56	15	6474	K880	63	16	10941	K1490	72	20	18521
K250	40	11	2328	K475	59	15	6474	K885	66	16	10941	K1495	74	19	18521
K255	43	11	2328	K480	61	15	6474	K890	69	7	10941	K14100	77	19	18521
K260	46	11	2414					K895	71	16	10941	K14105	80	19	18521
								K8100	75	17	11774	K14110	83	19	18521
								K8105	78	17	11774	K14115	87	20	18521
												K14117	87	19	18521

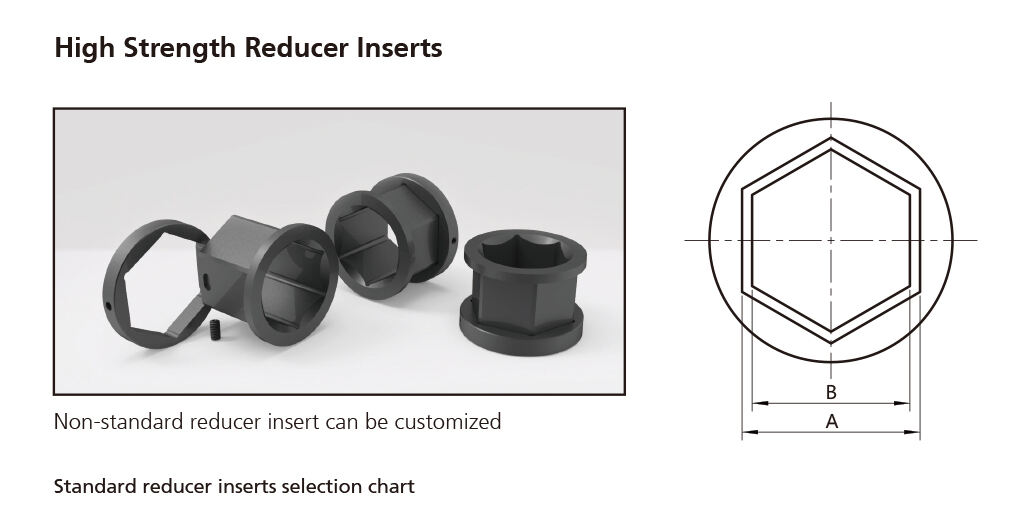

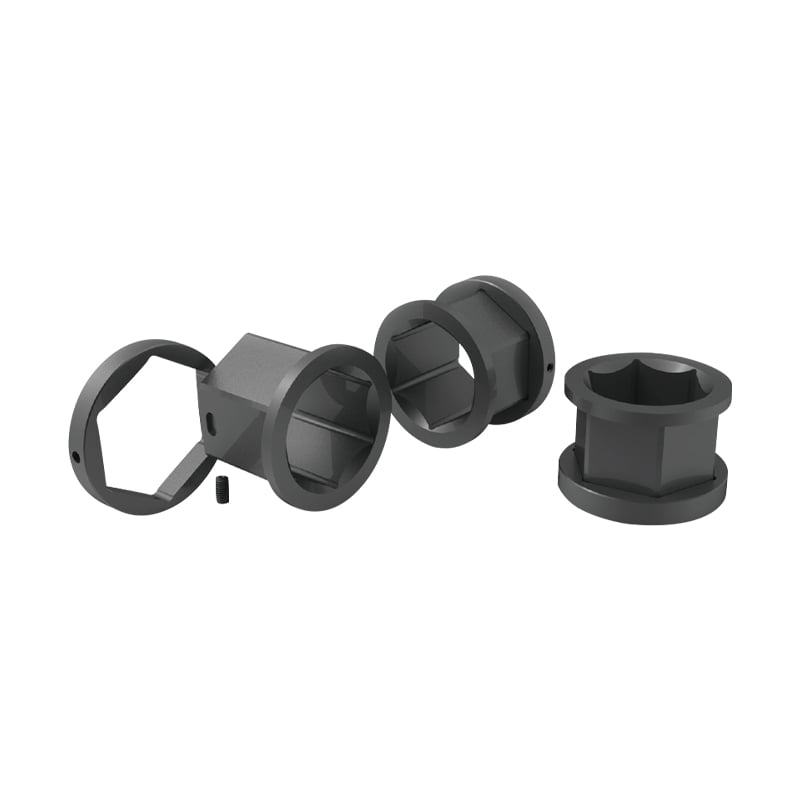

Model No. of drive unit	Model No. of Hexagon Cassette	Edge (S)	Reducer Inserts						Lock Ring Model No.
Model No. of drive unit	Model No. of Hexagon Cassette	Edge (S)	Model No.	A/B (mm)	Model No.	A/B (mm)	Model No.	A/B (mm)	Lock Ring Model No.
HHBS-K2	K250	50	K25041	50/41	K25036	50/36	K25032	50/32	SH-50
	K246	46	K24636	46/36	K24632	46/32	K24630	46/30	SH-46
	K241	41	K24132	41/32	K24130	41/30	K24127	41/27	SH-41
	K236	36	K23630	36/30	K23627	36/27			SH-36
	K232	32	K23227	32/27					SH-32
HHBS-K4	K465	65	K46555	65/55	K46550	65/50	K46546	65/46	SH-65
	K460	60	K46050	60/50	K46046	60/46	K46041	60/41	SH-60
	K455	55	K45546	55/46	K45541	55/41	K45536	55/36	SH-55
	K450	50	K45041	50/41	K45036	50/36	K45032	50/32	SH-50
	K446	46	K44636	46/36	K44632	46/32	K44630	46/30	SH-46
	K441	41	K44132	41/32	K44130	41/30	K44127	41/27	SH-41
	K436	36	K43630	36/30	K43627	36/27			SH-36
HHBS-K8	K890	90	K89080	90/80	K89075	90/75	K89070	90/70	SH-90
	K885	85	K88575	85/75	K88570	85/70	K88565	85/65	SH-85
	K880	80	K88070	80/70	K88065	80/65	K88060	80/60	SH-80
	K875	75	K87565	75/65	K87560	75/60	K87555	75/55	SH-75
	K870	70	K87060	70/60	K87055	70/55	K87050	70/50	SH-70
	K865	65	K86555	65/55	K86550	65/50	K86545	65/45	SH-65
	K860	60	K86050	60/50	K86046	60/46			SH-60
	K855	55	K85546	55/46	K85541	55/41			SH-55
HHBS-K14	K14115	115	K14115105	115/105	K14115100	115/100	K1411595	115/95	SH-115
	K14110	110	K14110100	110/100	K1411095	110/95	K1411090	110/90	SH-110
	K14105	105	K1410595	105/95	K1410590	105/90	K1410585	105/85	SH-105
	K14100	100	K1410090	100/90	K1410085	100/85	K1410080	100/80	SH-100
	K1495	95	K149585	95/85	K149580	95/80	K149575	95/75	SH-95
	K1490	90	K149080	90/80	K149075	90/75	K149070	90/70	SH-90
	K1485	85	K148575	85/75	K148570	85/70	K148565	85/65	SH-85
	K1480	80	K148070	80/70	K148065	80/65			SH-80
	K1475	75	K147565	75/65					SH-75

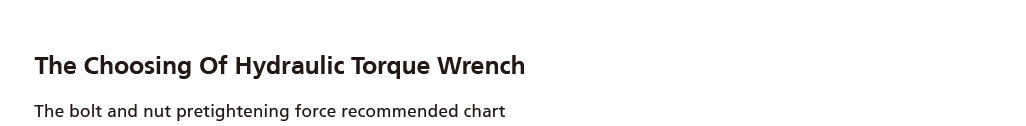

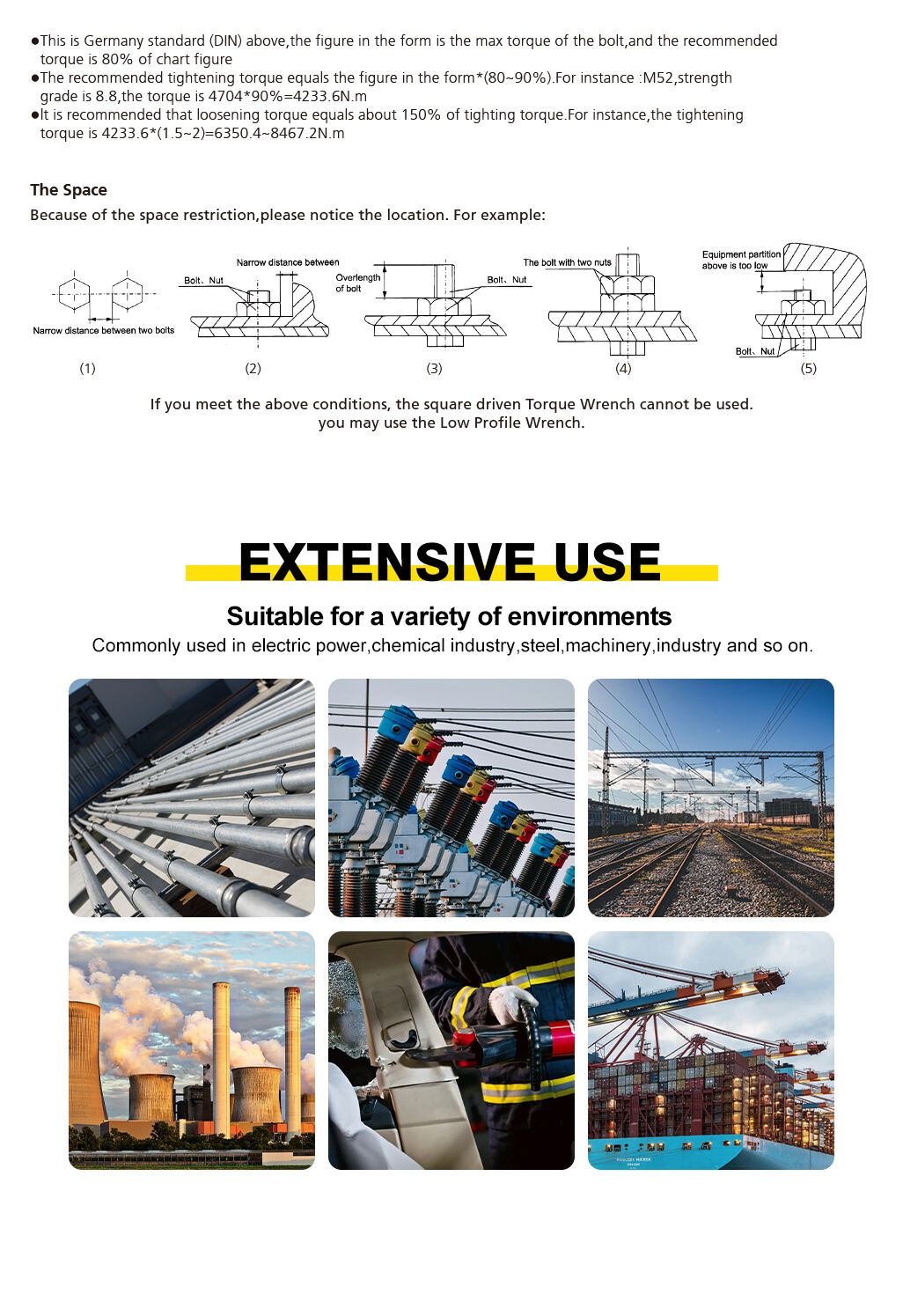

Strength Grade		4.8		6.8		8.8		10.9		12.9
Minmum Breaking Strength		392Mpa		588Mpa		784Mpa		941 Mpa		1176Mpa
Material		Q235(SS41)		35(S35C)		35CrMo(SCM3)		42CMo(SCM4)		40GrNiMoA(SNCM)
Bolt	Diameter	Torque		Torque		Torque		Torque		Torque
M	mm	KGM	N.M	KGM	N.M	KGM	N.M	KGM	N.M	KGM	N.M
14	22	7	69	10	98	14	137	17	165	23	225
16	24	10	98	14	137	21	206	25	247	36	363
18	27	14	137	21	206	39	284	35	341	49	480
20	30	18	176	28	296	41	402	58	569	69	680
22	32	23	225	34	333	55	539	78	765	93	911
24	36	32	314	48	470	70	686	100	981	120	1176
27	41	45	441	65	637	105	1029	150	1472	180	1764
30	46	60	588	90	882	125	1225	200	1962	240	2352
33	50	75	735	115	1127	150	1470	210	2060	250	2450
36	55	100	980	150	1470	180	1764	250	2453	300	2940
39	60	120	1176	180	1764	220	2156	300	2943	370	3626
42	65	155	1519	240	2352	280	2744	390	3826	470	4606
45	70	180	1764	280	2744	320	3136	450	4415	550	5390
48	75	230	2254	350	3430	400	3920	570	5592	680	6664
52	80	280	2744	420	4116	480	4704	670	6573	850	8330
56	85	360	3528	530	5149	610	5978	860	8437	1050	10290
60	90	410	4018	610	5978	790	7742	1100	10791	1350	13230
64	95	510	4998	760	7448	900	8820
68	100	580	5684	870	8526	1100	10780
72	105	660	6468	1000	9800	1290	12642
76	110	750	7350	1100	10780	1500	14701
80	115	830	8143	1250	12250	1850	18130
85	120	900	8820	1400	13720	2250	22050
90	130	1080	10584	1650	16170	2500	24500
100	145	1400	13720	2050	20090
110	155	1670	16366	2550	24990
120	175	2030	19894	3050	29890
