Description
Hydraulic Crimping Tool for workbench mounting
For workbench mounting
Large crimping range
| Model | Output force (ton) |
Ram stroke (mm) |
Crimping range (mm²) |
Crimping dies (mm²) |
Crimp pattern | G.W. (kg) |
Packing size (mm) |

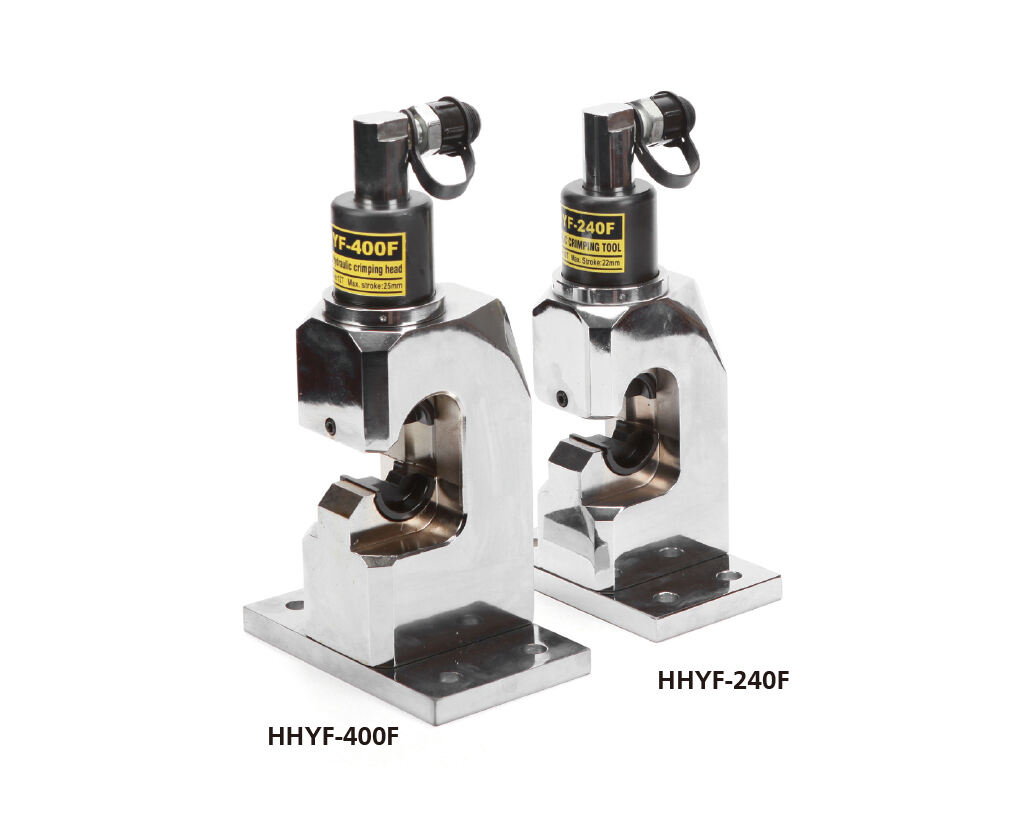

| HHYF-240F | 9 | 20 | 16-240 | 16,25,35,50,70,95,120,150,185,240 | Hexagonal type | 8.5 | 190x120x320 |
| HHYF-400F | 11 | 30.5 | 16-400 | 50,70,95,120,150,185,240,300,400 | Hexagonal type | 16.7 | 190x120x320 |
