Self-contained Manual Hydraulic Pipe Benders HHW-25S
An ideal tool for accurate bending of mild steel tubes up
to 1800 , Ø10-25mm, wall thickness 0.8-2.0mm.
Description

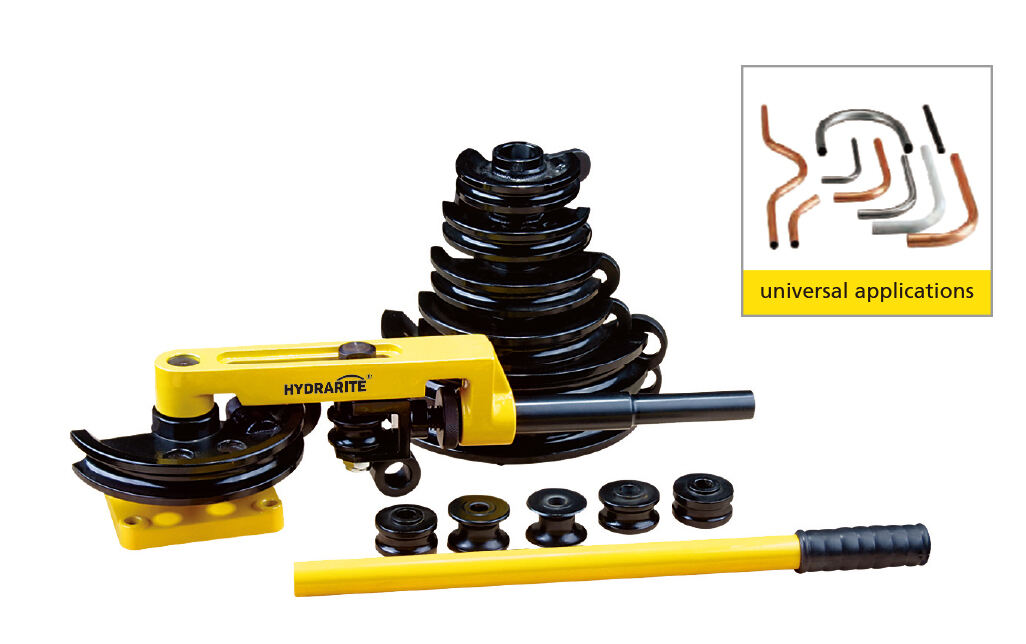

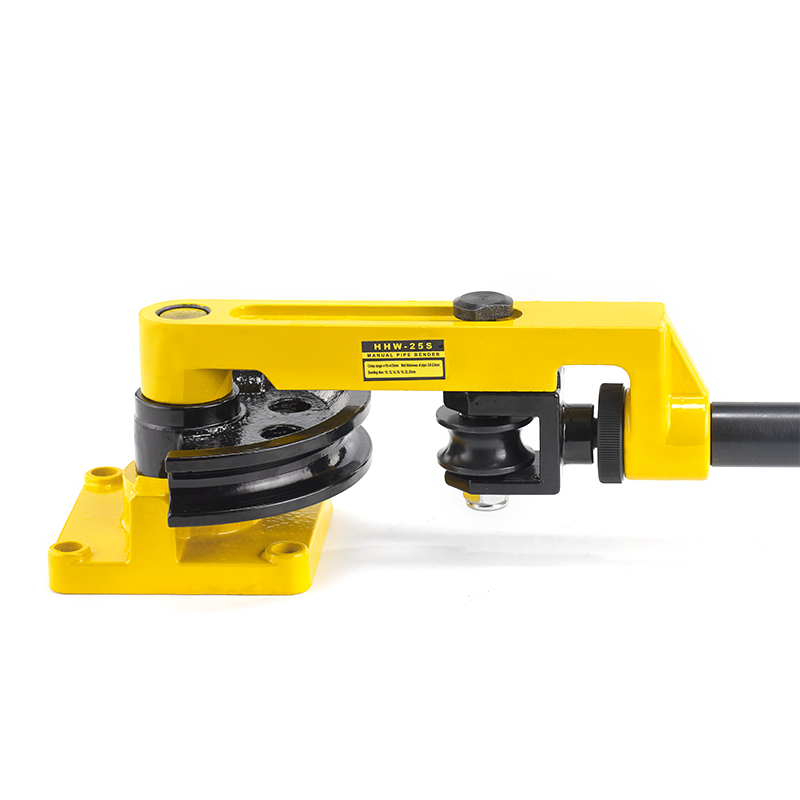

Manual Tube Bender, HHW-25S
An ideal tool for accurate bending of mild steel tubes up
to 1800 , Ø10-25mm, wall thickness 0.8-2.0mm.
| Model | Bending range(O.D.) (mm) |
Bending shoes inch | G.W. (Kg) |
Packing size (cm) |

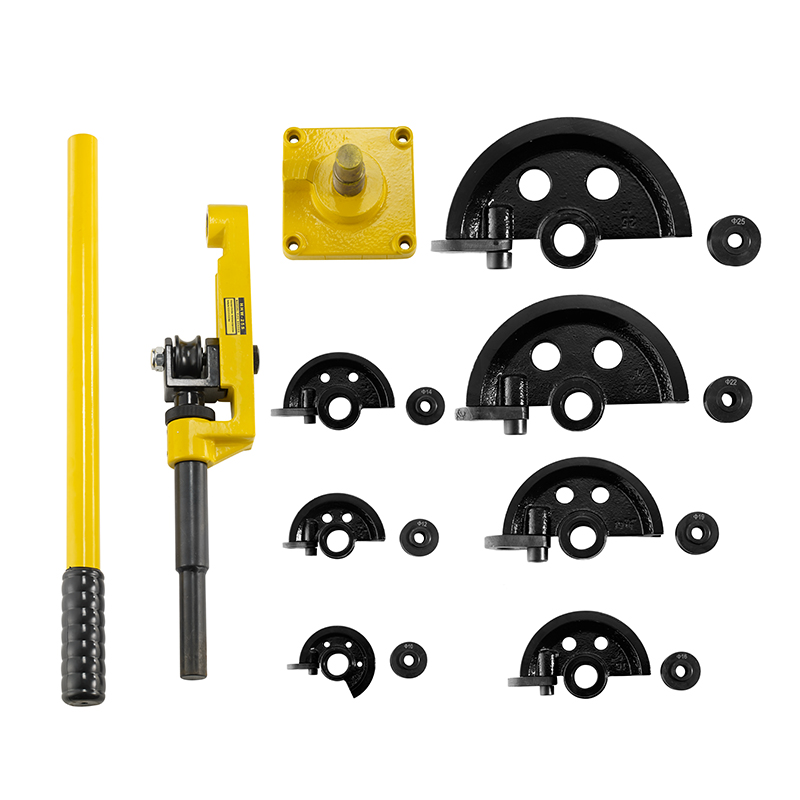

| HHW-25S | Ø16-Ø33 | 3/8”(10mm),1/2”(12mm),9/16”(14mm), 5/8”(16mm),3/4”(19mm),7/8”(22mm),1”(25mm) |
27.6 | 67X19X42 |

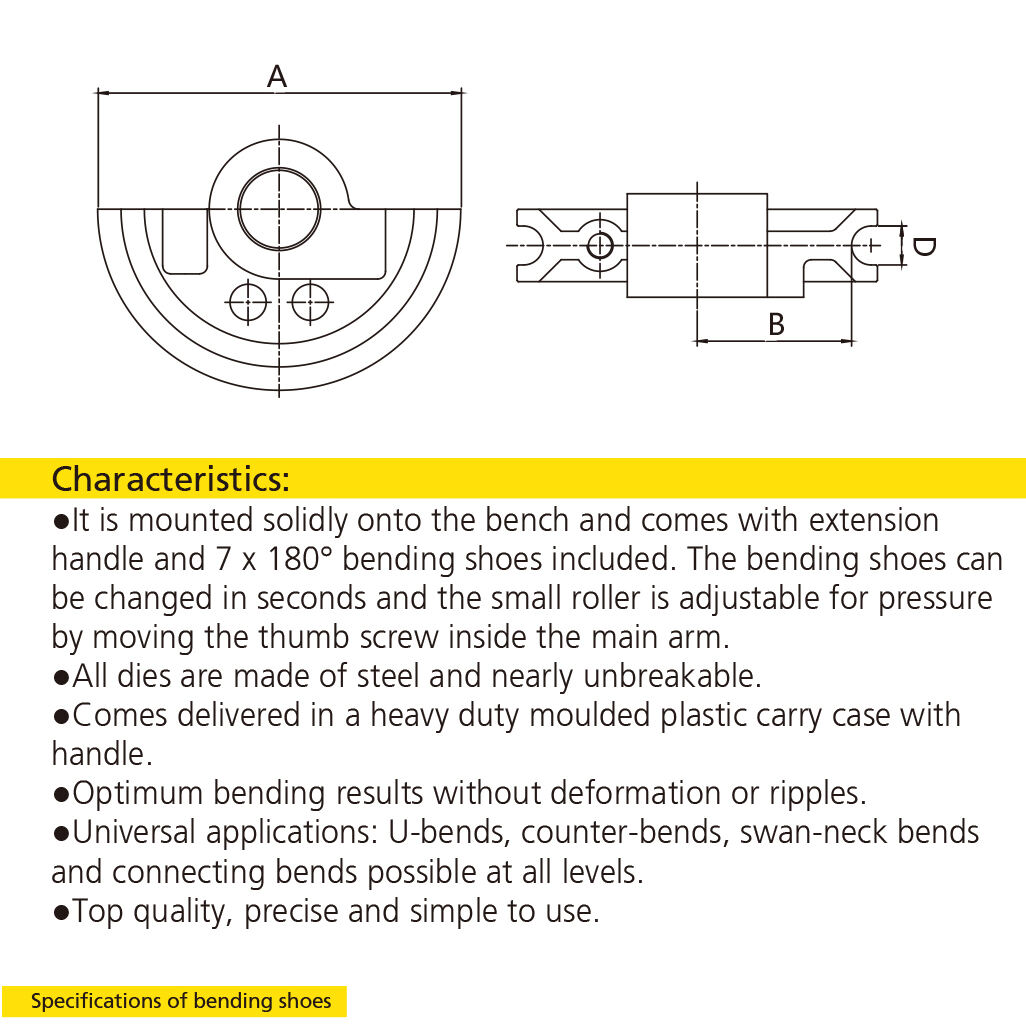

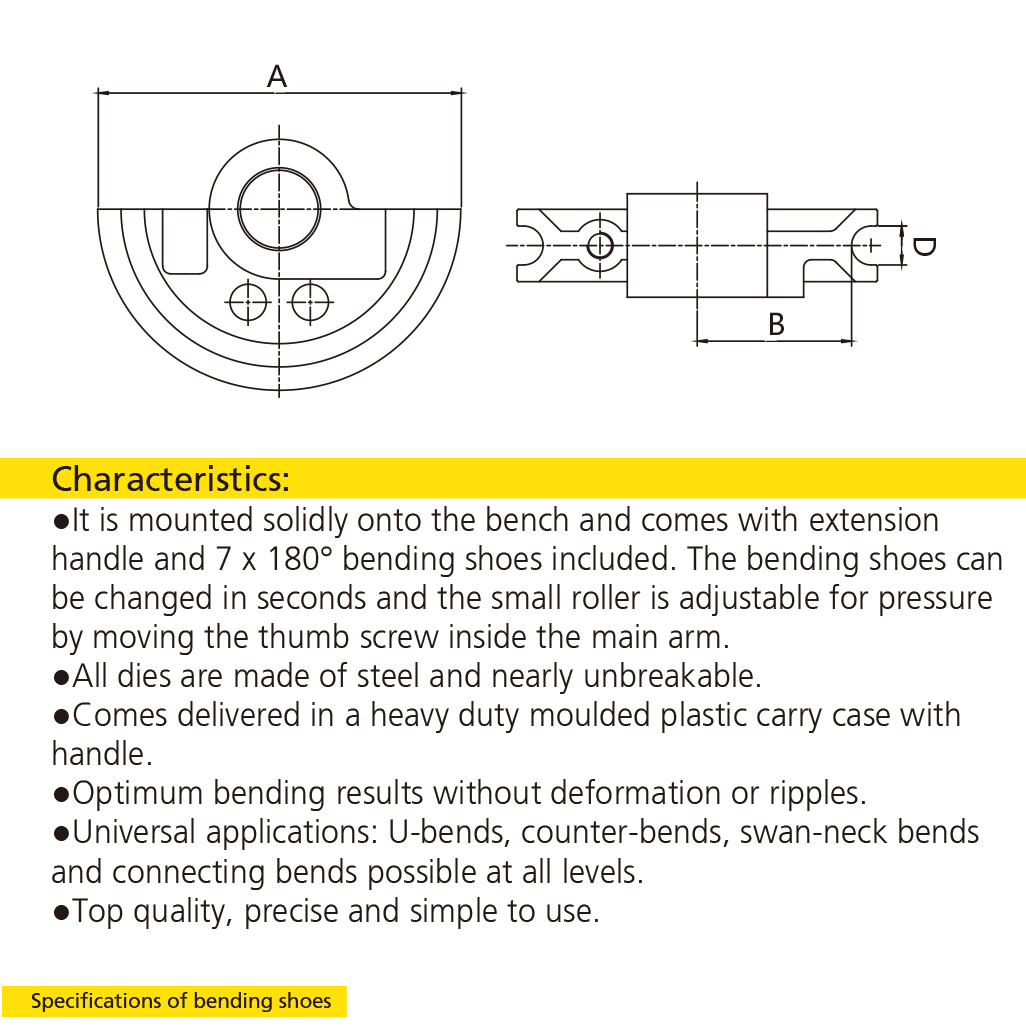

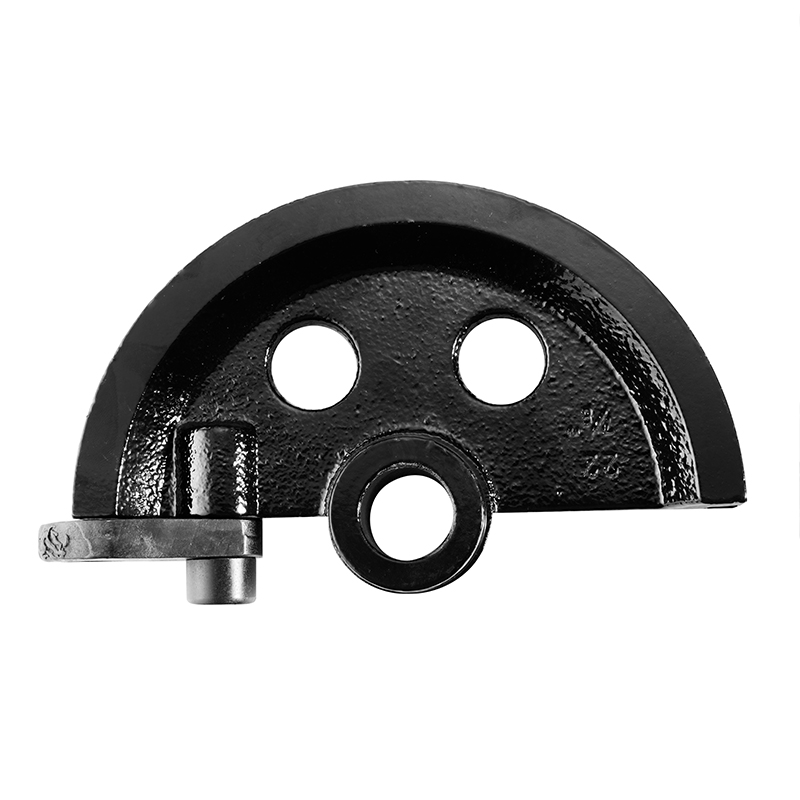

| Bending shoe size (inch) | A (mm) |
Minimum bend radius B(mm) |
D (mm) |
Wall thickness of Standard steel pipe, stainless steel pipe (mm) |
Wallthickness of Standard copper tubes (mm) |
| 3/8” | 100 | 42 | 11 | 0.8 | 1.0 |
| 1/2” | 119 | 50.5 | 13 | 1.0 | 1.2 |
| 9/16” | 139 | 55.5 | 15 | 1.0 | 1.2 |
| 5/8” | 159 | 68.5 | 17 | 1.0 | 1.2 |
| 3/4” | 179 | 77 | 20 | 1.0 | 1.2 |
| 7/8” | 225 | 98.5 | 23 | 1.2 | 1.5 |
| 1” | 225 | 97 | 26 | 2.0 | 1.6 |
