Flange Spreaders HHP-538 HHP-1054

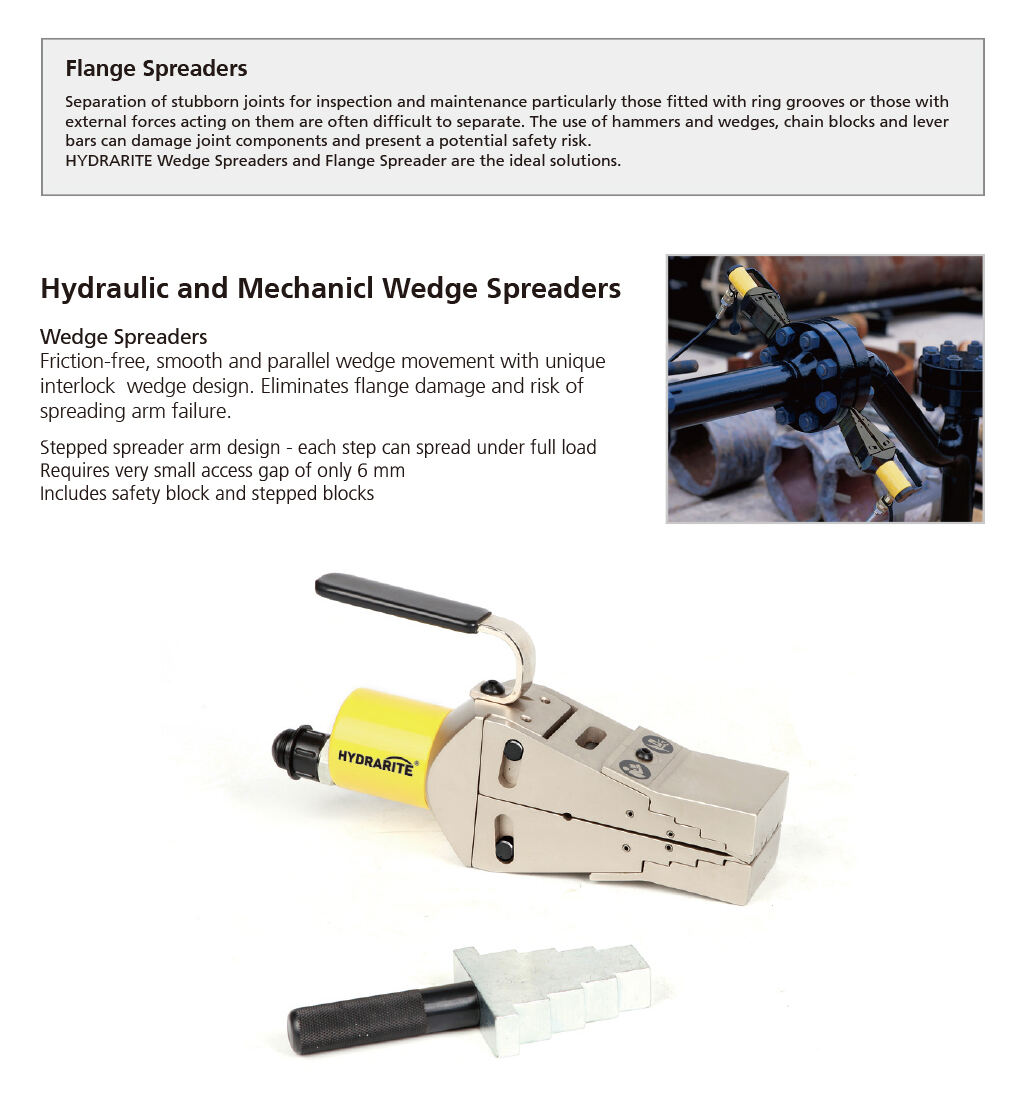

Hydraulic and Mechanicl Wedge Spreaders
Wedge Spreaders
Friction-free, smooth and parallel wedge movement with unique
interlock wedge design. Eliminates flange damage and risk of
spreading arm failure.
Stepped spreader arm design - each step can spread under full load
Requires very small access gap of only 6 mm

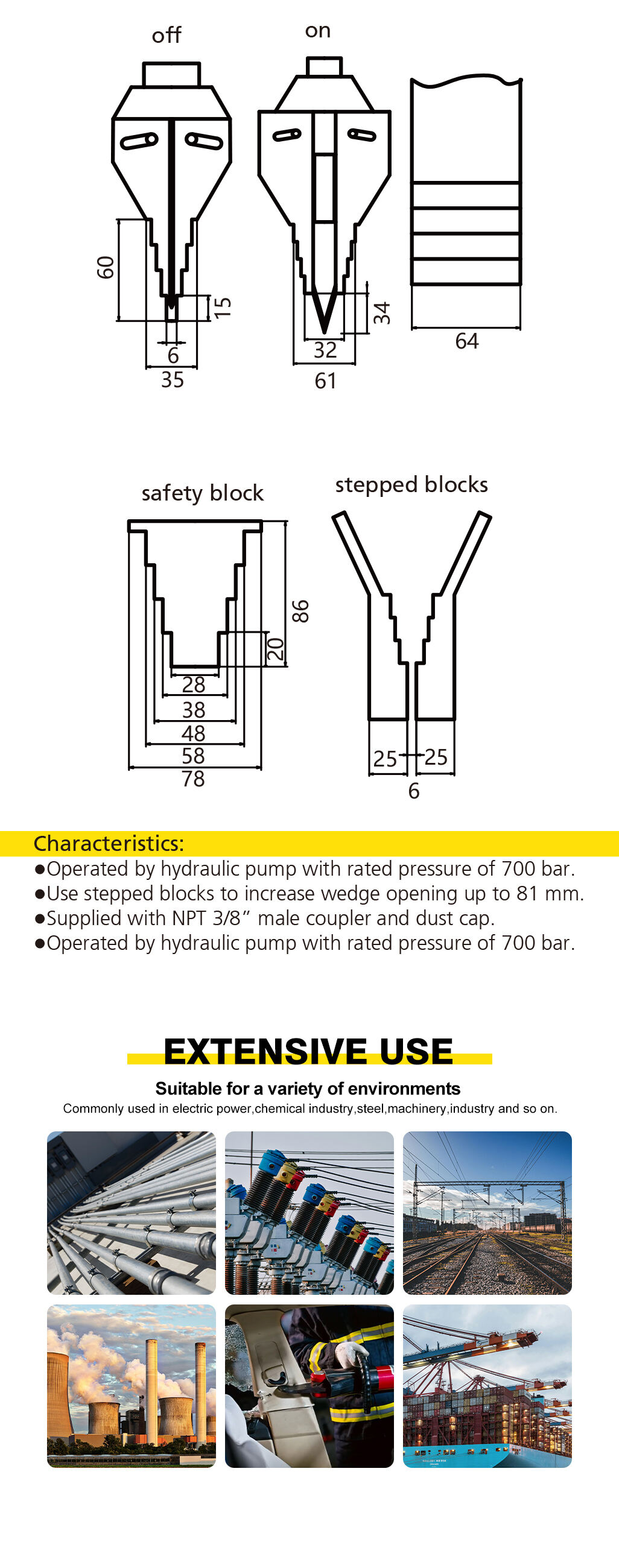

Includes safety block and stepped blocks
Description
Hydraulic Wedge Spreader, HHP-1481
| Model | Max.spreading force (Ton) |
Tip clearance (mm) |
Max.spread (mm) |
Type | G.W. (Kg) |
Packing size (cm) |
| HHP-1481 | 12.7 | 6 | 81 | Hydraulic type | 10.2 | 31×16×12 |
