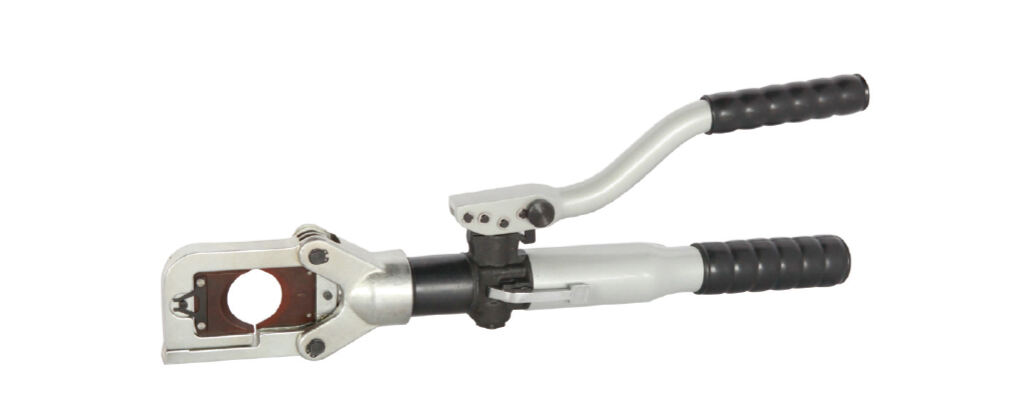

Hand-operated Hydraulic Cable Cutters HHD-40B

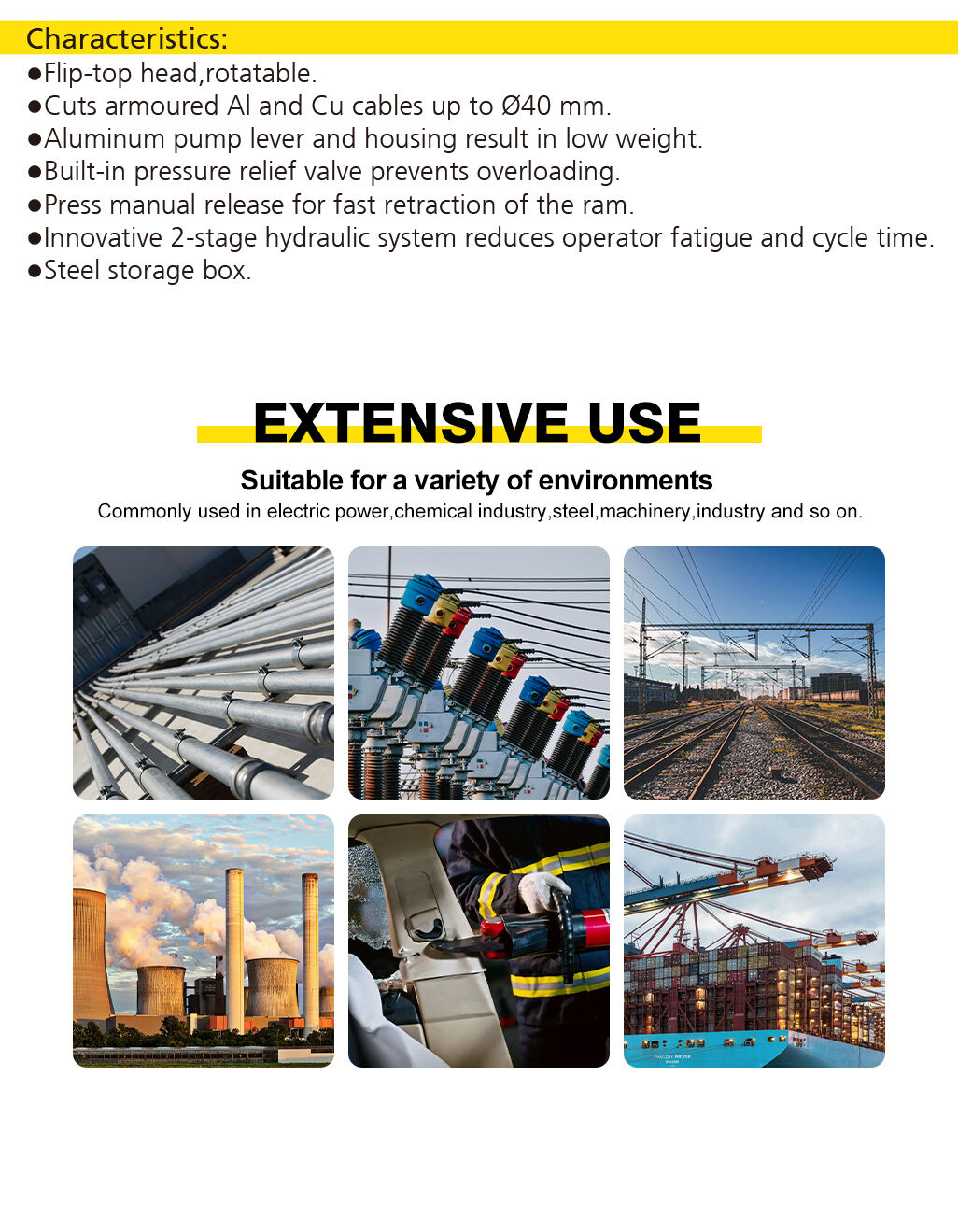

The HHD-40B hydraulic cutter delivers 6.5 tons of output, featuring a rotatable flip-top head for versatile cutting of copper, aluminum, and armored cables up to Ø40 mm. Its lightweight aluminum pump lever and housing enhance portability. The innovative two-stage hydraulic system reduces operator fatigue and cycle time, while a built-in pressure relief valve prevents overloading. A manual release allows fast ram retraction. Packaged in a steel storage box, this tool is ideal for environments like electric power and chemical industries.
Description
Hand-operated Hydraulic Cable Cutter, HHD-40B
Cuts armoured Al and Cu cables
Aluminum pump lever and housing result in low weight
with built-in safety valve
| Model | HHD-40B |
| Hydraulic Ram Output | 6.5 Ton |
| Cutting range(mm) | Ø40mm(Copper,Aluminum/ armored cable) |
| G.W.(kg) | 8 |
| Packing size | 610×210×110 |
