HHQD-5Q HHQD-10Q HHQD-20Q HHQD-30Q
Air Hydraulic Toe Jacks are ideal for lifting applications
where an air compressor is available.
Description

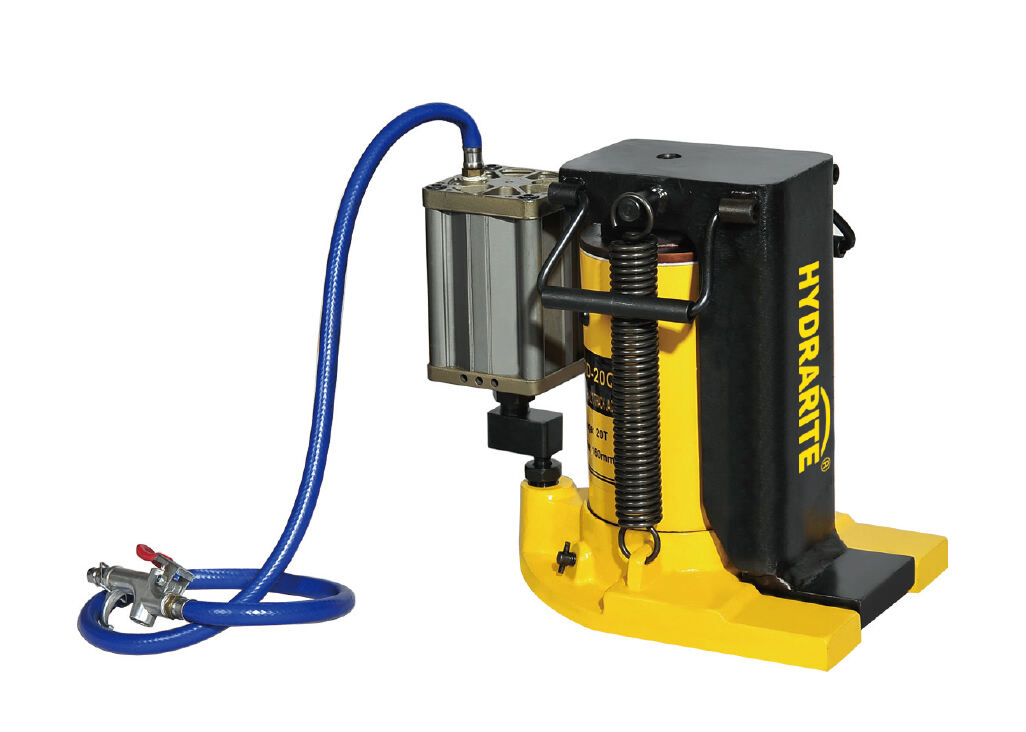

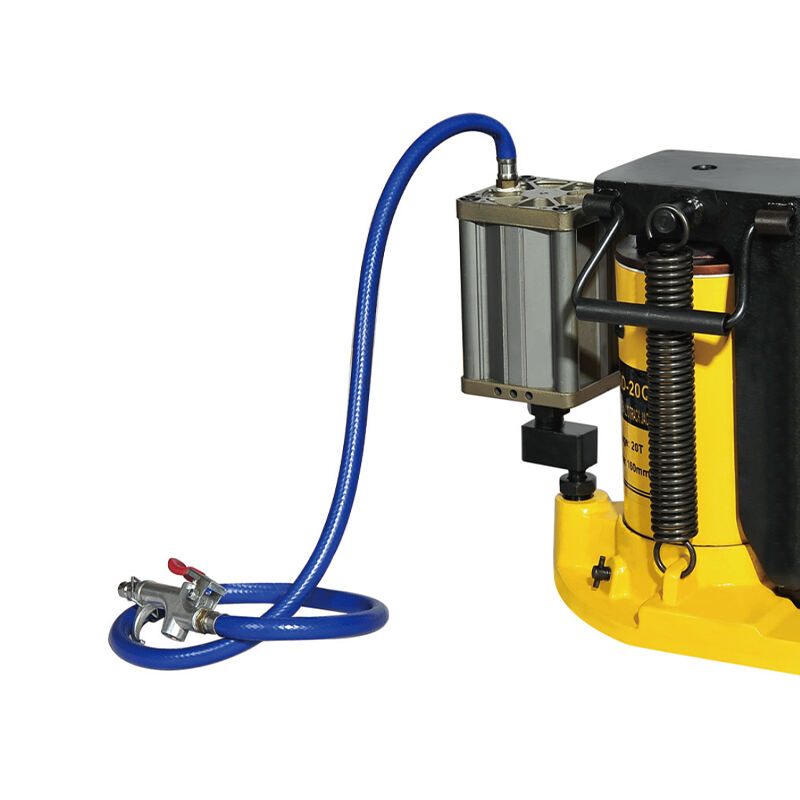

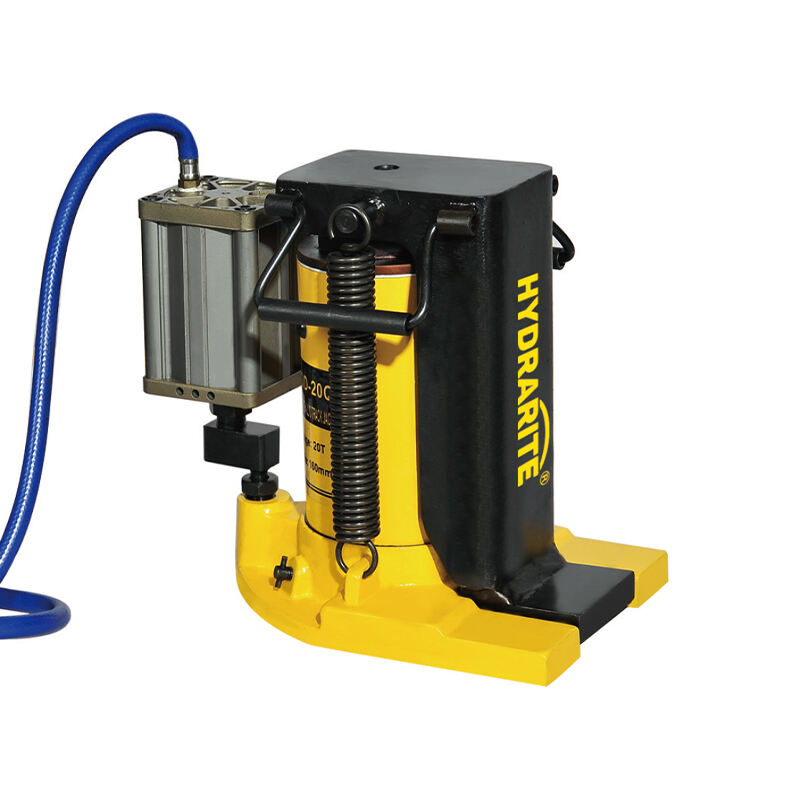

Air Hydraulic Toe Jacks
Air Hydraulic Toe Jacks are ideal for lifting applications
where an air compressor is available.
HHQD-5Q,HHQD-10Q,HHQD-20Q,HHQD-30Q
| Model | Capacity(ton) Toe |
Air pressure (kg/psi) |
Hydraulic lifting (mm) |
Closed body height (mm) |
Toe clerance (mm) |
G.W. (Kg) |
Packing size (mm) |
| HHQD-5Q | 3 | 8/120 | 120 | 222 | 16 | 15 | 300×200×310 |
| HHQD-10Q | 5 | 8/120 | 130 | 265 | 18 | 21.6 | 330×220×310 |
| HHQD-20Q | 10 | 8/120 | 130 | 285 | 20 | 32.2 | 350×240×320 |
| HHQD-30Q | 15 | 8/120 | 140 | 305 | 20 | 47.2 | 380×270×340 |
