Hydraulic Cable Cutter Heads HHD-85F HHD-100F HHD-120F
The HHD-KF series hydraulic cutters are designed for efficiency and durability, with models offering 6.5 to 10 tons of output. They can cut copper, aluminum, and armored cables up to Ø120mm. The quick-sliding, specially hardened jaws enhance productivity. Lightweight and user-friendly, these tools operate at 700 bar pressure and come with a steel storage box, making them ideal for electric power, chemical, and steel industries.
Description

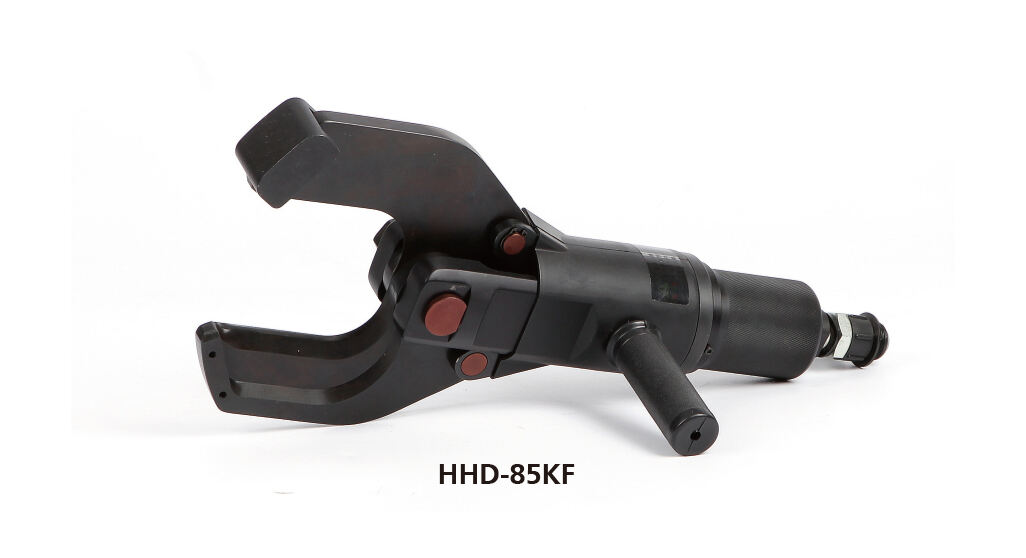

HHD-85KF, HHD-105KF
with built-in safety valve
Cuts armoured Al and Cu cables
| Model | Hydraulic Ram Output | Cutting range (mm) |
G.W. (Kg) |
Packing size(mm) |
| HHD-85KF | 6.5 Ton | Ø85mm(Copper,Aluminum/armored cable) | 10 | 535×260×110 |
| HHD-105KF | 8.5 Ton | Ø105mm(Copper,Aluminum/armoredcable) | 11 | 610×210×110 |
| HHD-120KF | 10 Ton | Ø120mm(Copper,Aluminum/armoredcable) | 12 | 610×360×160 |
