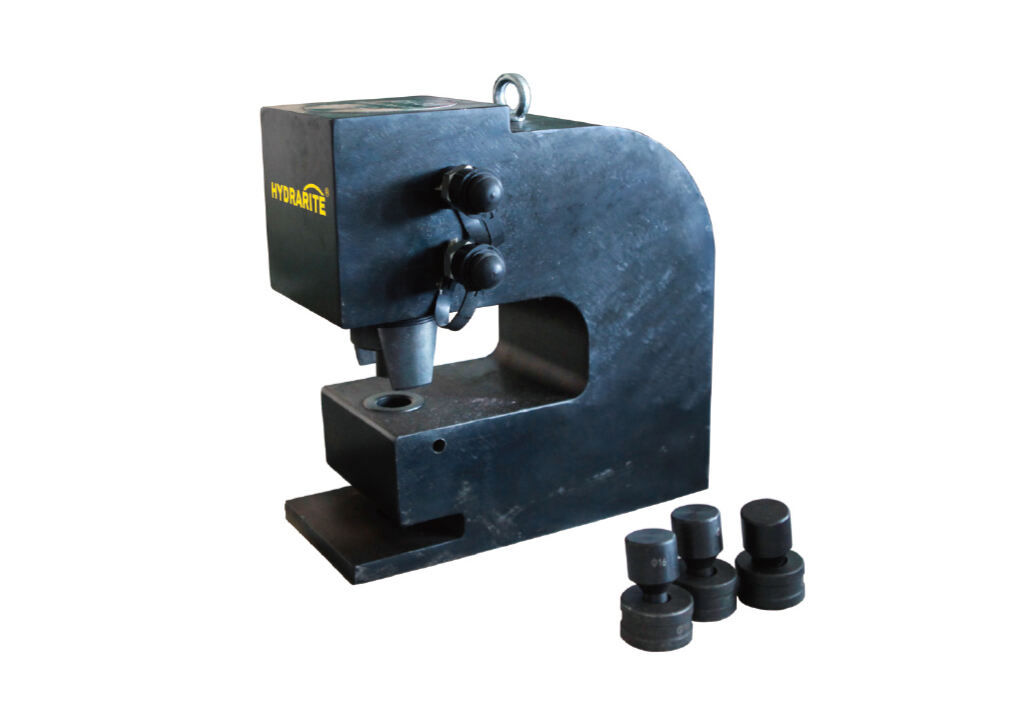

Hydraulic Busbar Puncher HHM-80

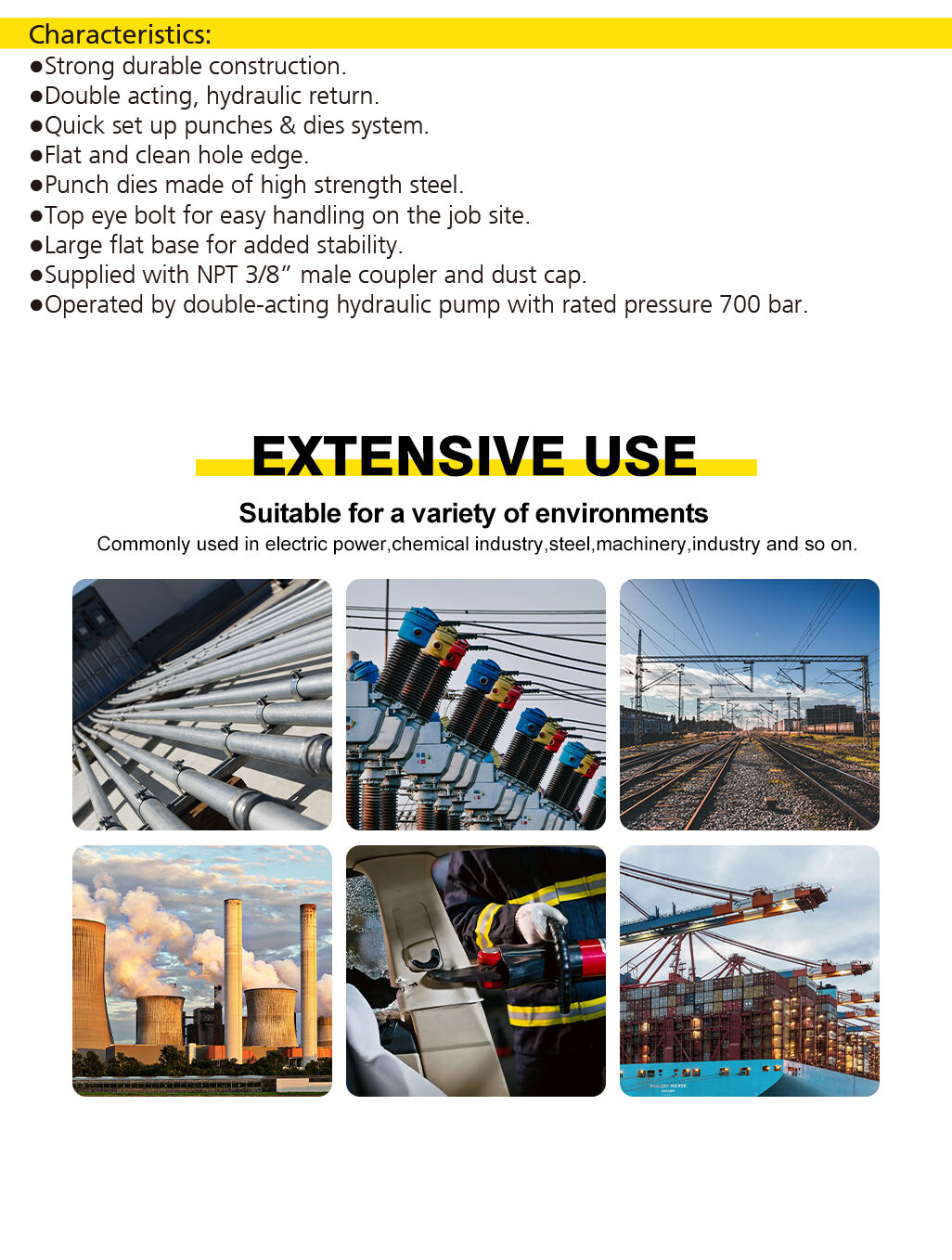

The HHM-80 is a robust hydraulic puncher with a 50-ton output force, designed for precision in industrial applications. It features a double-acting hydraulic return and a quick setup for punches and dies, ensuring clean hole edges. Crafted from high-strength steel, it handles up to 14mm mild steel and 16mm copper/aluminum busbar. Ideal for use in electric power, chemical, steel, and machinery industries, it offers easy handling with a top eye bolt and stability with a flat base. Equipped with an NPT 3/8” male coupler and dust cap, it operates at a rated pressure of 700 bar.
Description
Hydraulic Busbar Puncher, HHM-80
| Model | Output force (ton) |
Punch dies | Max.thickness(mm) | Throat depth (mm) |
G.W. (kg) |
Packing size (cm) |
|
| mild steel | copper/aluminum busbar | ||||||
| HHM-80 | 50 | 16mm, 18mm 22mm, 25mm |
14 | 16 | 125 | 80 | 37×15×44 |
