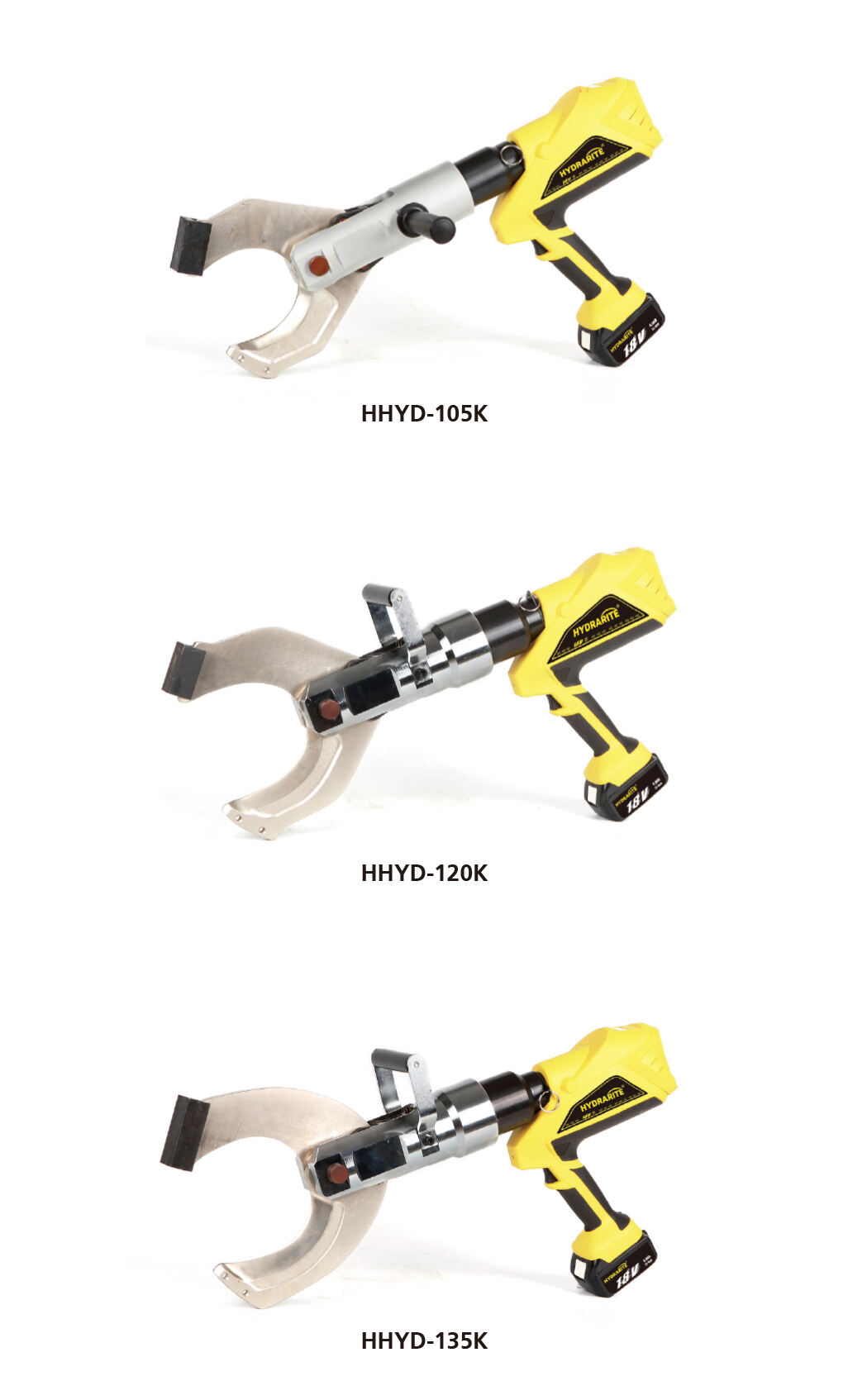

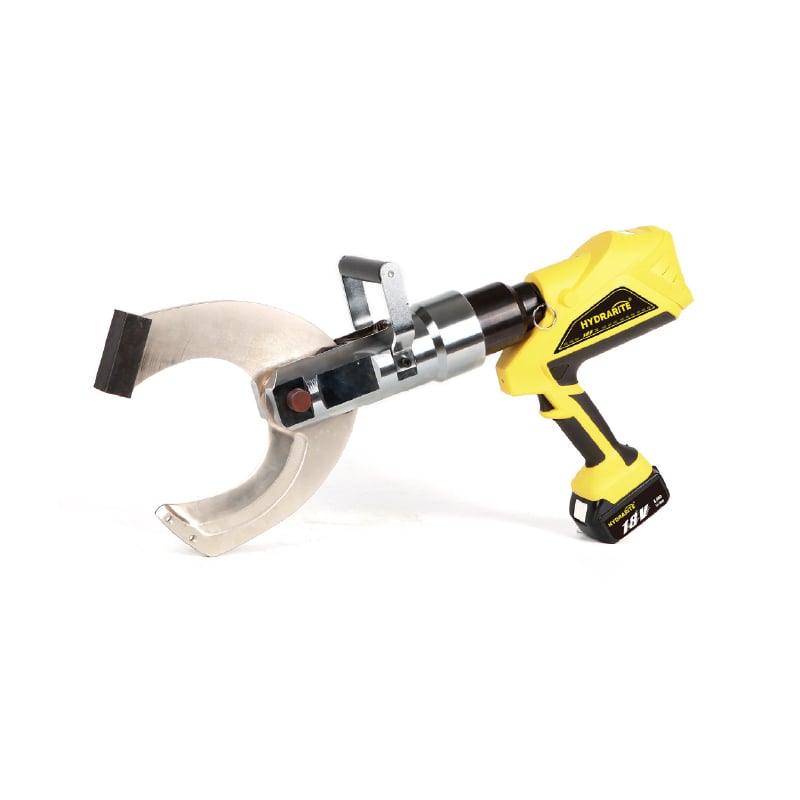

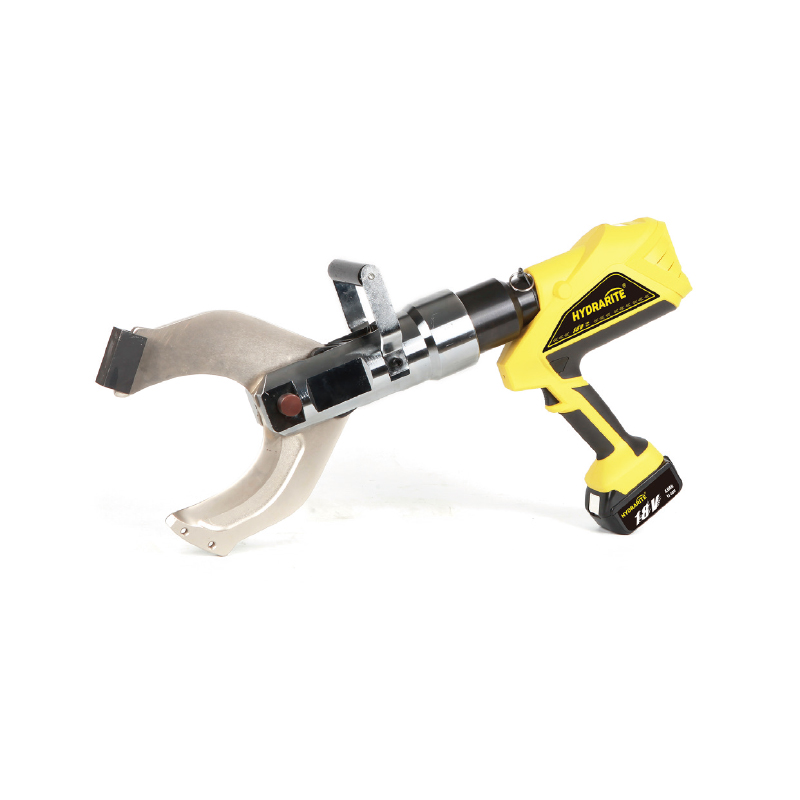

Battery Powered Hydraulic Cable Cutters HHYD-105K HHYD-120K HHYD-135K

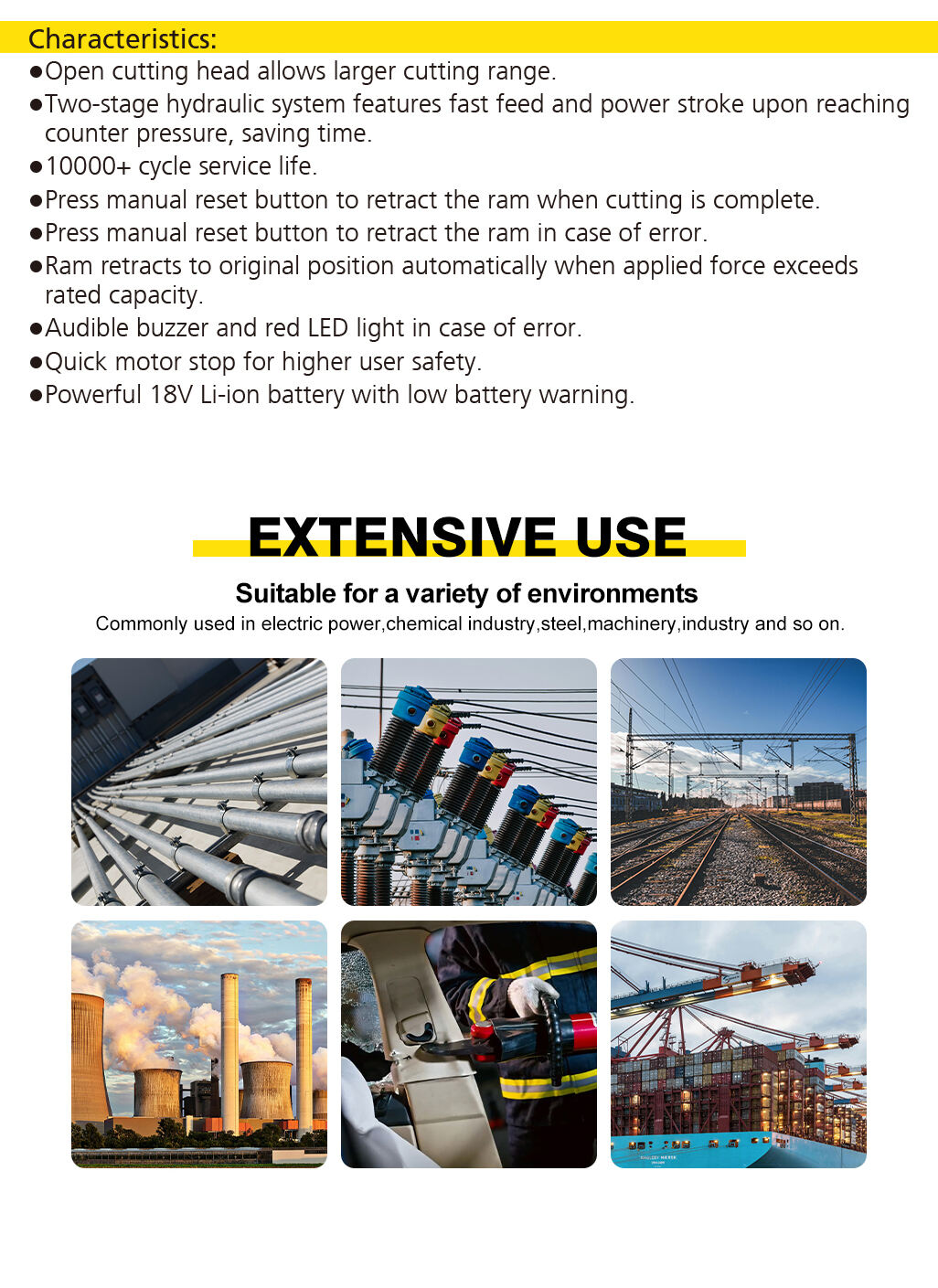

This cutting tool features an open cutting head, providing a larger cutting range for versatile applications. Its two-stage hydraulic system ensures fast feed and power stroke, optimizing efficiency by adjusting at counter pressure to save time. With a robust service life of over 10,000 cycles, it guarantees long-term reliability. The ram automatically retracts to its original position when the applied force exceeds the rated capacity, with a manual reset button available for retraction after cutting or in case of errors. An audible buzzer and red LED light provide immediate error alerts, while a quick motor stop enhances user safety. Powered by a powerful 18V Li-ion battery with a low battery warning, this tool combines efficiency, safety, and convenience, making it ideal for demanding cutting tasks.
Description
| Model | HHYD-105K | HHYD-120K | HHYD-135K |
| Hydraulic Ram Output | 16 Ton | 18 Ton | 18 Ton |
| Ram Stroke | 45 mm | 52 mm | 52 mm |
| Crimping times | 8s-20s(Depend on the size of cable) | 8s-20s(Depend on the size of cable) | 8s-20s(Depend on the size of cable) |
| Cutting range | Ø105mm(Copper,Aluminum and armored cable) | Ø120mm(Copper,Aluminum and armored cable) |
Ø135mm(Copper,Aluminum and armored cable) |
| Battery | 18V/4.0Ah Li-ion | 18V/4.0Ah Li-ion | 18V/4.0Ah Li-ion |
| Charging time | 2 hours | 2 hours | 2 hours |
| Qty of battery | 2 pcs | 2 pcs | 2 pcs |
| Charger | 1 pc | 1 pc | 1 pc |
| Seals | 1set | 1set | 1set |
| Weight(Kg) | 14 | 15 | 16 |
| Packing size(mm) | 800×600×170 | 800×600×170 | 800×600×170 |
