Description

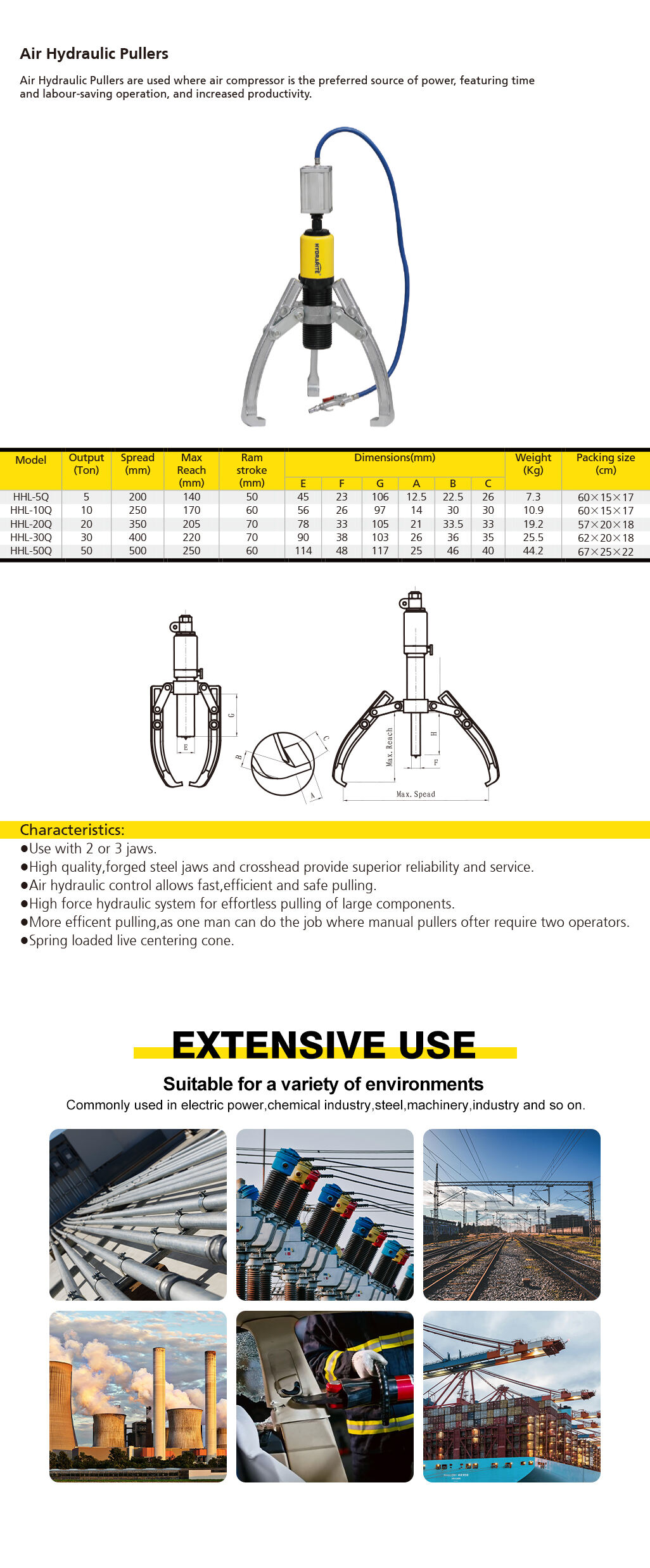

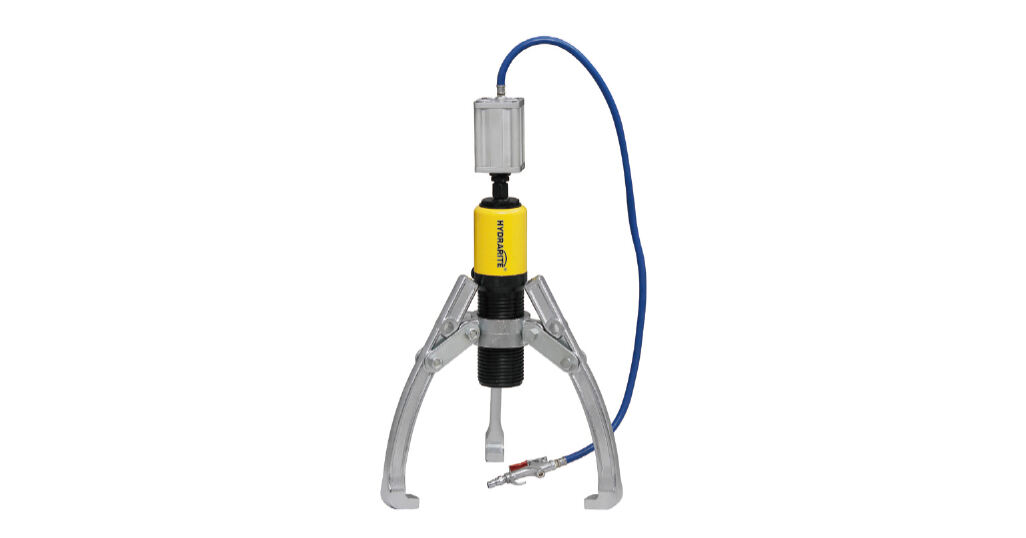

Air Hydraulic Pullers
Air Hydraulic Pullers are used where air compressor is the
preferred source of power, featuring time- and
labour-saving operation, and increased productivity.
| Model | Output (Ton) |
Spread (mm) |
Max Reach (mm) |
Ram stroke (mm) |
Dimensions(mm) | Weight (Kg) |
Packing size (cm) |
|||||

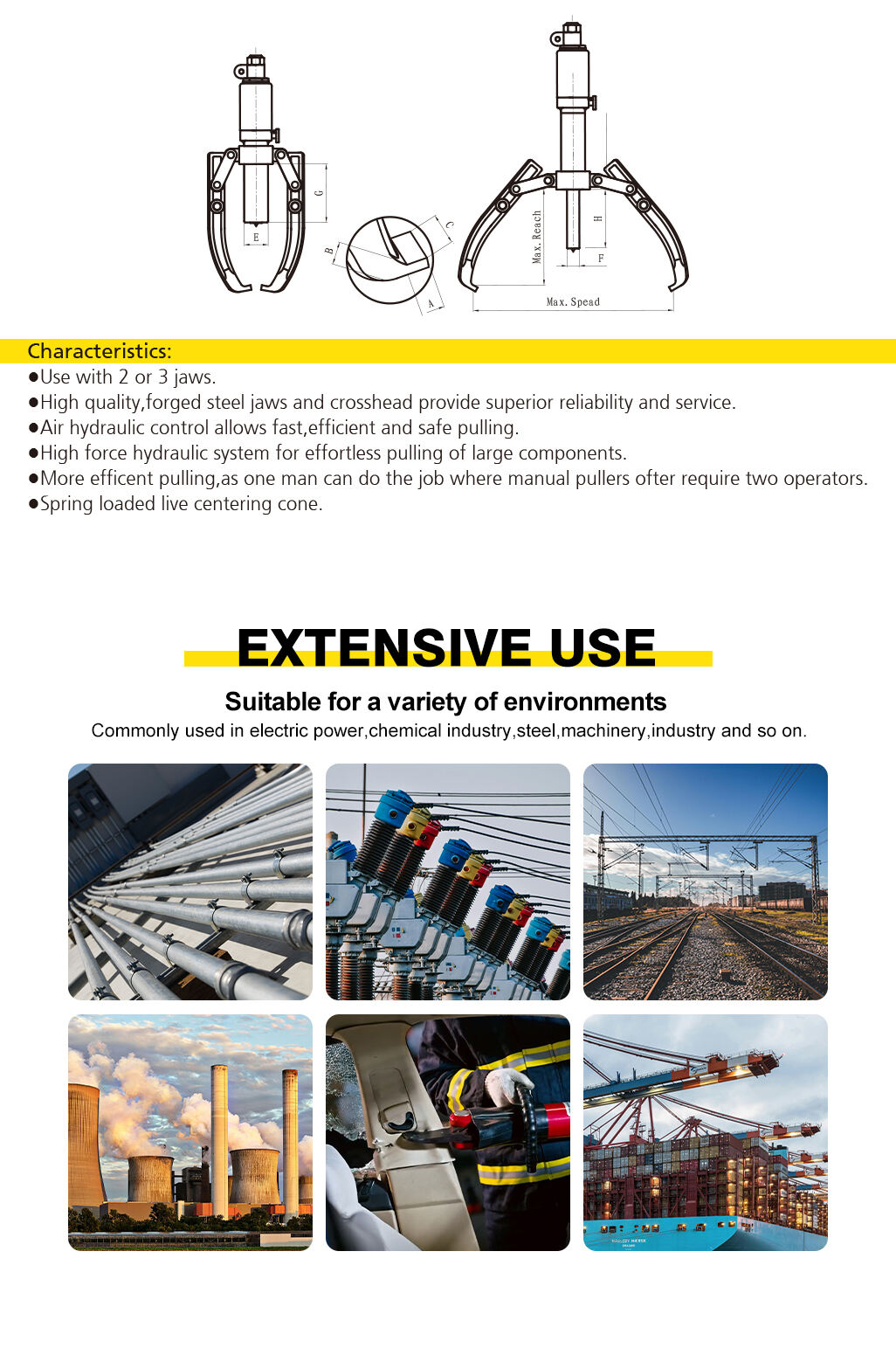

| E | F | G | A | B | C | |||||||
| HHL-5Q | 5 | 200 | 140 | 50 | 45 | 23 | 106 | 12.5 | 22.5 | 26 | 7.3 | 60X15X17 |
| HHL-10Q | 10 | 250 | 170 | 60 | 56 | 26 | 97 | 14 | 30 | 30 | 10.9 | 60X15X17 |
| HHL-20Q | 20 | 350 | 205 | 70 | 78 | 33 | 105 | 21 | 33.5 | 33 | 19.2 | 57X20X18 |
| HHL-30Q | 30 | 400 | 220 | 70 | 90 | 38 | 103 | 26 | 36 | 35 | 25.5 | 62X20X18 |
| HHL-50Q | 50 | 500 | 250 | 60 | 114 | 48 | 117 | 25 | 46 | 40 | 44.2 | 67X25X22 |
