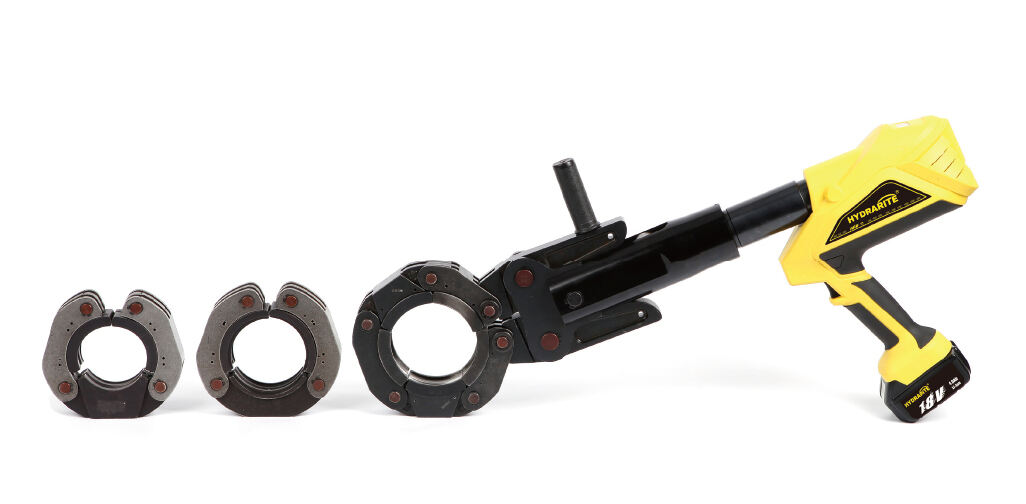

Battery-operated pressing tool HHYD-65100
This pressing tool offers easy and simple operation with high efficiency and safety, featuring jaws that meet GB/T 19228 standards for pressing stainless steel fittings up to 108 mm. Its two-stage hydraulic system ensures a fast feed and power stroke, saving time by adjusting at counter pressure. With a service life exceeding 10,000 cycles, the ram automatically retracts after each operation, with manual retraction available if needed. The LED display provides operation temperature and usage count, while a quick motor stop enhances safety. Powered by an 18V Li-ion battery with a low battery warning, its inline design and minimized weight make it easy to hold, ideal for confined spaces.
Description
Battery-operated pressing tool,HHYD-65100
For press jointing of stainless steel pipes DN65-DN100.
Reliable and watertight press jointing.
| Model | Output force | Stroke | Application | Mould type |
Pressing jaws | Weight (Kg) |
Packing size(mm) |
| HHYD-65100 | 7.5ton | 95mm | Pressing Stainless steel pipe DN65-DN100 |
round | DN65 ,DN80,DN100 | 36 | 585×500×170 |
