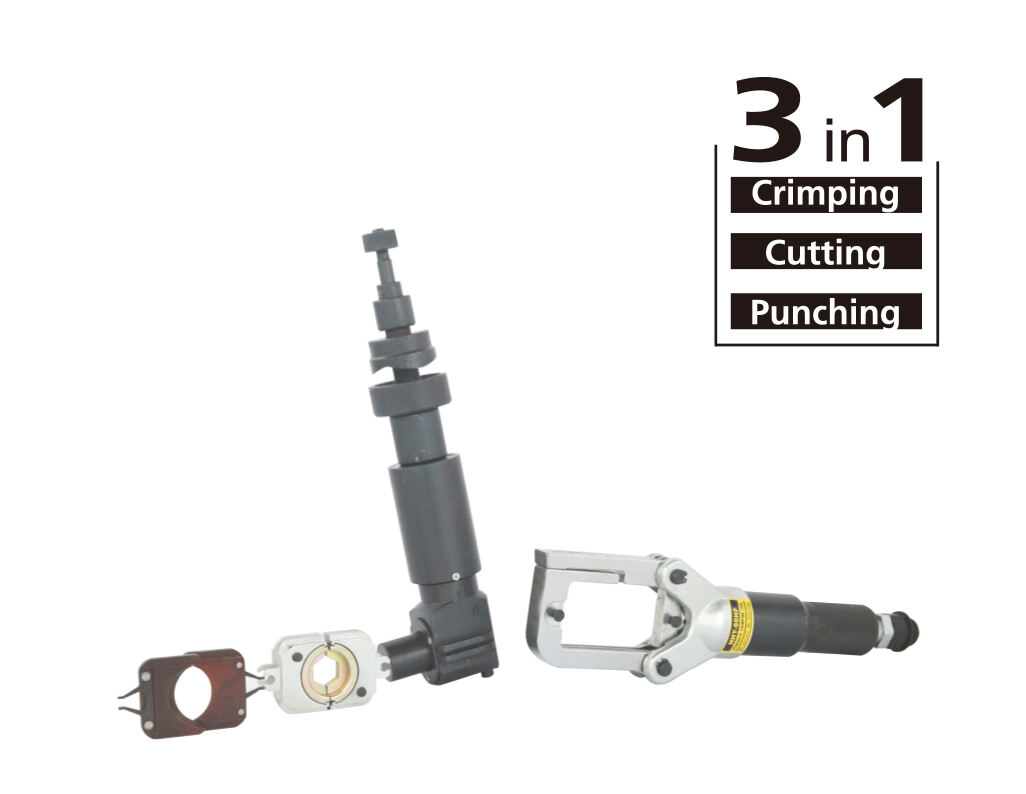

Hydraulic Universal Tool Head, HHY-60HF
|
| Model |
Hydraulic Ram Output |
Ram Stroke |
Cutting range(mm) |
Crimping range(mm²) |
Punching range(mm) |
G.W.(kg) |
Packing size(mm) |
| HHY-60HF |
6.5 Ton |
42 mm |
Ø40(Copper,Aluminum/armored cable) |
16-300 |
Ø22.5-Ø61.5 |
13.6 |
610×210×110 |
|
|

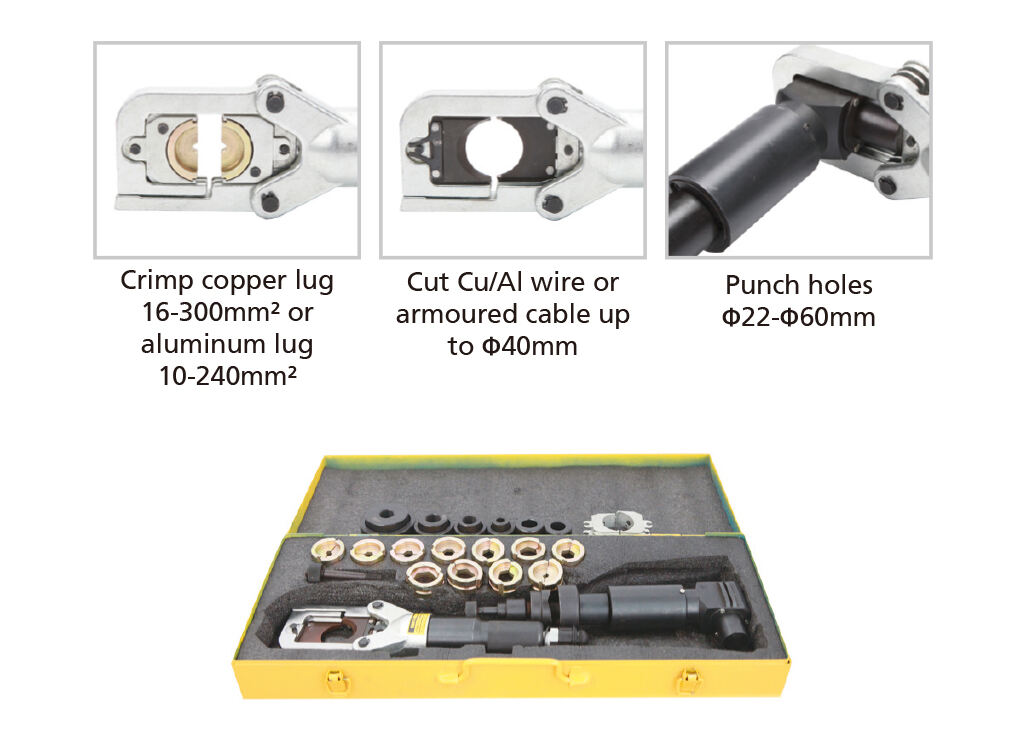

| Accessories |
| Crimping dles(mm²) |
16,25,35,50,70,95,120,150,185,240,300 |
| Punching dles(mm) |
22.5,28.3,34.6,43.2,49.6,61.5 |
| Blades |
1 set |
| Crimping adapter |
1 pc |
| Punching adapter |
1 pc |
| Draw stud M20x1.5 |
1 pc |
| Draw stud M10 x 1 |
1 pc |
| Spacer |
1 pc |
| Sealing ring of cylinder |
1 pc |
| Sealing ring of safety valve |
1 pc |
|
