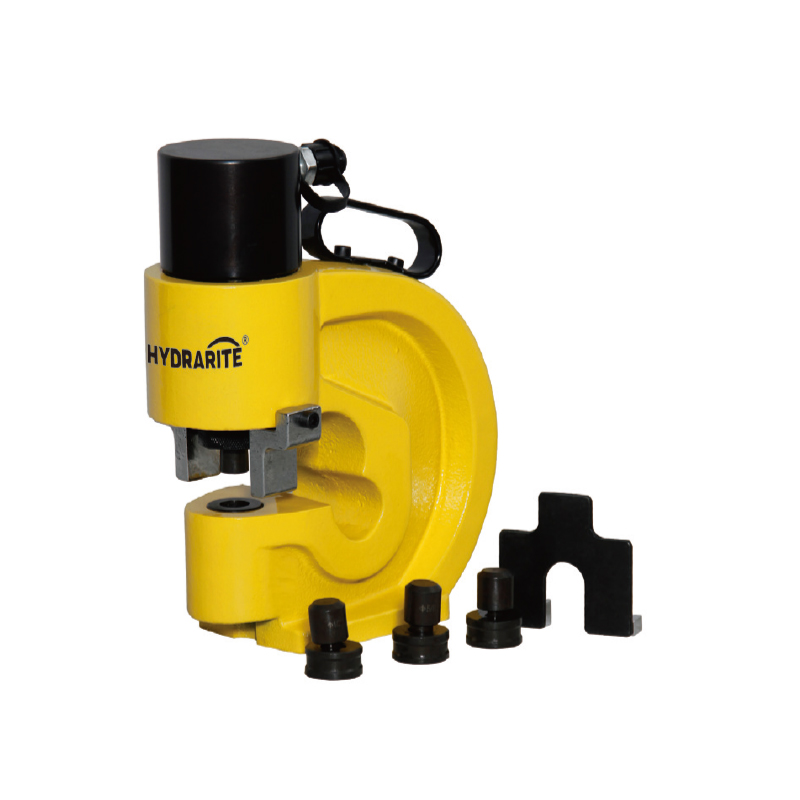

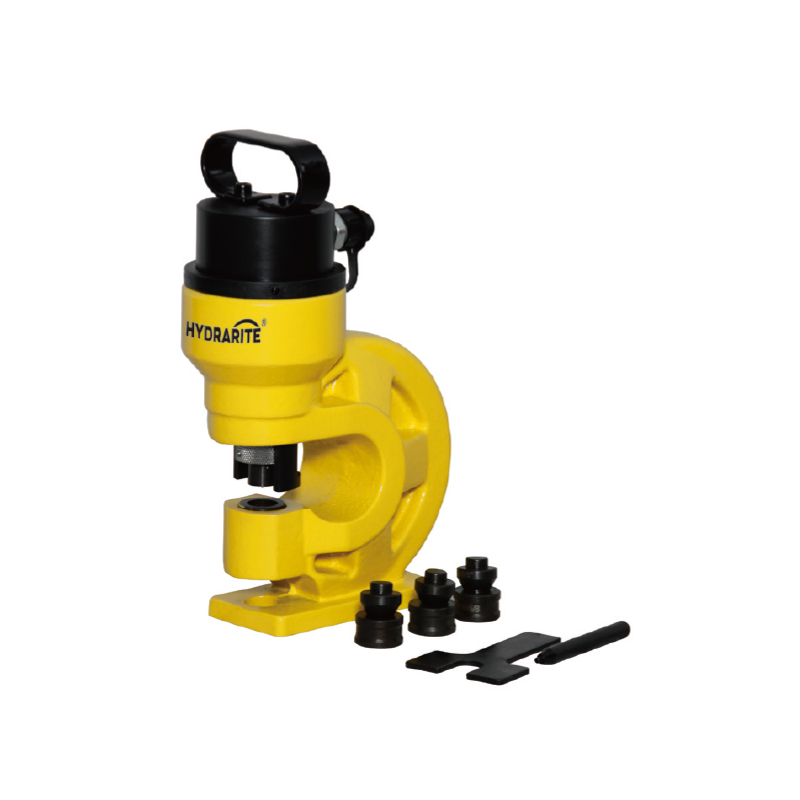

Hydraulic Busbar Puncher HHM-60 HHM-70
The HHM-60 and HHM-70 models offer robust, durable construction with output forces of 31 and 35 tons, respectively. Designed for quick setup, they handle mild steel up to 8mm and copper/aluminum busbars up to 12mm. Features include a single-acting spring return, high-strength steel punch dies, and a carrying handle for easy transport. Operates with a 700 bar hydraulic pump, suitable for various industrial environments.
Description
Hydraulic Busbar Puncher

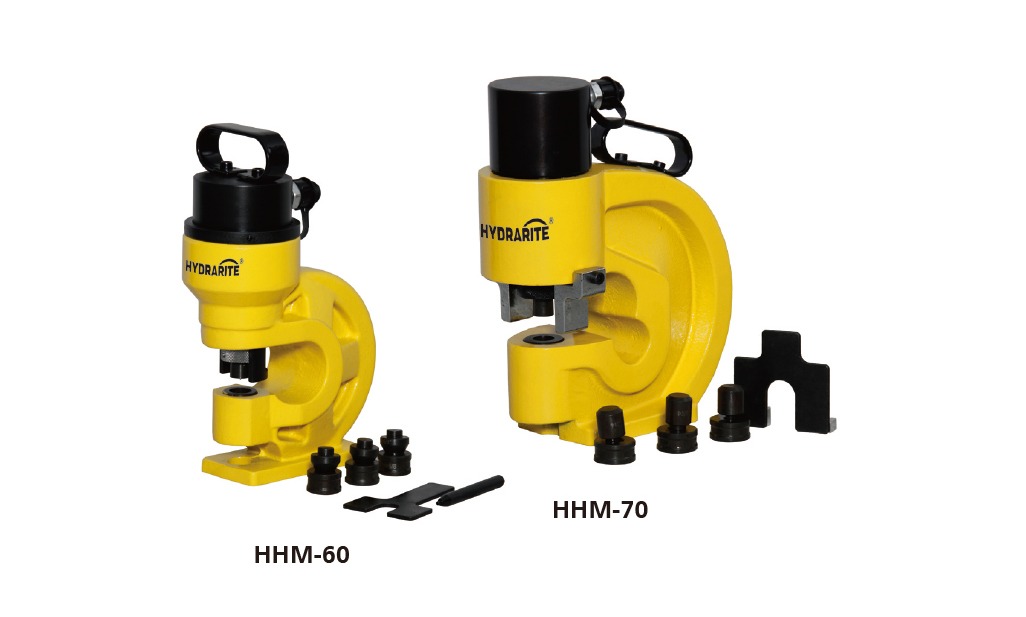

HHM-60, HHM-70
| Model | Output force (ton) |
Punch dies | Max.thickness(mm) | Throat depth (mm) |
G.W. (kg) |
Packing size (cm) |
|
| mild steel | copper/aluminum busbar | ||||||
| HHM-60 | 31 | 3/8”(11.1mm),1/2”(14.3mm) 5/8”(17mm),3/4”(20.6mm) |
6 | 10 | 70 | 23.3 | 40×25×15 |
| HHM-70 | 35 | 3/8”(11.1mm),1/2”(14.3mm) 5/8”(17mm),3/4”(20.6mm) |
8 | 12 | 110 | 37.4 | 33×20×39 |
