Two-stage Bolt Tensioners

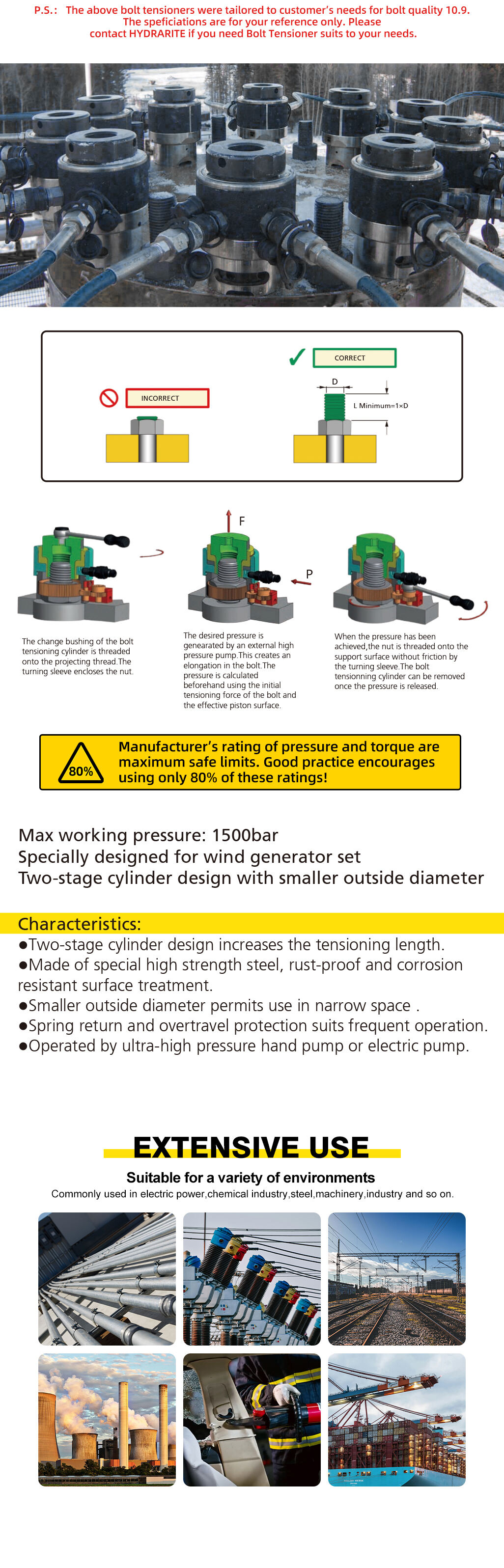

Manufacturer's rating of pressure and torque aremaximum safe limits. Good practice encouragesusing only 80% of these ratings!
Description

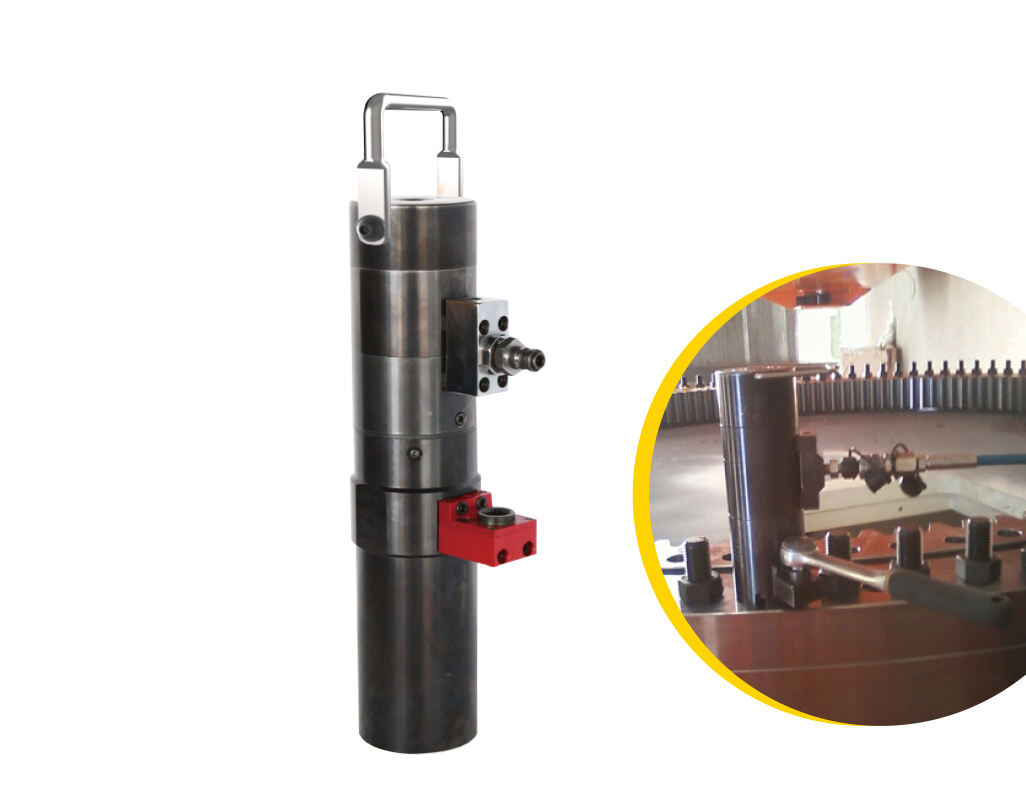

Two-stage Bolt Tensioners
| Model | Max working pressure(Bar) | Load capacity (KN) |
Stroke (mm) |
Effective area (cm²) |
Number of load cells | Thread size | A/F | Closed height (mm) |
Outside diameter (mm) |
| HHLS-TT36 | 1500 | 728 | 8 | 49.5 | 2 | M36×4 | 55 | 379 | 88 |
| HHLS-TT42 | 1500 | 878 | 10 | 59.7 | 2 | M42×4.5 | 65 | 273 | 98 |
| HHLS-TT48 | 1500 | 1148 | 10 | 78.2 | 2 | M48×5 | 75 | 299 | 111 |
