Description
| Model | Pump type |
Power rating (kw) |
Working pressure (bar) |
Flow rate (L/min) |
Usable oil capacity (liter) |
Dimensions (mm) |
Packing size (cm) |
Weight (Kg) |
||||
| Low pressure stage |
High pressure stage |
Low pressure stage |
High pressure stage |
L | B | H | ||||||

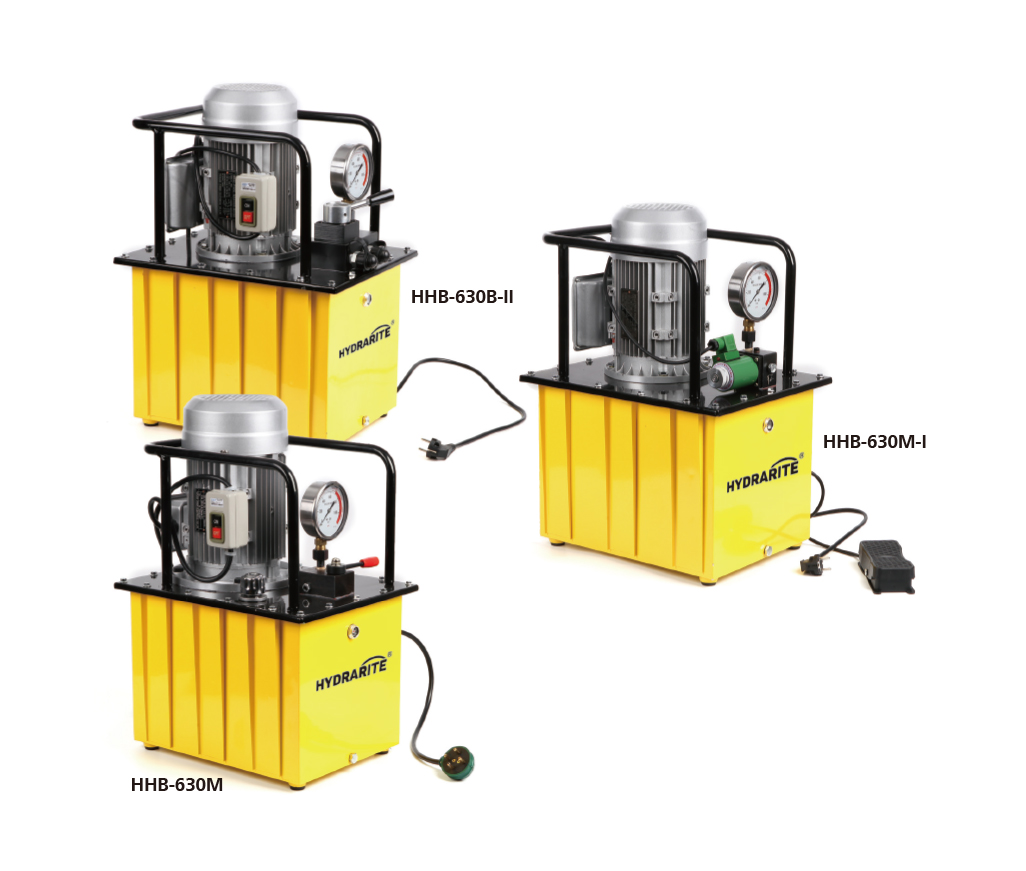

| HHB-630M | One-way | 1.5 | 20 | 700 | 6 | 2 | 35 | 455 | 355 | 630 | 50X38X70 | 41 |
| 2.2 | 20 | 700 | 9 | 2.6 | 35 | 455 | 355 | 660 | 50X38X70 | 54 | ||
| 3 | 20 | 700 | 10 | 3 | 35 | 455 | 355 | 660 | 50X38X70 | 57.8 | ||
| HHB-630M-I | One-way | 1.5 | 20 | 700 | 6 | 2 | 35 | 455 | 355 | 630 | 50X38X70 | 41 |
| 2.2 | 20 | 700 | 9 | 2.6 | 35 | 455 | 355 | 660 | 50X38X70 | 54 | ||
| 3 | 20 | 700 | 10 | 3 | 35 | 455 | 355 | 660 | 50X38X70 | 57.8 | ||
| HHB-630B-II | Two-way | 1.5 | 20 | 700 | 6 | 2 | 35 | 455 | 355 | 630 | 50X38X70 | 41 |
| 2.2 | 20 | 700 | 9 | 2.6 | 35 | 455 | 355 | 660 | 50X38X70 | 54 | ||
| 3 | 20 | 700 | 10 | 3 | 35 | 455 | 355 | 660 | 50X38X70 | 57.8 | ||
