Description

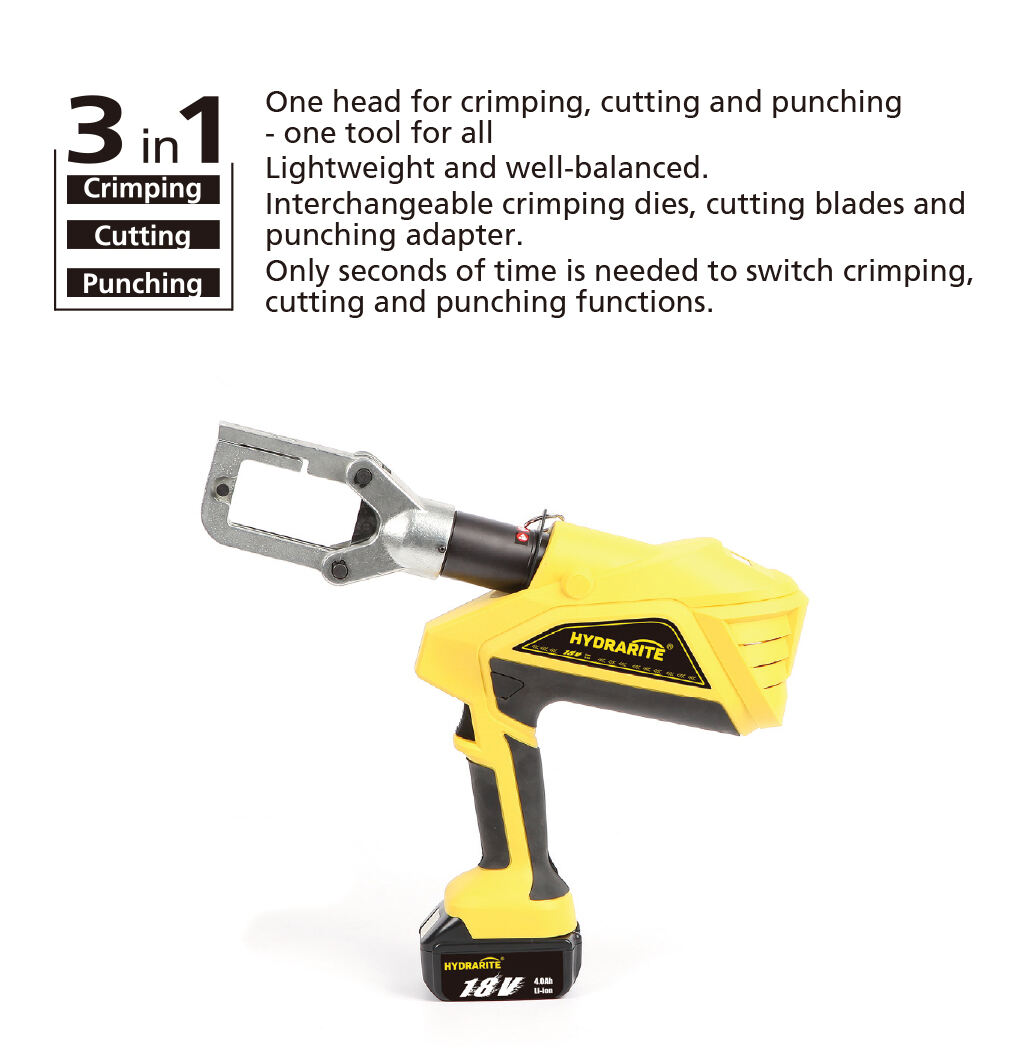

Battery Powered Universal Tool, HHYD-60H
| Model | Hydraulic Ram Output | Ram Stroke | Battery capacity | Crimping range | Punching range | Battery | Charging time |
| HHYD-60HL | 6 Ton | 42 mm | 90 cutting cycles 320 crimping cycles 100 punching cycles |
16-300 mm² | Ø22Ø60mm | 18V/4.0Ah Li-ion | 2 hours |
| Accessories | |||||||

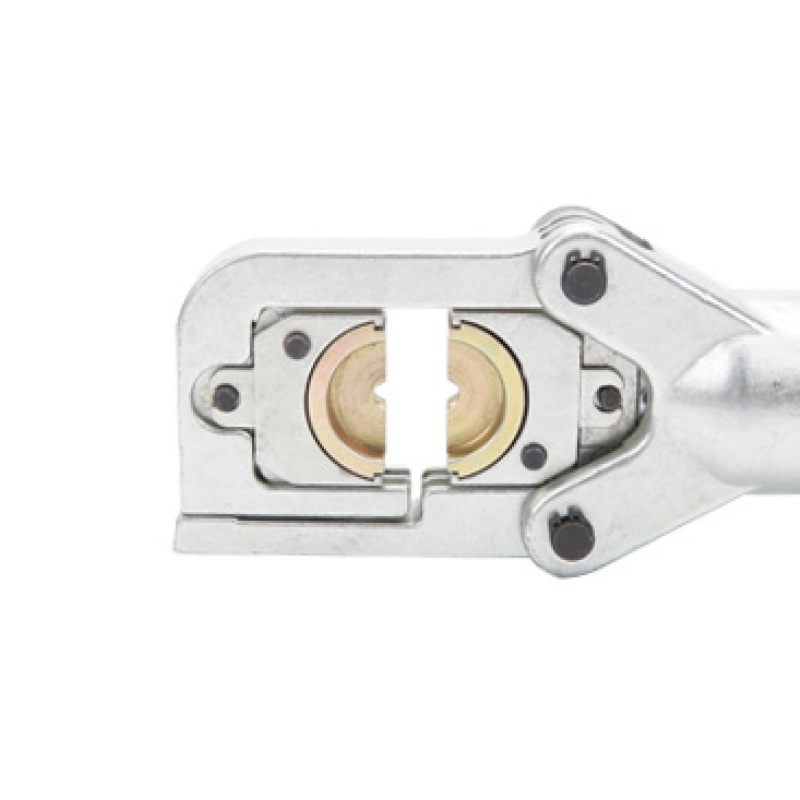

| Crimping dies | 16,25,35,50,70,95,120,150,185,240,300mm² | ||||||

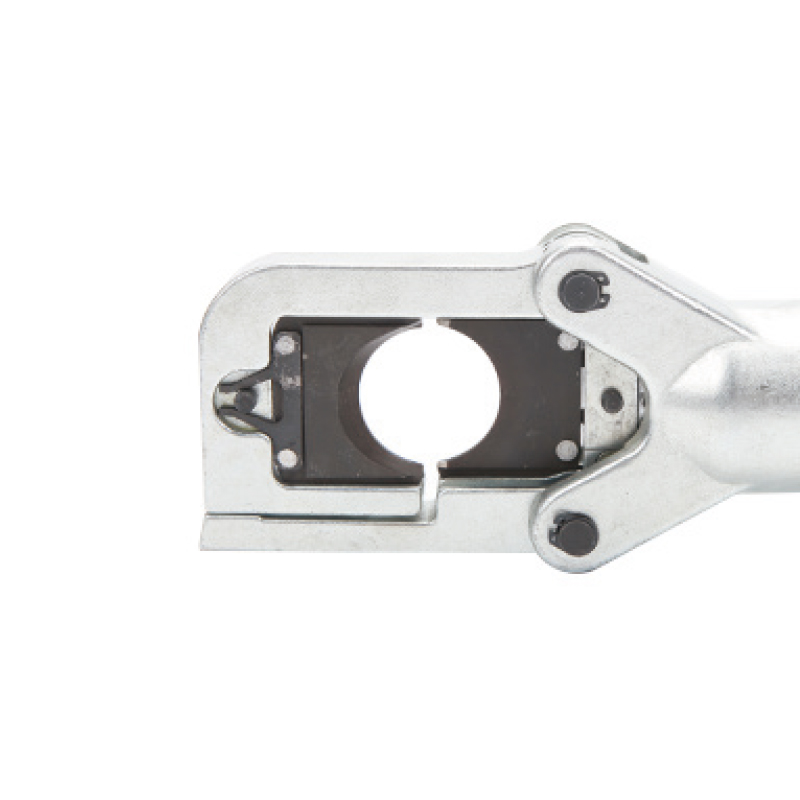

| Punching dies | 22,27,34,43,49,60 mm | ||||||
| Qty of battery | 2 pcs | ||||||

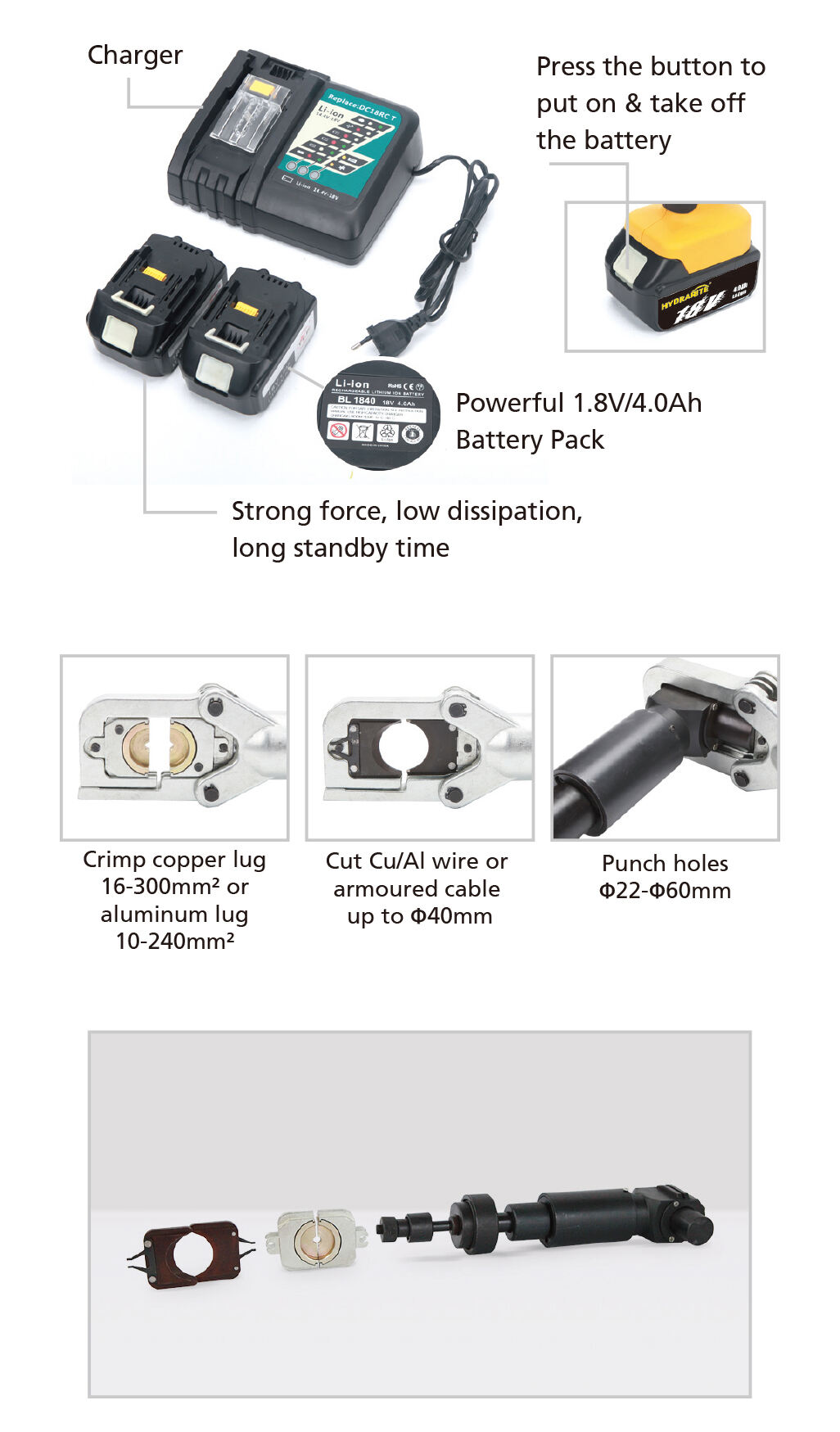

| Charger | 1 pc | ||||||
| Blade | 1 set | ||||||

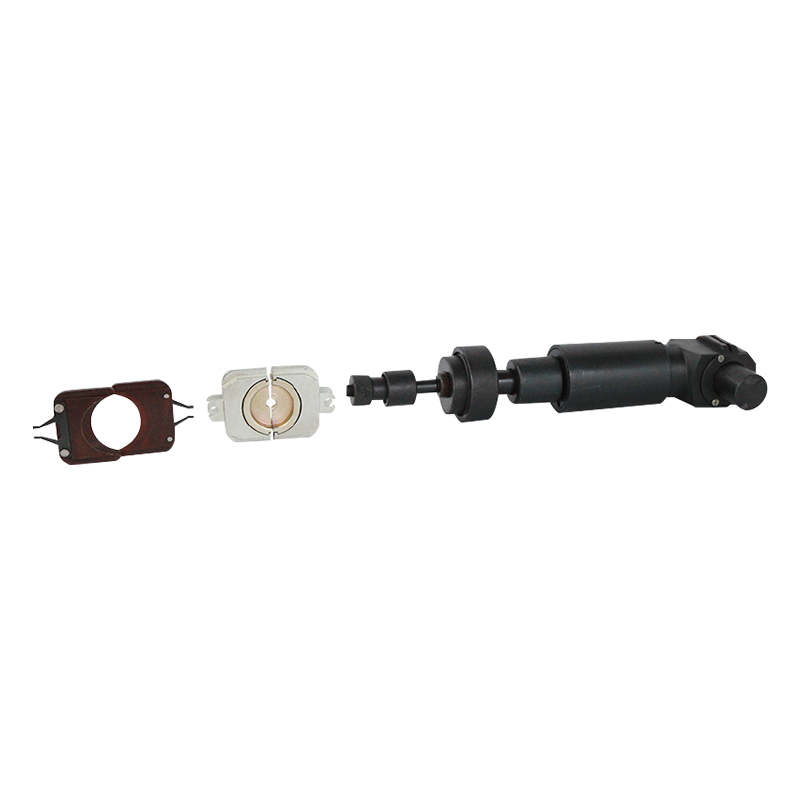

| Adapter for crimping | 1 pc | ||||||
| Adapter for punching | 1 pc | ||||||
| Draw stud M20×1.5 | 1 pc | ||||||
| Draw stud M10×1 | 1 pc | ||||||
| Spacer | 1 pc | ||||||
| Seals | 1set | ||||||
| Weight(Kg) | 21.4 | ||||||
| Packing size(mm) | 585×500×170 | ||||||
