Description

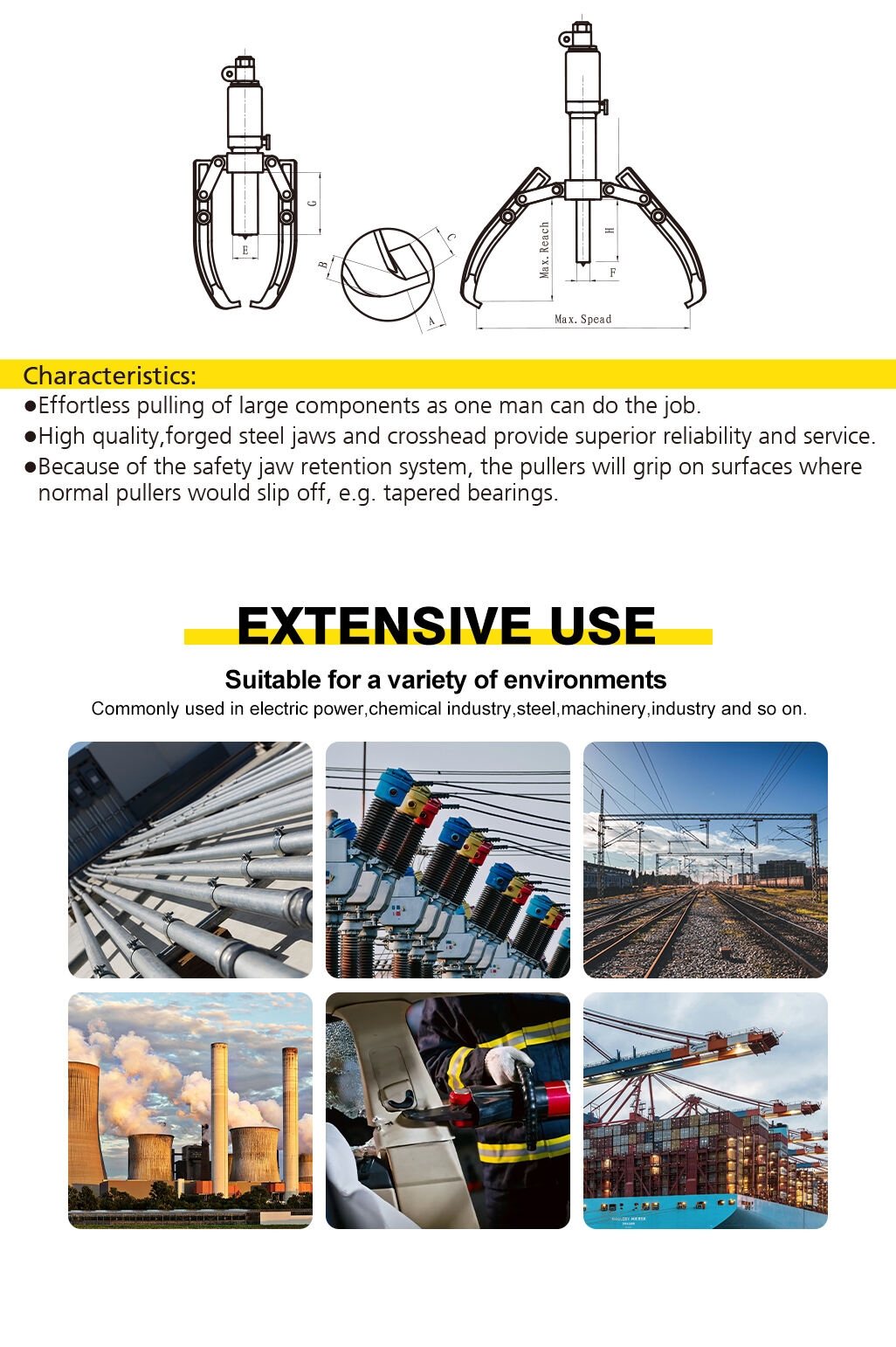

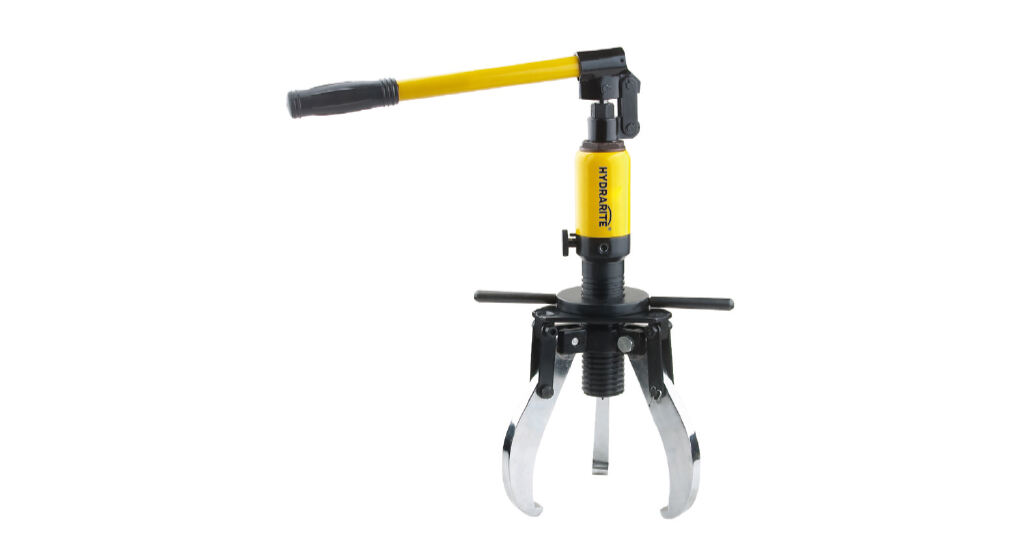

Skid-Resistant Hydraulic Pullers
Slim tapered jaws for better gripping in tight spots.
| Model | Output (Ton) |
Spread (mm) |
Max Reach (mm) |
Ram stroke (mm) |
Dimensions(mm) | Weight (Kg) |
Packing size (cm) |
|||||
| E | F | G | A | B | C | |||||||
| HHL-5S | 5 | 50-250 | 140 | 50 | 45 | 23 | 106 | 10 | 10 | 20 | 13.8 | 60x12x17 |
| HHL-10S | 10 | 50-300 | 170 | 60 | 56 | 26 | 97 | 10 | 10 | 20 | 15.1 | 57x18x16 |
| HHL-20S | 20 | 100-400 | 205 | 70 | 78 | 33 | 105 | 12 | 12 | 22.5 | 20.4 | 62x25x22 |
