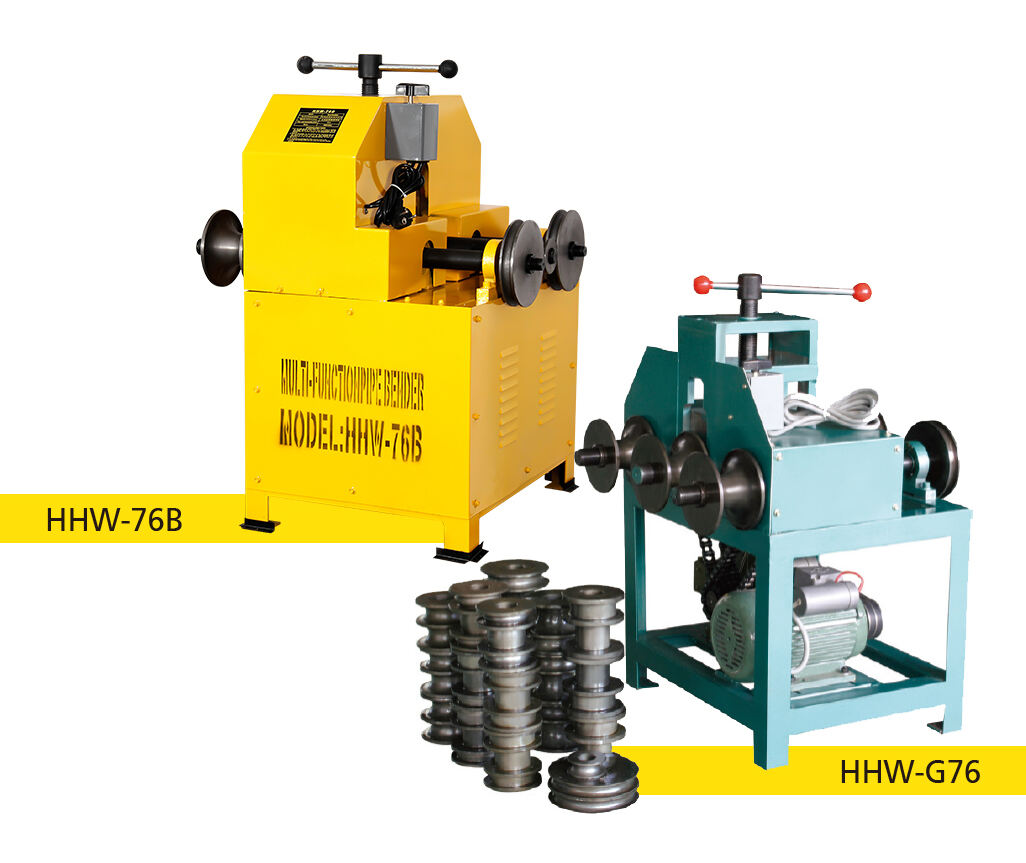

Multi-functional pipe bender HHW-76B HHW-G76

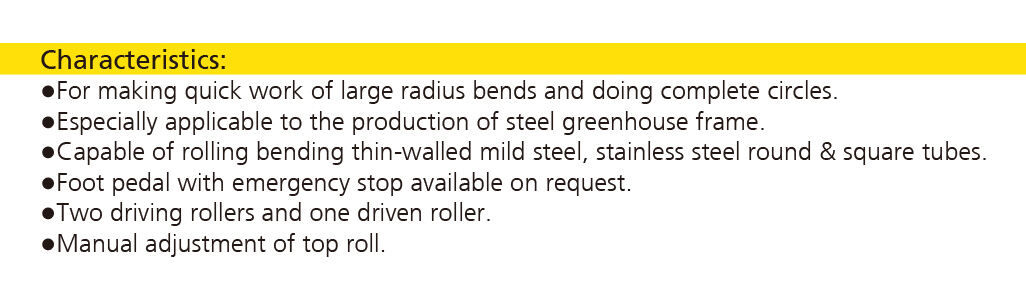

This bending machine is ideal for creating large radius bends and complete circles, especially useful in producing steel greenhouse frames. It efficiently handles thin-walled mild steel and stainless steel, accommodating both round and square tubes. The machine features two driving rollers and one driven roller, with manual adjustment of the top roll for precision. A foot pedal with an emergency stop option enhances safety. Its design ensures quick, efficient operation, making it a versatile tool for various bending applications.
Description
Section & Tube Rolling Machines
HHW-76B and HHW-G76
This specially designed section and tube rolling machine can be used on either side front
or rear of machine, the front is designed to handle the
larger tube as the rear is capable of rolling smaller tubes.
Toolings made of grey cast iron allows long service life.
| Model | HHW-76B | HHW-G76 |
| Tooling for round tubes (mm) ● |
16 | |
| 19 | ||
| 22 & 63 (2-IN-1) | ||
| 25 & 51 (2-IN-1) | ||
| 32 & 38 (2-IN-1) | ||
| 76 | ||
| Tooling for square tubes (mm) ■ |
30 & 50 (2-IN-1) | |
| 16 & 25 & 40 (3-IN-1) | ||
| 19 & 22 & 38 (3-IN-1) | ||
| Motor | 220V or 380V, 1.5 KW, 1400 rpm | |
| G.W. (kgs) | 260 | 250 |
| Packing size (cm) | 73×63×103 | |
| Tooling for round tubes (mm) |
Tooling for square tubes (mm) |
||||||||||||||||
| 16 | 19 | 22 | 25 | 32 | 38 | 51 | 63 | 76 | 16 | 19 | 22 | 25 | 30 | 38 | 40 | 50 | |
| Wall thickness of stainless steel tube |
0.5 | 0.8 | 1.0 | 1.0 | 1.2 | 1.2 | 1.5 | 1.6 | 2 | 0.5 | 0.8 | 1.0 | 1.0 | 1.2 | 1.2 | 1.5 | 1.5 |
| Wall thickness of mild steel tube |
0.8 | 1.0 | 1.2 | 1.2 | 1.5 | 1.5 | 1.8 | 1.8 | 2.3 | 0.8 | 1.0 | 1.2 | 1.2 | 1.5 | 1.5 | 1.8 | 1.8 |
