Description

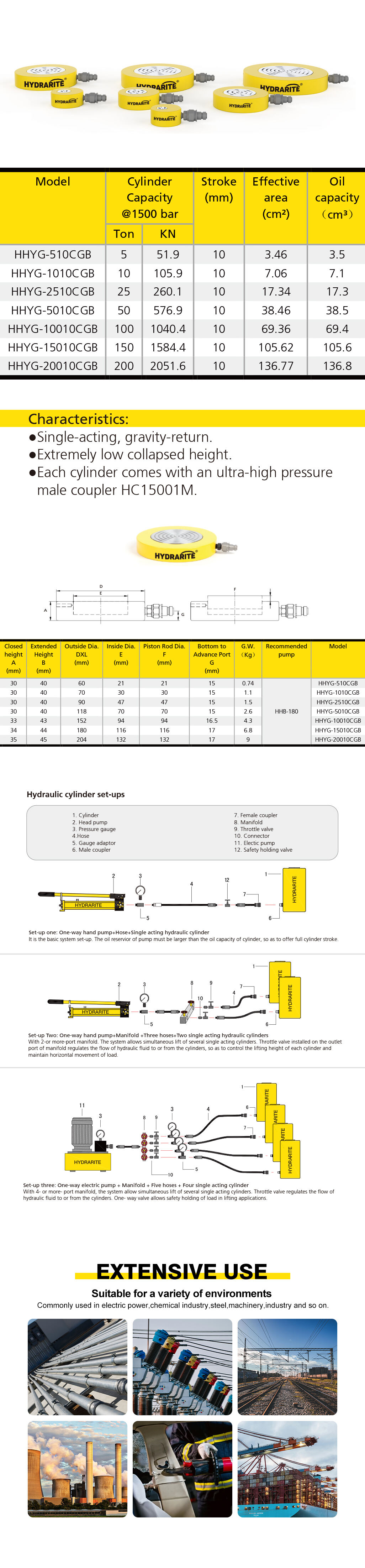

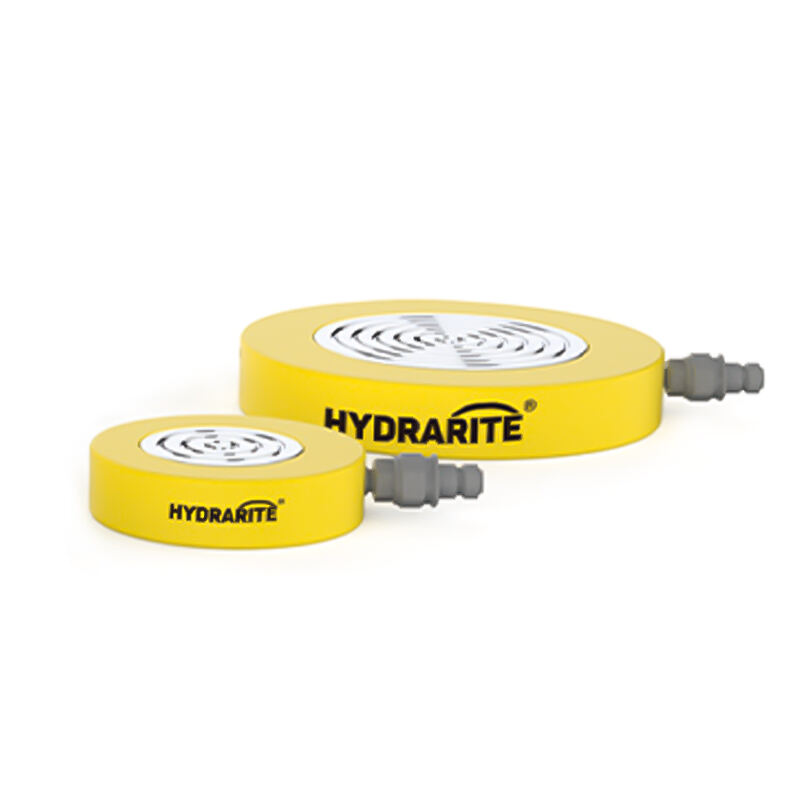

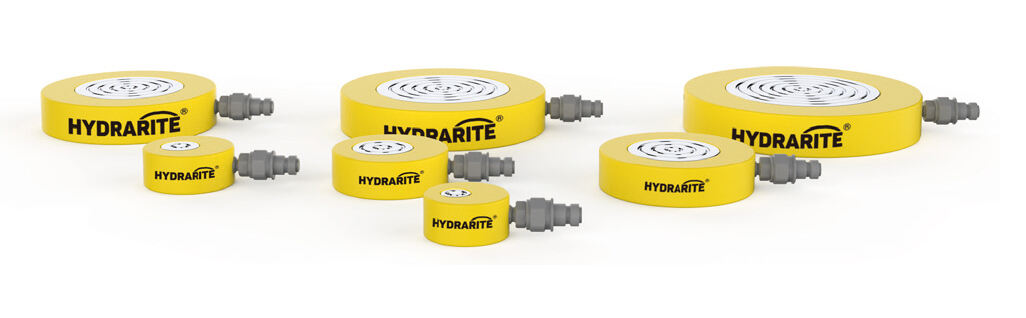

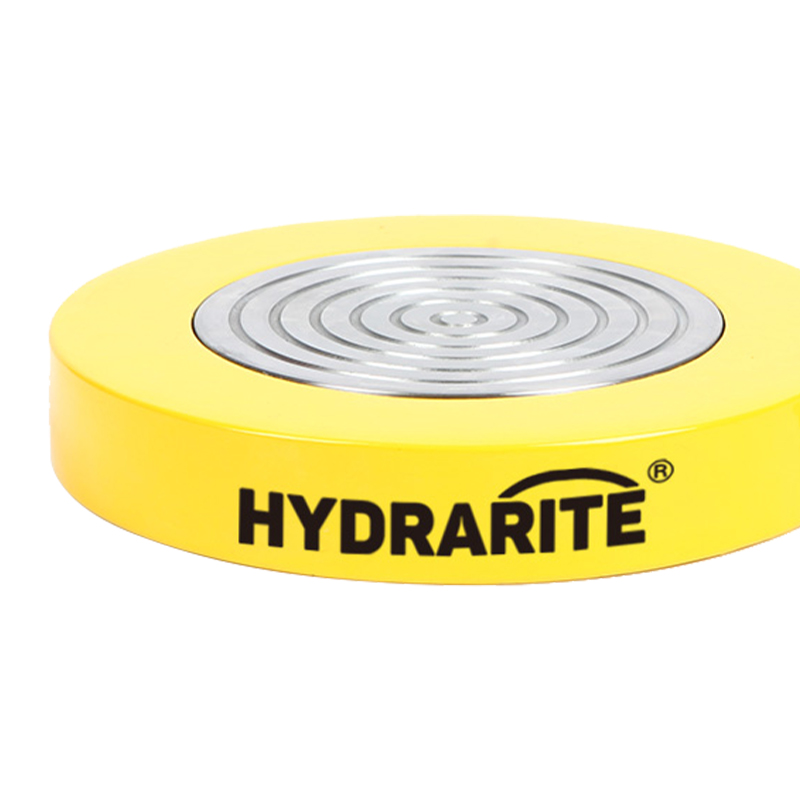

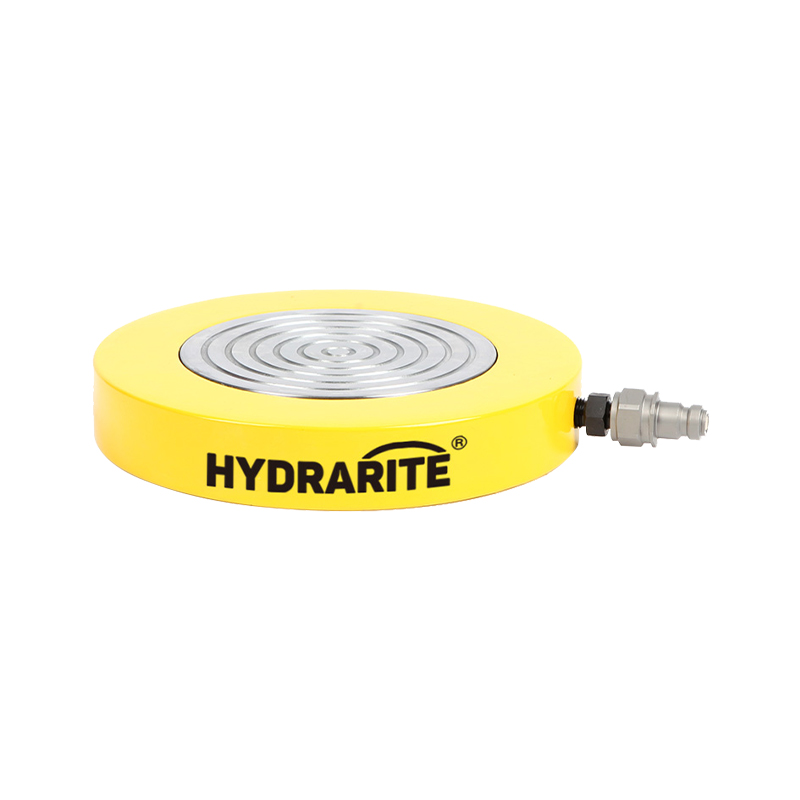

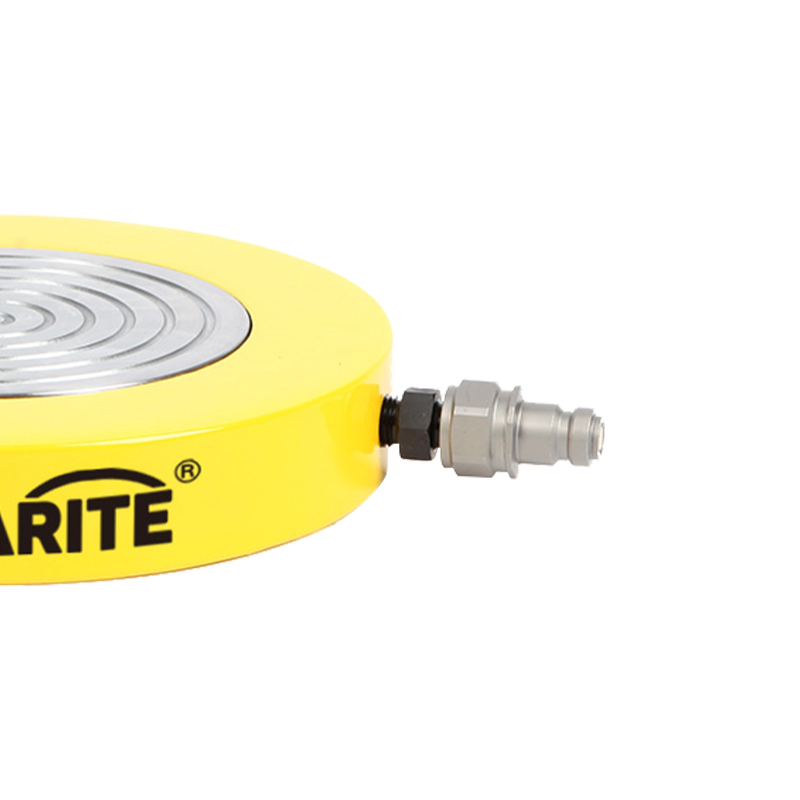

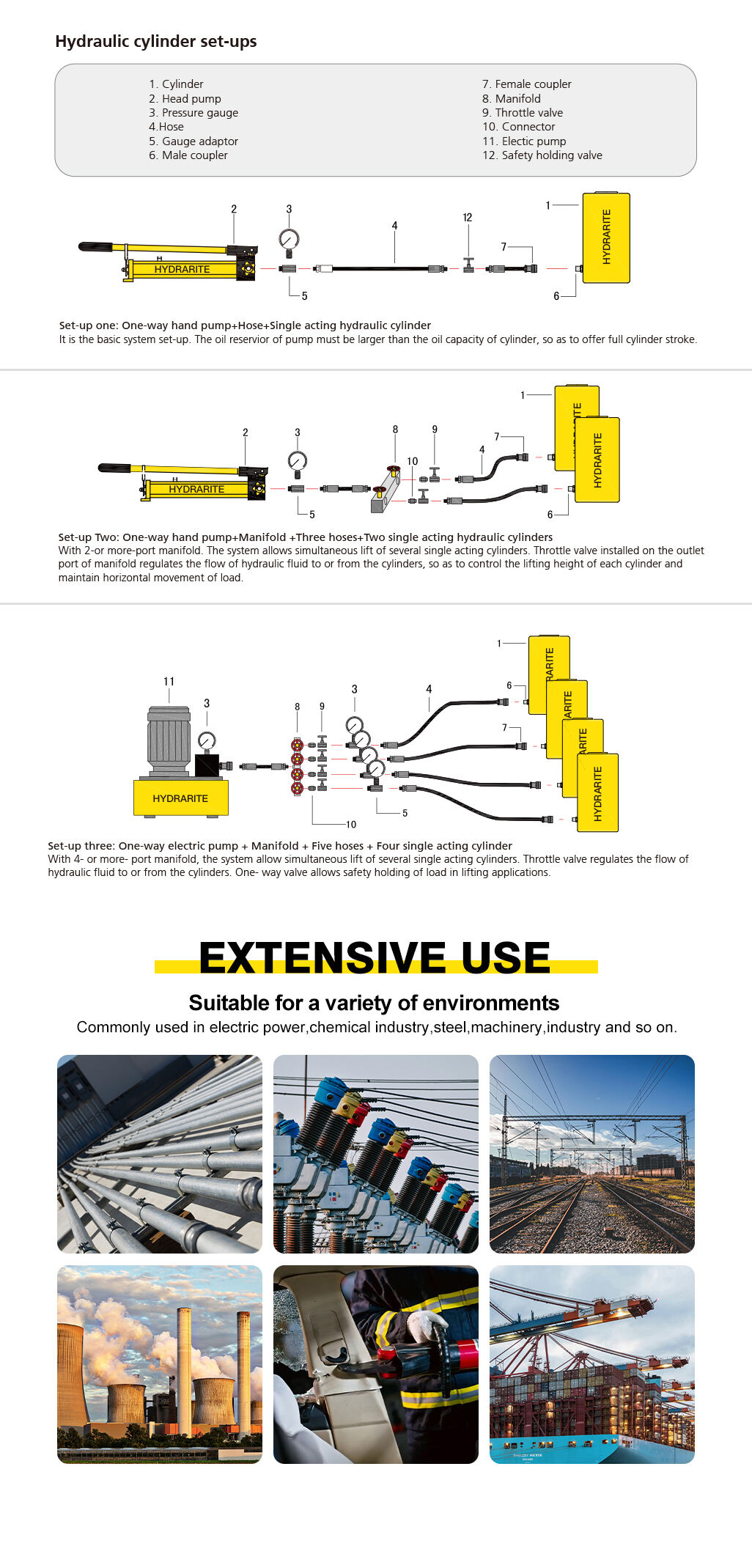

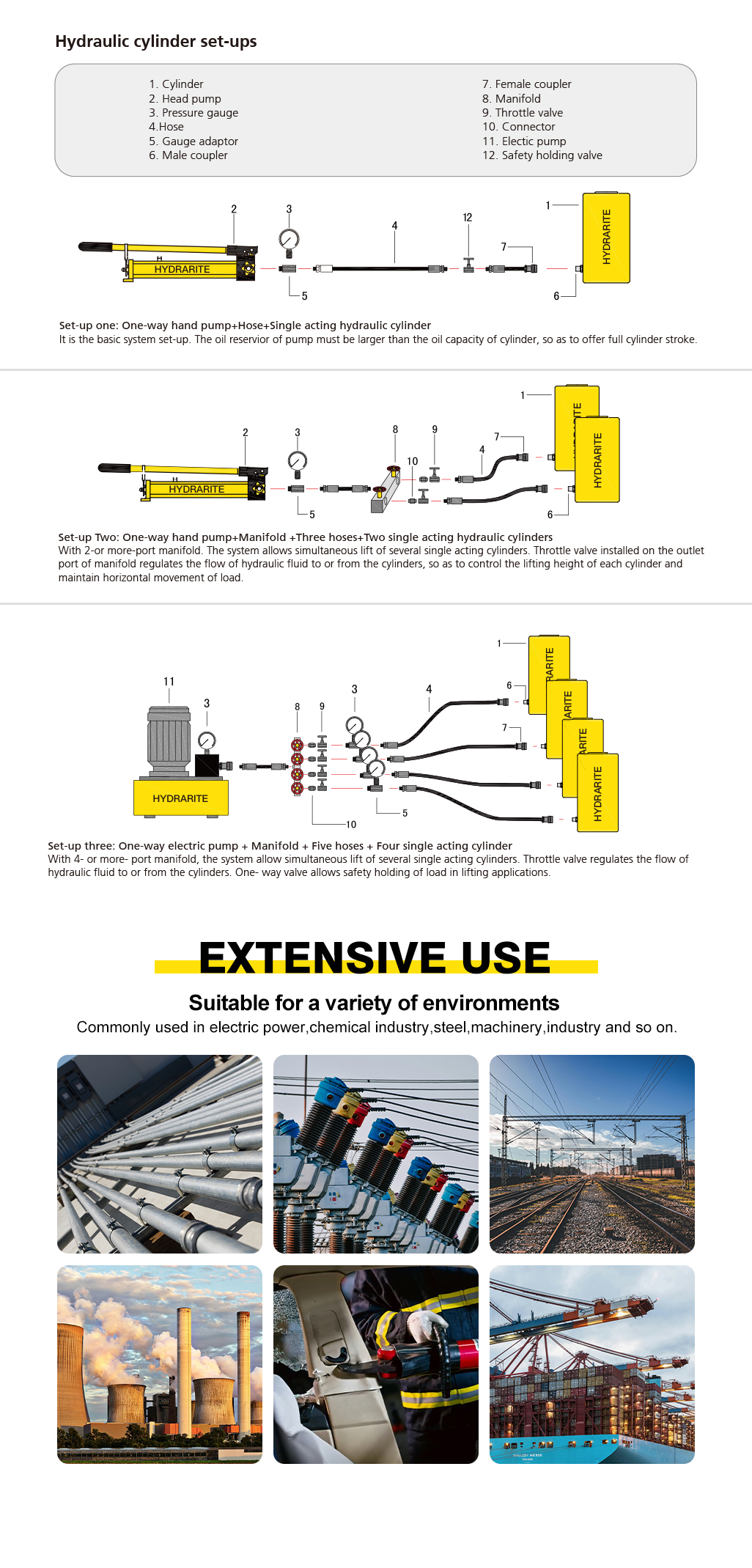

Ultra-High Pressure Ultra-Flat Cylinders
Working pressure: 1500 bar
| Model | Cylinder Capacity @1500 bar | Stroke (mm) |
Effective area (cm²) |
Oil capacity （cm³） |
|
| Ton | KN | ||||
| HHYG-510CGB | 5 | 51.9 | 10 | 3.46 | 3.5 |
| HHYG-1010CGB | 10 | 105.9 | 10 | 7.06 | 7.1 |
| HHYG-2510CGB | 20 | 260.1 | 10 | 17.34 | 17.3 |
| HHYG-5010CGB | 50 | 576.9 | 10 | 38.46 | 38.5 |
| HHYG-10010CGB | 100 | 1040.4 | 10 | 69.36 | 69.4 |
| HHYG-15010CGB | 150 | 1584.4 | 10 | 105.62 | 105.6 |
| HHYG-20010CGB | 200 | 2051.6 | 10 | 136.77 | 136.8 |

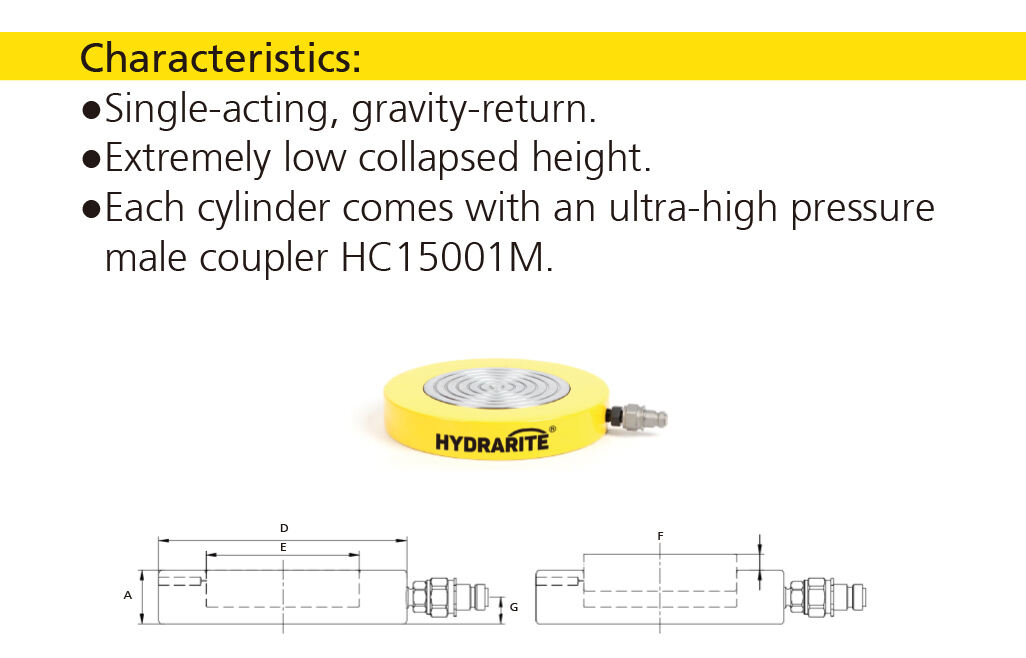

| Closed height A (mm) |
Extended Height B (mm) |
Outside Dia. DXL (mm) |
Inside Dia. E (mm) |
Piston Rod Dia. F (mm) |
Bottom to Advance Port G (mm) |
G.W. （Kg） |
Recommended pump |
Model |
| 30 | 40 | 60 | 21 | 21 | 15 | 0.74 | HHB-180 | HHYG-510CGB |
| 30 | 40 | 70 | 30 | 30 | 15 | 1.1 | HHYG-1010CGB | |
| 30 | 40 | 90 | 47 | 47 | 15 | 1.5 | HHYG-2510CGB | |
| 30 | 40 | 118 | 70 | 70 | 15 | 2.6 | HHYG-5010CGB | |
| 33 | 43 | 152 | 94 | 94 | 16.5 | 4.3 | HHYG-10010CGB | |
| 34 | 44 | 180 | 116 | 116 | 17 | 6.8 | HHYG-15010CGB | |
| 35 | 45 | 204 | 132 | 132 | 17 | 9 | HHYG-20010CGB | |
