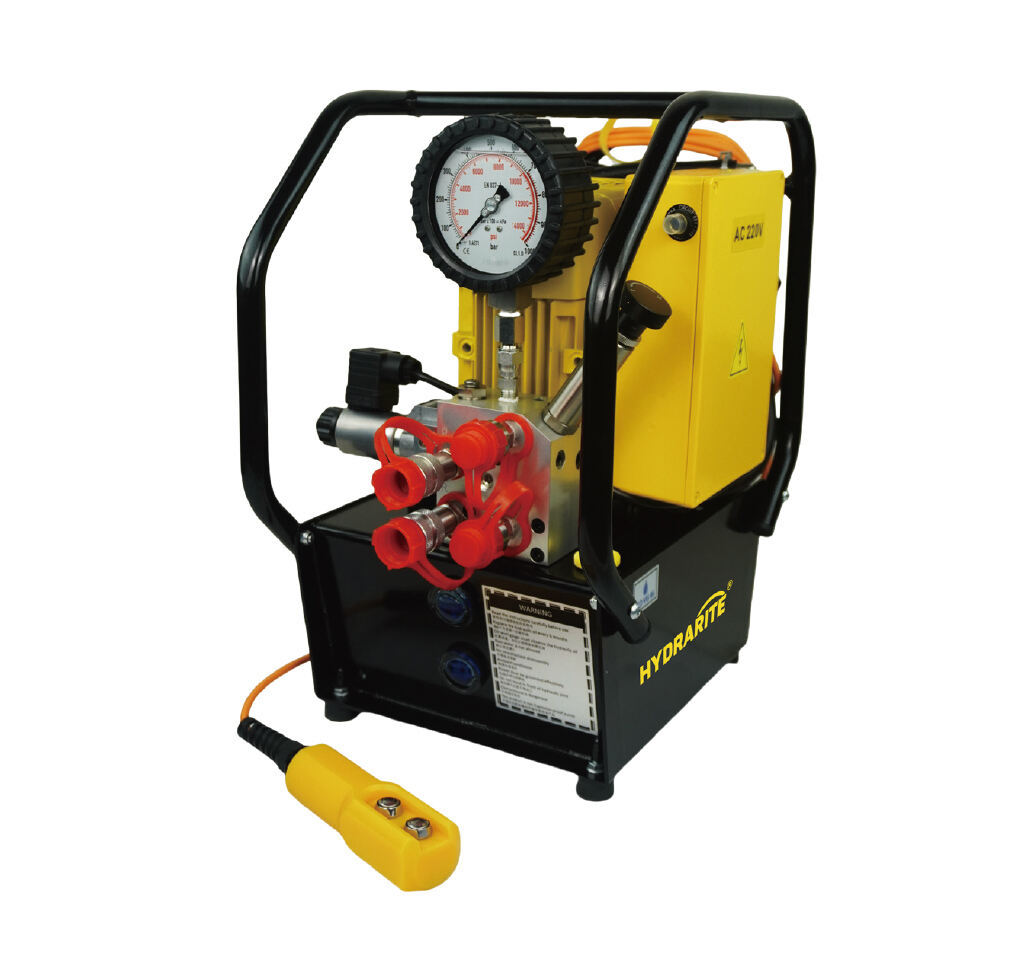

Electric Hydraulic Torque Wrench Pump HETW

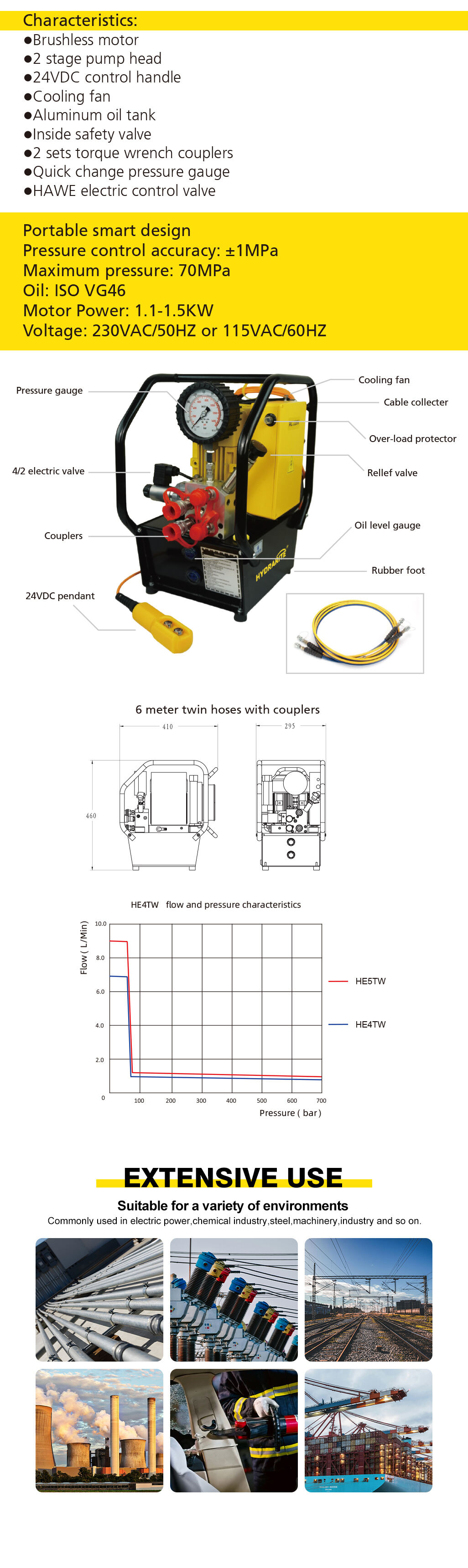

This advanced tool features a brushless motor, providing efficient and reliable performance with minimal maintenance. The 2-stage pump head enhances operational efficiency, while the 24VDC control handle offers precise control. Equipped with a cooling fan, it ensures optimal operating temperatures during extended use. The aluminum oil tank provides durability and lightweight portability. An inside safety valve enhances safety by preventing overpressure. It includes two sets of torque wrench couplers and a quick-change pressure gauge for versatile applications. The HAWE electric control valve offers precise adjustments, making this tool ideal for demanding tasks requiring precision and durability.
Description
Electric Hydraulic Torque Wrench Pump, HETW
| Model | Motor Power (KW) |
Rated Pressure （MPa） |
Flow rate @ 0 pressure (L/min) | Flow Rate @ rated pressure(L/min) | Oil available(L) | Coupler (sets) |
Pressure gauge range(MPa) |
Weight without oil (KG) |
| HE4TW | 1.1 | 70 | 7 | 0.8 | 5 | 1 | 100 | 27 |
| HE4TW-2 | 1.1 | 70 | 7 | 0.8 | 5 | 2 | 100 | 28 |
| HE5TW | 1.5 | 70 | 9 | 1 | 5 | 1 | 100 | 29 |
| HE5TW-2 | 1.5 | 70 | 9 | 1 | 5 | 2 | 100 | 30 |
