Flange Spreaders HHP-15F

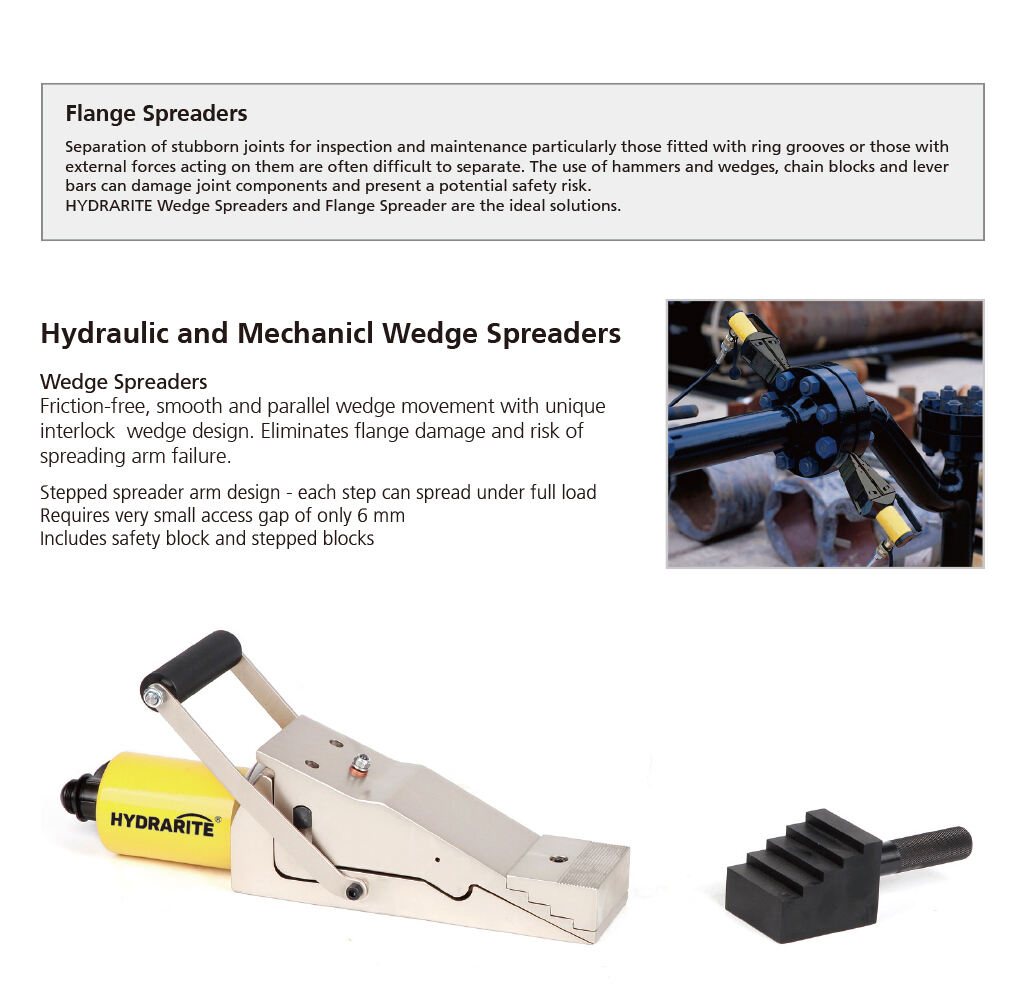

Separation of stubborn joints for inspection and maintenance particularly those fitted with ring grooves or those withexternal forces acting on them are often difficult to separate. The use of hammers and wedges, chain blocks and leverbars can damage ioint components and present a potential safety risk.HYDRARITE Wedge Spreaders and Flange Spreader are the ideal solutions.
Description

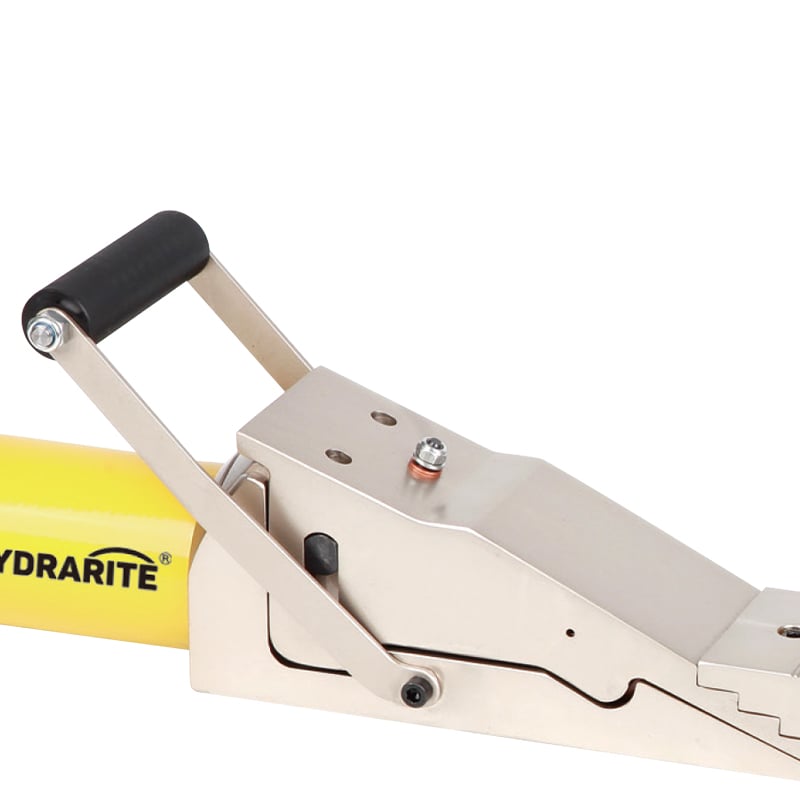

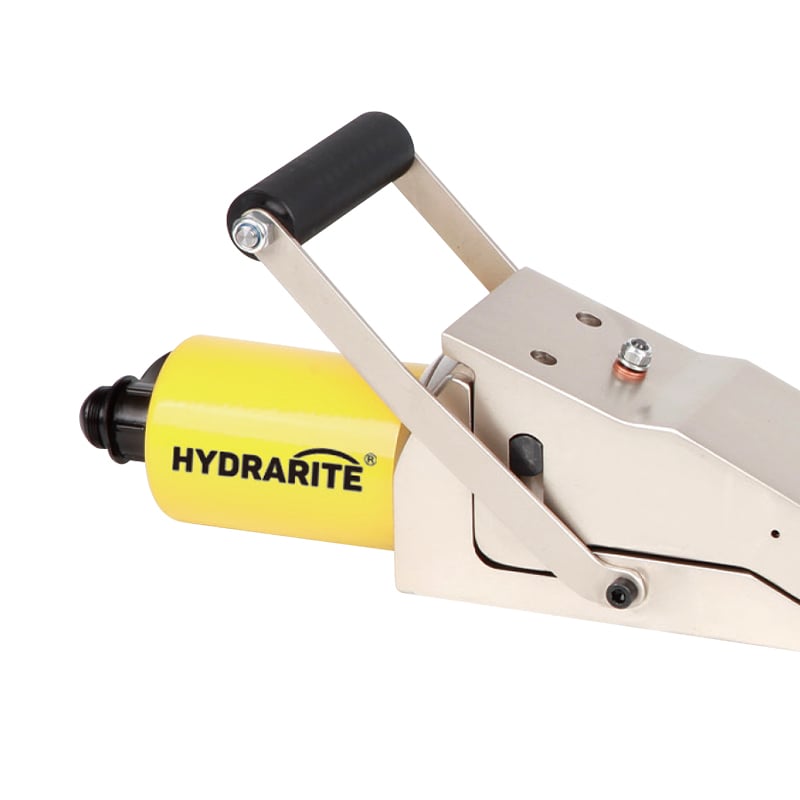

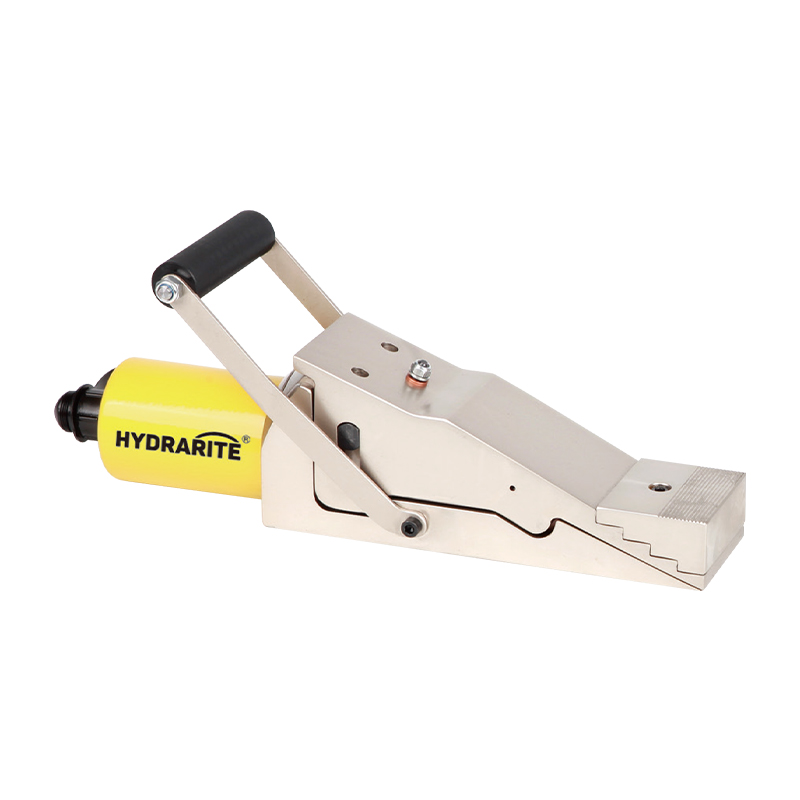

Hydraulic Wedge Spreader, HHP-15F
| Model | Max.spreading force (Ton) |
Tip clearance (mm) |
Max.spread (mm) |
Type | G.W. (Kg) |
Packing size (cm) |
| HHP-15F | 14.9 | 10 | 21 | Hydraulic type | 11 | 40×16×16 |
