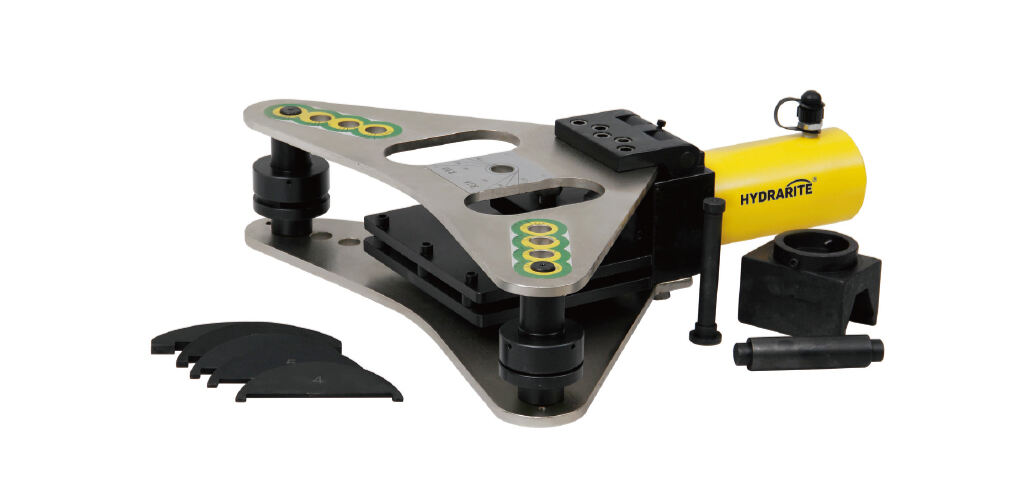

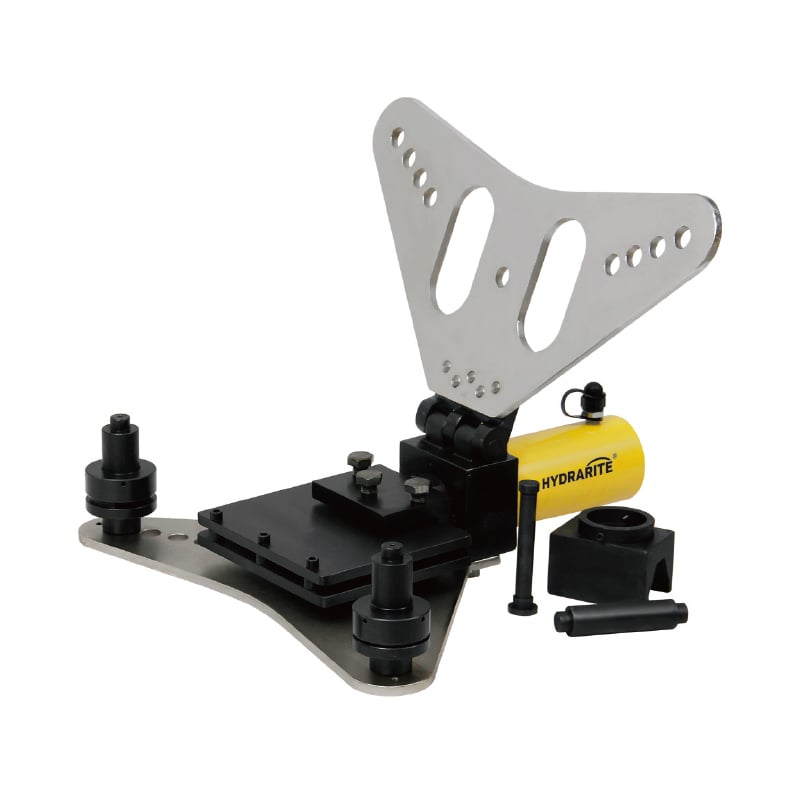

Hydraulic Busbar Bender HHM-125W

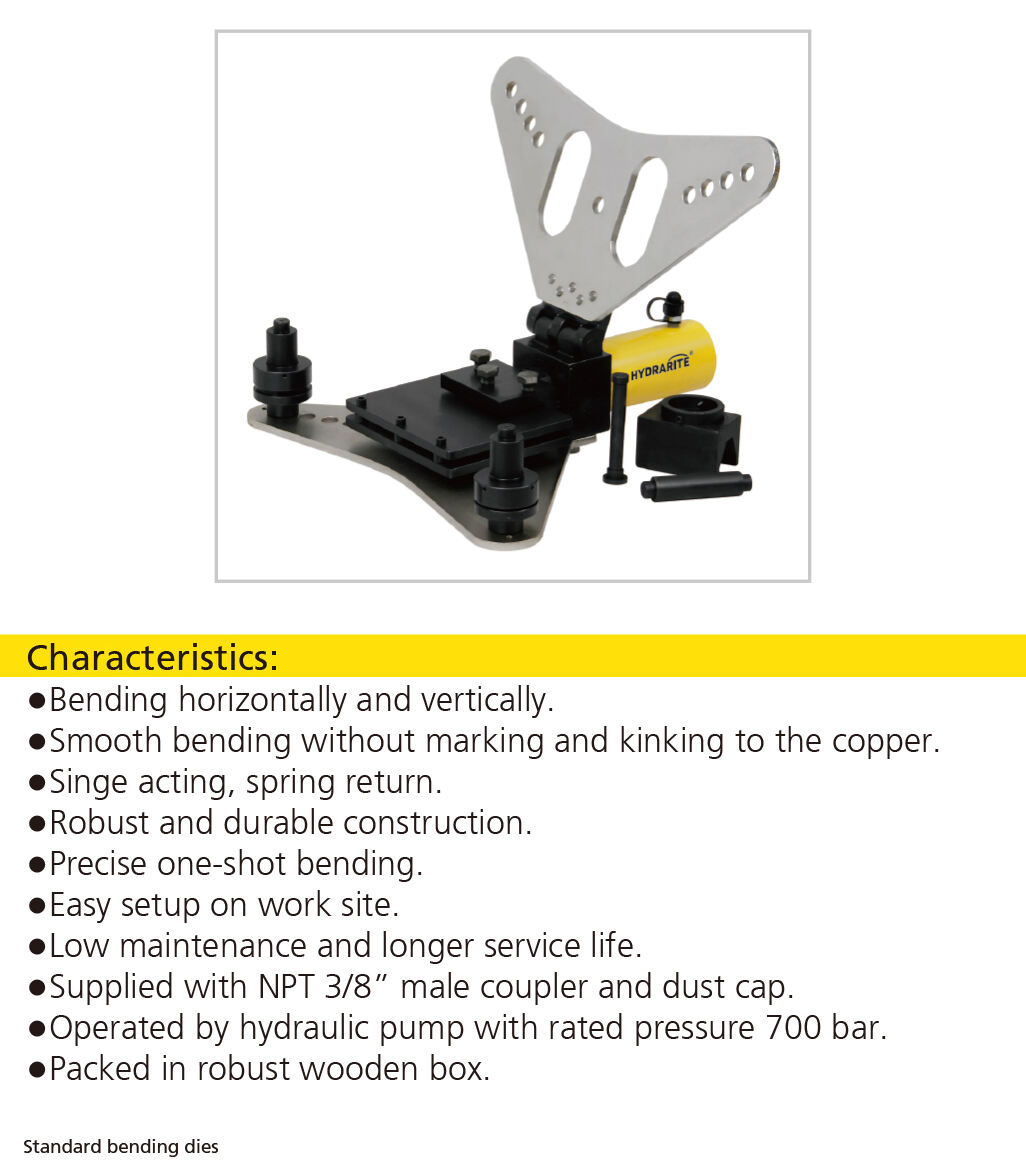

The HHM-125W Hydraulic Busbar Bender offers 2-in-1 vertical and horizontal bending with a 25-ton output force. It smoothly bends copper busbars without marking, featuring robust construction and precise one-shot bending. Easy to set up, it's operated by a hydraulic pump with 700 bar pressure. Supplied with a coupler and packed in a wooden box, it ensures low maintenance and long service life.
Description
Hydraulic Busbar Bender, HHM-125W
2-in-1 vertical and horizontal bending
| Model | Output force (ton) |
Breadth of copper busbar(mm) |
Thickness of copper busbar(mm) |
G.W. (kg) |
Packing size (cm) |
| HHM-125W | 25 | 40,50,60,80,100,125 | 6,8,10,12.5 | 93 | 76×69×24 |
| Thickness of copper busbar (mm) |
Breadth of copper busbar (mm) |
Bending dies for assembling | Bending angle | Bend radius (mm) |
| 6 | 40,50,60 | 1 | 90° | 110 |
| 8 | 80 | 1 | 90° | 140 |
| 10 | 80 | 1 | 90° | 140 |
| 8 | 100 | 1 | 90° | 160 |
| 10 | 100 | 1 | 90° | 160 |
| 10 | 125 | 1 | 90° | 180 |
| 12.5 | 125 | 1 | 90° | 180 |
