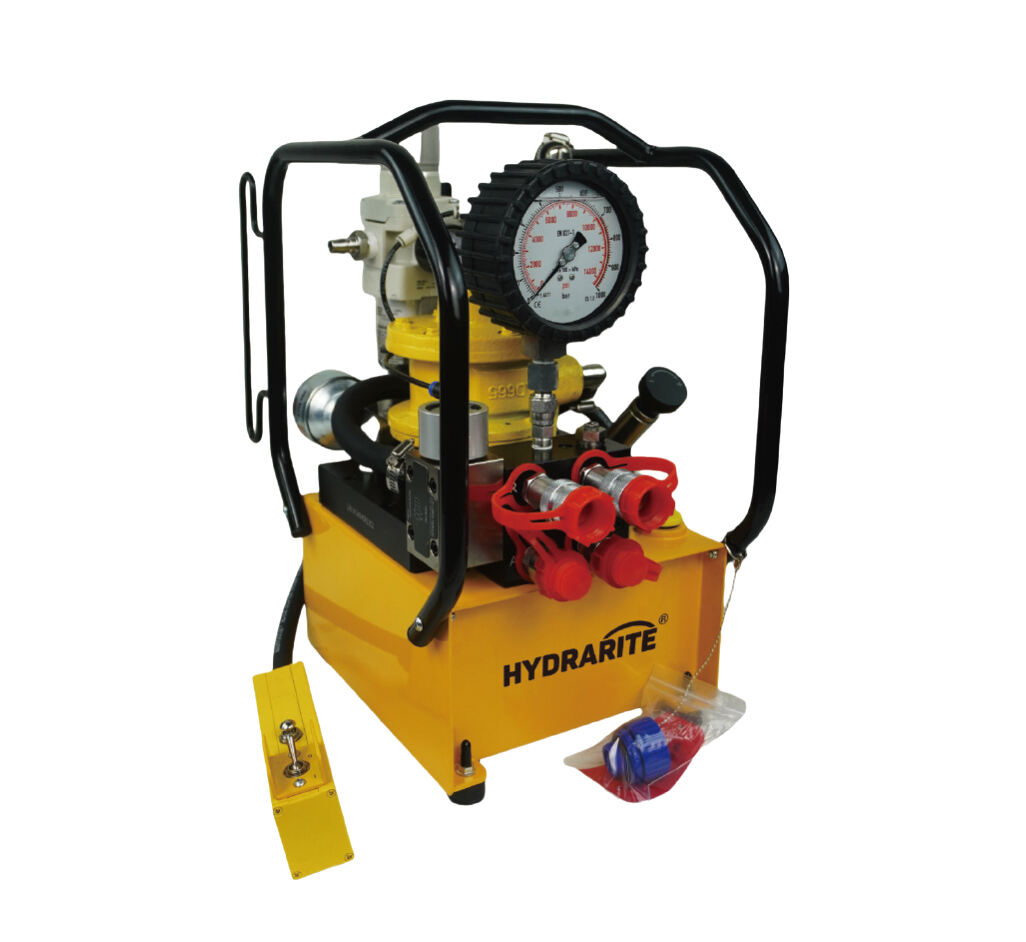

Electric Hydraulic Torque Wrench Pump HA5TW

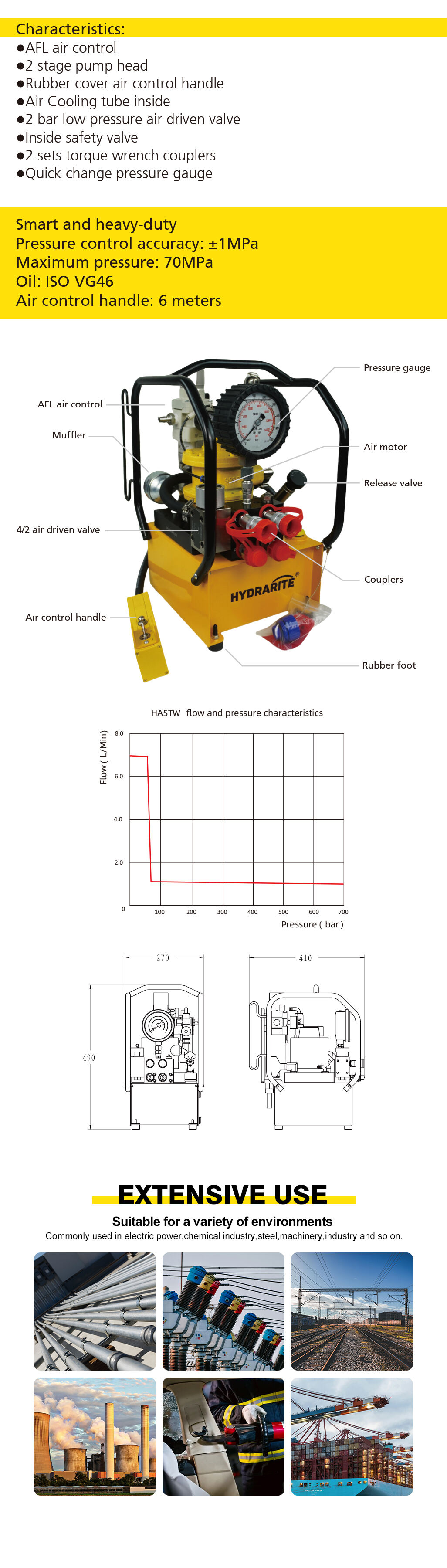

Characteristics:
●AFL air control
● 2 stage pump head
● Rubber cover air control handleAir Cooling tube inside
● 2 bar low pressure air driven valve
● Inside safety valve
● 2 sets torque wrench couplers
● Quick change pressure gauge
Description
Air Powered Hydraulic Torque Wrench Pump, HA5TW
| Model | Air Consumption (m³/H) |
Rated Pressure （MPa） |
Flow rate @ 0 pressure (L/min) | Flow Rate @ rated pressure(L/min) | Oil available(L) | Coupler (sets) |
Pressure gauge range(MPa) |
Weight without oil (KG) |
| HA5TW | 220 | 70 | 7 | 1 | 5 | 2 | 100 | 27 |
