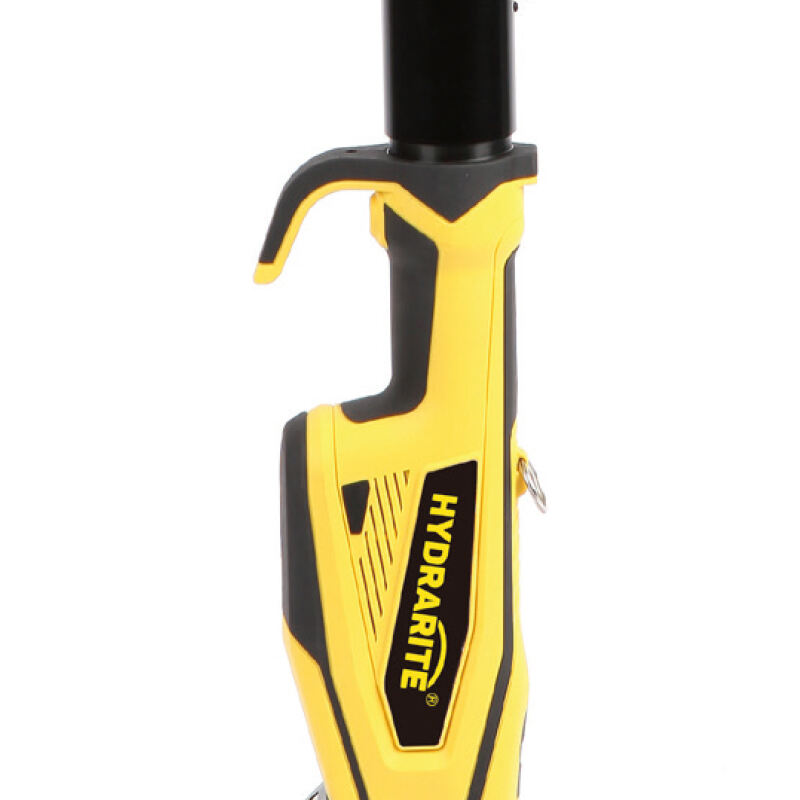

Battery-operated pressing tool HHYD-15100C
This pressing tool offers easy and simple operation with high efficiency and safety, featuring jaws that meet GB/T 19228 standards for pressing stainless steel fittings up to 108 mm. Its two-stage hydraulic system ensures a fast feed and power stroke, saving time by adjusting at counter pressure. With a service life exceeding 10,000 cycles, the ram automatically retracts after each operation, with manual retraction available if needed. The LED display provides operation temperature and usage count, while a quick motor stop enhances safety. Powered by an 18V Li-ion battery with a low battery warning, its inline design and minimized weight make it easy to hold, ideal for confined spaces.
Description
Battery-operated pressing tool,HHYD-15100C
For press jointing of stainless steel pipes DN15-DN100.
Reliable and watertight press jointing.
| Model | HHYD-15100C |
| Output force | 5 ton |
| Stroke | 95mm |
| Battery capacity | 300 times press cycles(DN 20 Stainless steel pipe) |
| Pressing times | 8s-12s |
| Battery | 18V/4.0Ah Li-ion |
| Mould type | round |
| Pressing jaws | DN15,DN20,DN25,DN32,DN40,DN50, DN65,DN80,DN100 |
| Battery | 2pcs |
| Charger | 1pc |
| Seals | 1set |
| Weight(Kg) | 56 |
| Packing size(mm) | 585×500×170+680×420×145 |
