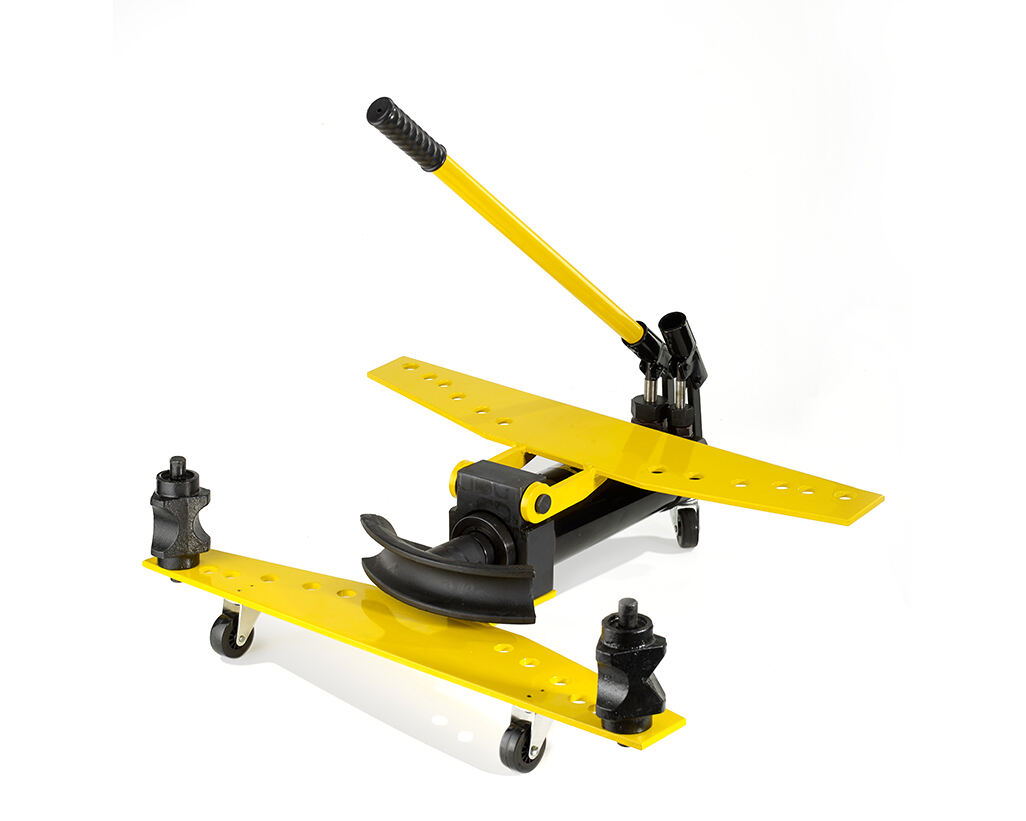

Self-contained Manual Hydraulic Pipe Benders HHW-1 HHW-2 HHW-3 HHW-4

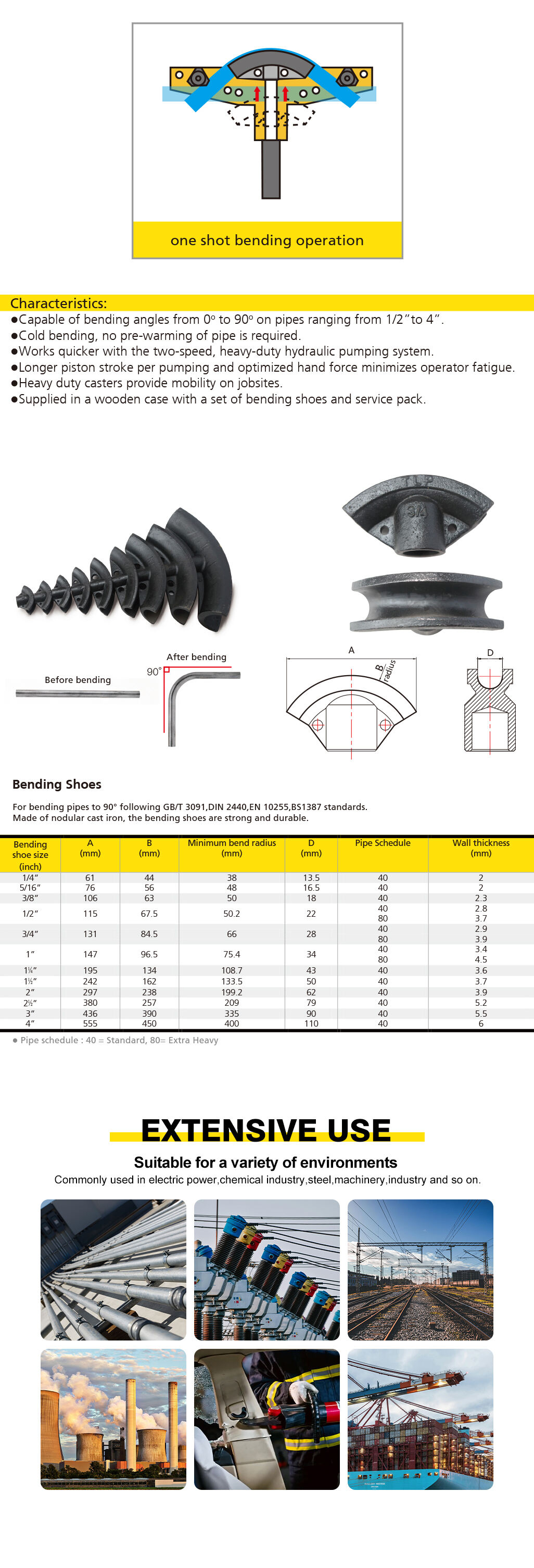

This pipe bender is designed for efficient bending from 0° to 90° on pipes ranging from 1/2" to 4", without requiring pre-warming due to its cold bending capability. The two-speed, heavy-duty hydraulic pumping system accelerates the process, while a longer piston stroke and optimized hand force reduce operator fatigue. Equipped with heavy-duty casters, it offers excellent mobility on job sites. The bender is supplied in a sturdy wooden case, complete with a set of bending shoes and a service pack, ensuring convenience and readiness for various tasks.
Description
Manual Hydraulic Pipe Benders
HHW-1, HHW-2, HHW-3, HHW-4
| Model | Hydraulic Ram Output (Ton) |
Ram stroke (mm) |
Bending range(O.D.) (mm) |
Bending shoes (inch) |
G.W. (Kg) |
Packing size (cm) |
| HHW-1 | 6 | 150 | Ø13-Ø33 | 1/4” 5/16” 3/8” 1/2” 3/4” 1” | 19 | 50×25×15 |
| HHW-2 | 13 | 250 | Ø21.3-Ø60 | 1/2” 3/4” 1” 1¼” 1½” 2” | 53 | 73×32×20 |
| HHW-3 | 20 | 290 | Ø21.3-Ø88.5 | 1/2” 3/4” 1” 1¼” 1½” 2” 2½” 3” | 117 | 93×40×21 |
| HHW-4 | 20 | 370 | Ø21.3-Ø108 | 1/2” 3/4” 1” 1¼” 1½” 2” 2½” 3” 4” | 155 | 118×46×25 |
