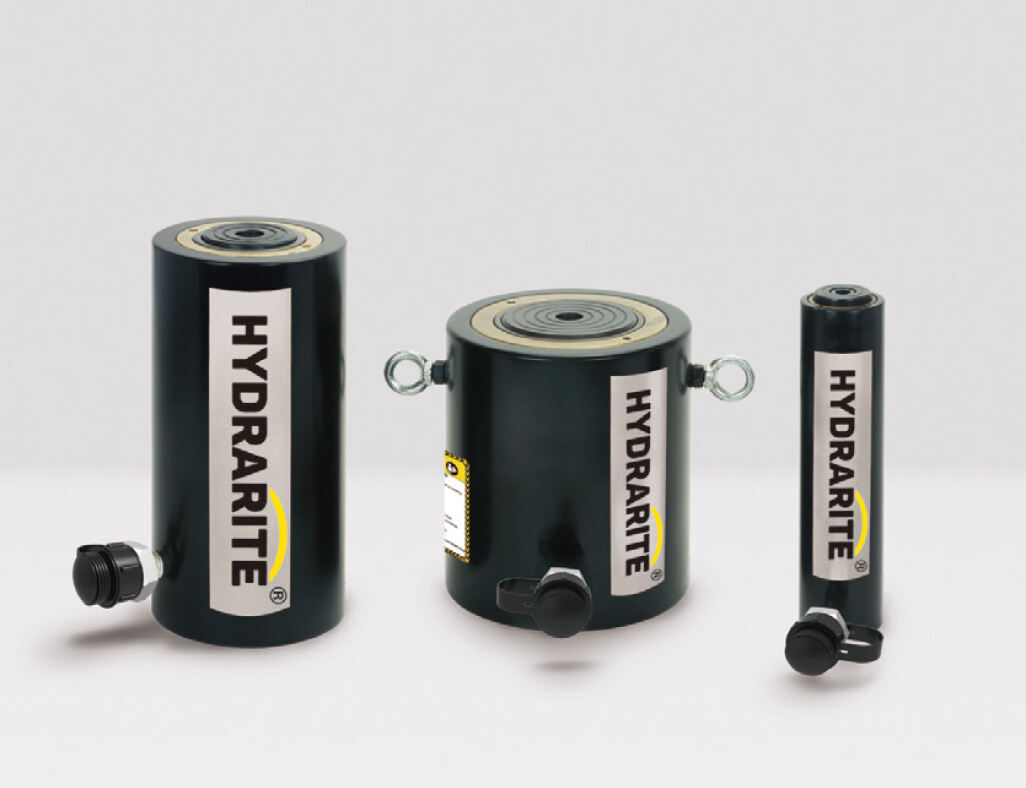

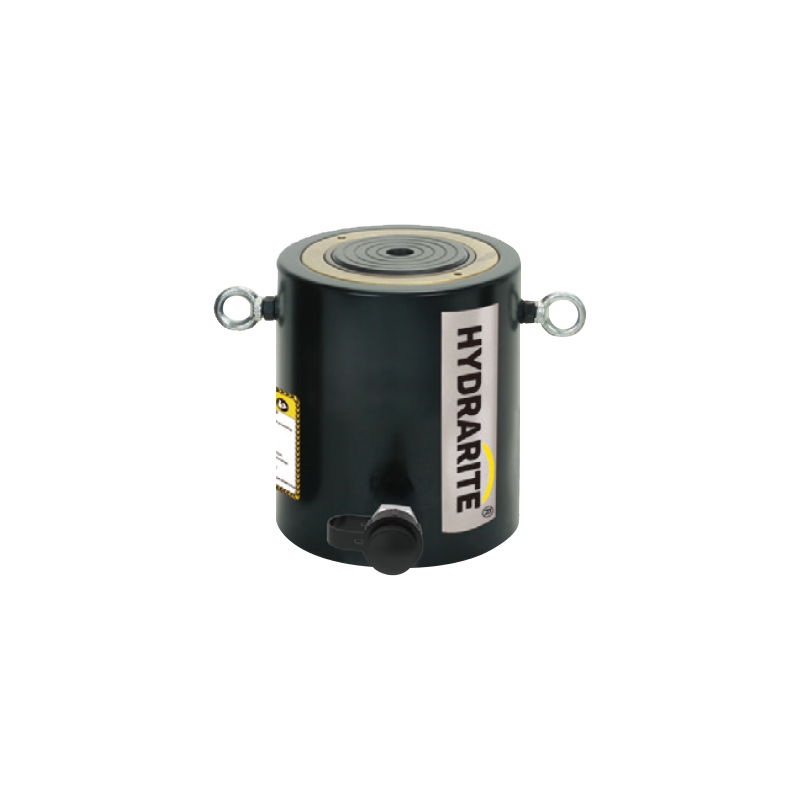

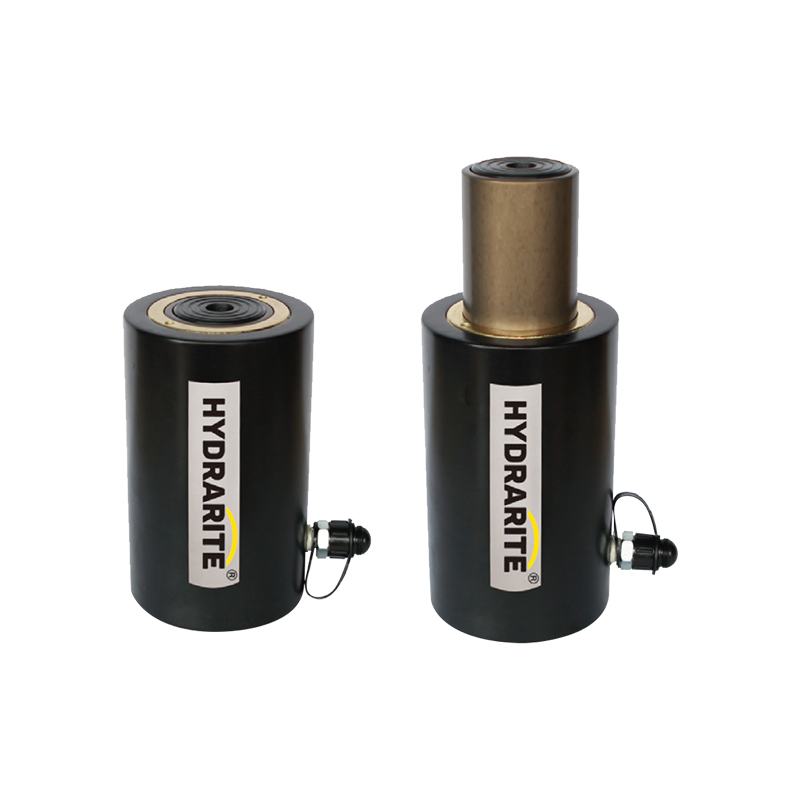

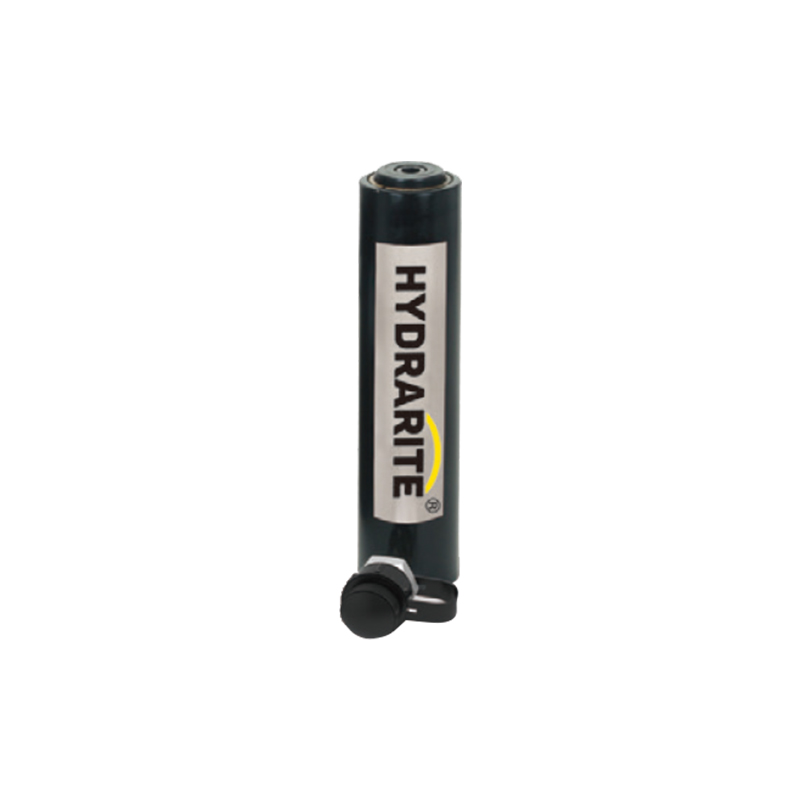

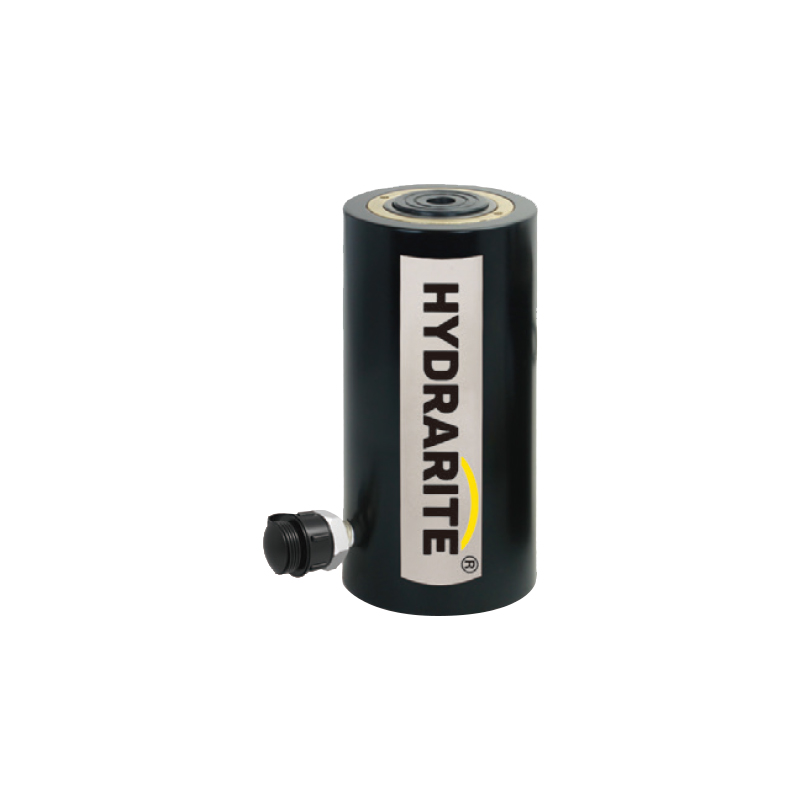

Single-acting Aluminum Cylinders
Half the weight of steel cylinders of comparable capacity
Aluminum body resists sparking in explostive environment.
Hard-coated aluminum piston rod and cylinder bore resist wear and corrosion.
Description
Single-acting Aluminum Cylinders
Working pressure：700bar
| Model | Cylinder Capacity@700 bar | Stroke (mm) |
Effective area (cm²) |
Oil capacity （cm³） |
Closed height A (mm) |
|
| Ton | KN | |||||
| HHYG-1050L | 10 | 111 | 50 | 15.9 | 85 | 142 |
| HHYG-10100L | 100 | 169 | 192 | |||
| HHYG-10150L | 150 | 254 | 242 | |||
| HHYG-2050L | 20 | 198 | 50 | 28.3 | 157 | 162 |
| HHYG-20100L | 100 | 311 | 212 | |||
| HHYG-20150L | 150 | 465 | 262 | |||
| HHYG-3050L | 30 | 309 | 50 | 44.2 | 240 | 172 |
| HHYG-30100L | 100 | 474 | 222 | |||
| HHYG-30150L | 150 | 707 | 272 | |||
| HHYG-5050L | 50 | 496 | 50 | 70.8 | 391 | 182 |
| HHYG-50100L | 100 | 770 | 232 | |||
| HHYG-50150L | 150 | 1149 | 282 | |||
| HHYG-10050L | 100 | 1002 | 50 | 143.1 | 783 | 208 |
| HHYG-100100L | 100 | 1534 | 258 | |||
| HHYG-100150L | 150 | 2285 | 308 | |||
| HHYG-15050L | 150 | 1496 | 50 | 213.7 | 1136 | 233 |
| HHYG-150100L | 100 | 2241 | 283 | |||
| HHYG-150150L | 150 | 3345 | 333 | |||
| HHYG-20050L | 200 | 1984 | 50 | 283.4 | 1485 | 263 |
| HHYG-200100L | 100 | 2938 | 313 | |||
| HHYG-200150L | 150 | 4391 | 363 | |||
| HHYG-200200L | 200 | 5844 | 413 | |||
| HHYG-200250L | 250 | 7297 | 463 | |||

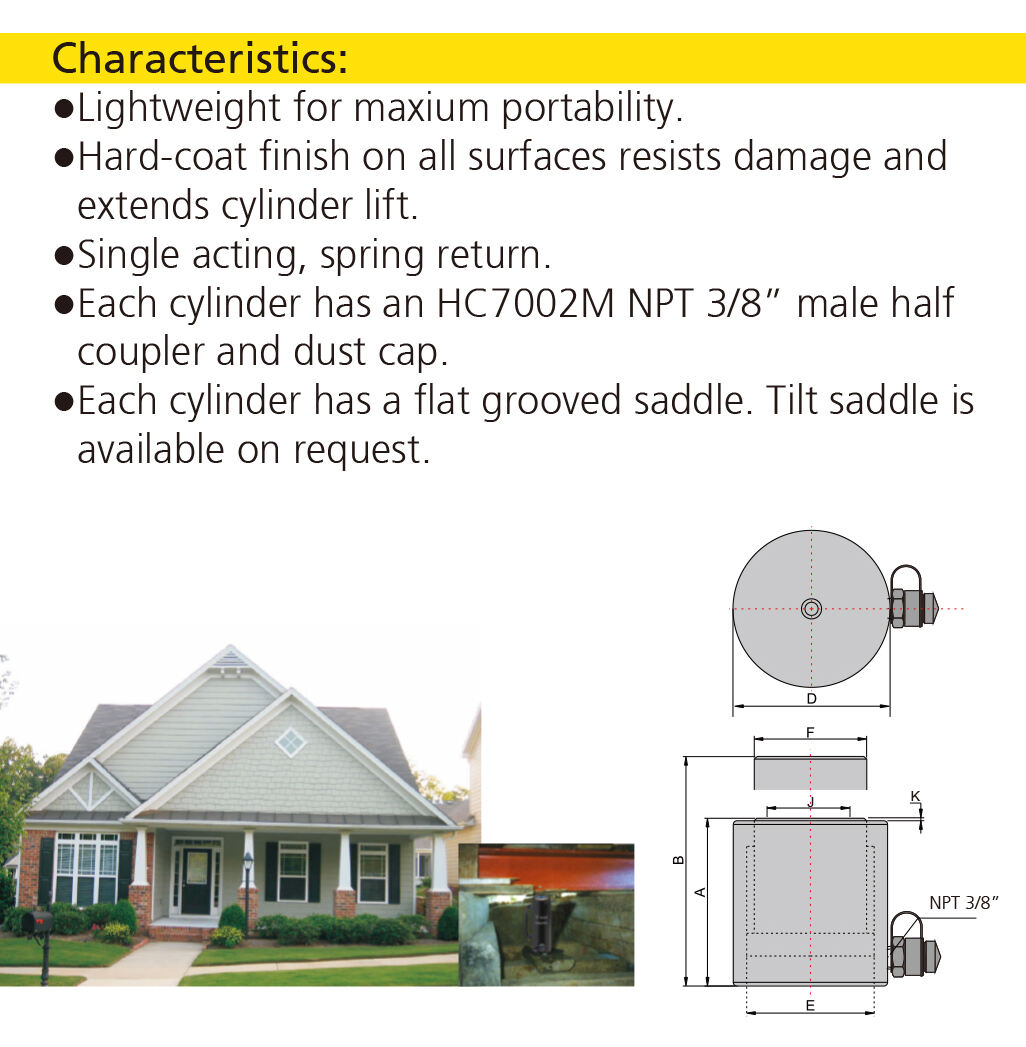

| Extended Height B (mm) |
Outside Dia. D (mm) |
Inside Dia. E (mm) |
Piston Rod Dia. F (mm) |
G.W. （Kg） |
Standard Saddle Dia. J (mm) |
Saddle Protr. From Plgr. K (mm) |
Handle | Recommended pump |
Model |
| 192 | 64 | 45 | 38 | 1.2 | 30 | 2 | No | HHB-700C | HHYG-1050L |
| 292 | 1.7 | No | HHYG-10100L | ||||||
| 392 | 2.1 | No | HHYG-10150L | ||||||
| 212 | 85 | 60 | 52 | 3 | 41 | 2 | No | HHYG-2050L | |
| 312 | 3.8 | No | HHB-700 | HHYG-20100L | |||||
| 412 | 4.6 | No | HHYG-20150L | ||||||
| 222 | 110 | 75 | 62 | 5.1 | 49 | 2 | No | HHB-700C | HHYG-3050L |
| 322 | 6.4 | No | HHB-700 | HHYG-30100L | |||||
| 422 | 7.6 | No | HHB-700A | HHYG-30150L | |||||
| 232 | 140 | 95 | 80 | 8.6 | 67 | 2 | No | HHB-700 | HHYG-5050L |
| 332 | 10.5 | No | HHB-700A | HHYG-50100L | |||||
| 432 | 12.5 | No | HHYG-50150L | ||||||
| 258 | 180 | 135 | 110 | 17 | 99 | 2 | No | HHYG-10050L | |
| 358 | 20.5 | No | HHYG-100100L | ||||||
| 458 | 23.3 | No | HHYG-100150L | ||||||
| 283 | 230 | 165 | 135 | 30.9 | 114 | 3 | Eye bolts | HHYG-15050L | |
| 383 | 35.9 | Eye bolts | HHYG-150100L | ||||||
| 483 | 40.9 | Eye bolts | HHB-630A | HHYG-150150L | |||||
| 313 | 270 | 190 | 160 | 47.5 | 139 | 3 | Eye bolts | HHB-700A | HHYG-20050L |
| 413 | 51.6 | Eye bolts | HHB-630A | HHYG-200100L | |||||
| 513 | 61.2 | Eye bolts | HHYG-200150L | ||||||
| 613 | 68 | Eye bolts | HHYG-200200L | ||||||
| 713 | 74.8 | Eye bolts | HHYG-200250L | ||||||
