Description

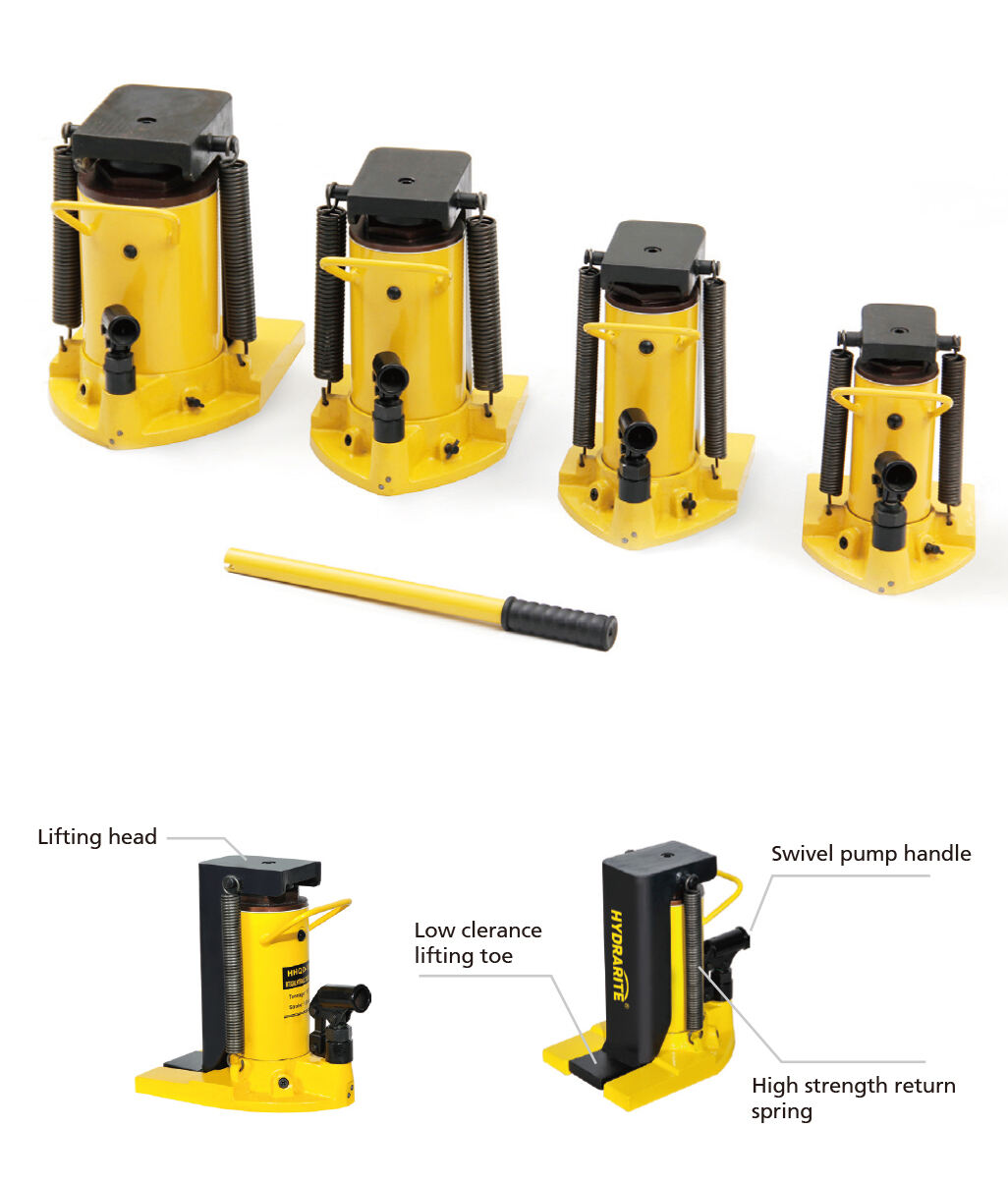

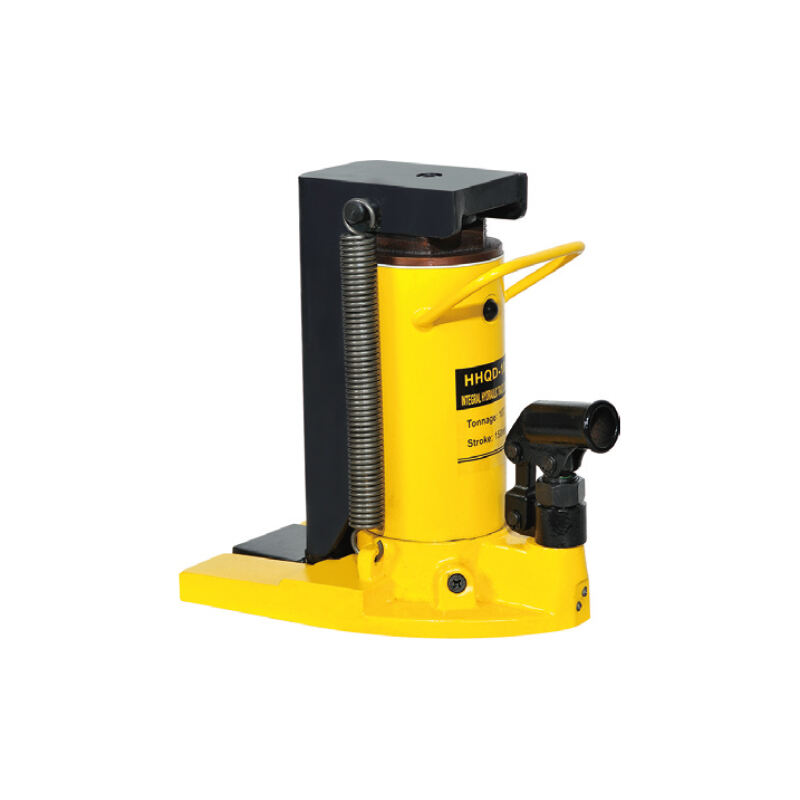

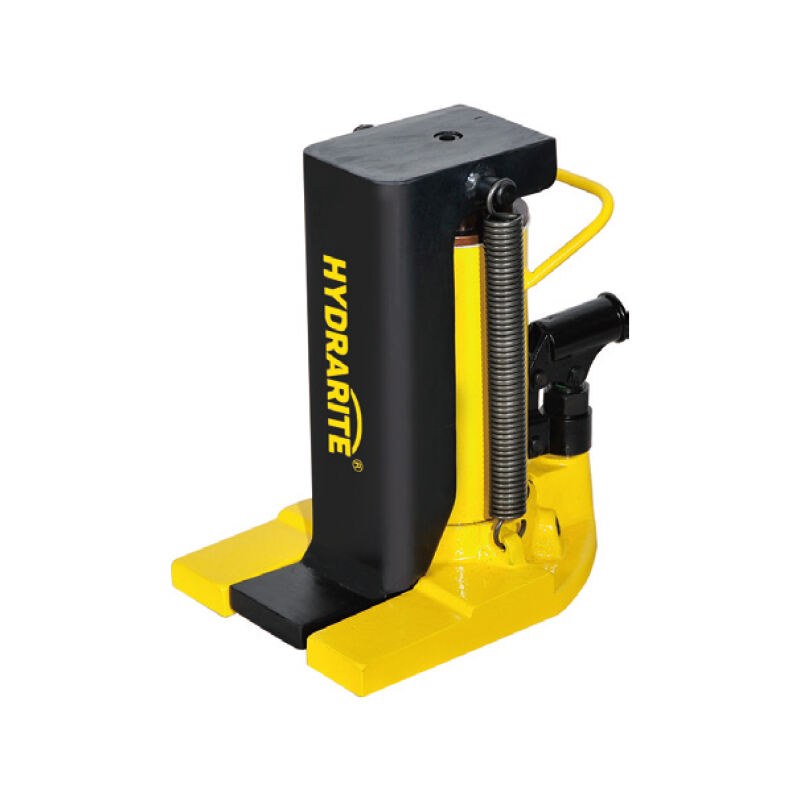

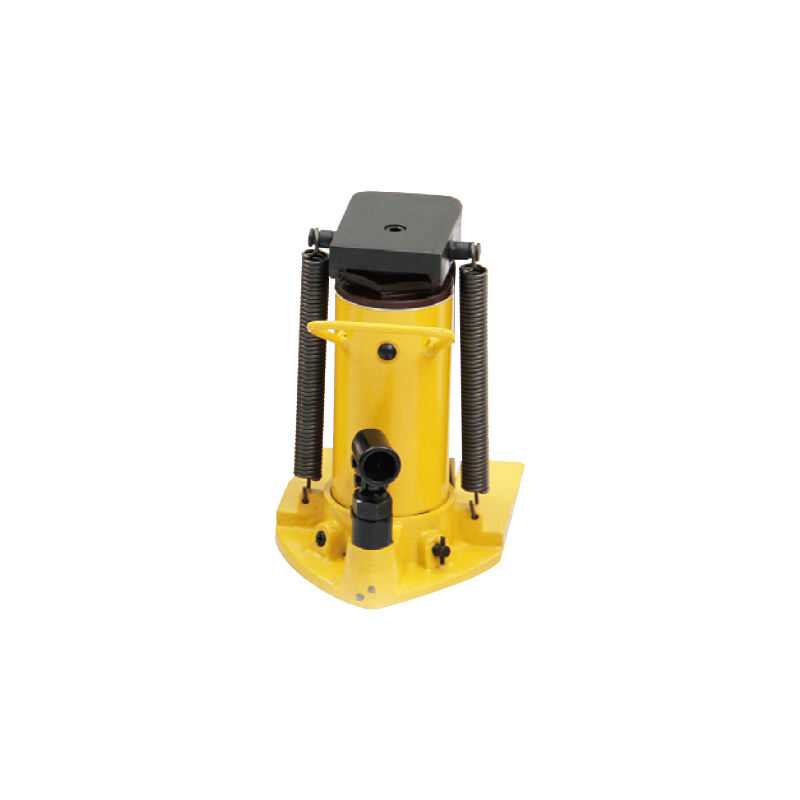

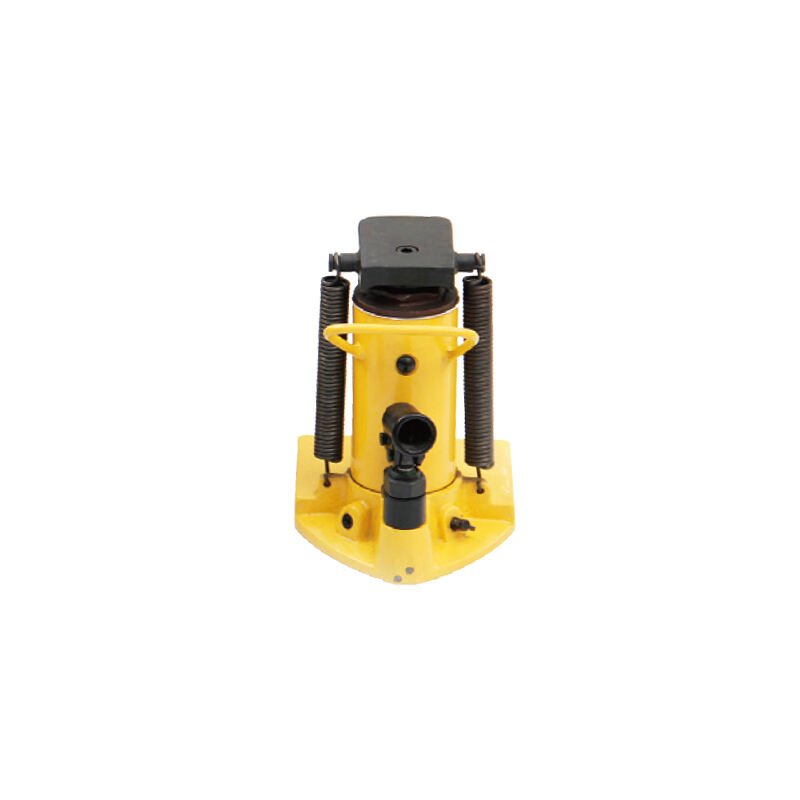

Hydraulic Toe Jacks
For machinery lifting and positioning with minimum
available access.
Lifting points on toe and head offers much wider
applications than a conventional hydraulic jack.
HHQD-5,HHQD-10,HHQD-20,HHQD-30
| Model | Capacity(ton) Toe |
Hydraulic lifting (mm) |
Closed body height (mm) |
Toe clerance (mm) |
G.W. (Kg) |
Packing size (mm) |
| HHQD-5 | 3 | 120 | 222 | 16 | 14.2 | 300×200x320 |
| HHQD-10 | 5 | 130 | 265 | 18 | 20.7 | 330×220×320 |
| HHQD-20 | 10 | 130 | 285 | 20 | 31 | 350×240×320 |
| HHQD-30 | 15 | 140 | 305 | 20 | 46.4 | 380×270×340 |
