Description

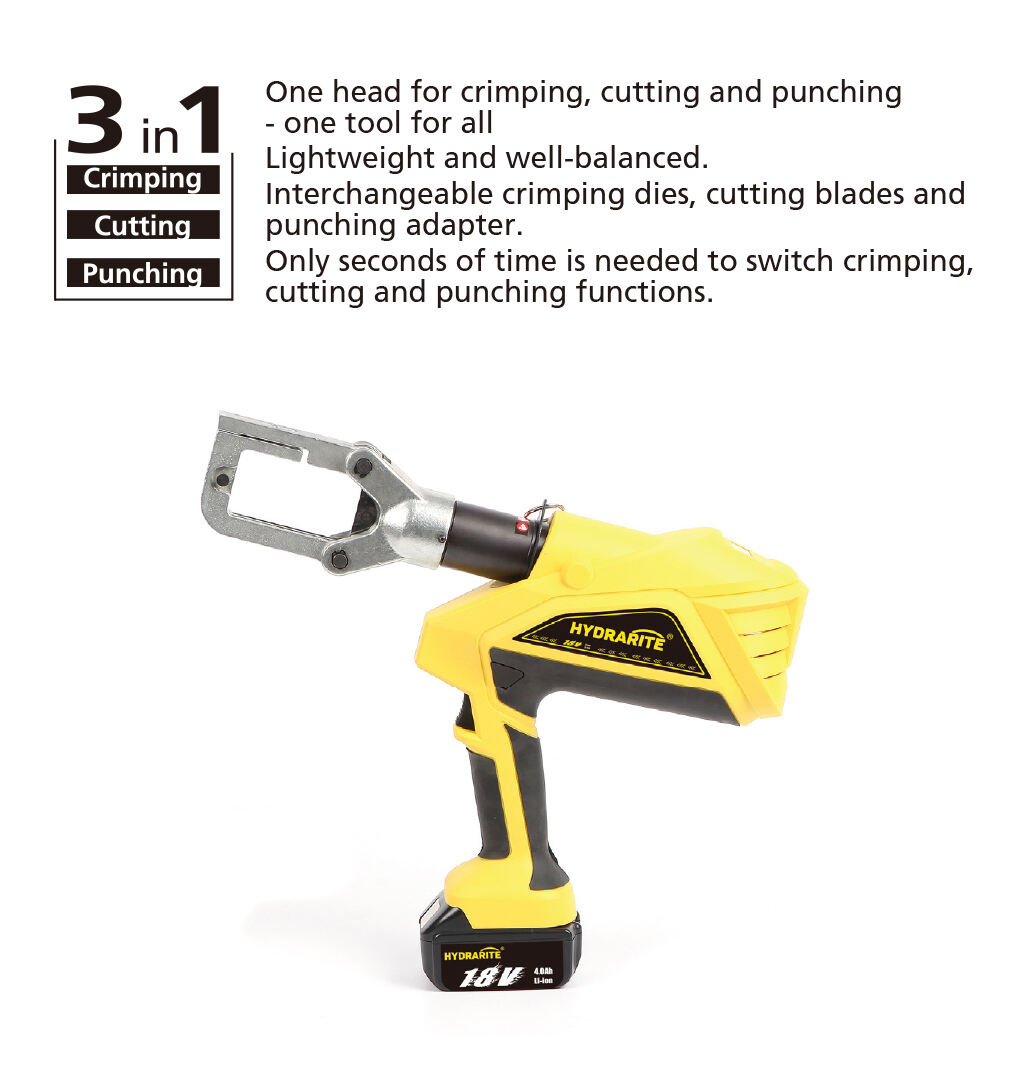

Battery Powered Universal Tool, HHYD-60H
| Model | Hydraulic Ram Output | Ram stroke | Crimping range | Cutting range |
Punching range |
Battery | Crimping dies | Weight (Kg) |
Packing size(mm) |
| HHYD-60H | 6 Ton | 42 mm | 16-300mm² | Ø40mm(Cu/Al and armoured cable) | Ø22-Ø60mm | 18V/4.0Ah Li-ion | 16,25,35,50,70,95,120,15,185,240,300mm² | 21.4 | 585×500×170 |
| Accessories | |||||||
| Crimping dies | 16,25,35,50,70,95,120,150,185,240,300mm² | ||||||
| Punching dies | 22,27,34,43,49,60 mm | ||||||
| Qty of battery | 2 pcs | ||||||

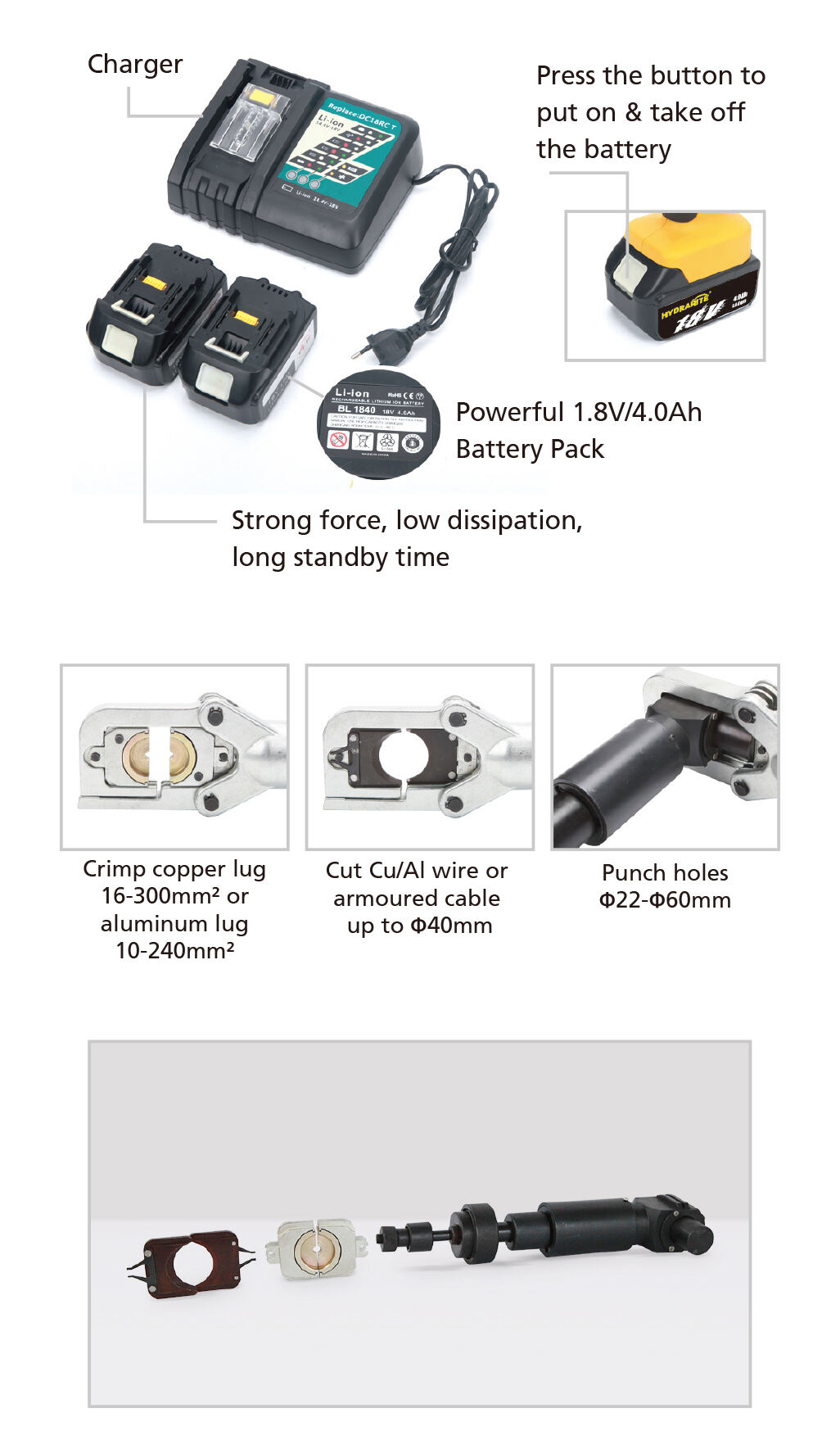

| Charger | 1 pc | ||||||
| Blade | 1 set | ||||||
| Adapter for crimping | 1 pc | ||||||
| Adapter for punching | 1 pc | ||||||
| Draw stud M20×1.5 | 1 pc | ||||||
| Draw stud M10×1 | 1 pc | ||||||
| Spacer | 1 pc | ||||||
| Seals | 1set | ||||||
| Weight(Kg) | 21.4 | ||||||
| Packing size(mm) | 585×500×170 | ||||||
