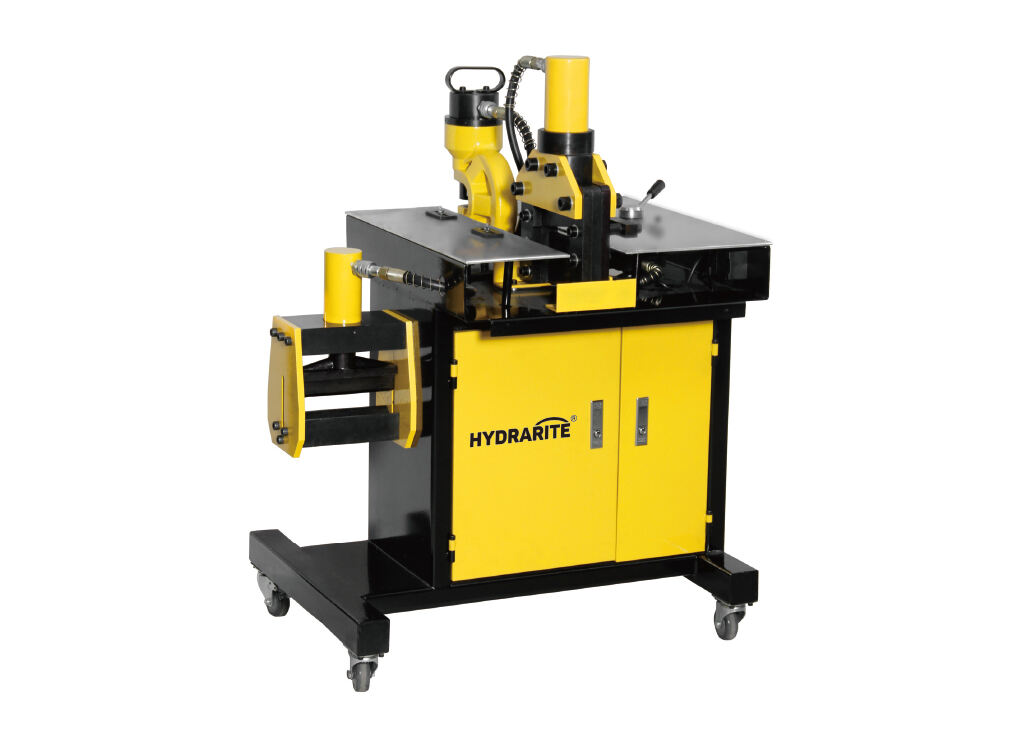

3-in-1 Busbar Processors HHM-150H HHM-200H

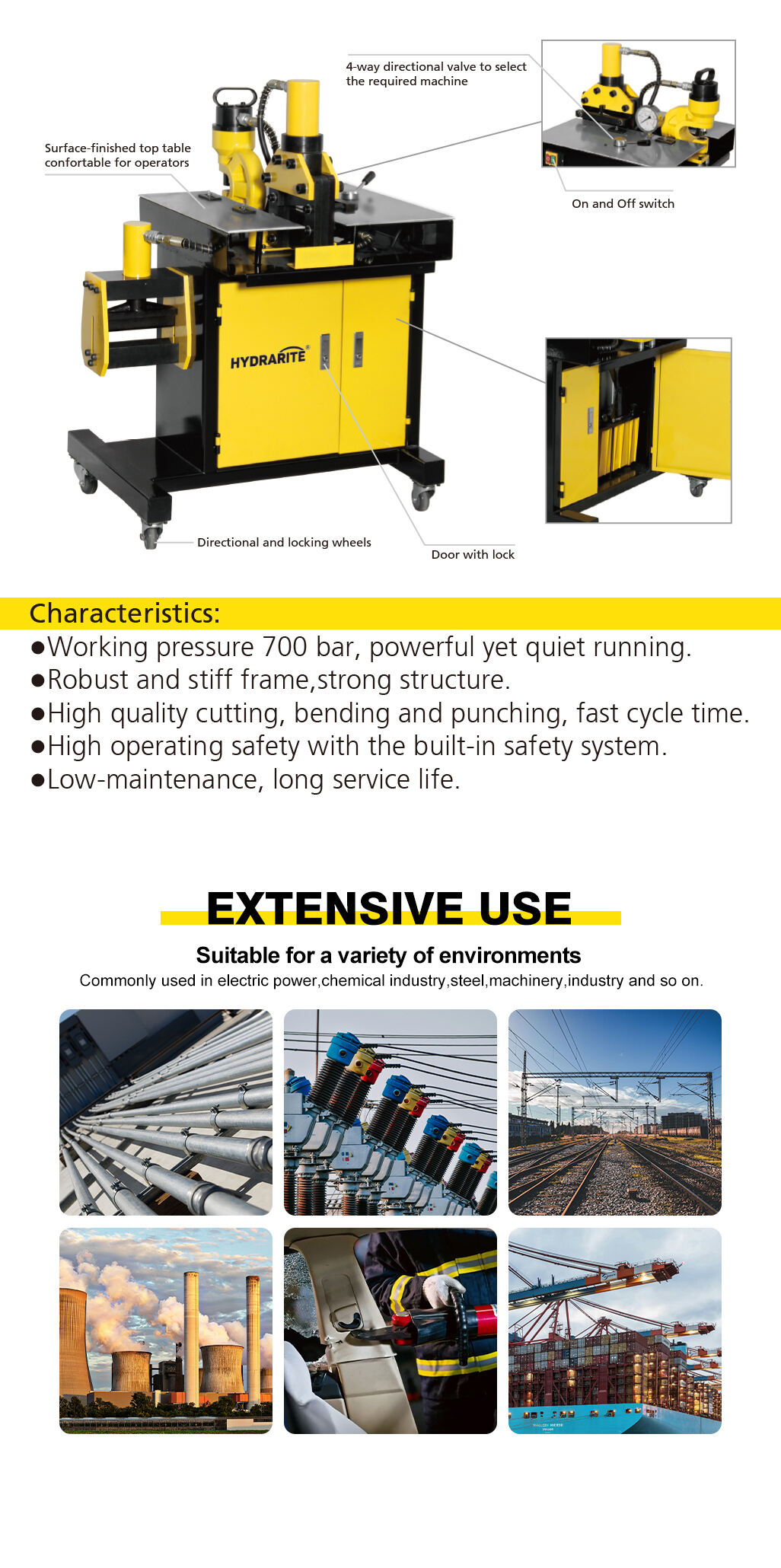

The HHM-150H and HHM-200H are versatile 3-in-1 busbar processors, designed for cutting, bending, and punching copper busbars. With a robust frame and working pressure of 700 bar, they ensure powerful yet quiet operation. Featuring a 4-way directional valve and locking wheels, these machines offer high safety and low maintenance, ideal for various industrial applications.
Description
3-in-1 Busbar Processor
Mobile workbench including all machines for Cutting,
Bending and Punching copper busbars
HHM-150H, HHM-200H
| Model | HHM-150H | HHM-200H |
| Voltage | 220V/380V | 220V/380V |
| Output cutting force | 20 ton | 35 ton |
| Output punching force | 31 ton | 35 ton |
| Output bending force | 16 ton | 16 ton |
| Cutting Max. | 150 x 10 mm | 200 x 12 mm |
| Punching | 10 mm | 12 mm |
| Bending Max | 150 x 10 mm | 200 x 12 mm |
| Throat depth of punching | 70 mm | 110 mm |
| Punching dies | 3/8”(11.1mm),5/8”(17.5mm) 1/2”(14.3mm),3/4”(20.6mm) |
3/8”(11.1mm),5/8”(17.5mm) 1/2”(14.3mm),3/4”(20.6mm) |
| G.W.(kg) | 176 | 195 |
| Packing size | 90×66×122 cm | 90×66×122 cm |
