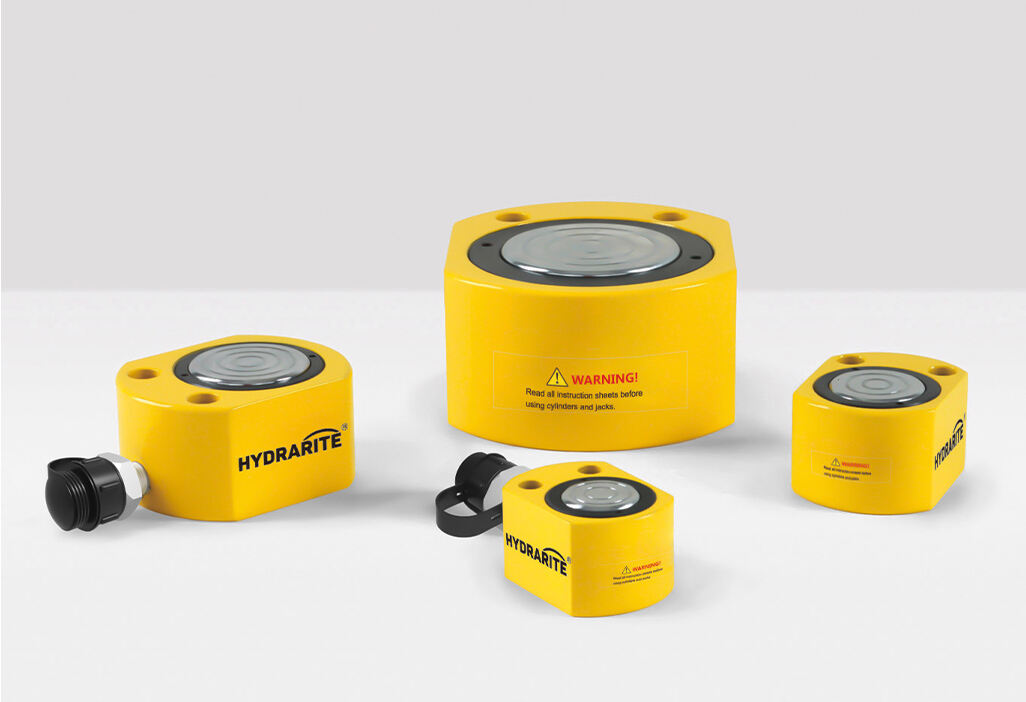

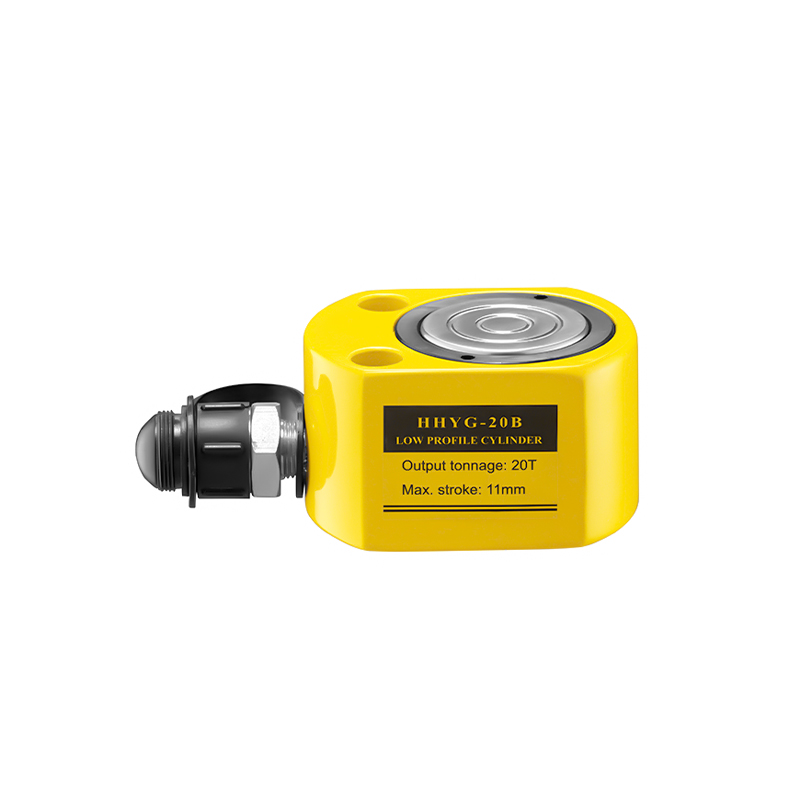

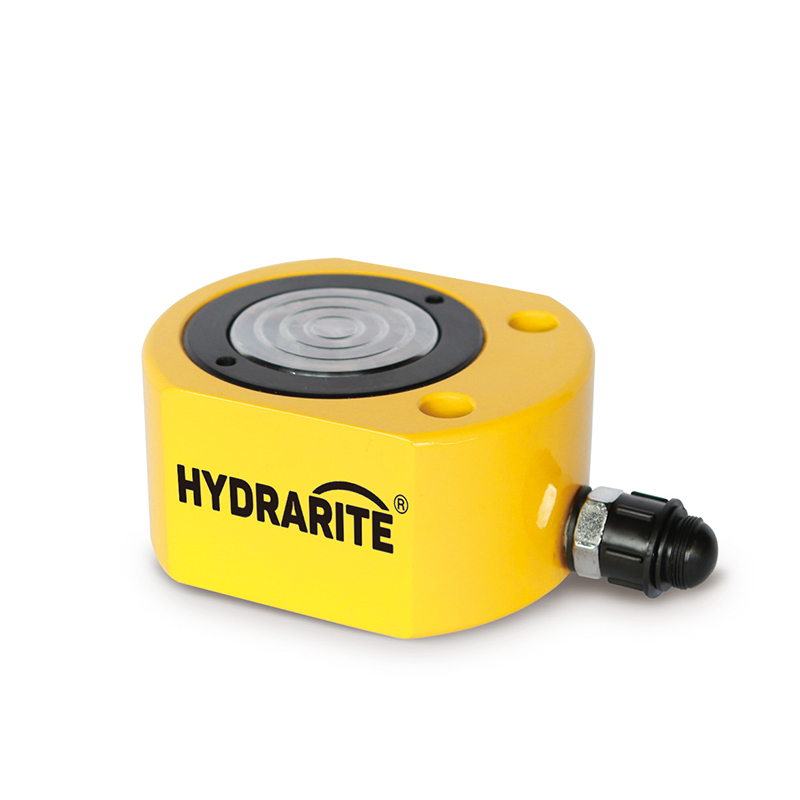

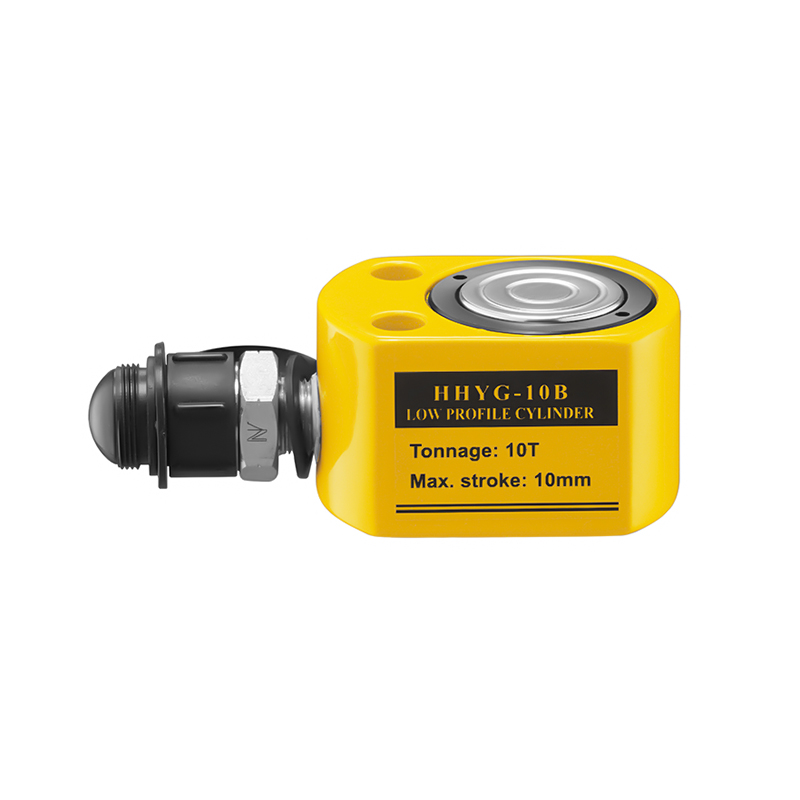

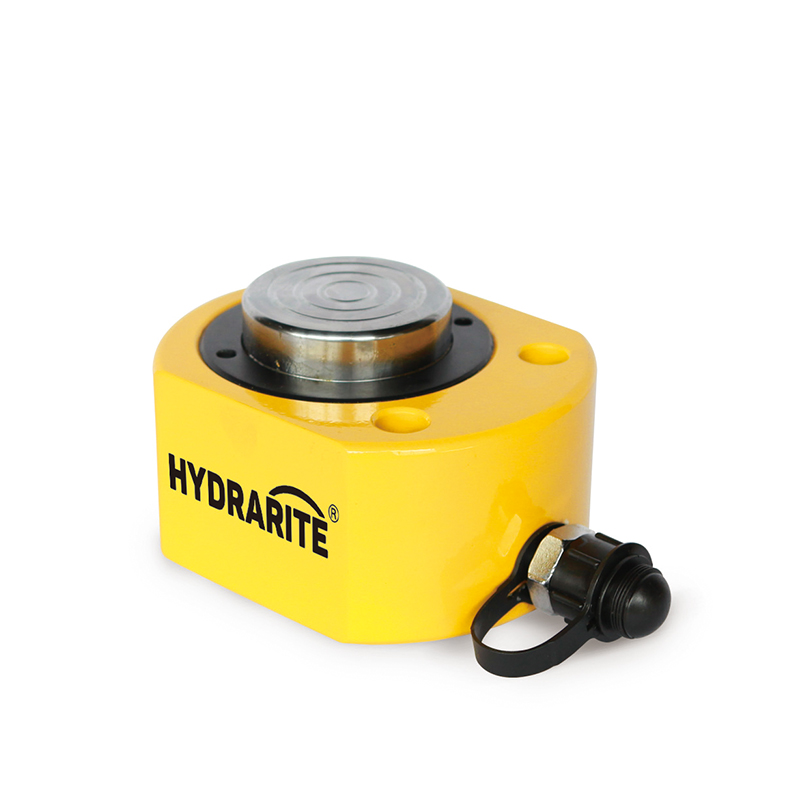

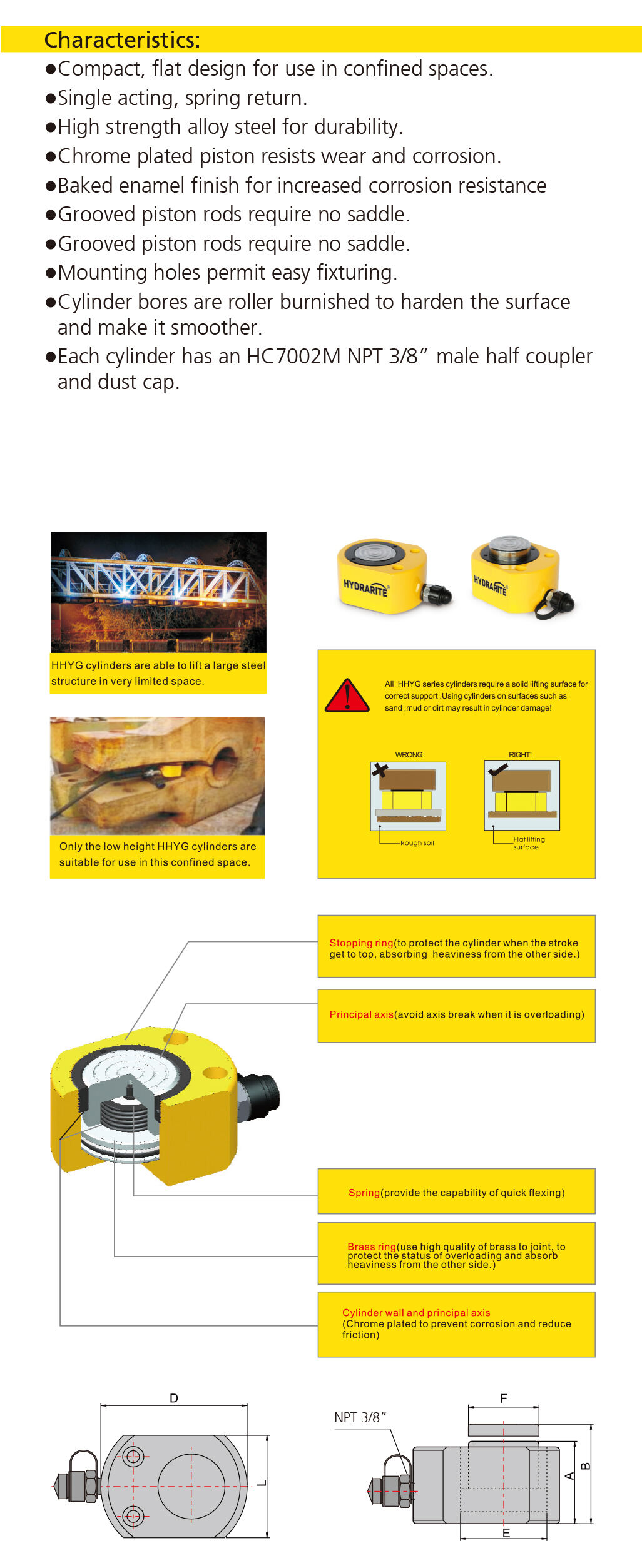

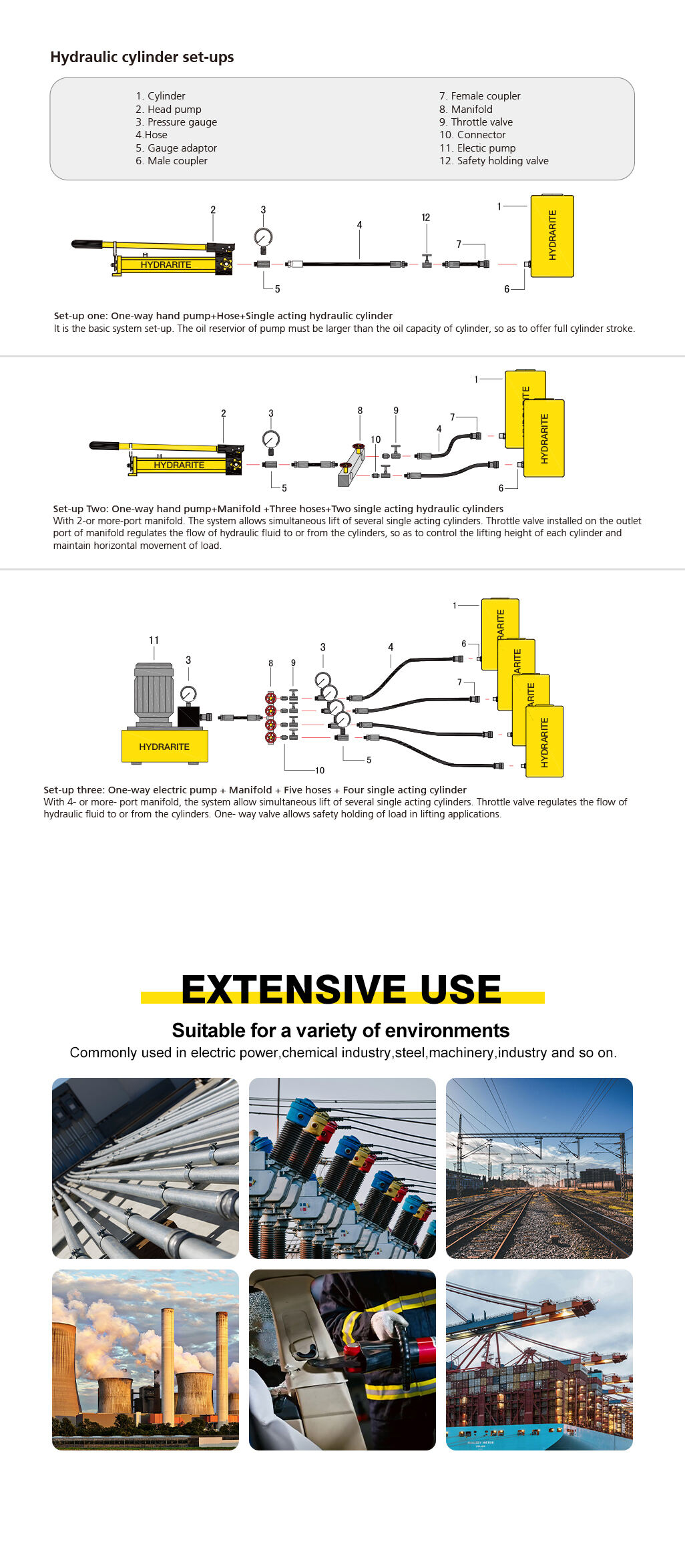

Single-acting Low Height Cylinders
Working pressure：700bar
| Model | Cylinder Capacity@700 bar | Stroke (mm) |
Effective area (cm²) |
|
| Ton | KN | |||
| HHYG-5B | 5 | 67 | 7 | 9.6 |
| HHYG-10B | 10 | 111 | 10 | 15.9 |
| HHYG-20B | 20 | 198 | 11 | 28.3 |
| HHYG-30B | 30 | 309 | 13 | 44.2 |
| HHYG-50B | 50 | 496 | 16 | 70.8 |
| HHYG-100B | 100 | 1002 | 16 | 143.1 |
| HHYG-150B | 150 | 1496 | 16 | 213.7 |
| HHYG-200B | 200 | 1984 | 20 | 283.4 |
| Oil capacity （cm³） |
Closed height A (mm) |
Extended Height B (mm) |
Outside Dia.DXL (mm) |
Inside Dia. E (mm) |
Piston Rod Dia. F (mm) |
G.W. （Kg） |
Recommended pump |
Model |
| 7 | 40 | 47 | 64×45 | 35 | 25 | 0.75 | HHB-700C | HHYG-5B |
| 16 | 48 | 58 | 83×60 | 45 | 38 | 1.6 | HHYG-10B | |
| 34 | 56 | 67 | 99×76 | 60 | 50 | 2.7 | HHYG-20B | |
| 55 | 62 | 75 | 123×98 | 75 | 64 | 4.6 | HHYG-30B | |
| 101 | 72 | 88 | 148×120 | 95 | 70 | 7.8 | HHYG-50B | |
| 200 | 92 | 108 | 188×160 | 135 | 100 | 16.8 | HHB-700C | HHYG-100B |
| 342 | 100 | 116 | 215×190 | 165 | 115 | 27 | HHYG-150B | |
| 567 | 110 | 130 | 255×244 | 190 | 135 | 42 | HHYG-200B | |
