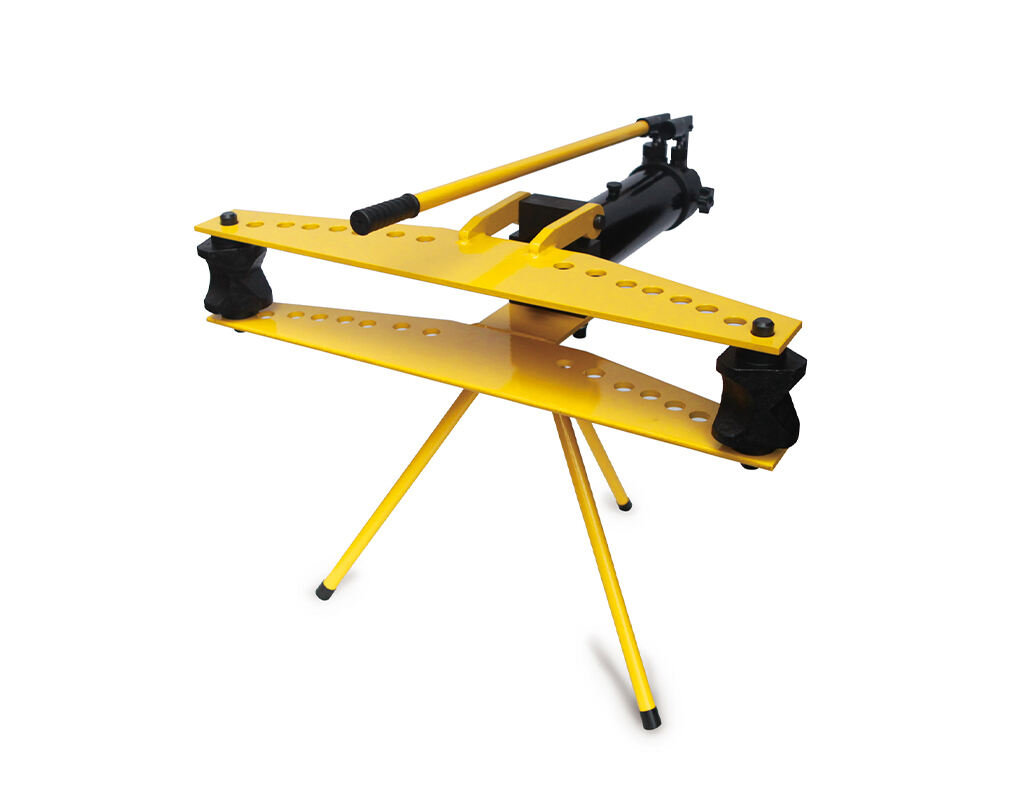

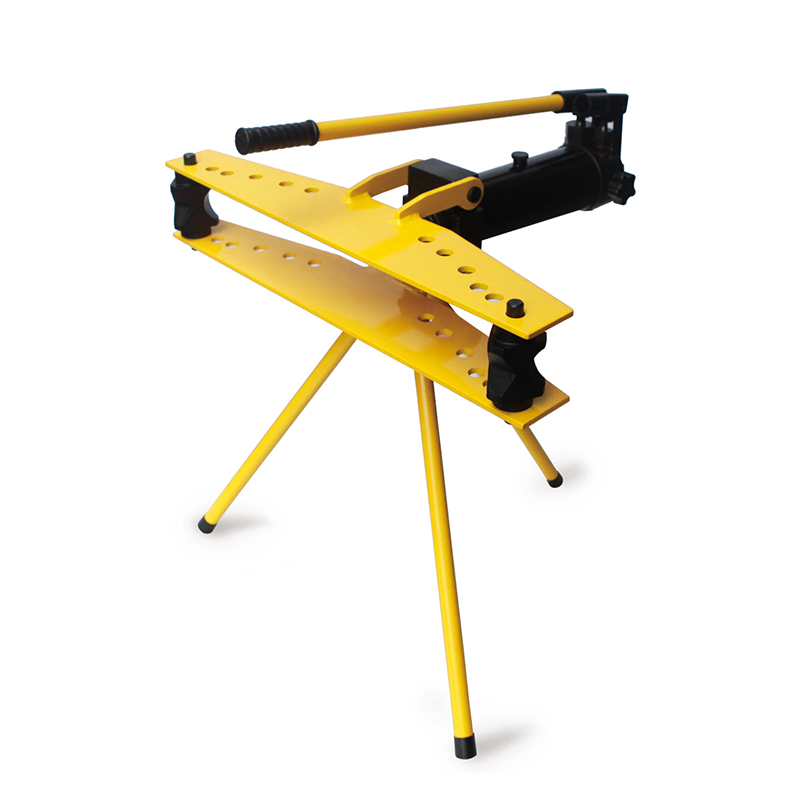

Self-contained Manual Hydraulic Pipe Benders HHW-2J HHW-3J HHW-4J

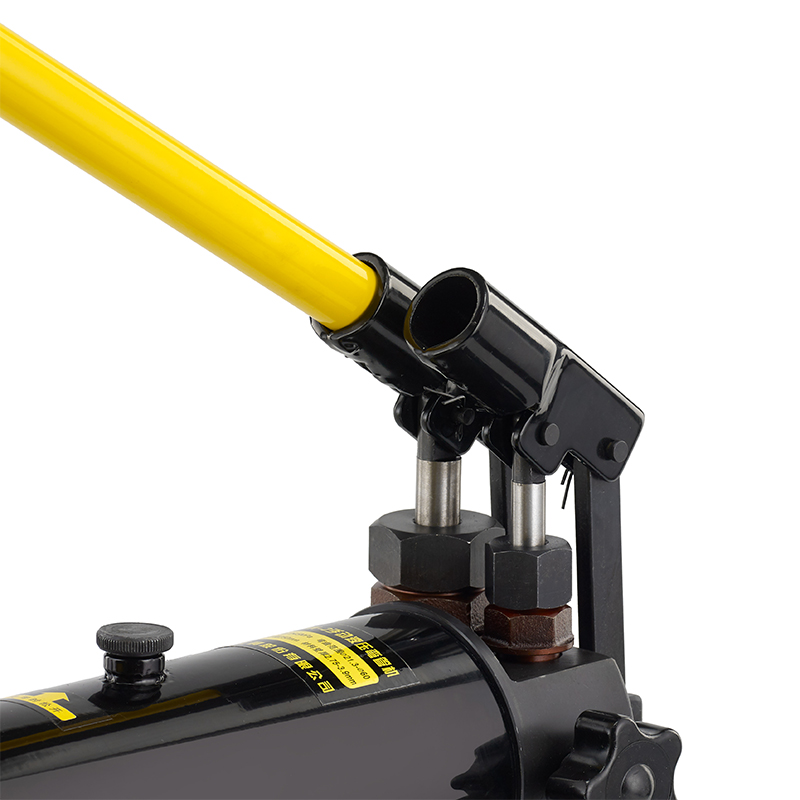

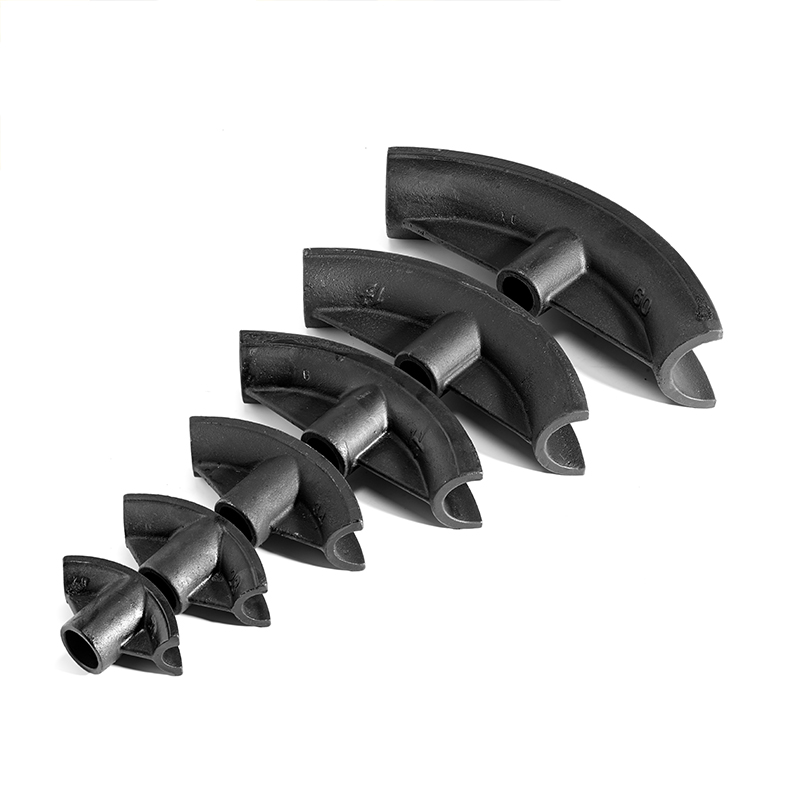

This pipe bender is designed for efficient cold bending from 0° to 90° on pipes ranging from 1/2" to 4" without the need for pre-warming. It features a two-speed, heavy-duty hydraulic pumping system that speeds up the process, while a longer piston stroke and optimized hand force significantly reduce operator fatigue. Heavy-duty casters ensure excellent mobility on job sites, facilitating easy movement and positioning. The bender is supplied in a robust wooden case, complete with a set of bending shoes and a service pack, ensuring convenience, protection, and readiness for various bending tasks.
Description
Manual Hydraulic Pipe Benders
HHW-2J, HHW-3J, HHW-4J
| Model | Hydraulic Ram Output (Ton) |
Ram stroke (mm) |
Bending range(O.D.) (mm) |
Bending shoes (inch) |
G.W. (Kg) |
Packing size (cm) |
| HHW-2J | 13 | 250 | Ø21.3-Ø60 | 1/2” 3/4” 1” 1¼” 1½” 2” | 48.2 | 73×32×20 |
| HHW-3J | 20 | 290 | Ø21.3-Ø88.5 | 1/2” 3/4” 1 “ 1¼” 1½” 2” 2½” 3” | 100.5 | 94×40×21 |
| HHW-4J | 20 | 370 | Ø21.3-Ø108 | 1/2” 3/4” 1” 1¼” 1½” 2” 2½” 3” 4” | 156.8 | 118×46×25 |
