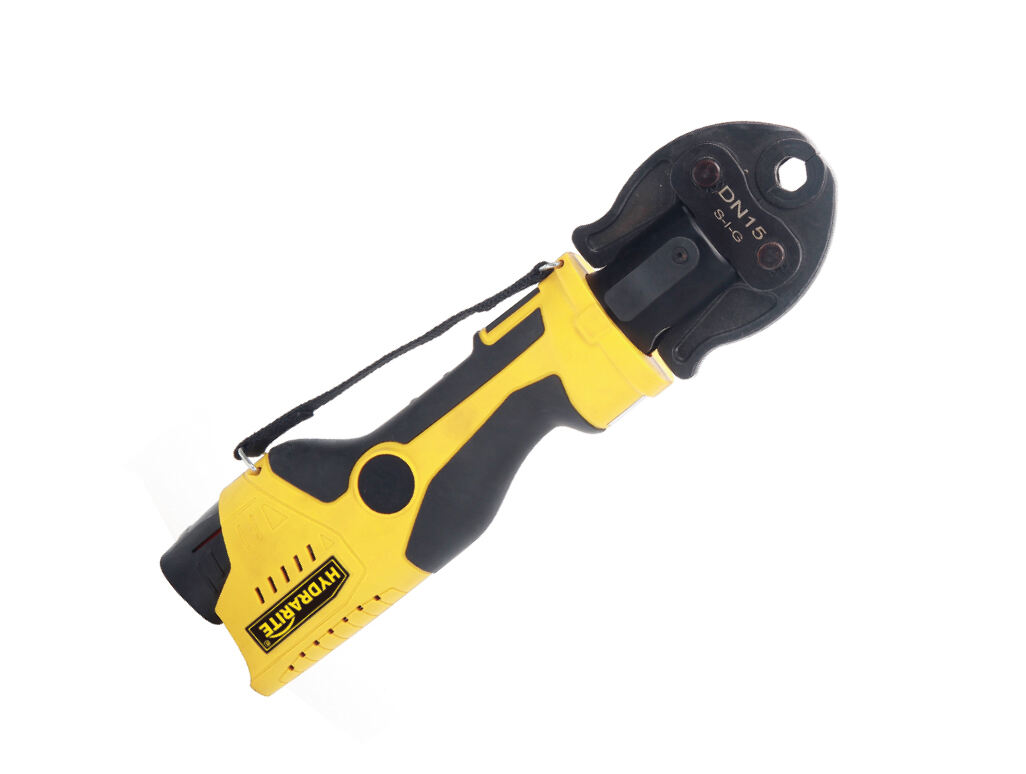

Battery-operated pressing tool HHYD-1532

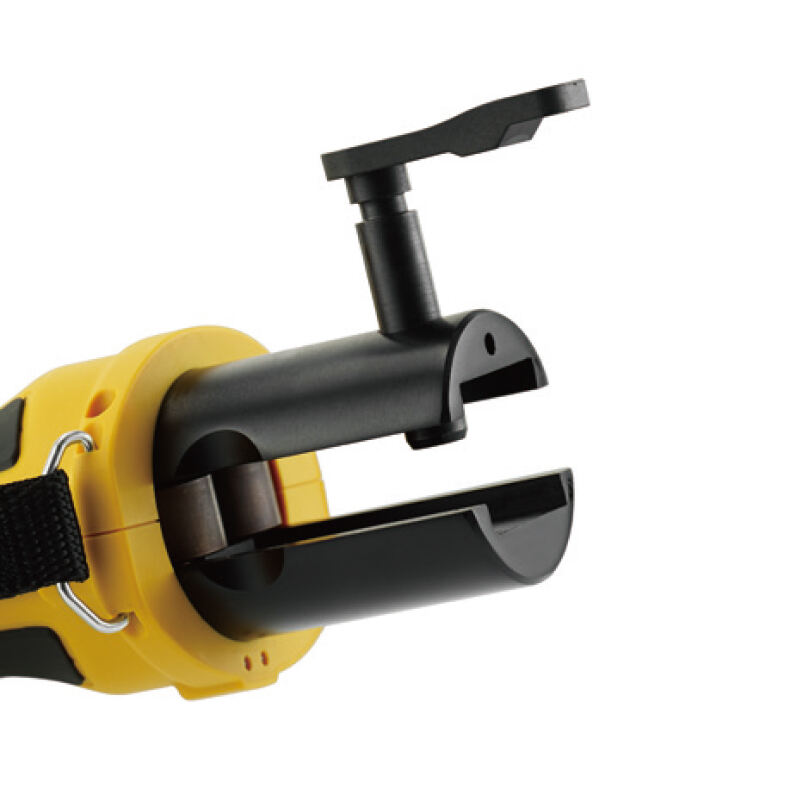

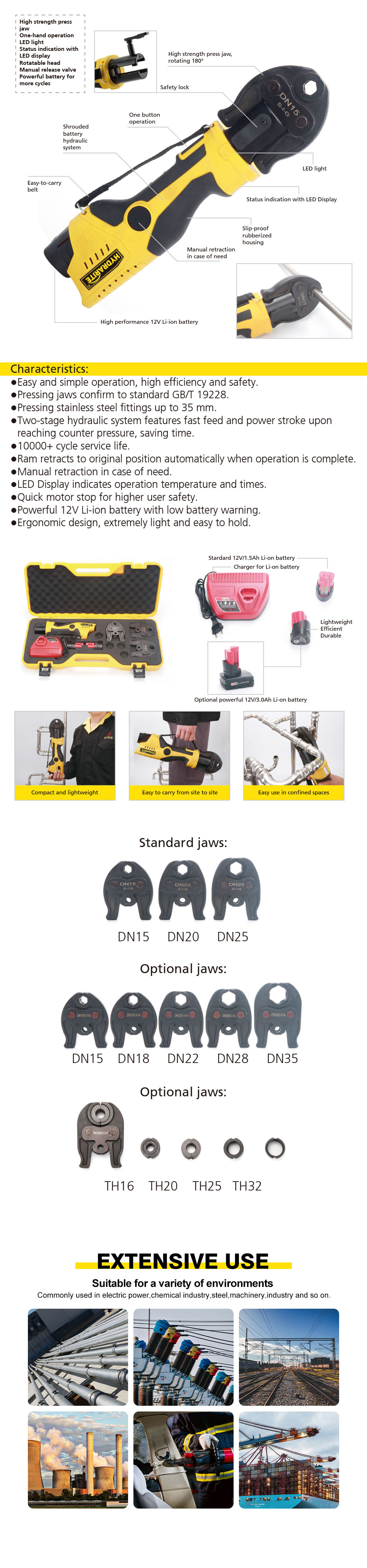

This advanced pressing tool offers easy and simple operation with high efficiency and safety. It features pressing jaws that conform to GB/T 19228 standards, capable of pressing stainless steel fittings up to 35 mm. The two-stage hydraulic system ensures fast feed and power stroke, saving time by automatically adjusting upon reaching counter pressure. With a service life exceeding 10,000 cycles, the ram retracts automatically after each operation, with manual retraction available if needed. An LED display provides operation temperature and usage count, while a quick motor stop enhances user safety. Powered by a 12V Li-ion battery with a low battery warning, its ergonomic design makes it extremely light and easy to hold, ensuring comfort and ease of use.
Description
| Model | HHYD-1532 |
| Output force | 1.9 ton |
| Stroke | 30mm |
| Battery capacity | 120 times press cycles(DN 20 Stainless steel pipe) |
| Pressing times | 5s-8s |
| Battery | 12V/1.5Ah Li-ion |
| Mould type | round |
| Pressing jaws | DN15,DN20,DN25 |
| Battery | 2pcs |
| Charger | 1pc |
| Seals | 1set |
| Weight(Kg) | 14 |
| Packing size(mm) | 585×500×170 |
