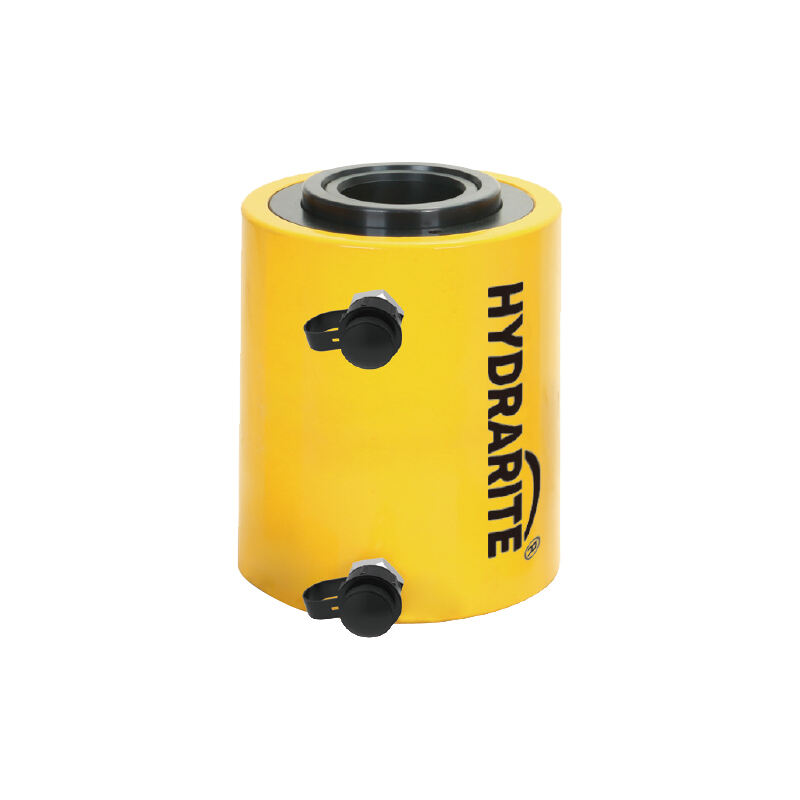

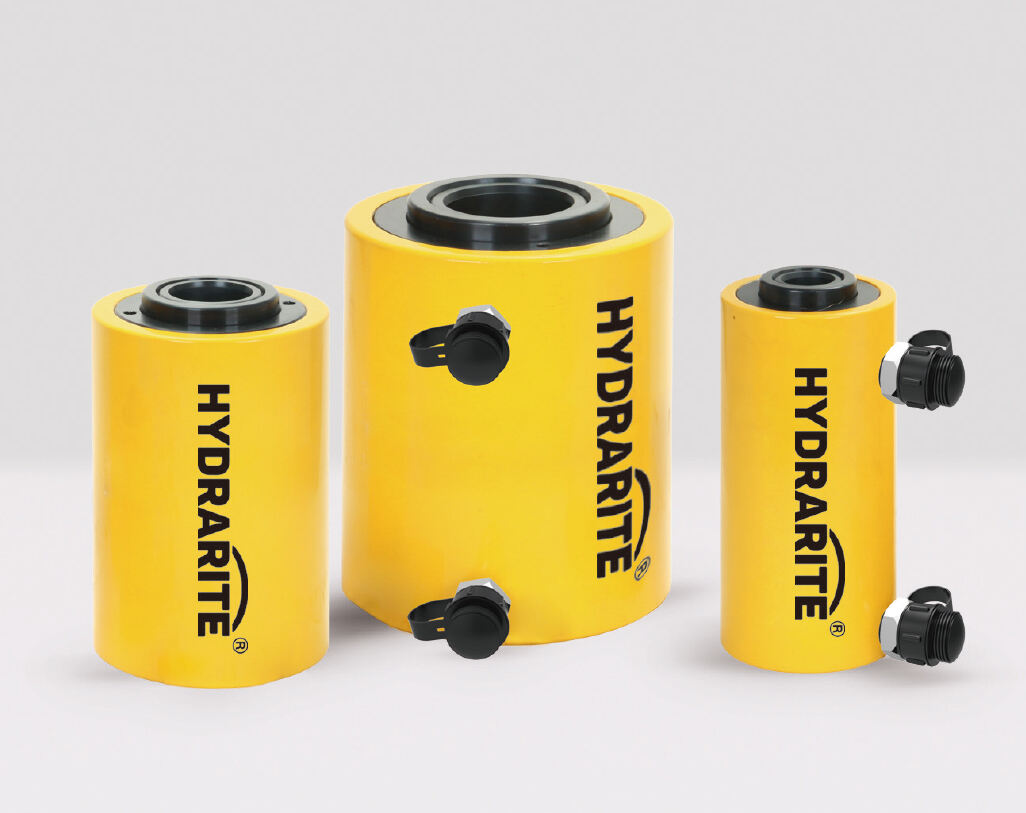

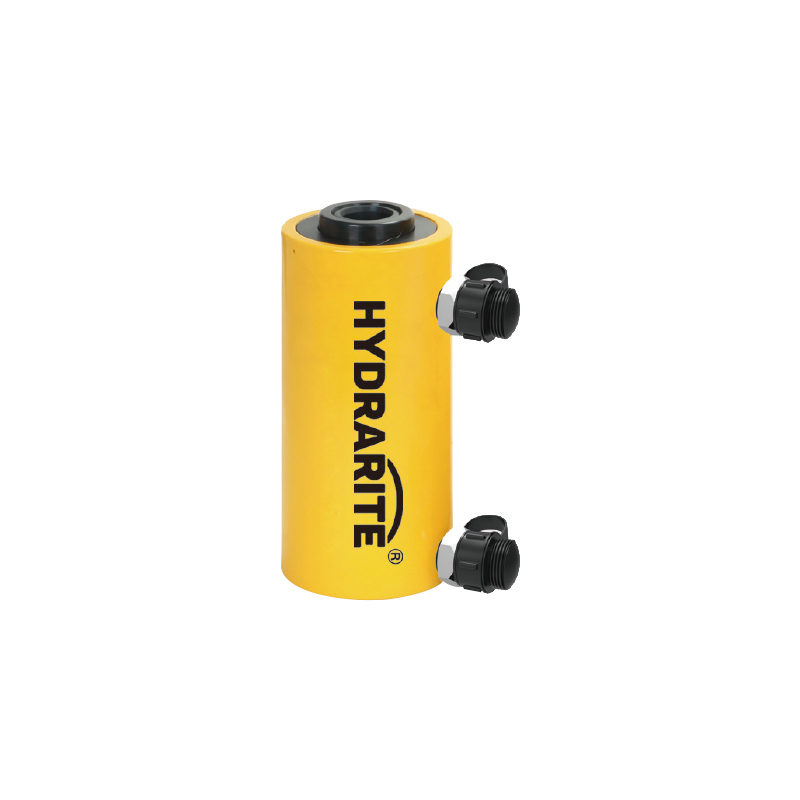

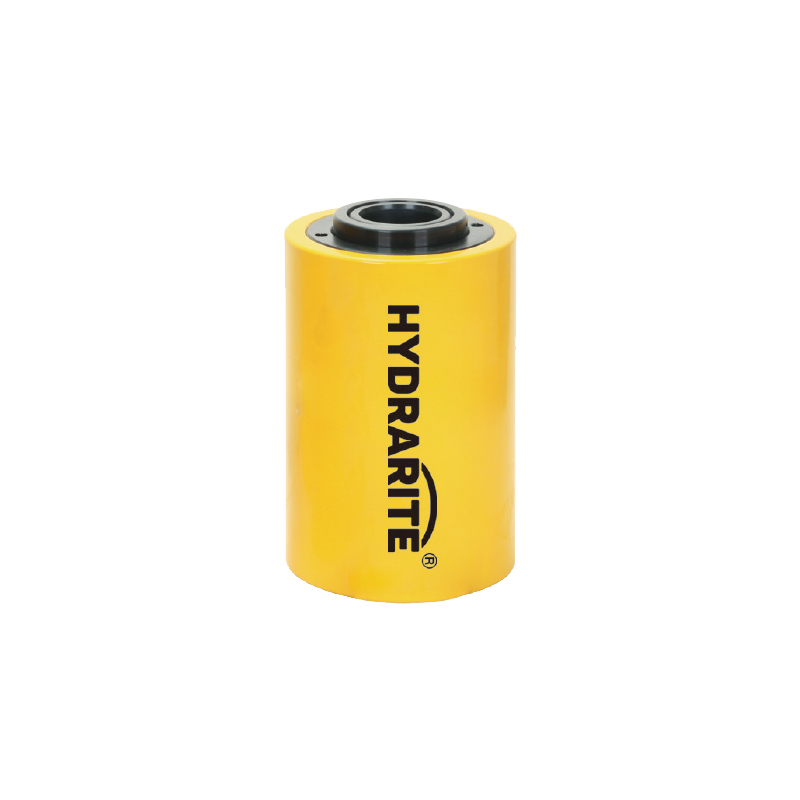

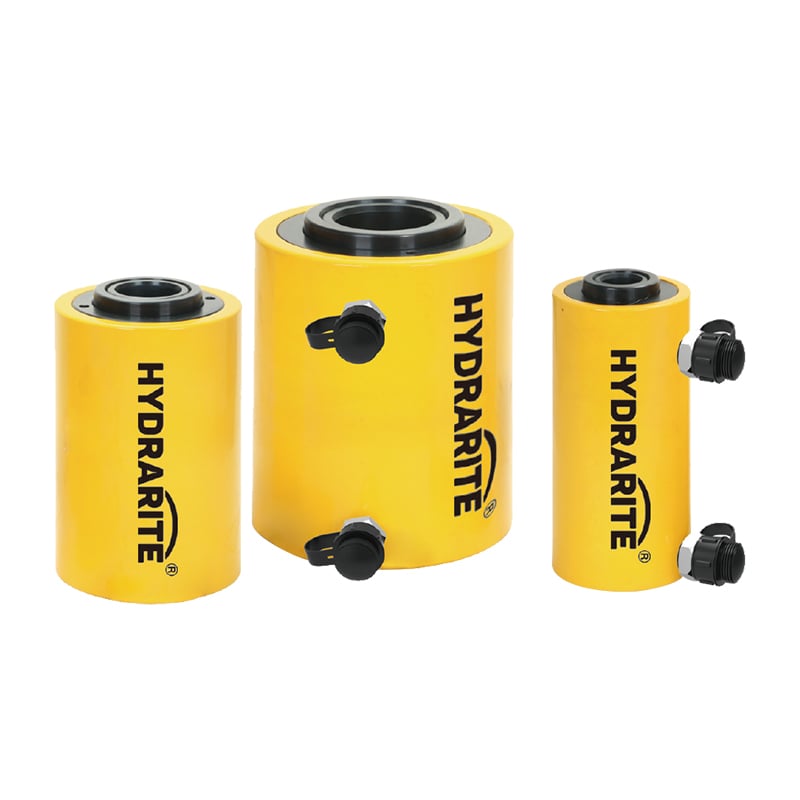

Double-acting, Hollow Plunger Cylinders
For use in Testing,
Maintenance and Tensioning
Applications

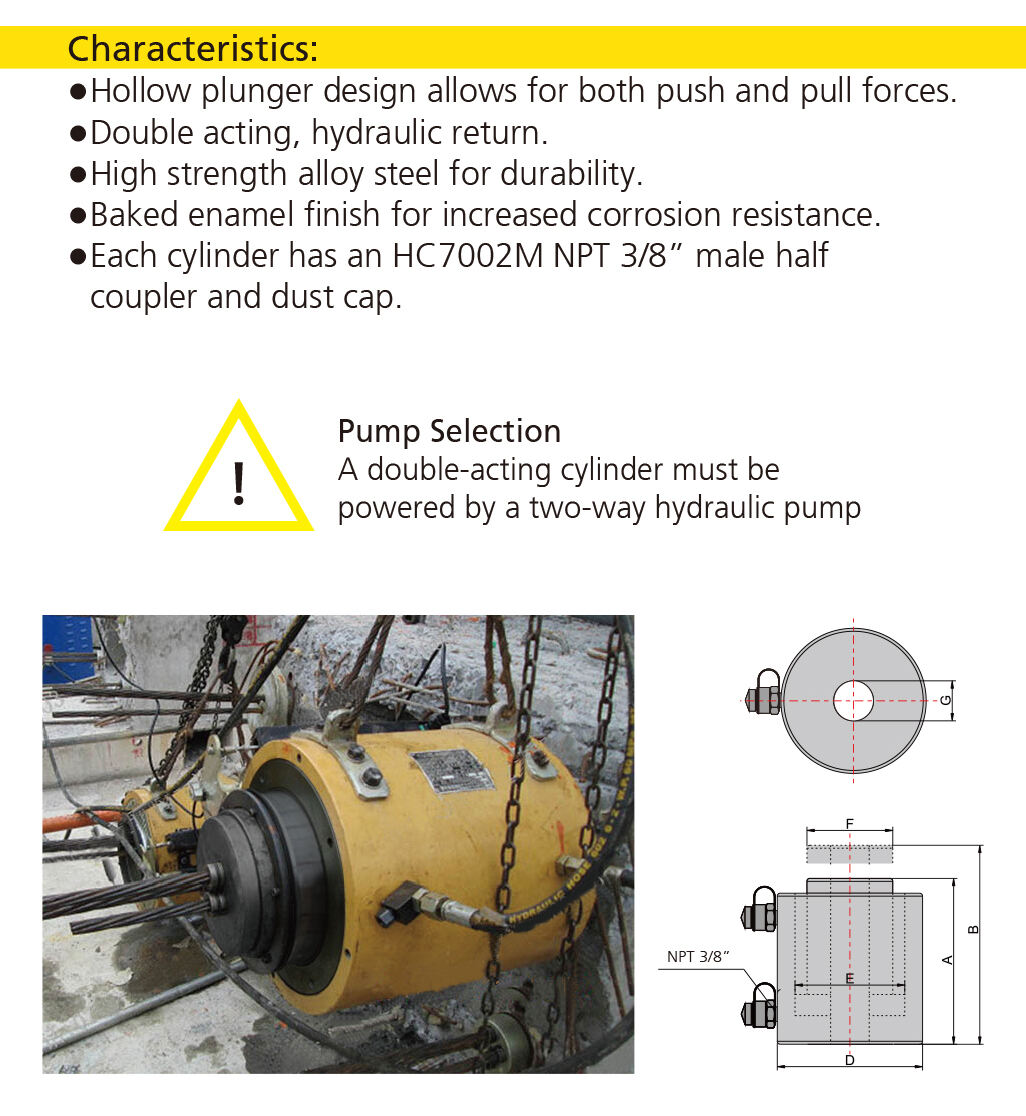

Description
Double-acting, Hollow Plunger Cylinders
Working pressure: 700bar
| Model | Cylinder Capacity@700 bar | Stroke (mm) |
Effective area (cm²) |
Oil capacity （cm³） |
||||
| Ton | Enter trace (KN) |
Return trace (KN) |
Enter trace |
Return trace |
Enter trace |
Return trace |
||
| HHYG-6050KS | 60 | 562 | 377 | 50 | 80.3 | 53.8 | 402 | 269 |
| HHYG-60100KS | 100 | 803 | 538 | |||||
| HHYG-10050KS | 100 | 965 | 642 | 50 | 137.8 | 91.7 | 689 | 459 |
| HHYG-100100KS | 100 | 1379 | 917 | |||||
| HHYG-15050KS | 150 | 1495 | 909 | 50 | 213.5 | 129.9 | 1118 | 650 |
| HHYG-150100KS | 100 | 2236 | 1299 | |||||
| HHYG-20050KS | 200 | 1929 | 1161 | 50 | 275.5 | 165.8 | 1436 | 829 |
| HHYG-200100KS | 100 | 2873 | 1658 | |||||
| Closed height A (mm) |
Extended Height B (mm) |
Outside Dia. D (mm) |
Centre hole G (mm) |
Inside Dia. E (mm) |
Piston Rod Dia. F (mm) |
G.W. （Kg） |

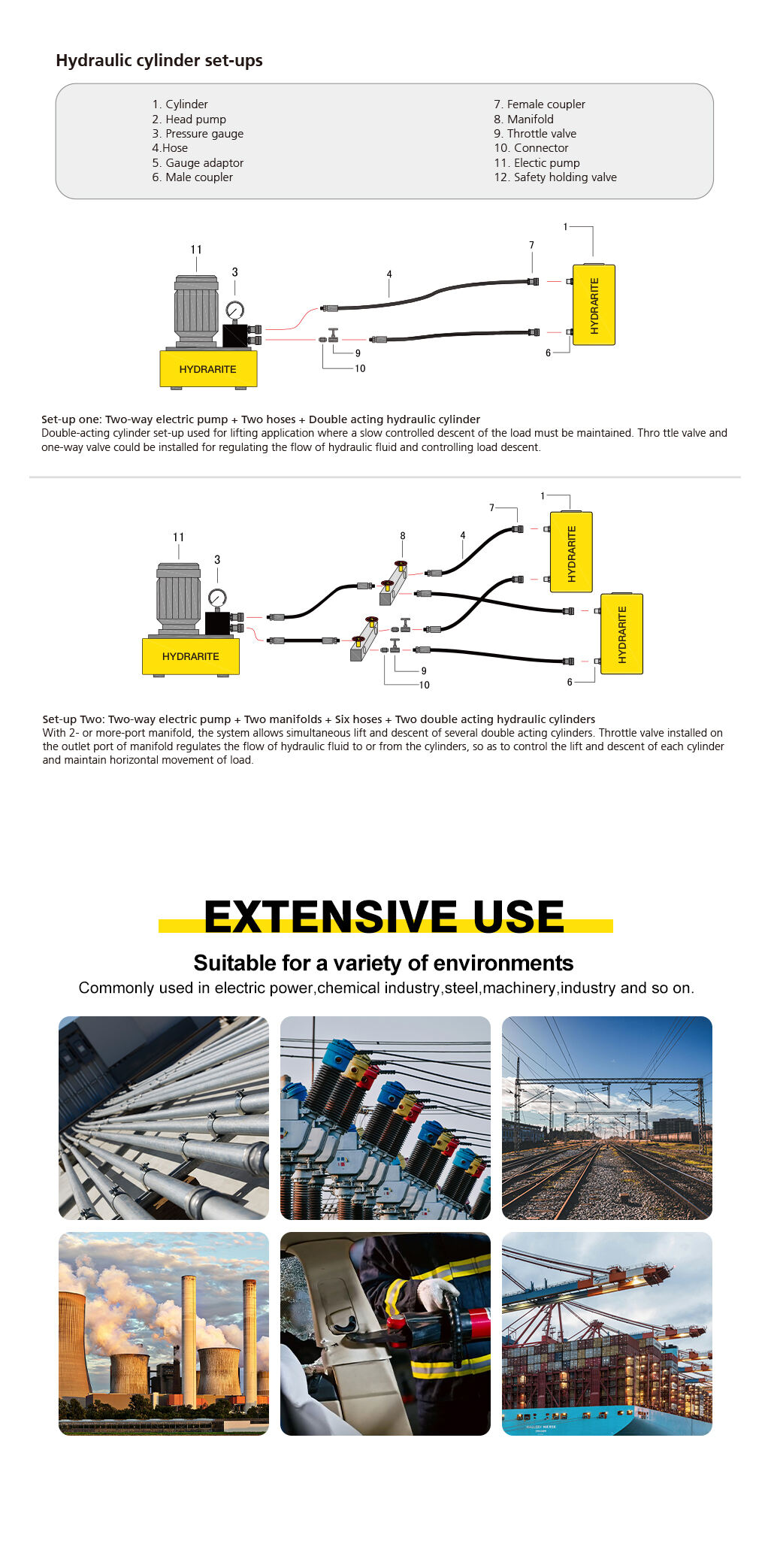

Handle | Recommended pump |
Model |
| 202 | 252 | 158 | 54 | 123 | 91 | 24.5 | Removable carrying handles |
HHB-700S | HHYG-6050KS |
| 252 | 352 | 31.3 | HHYG-60100KS | ||||||
| 207 | 257 | 208 | 80 | 165 | 126 | 44.7 | HHYG-10050KS | ||
| 257 | 357 | 56.6 | HHYG-100100KS | ||||||
| 217 | 267 | 258 | 100 | 210 | 166 | 69.7 | HHB-630B | HHYG-15050KS | |
| 267 | 367 | 87.2 | HHYG-150100KS | ||||||
| 237 | 287 | 288 | 120 | 240 | 191 | 90.9 | HHYG-20050KS | ||
| 287 | 387 | 112 | HHYG-200100KS | ||||||
