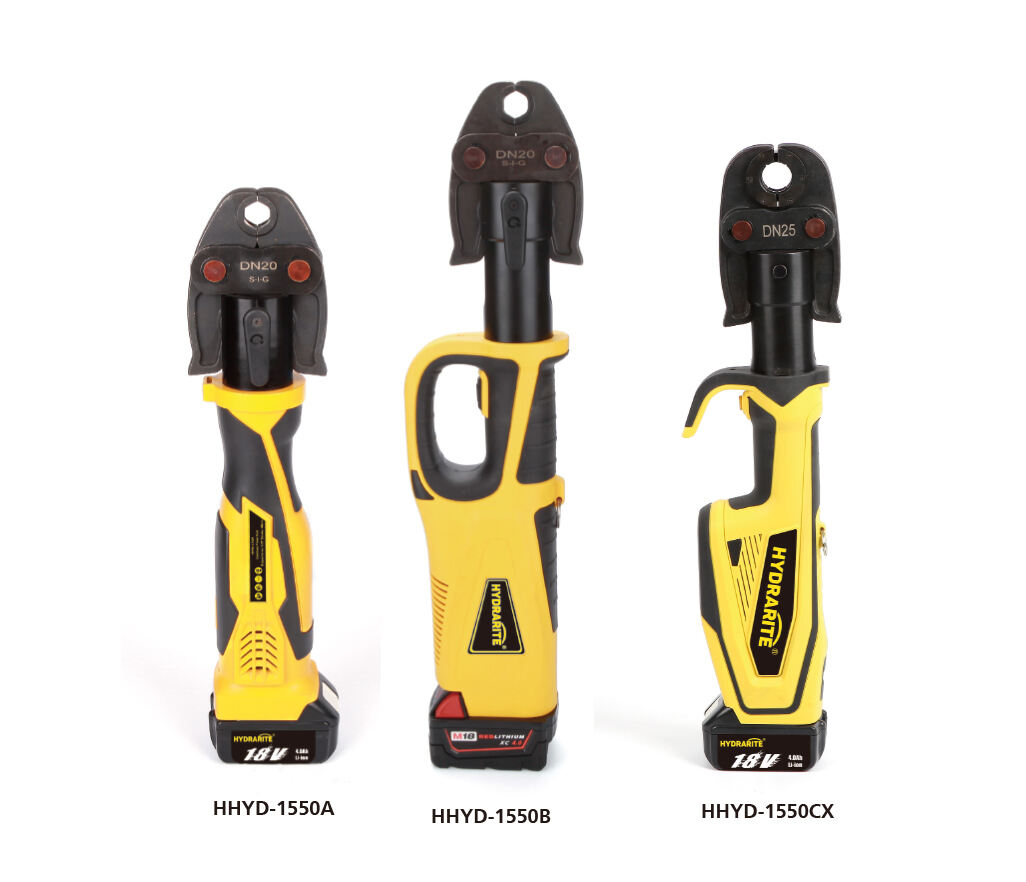

Battery-operated pressing tool HHYD-1550A HHYD-1550B HHYD-1550CX

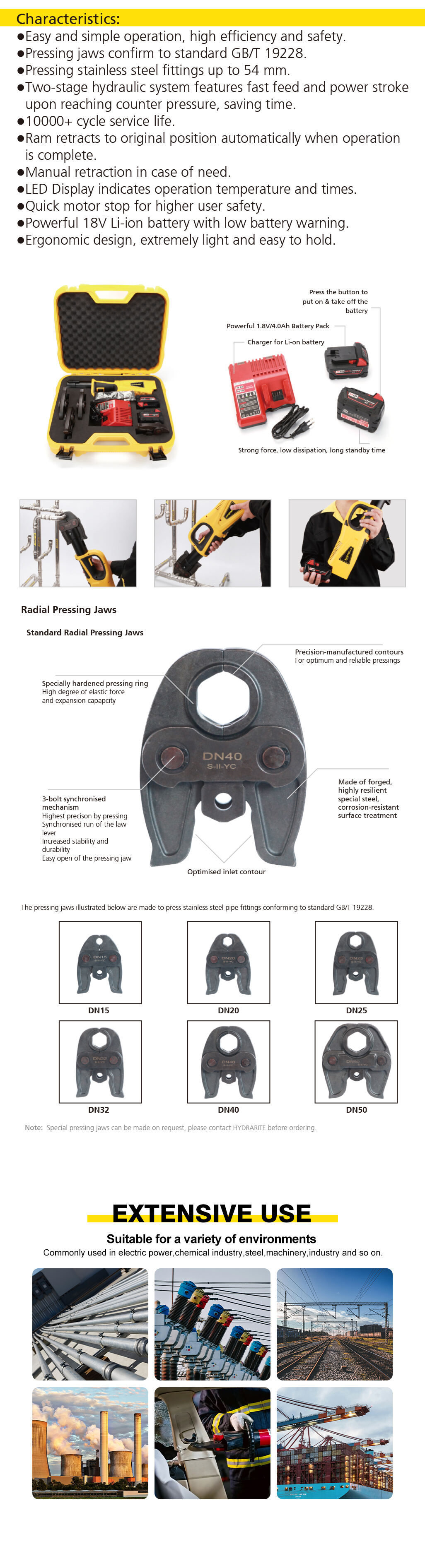

This pressing tool is engineered for easy and simple operation, providing high efficiency and safety. It features pressing jaws that meet GB/T 19228 standards and can handle stainless steel fittings up to 54 mm. The two-stage hydraulic system ensures a fast feed and power stroke, saving time by adjusting at counter pressure. With a service life exceeding 10,000 cycles, the ram retracts automatically after each use, with manual retraction available if needed. An LED display shows operation temperature and usage count, while a quick motor stop enhances user safety. Powered by a robust 18V Li-ion battery with a low battery warning, its ergonomic design makes it extremely light and easy to hold, ensuring user comfort and convenience.
Description
Battery-operated pressing tool
HHYD-1550A, HHYD-1550B, HHYD-1550CX
Suitable for precise and reliable pressing of fittings DN15-DN50
| Model | HHYD-1550A | HHYD-1550B | HHYD-1550CX |
| Output force | 3.2 ton | 3.2 ton | 3.2 ton |
| Stroke | 40mm | 40mm | 40mm |
| Battery capacity | 300 times press cycles(DN 20 Stainless steel pipe) | ||
| Pressing times | 5s-8s | ||
| Battery | 18V/4.0Ah Li-ion | ||
| Mould type | round | ||
| Pressing jaws | DN15,DN20,DN25,DN32,DN40,DN50 | ||
| Battery | 2pcs | ||
| Charger | 1pc | ||
| Seals | 1set | ||
| Weight(Kg) | 25 | ||
| Packing size(mm) | 585×500×170+210×200×120 | ||
