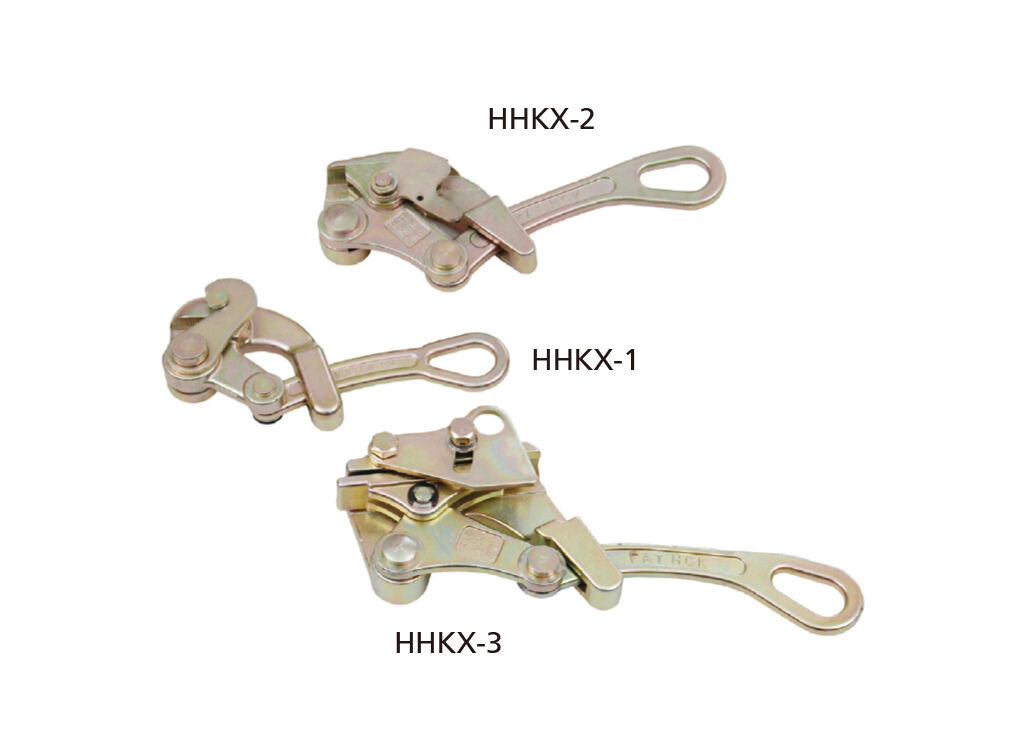

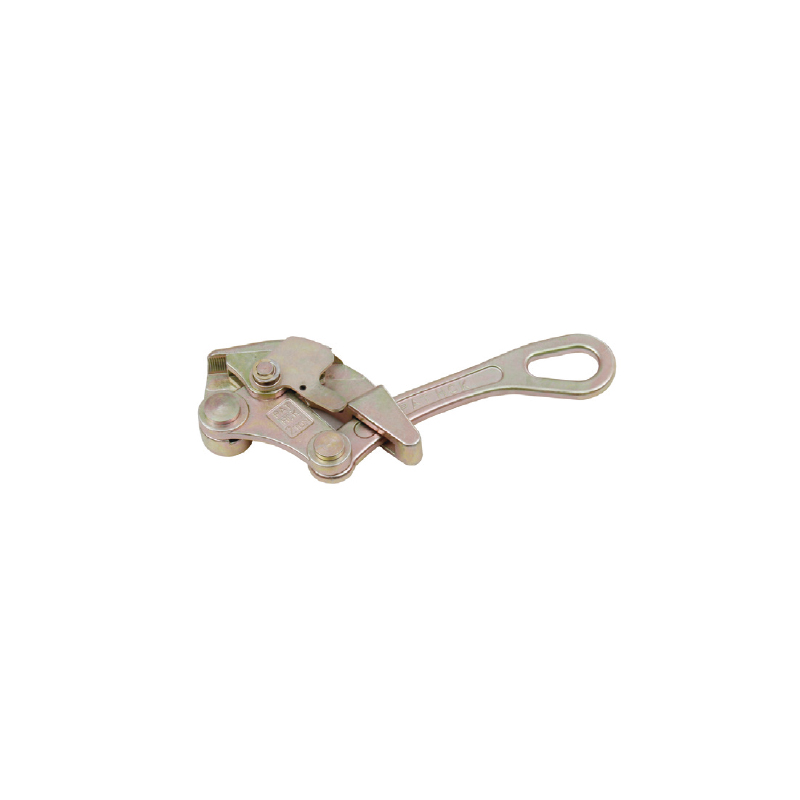

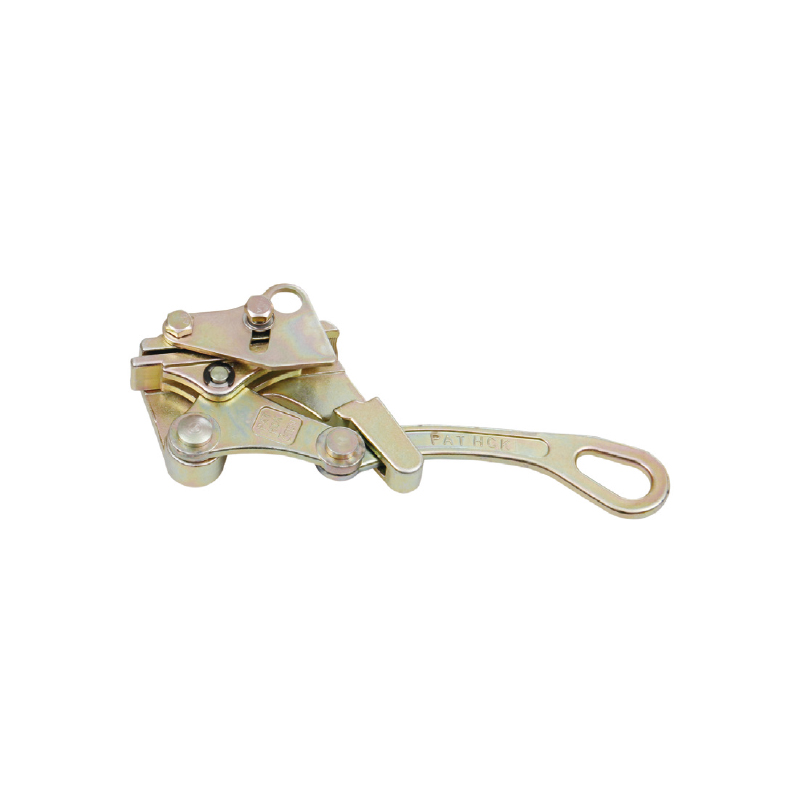

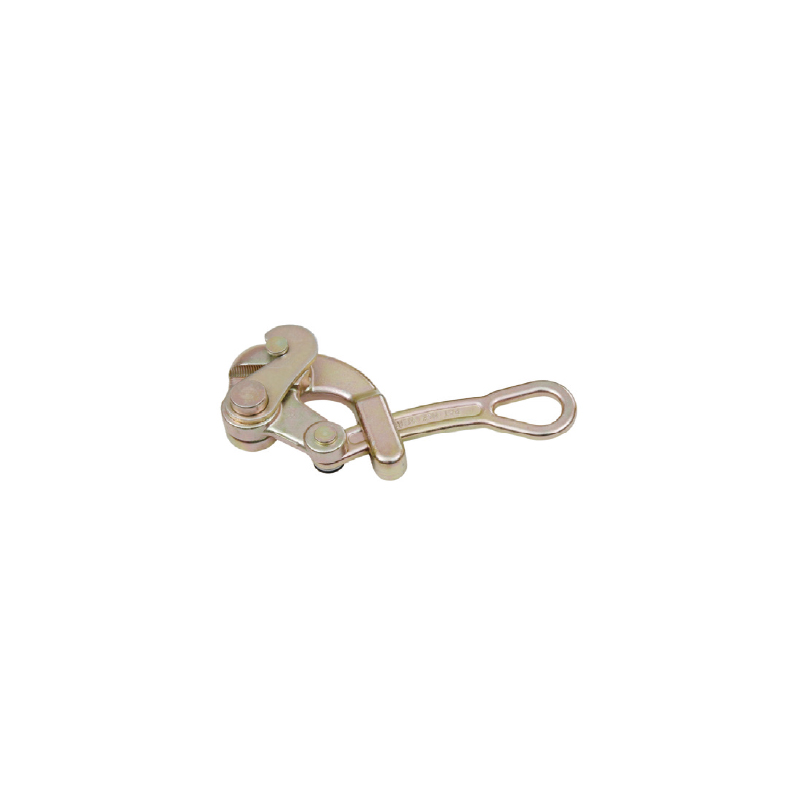

Wire Pulling Grips HHKX-1 HHKX-2 HHKX-3
These wire grips, available in models HHKX-1, HHKX-2, and HHKX-3, are crafted from high-strength aluminum alloy and heat-treated for enhanced durability. They feature precision-machined jaws for optimal alignment, making them ideal for gripping ACSR conductors. With rated loads from 10 kN to 30 kN, they accommodate steel and copper strands as well as insulated wires. Suitable for diverse environments, including electric power and chemical industries, these grips are lightweight and compact, ensuring easy handling and transport.
Description
Wire Pulling Grips
| Model | Rated load (KN) |
Application | G.W. (kg) |
Packing size (mm) |
| HHKX-1 | 10 | Ø2.5-16mm steel strands,copp er strands |
1.3 | 240 x100 x45 |
| HHKX-2 | 20 | Ø4-22mm steel strands,ACSR, insulated wires |
1.9 | 280 x110 x50 |
| HHKX-3 | 30 | Ø16-32mm steel strands,ACSR,insulated wires | 3.2 | 340 x140 x70 |
