Description

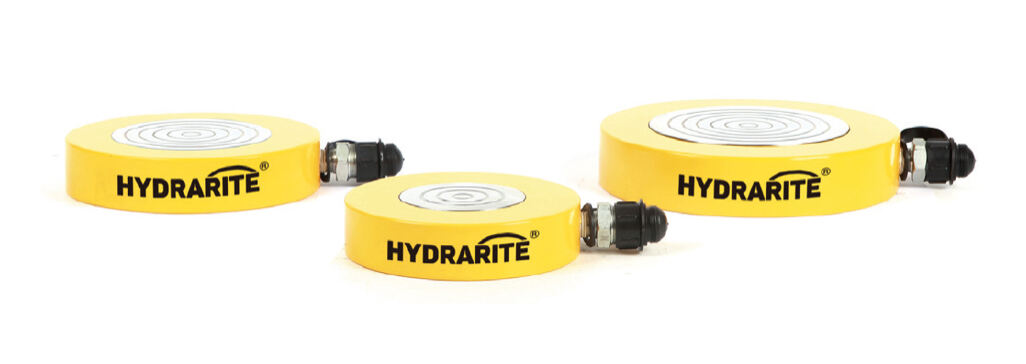

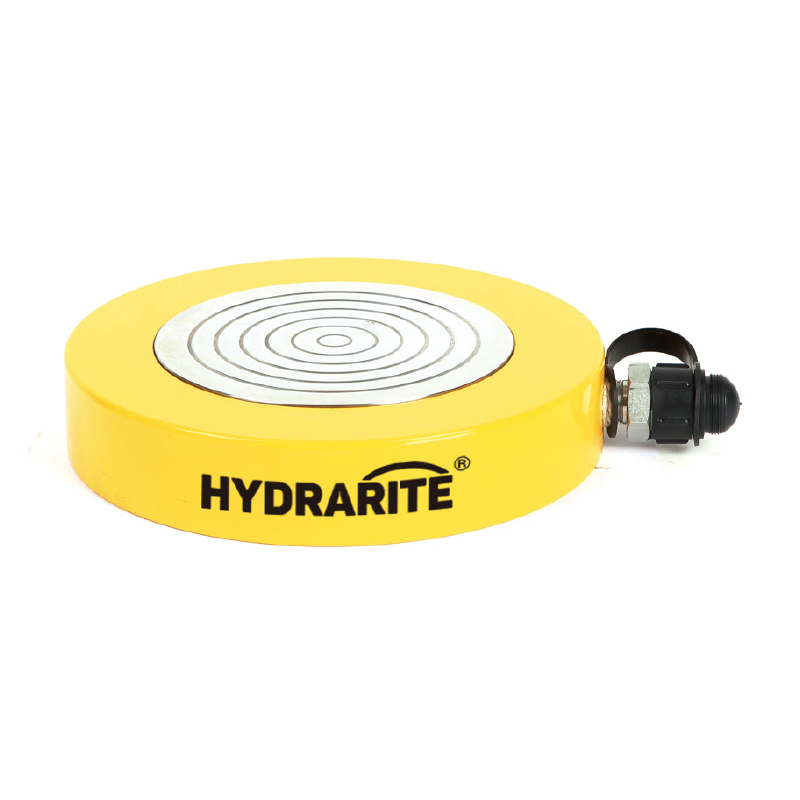

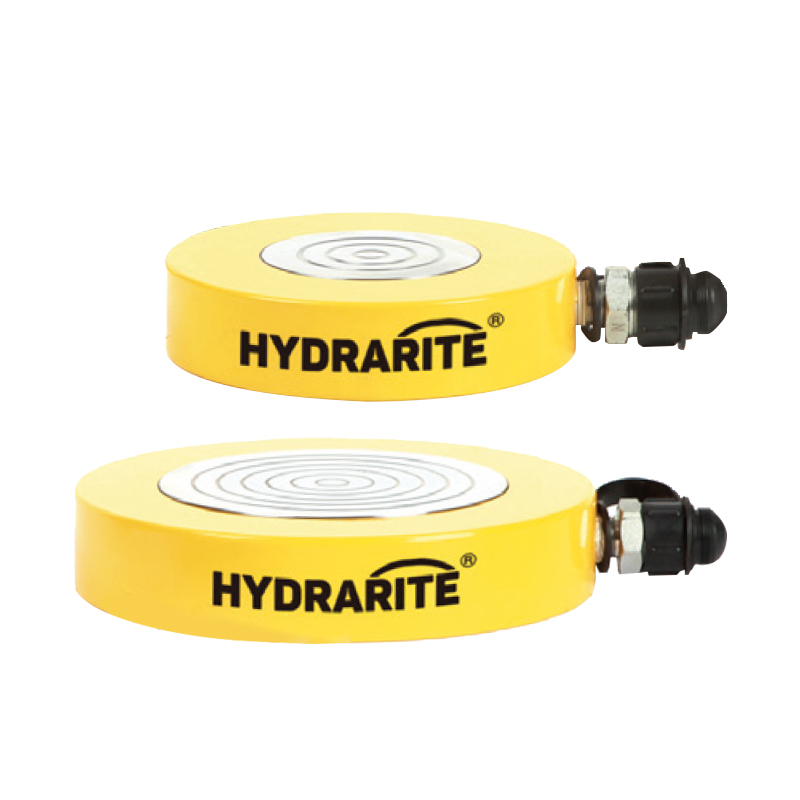

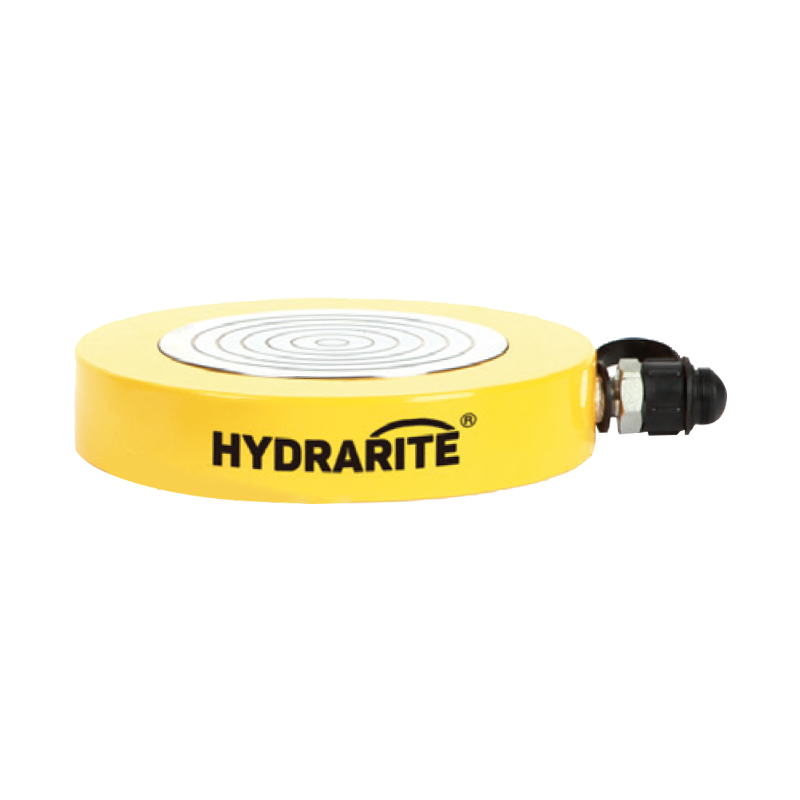

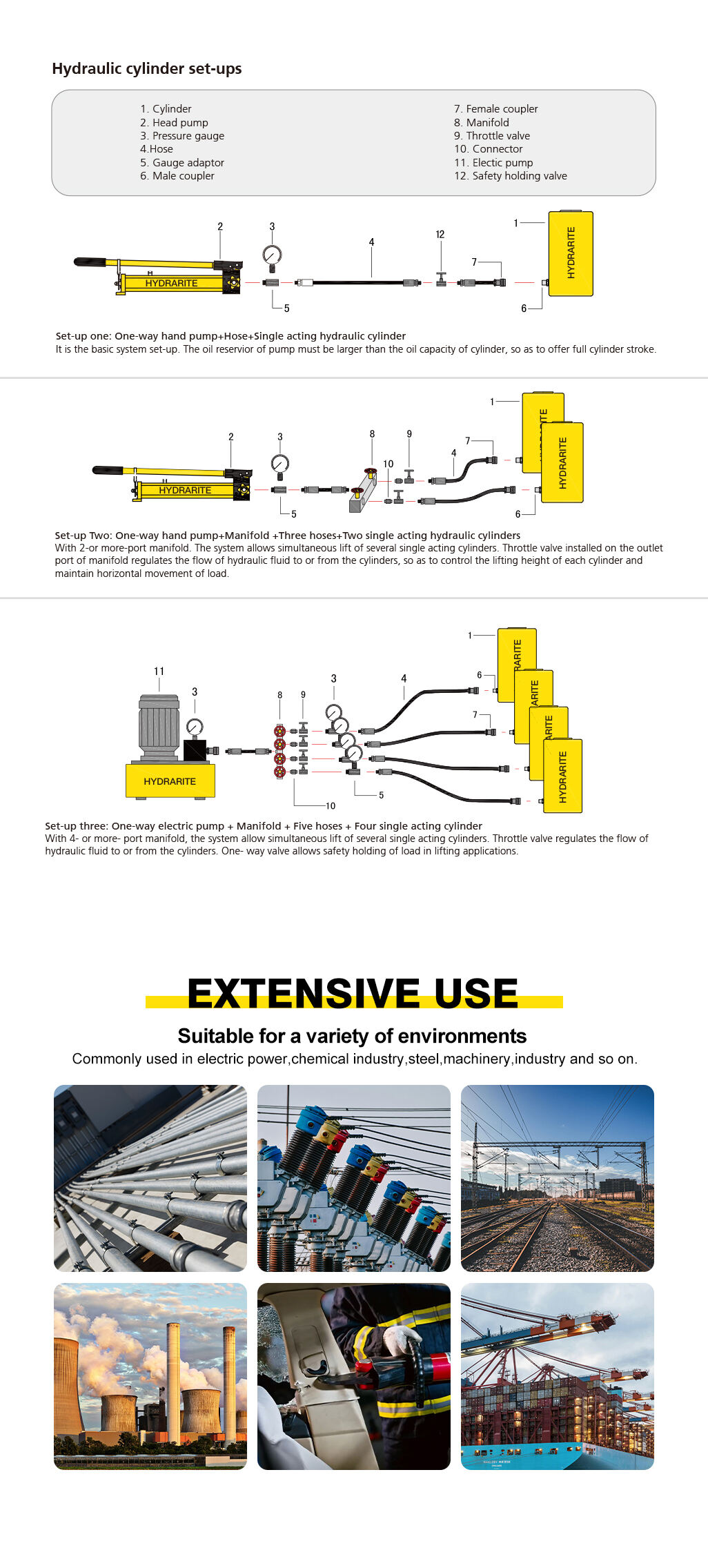

Ultra-Flat Cylinders
Working pressure: 700 bar
| Model | Cylinder Capacity@700 bar | Stroke (mm) |
Effective area (cm²) |
|
| Ton | KN | |||
| HHYG-3515CCB | 35 | 35.16 | 15 | 50.2 |
| HHYG-7015CCB | 70 | 72.67 | 15 | 103.8 |
| HHYG-10015CCB | 100 | 107.7 | 15 | 153.5 |
| Oil capacity （cm³） |

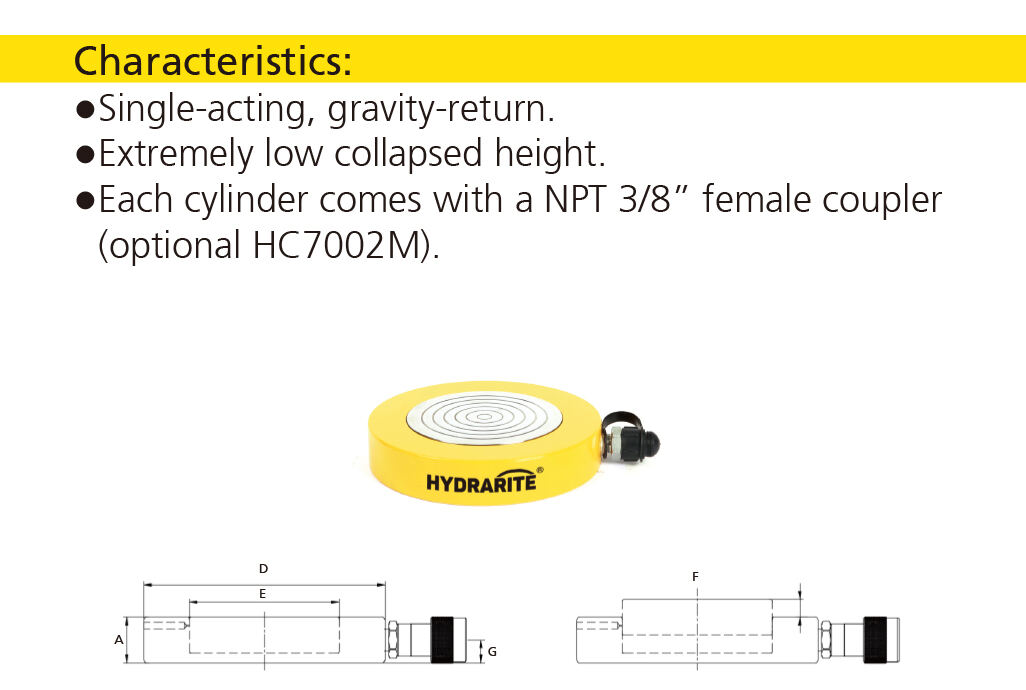

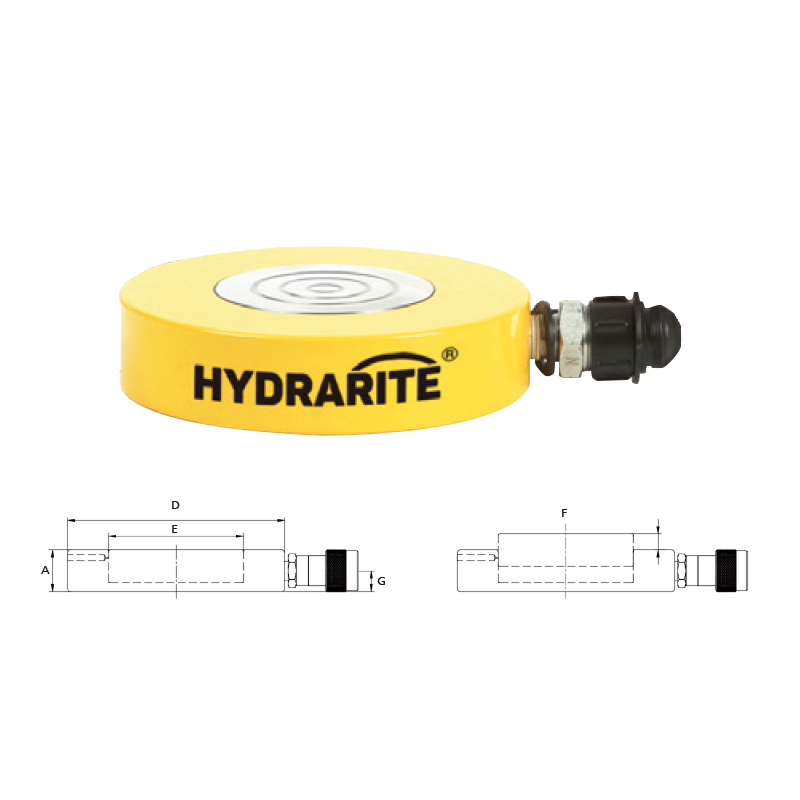

Closed height A (mm) |
Extended Height B (mm) |
Outside Dia. DXL (mm) |
Inside Dia. E (mm) |
Piston Rod Dia. F (mm) |
Bottom to Advance Port G (mm) |
G.W. （Kg） |
Model |
| 75 | 35 | 50 | 150 | 80 | 80 | 17.5 | 5 | HHYG-3515CCB |
| 156 | 35 | 50 | 185 | 115 | 115 | 17.5 | 7.5 | HHYG-7015CCB |
| 231 | 41 | 50 | 210 | 140 | 140 | 19 | 11.2 | HHYG-10015CCB |
