Description
| Model | Pump type |
Power rating (kw) |
Working pressure (bar) |
Flow rate (L/min) |
Usable oil capacity (liter) |
Dimensions (mm) |
Packing size (cm) |
Weight (Kg) |
||||
| Low pressure stage |
High pressure stage |
Low pressure stage |
High pressure stage |
L | B | H | ||||||

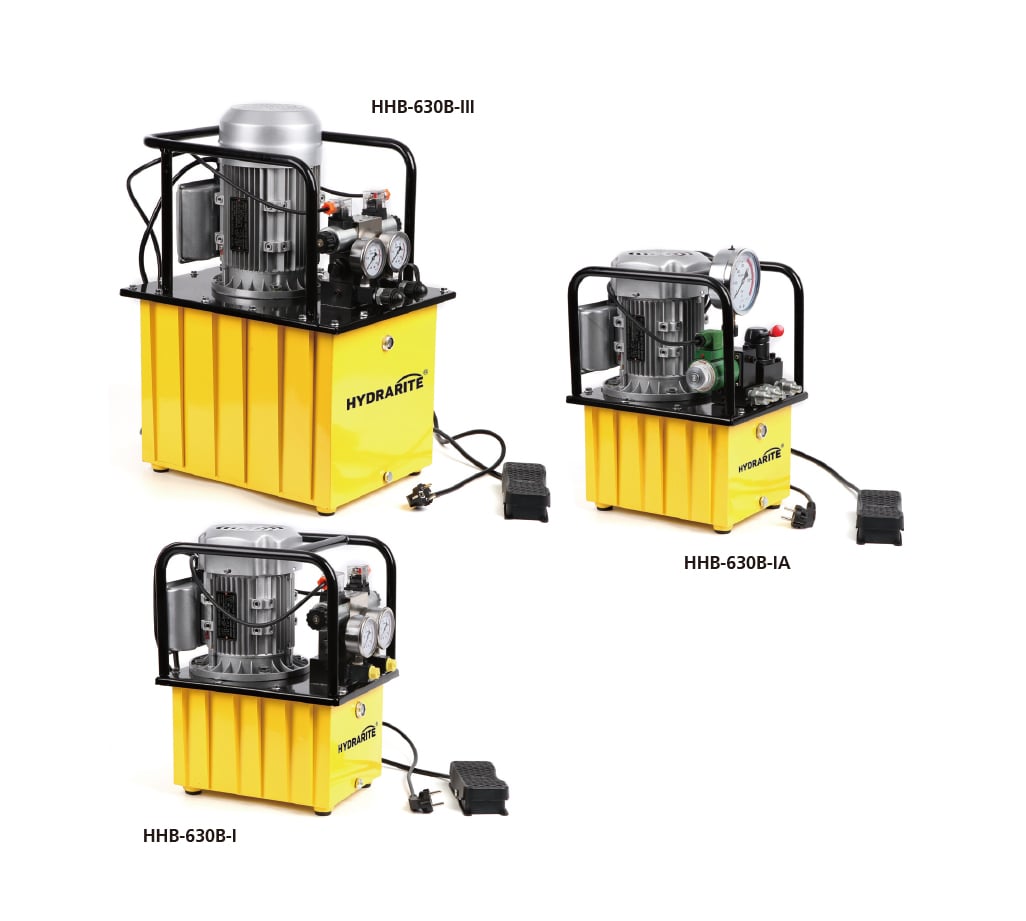

| HHB-630B-I | Two-way | 0.75 | 20 | 700 | 4.6 | 0.6 | 8 | 325 | 255 | 450 | 37X31X54 | 27.2 |
| HHB-630B-IA | Three-way | 0.75 | 20 | 700 | 4.6 | 0.6 | 8 | 325 | 255 | 450 | 37X31X54 | 26 |
| HHB-630B-III | Two-way | 1.5 | 20 | 700 | 6 | 2.2 | 35 | 455 | 355 | 630 | 50X38X70 | 48.1 |
| Two-way | 2.2 | 20 | 700 | 9 | 2.6 | 35 | 455 | 355 | 630 | 50X38X70 | 55.2 | |
| Two-way | 3 | 20 | 700 | 10 | 3 | 35 | 455 | 355 | 630 | 50X38X70 | 59.2 | |
