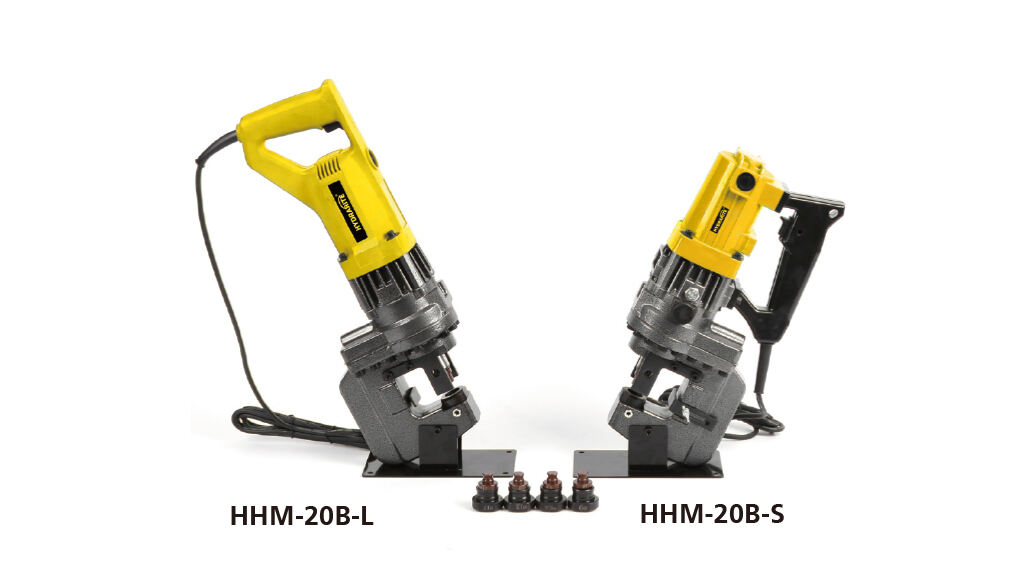

Hydraulic Busbar Puncher HHM-20B-L HHM-20B-S
The HHM-20B series, including models L and S, features a durable high-strength alloy steel head for effective punching of mild steel, steel plates, and copper-aluminum busbars. With a punch speed of 2-35 and a 52.5mm throat depth, it handles up to 6mm thickness. The electro-hydraulic design ensures portability and easy operation, with specialized high-carbon alloy steel dies. Ideal for electric power and industrial applications.
Description
Electro-hydraulic channel puncher
HHM-20B-L, HHM-20B-S
| Model | Rated voltage |
Rated power | punch speed |
Throat depth |
Max thickness |
punch dies | Weight (Kg) |
Packing size(mm) |
| HHM-20B-L | 220V | 1200W 50-60HZ | 2-3S | 52.5mm | 6mm | 6.5,9,13,17,20.5 | 13.93 | 196.5X130X520 |
| HHM-20B-S | 220V | 1200W 50-60HZ | 2-3S | 52.5mm | 6mm | 6.5,9,13,17,20.5 | 14.17 | 196.5X135X430 |
