Description

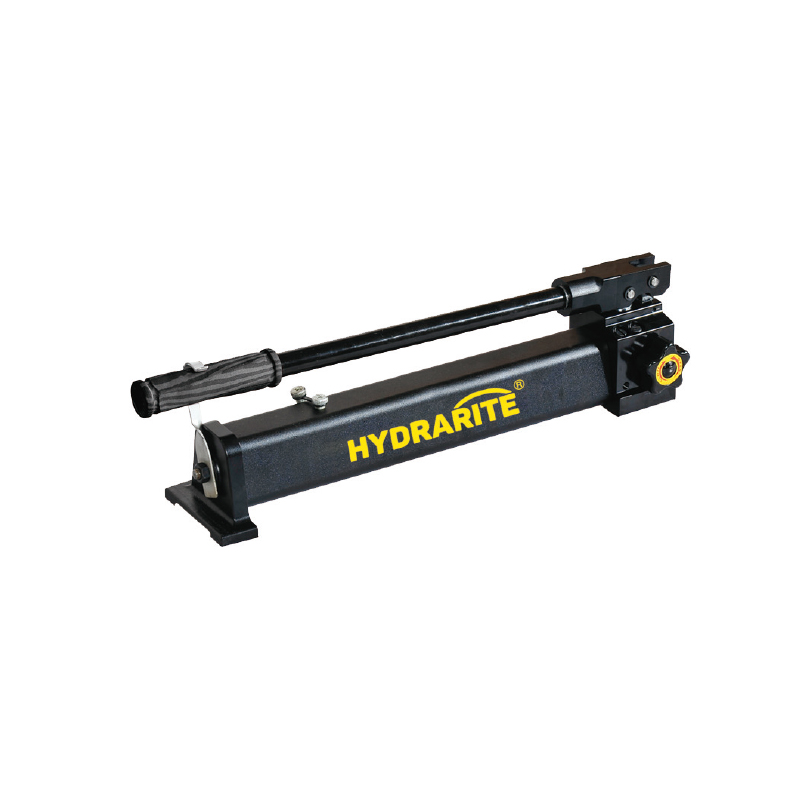

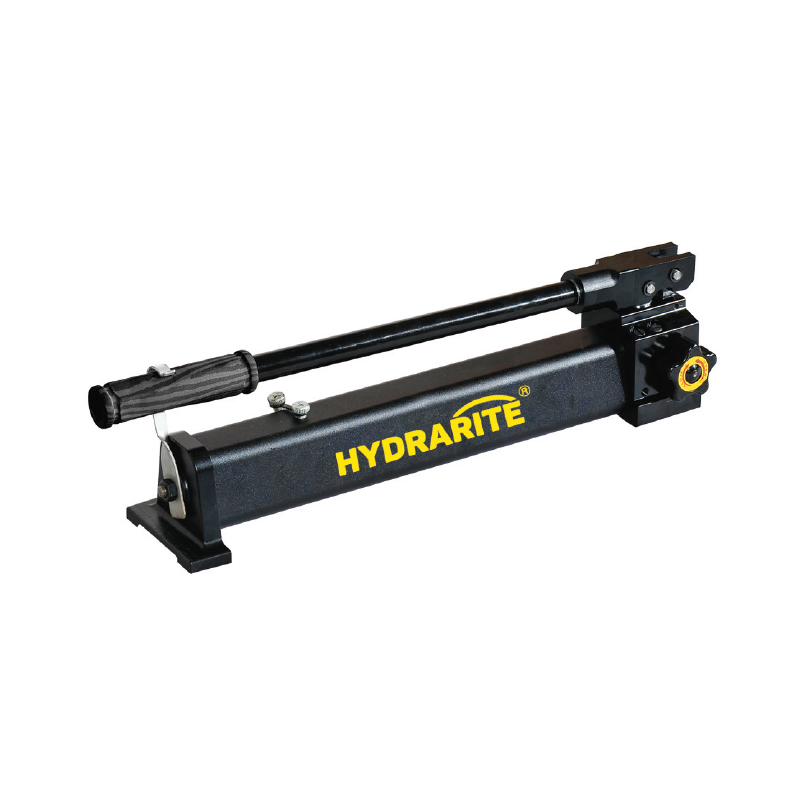

Hand Operated Hydraulic Pumps
Made of aluminum alloy
| Model | Working pressure (bar) |
Oil displacement per stroke (cm³) |
Reservior (cm³) |
Dimensions (mm) |
Packing size (cm) |
Weight (Kg) |
|||||
| Low pressure stage |
High pressure stage |
Low pressure stage |
High pressure stage |
Oil capacity |
Usable oil capacity |
L | B | H | |||
| HHB-1000 | 20 | 700 | 13 | 2.3 | 1300 | 1000 | 550 | 110 | 125 | 73X19X19 | 6.4 |
| HHB-2000 | 20 | 700 | 13 | 2.3 | 2500 | 2000 | 550 | 130 | 140 | 73X19X19 | 8.9 |
| HHB-700F | 20 | 700 | 13 | 2.3 | 980 | 930 | 620 | 115 | 120 | 73X19X19 | 6 |
