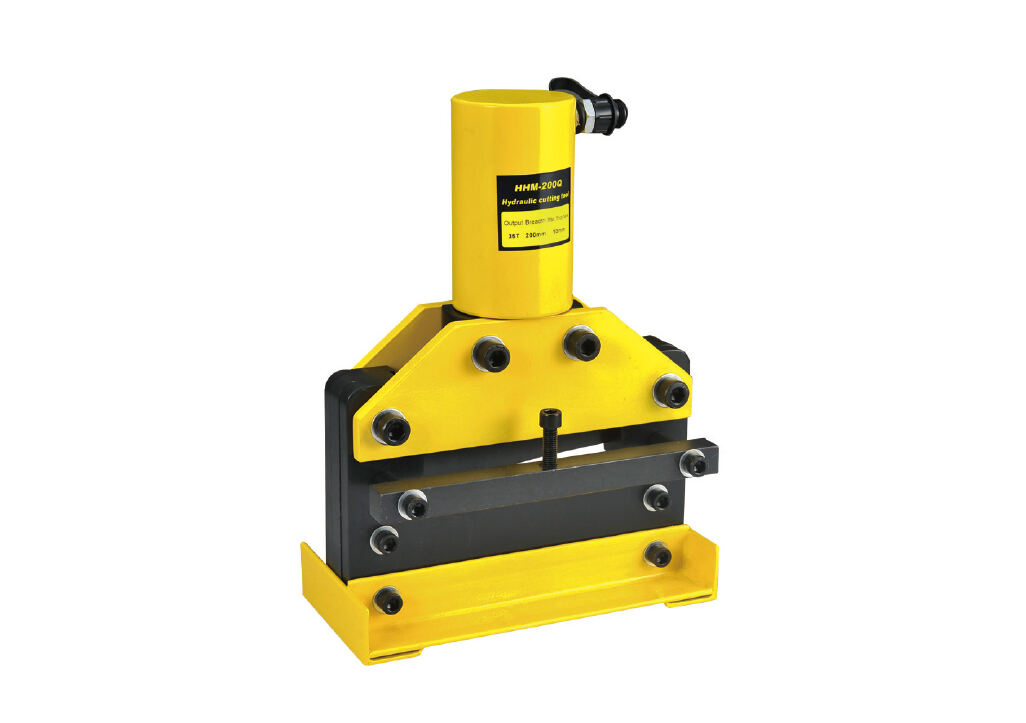

Hydraulic Busbar Cutters HHM-200Q

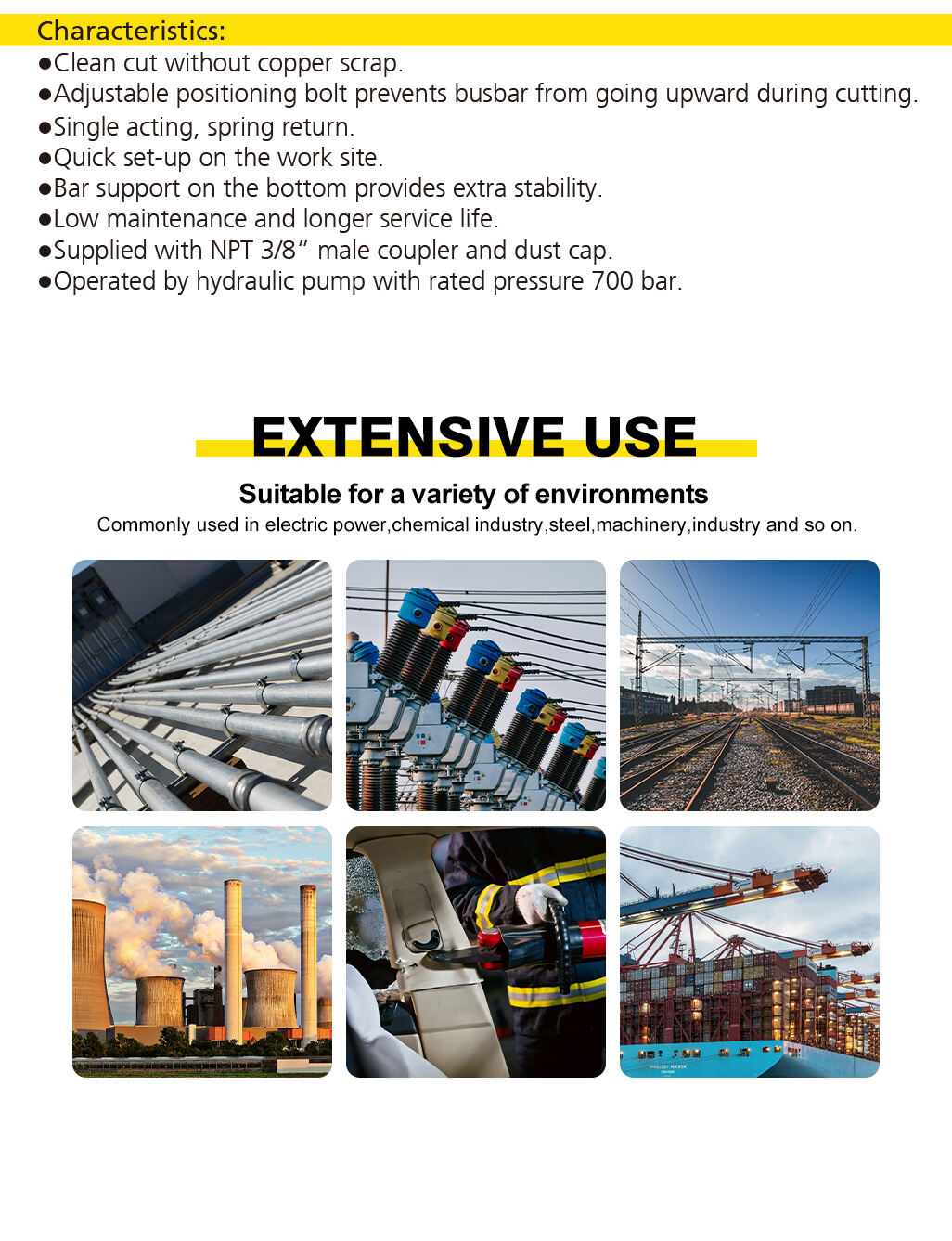

The HHM-200Q hydraulic cutting tool offers a powerful 35-ton output force, ideal for cutting copper busbars up to 200mm wide and 12mm thick. Its adjustable positioning bolt ensures precision, while the single-acting, spring-return mechanism allows quick setup. Designed for stability and low maintenance, it features a bar support and is compatible with NPT 3/8" couplers. Suitable for diverse environments like electric power, chemical, steel, and machinery industries, it operates efficiently with a hydraulic pump at 700 bar pressure.
Description
Hydraulic Busbar Cutters, HHM-200Q
| Model | Output force (ton) |
Breadth of copper busbar(mm) |
Max.thickness of copper busbar (mm) |
Weight (kg) |
Packing size (cm) |
| HHM-200Q | 35 | 200 | 12 | 37.6 | 38×24×46 |
