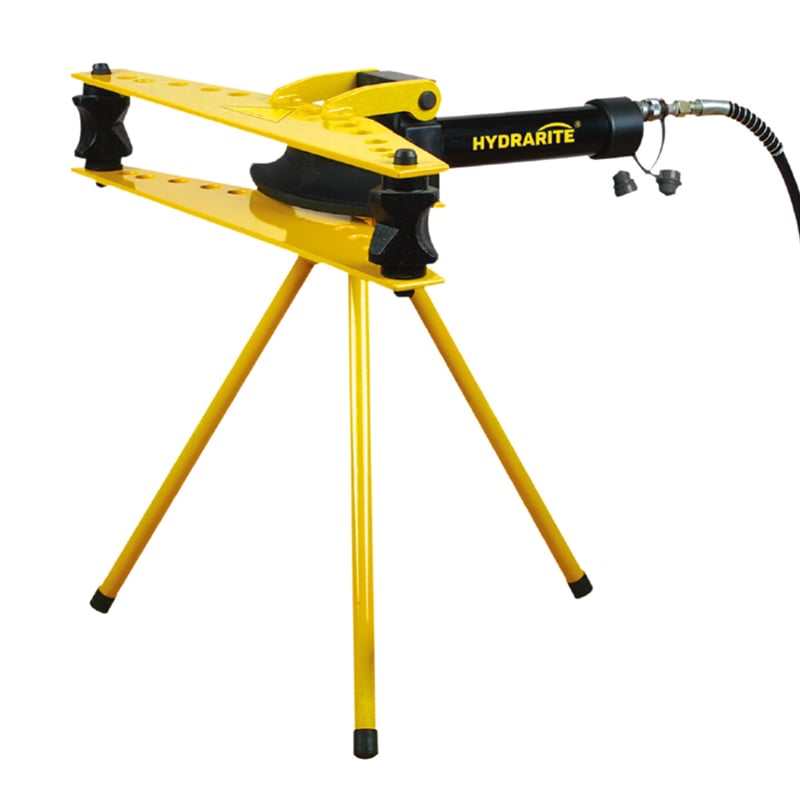

Split-type Hydraulic Pipe Bending Machine HHW-2F HHW-3F HHW-4F

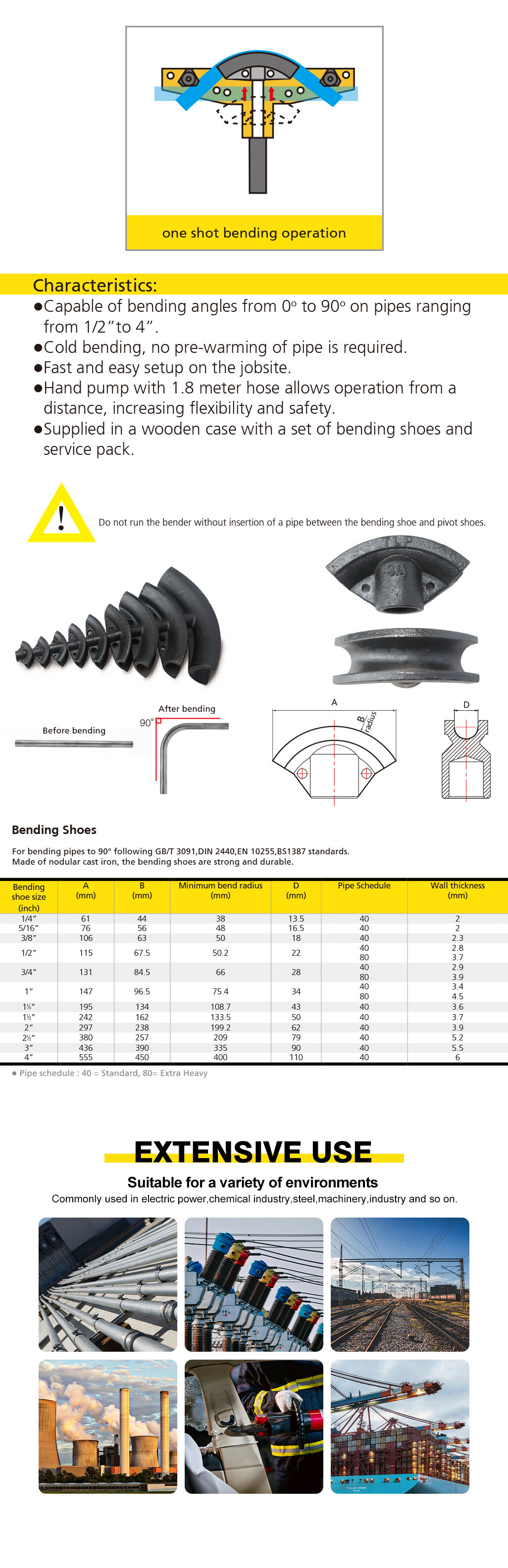

This pipe bender is designed for efficient cold bending from 0° to 90° on pipes ranging from 1/2" to 4", eliminating the need for pre-warming. It offers fast and easy setup on the job site, enhancing productivity. The hand pump, equipped with a 1.8-meter hose, allows for operation from a distance, providing increased flexibility and safety for the user. All components, including a set of bending shoes and a service pack, are supplied in a durable wooden case, ensuring organized storage and easy transport, making it a practical and reliable choice for various bending tasks.
Description

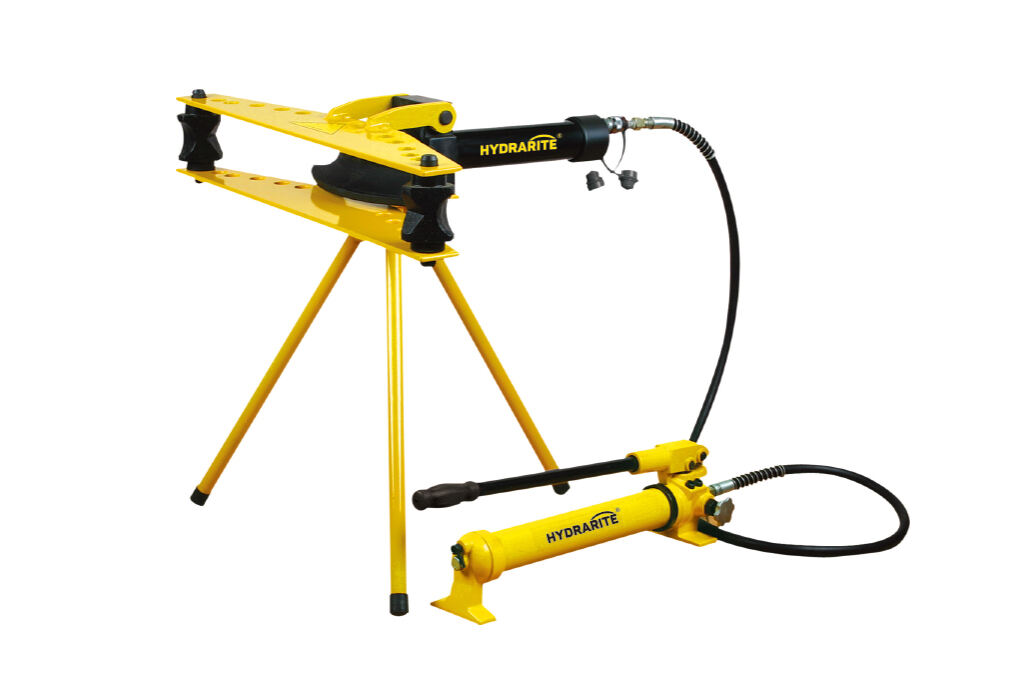

Hydraulic Pipe Bender and Hand Pump set
HHW-2F, HHW-3F, HHW-4F
These bender and hand pump sets are for precision cold
These bender and hand pump sets are for precision cold
bending of thick-walled pipes (gas, water and steam
pipes, non-heated black iron pipes, galvanized pipes,
schedule 40 & 80) up to 900 following GB/T 3091,DIN
2440,EN 10255,BS1387 standards.
| Model | Hydraulic Ram Output (Ton) |
Ram stroke (mm) |
Bending range(O.D.) (mm) |

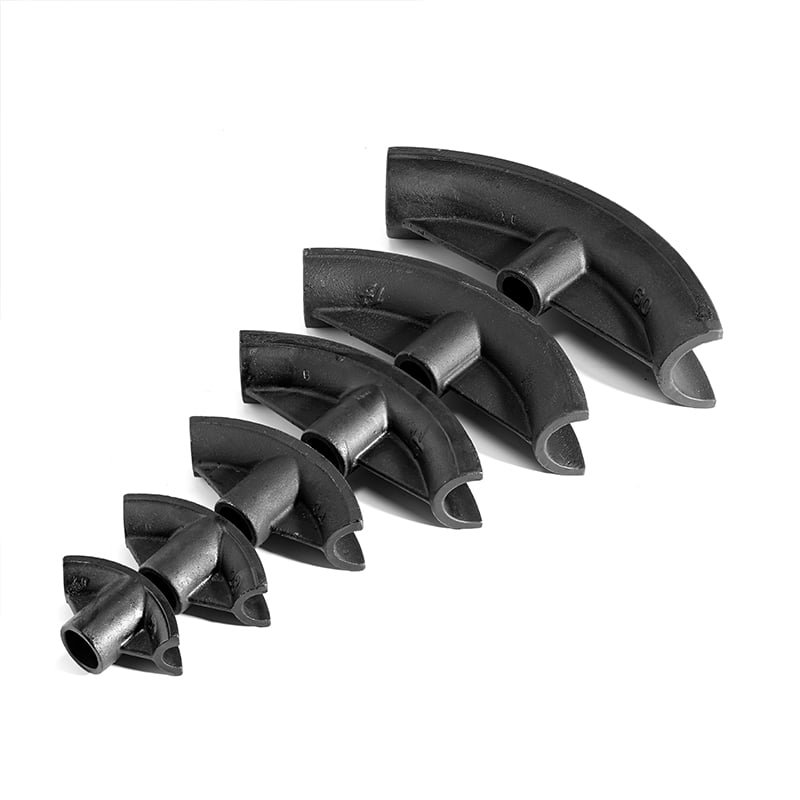

Bending shoes (inch) |
Pump model |
G.W. (Kg) |
Packing size (cm) |
| HHW-2F | 13 | 250 | Ø21.3-Ø60 | 1/2” 3/4” 1” 1¼” 1½” 2” | HHB-700 | 50.6 | 73×32×20 |
| HHW-3F | 20 | 320 | Ø21.3-Ø88.5 | 1/2” 3/4” 1” 1¼” 1½” 2” 2½” 3” | HHB-700 | 104.9 | 94×40×21 |
| HHW-4F | 20 | 370 | Ø21.3-Ø108 | 1/2” 3/4” 1” 1¼” 1½” 2” 2½” 3” 4” | HHB-700A | 156.4 | 118×46×25 |
