| Model | Pump type |
Working pressure (bar) |
Oil displacement per stroke (cm³) |
Reservior (cm³) |
Dimensions (mm) |
Packing size (cm) |
Weight (Kg) |
|||||
| Low pressure stage |
High pressure stage |
Low pressure stage |
High pressure stage |
Oil capacity |
Usable oil capacity |
L | B | H | ||||

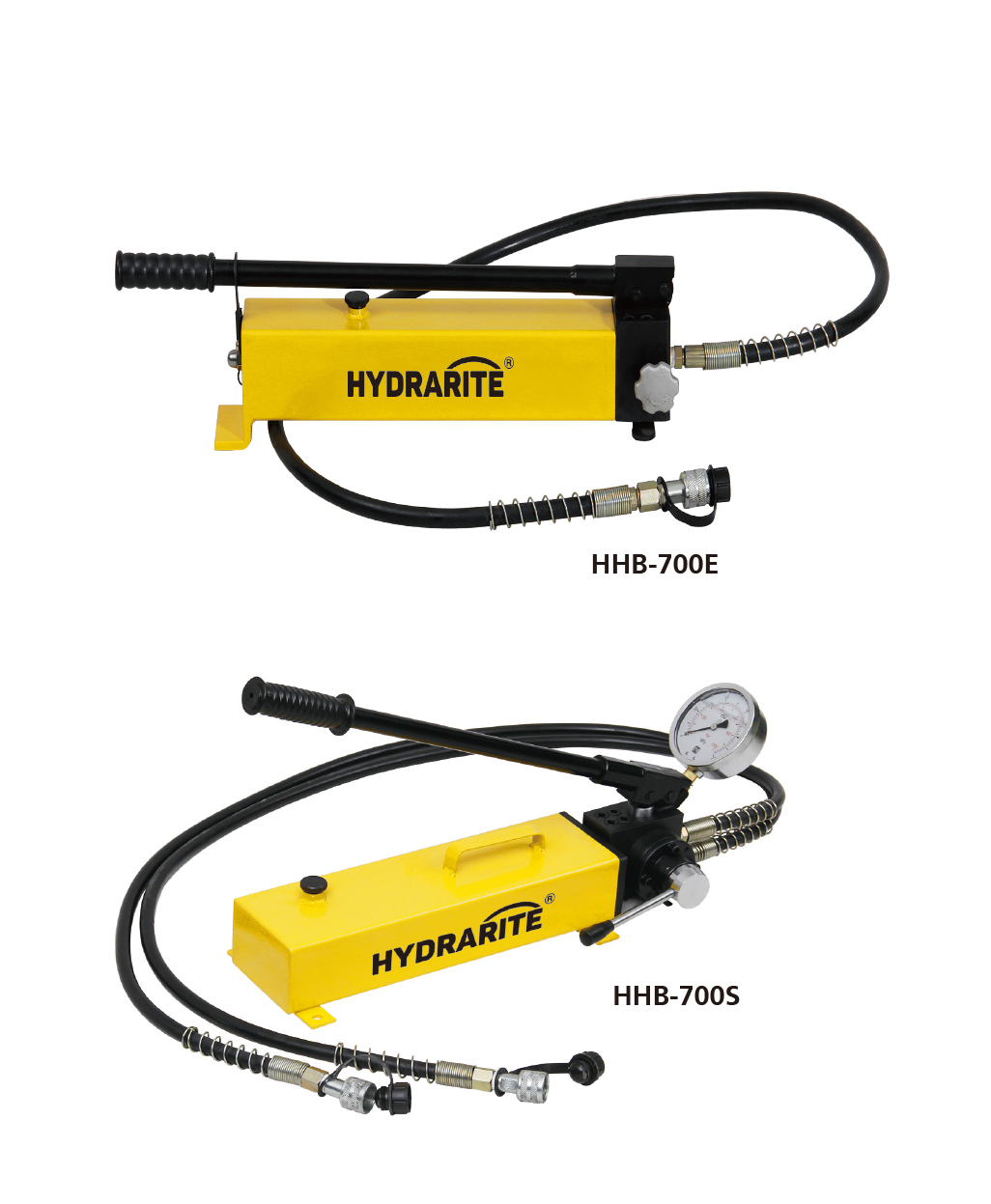

| HHB-700E | one-way | 20 | 700 | 13 | 2.3 | 2000 | 1700 | 710 | 150 | 210 | 73X19X19 | 13 |
| HHB-700S | two-way | 20 | 700 | 13 | 2.3 | 3300 | 2600 | 710 | 150 | 275 | 79X24X27 | 18.6 |
We proudly have our own factory and R&D center, specializing in the high-pressure hydraulic industry. Our high-pressure hydraulic tools are applicable to various sectors, including electrical maintenance, manufacturing, construction, energy, oil & gas, shipbuilding, railroads, and mining, among others.
