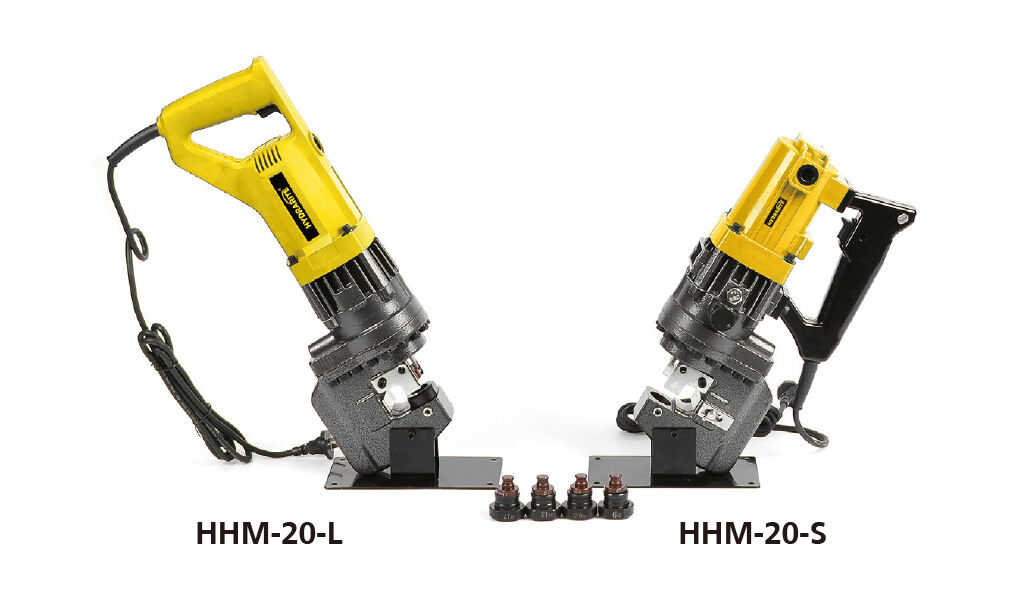

Hydraulic Busbar Puncher HHM-20-L HHM-20-S
The HHM-20 series, including models L and S, features a durable high-strength alloy steel head for efficient punching of mild steel, steel plates, and copper-aluminum busbars. With a punch speed of 2-35 and a 37.9mm throat depth, it handles up to 6mm thickness. The electro-hydraulic design ensures portability and easy operation, with high-carbon alloy steel dies that can be customized. Ideal for diverse industrial applications.
Description
Electro-hydraulic angle steel puncher
| Model | Rated voltage |
Rated power | punch speed |
Throat depth |
Max thickness |
punch dies | Weight (Kg) |
Packing size(mm) |
| HHM-20-L | 220V | 1200W 50-60HZ | 2-3S | 37.9mm | 6mm | 6.5,9,13,17,20.5 | 12 | 196.5X130X500 |
| HHM-20-S | 220V | 1200W 50-60HZ | 2-3S | 37.9mm | 6mm | 6.5,9,13,17,20.5 | 11.91 | 196.5X135X410 |
