Description

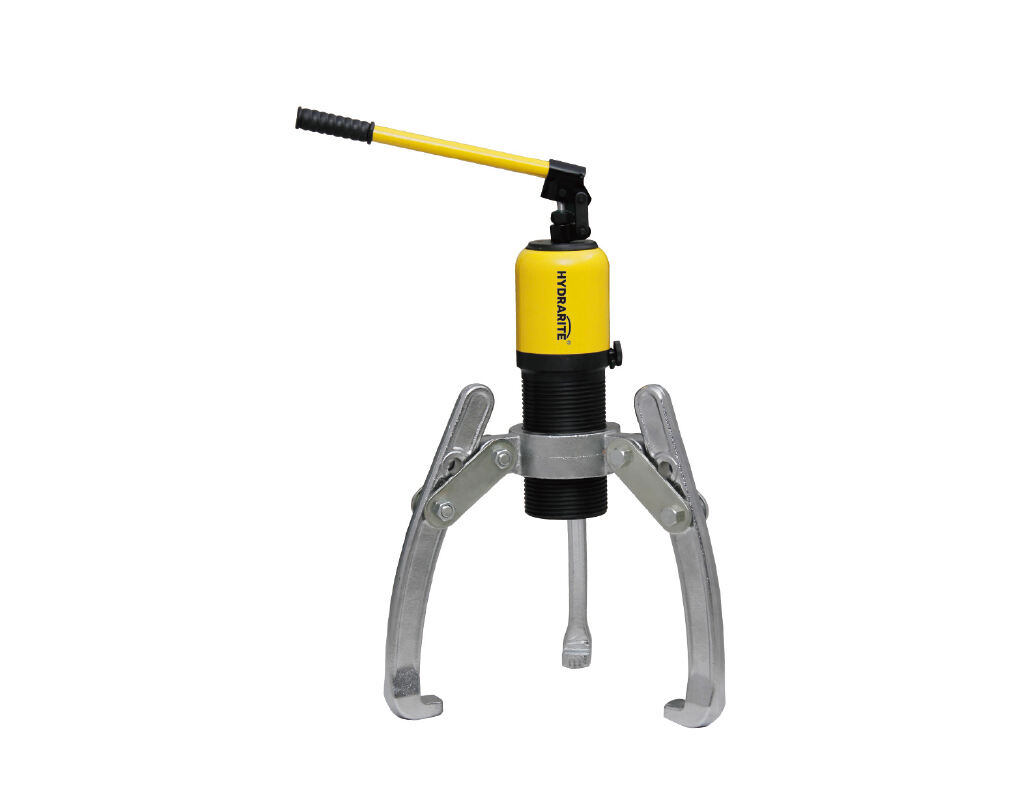

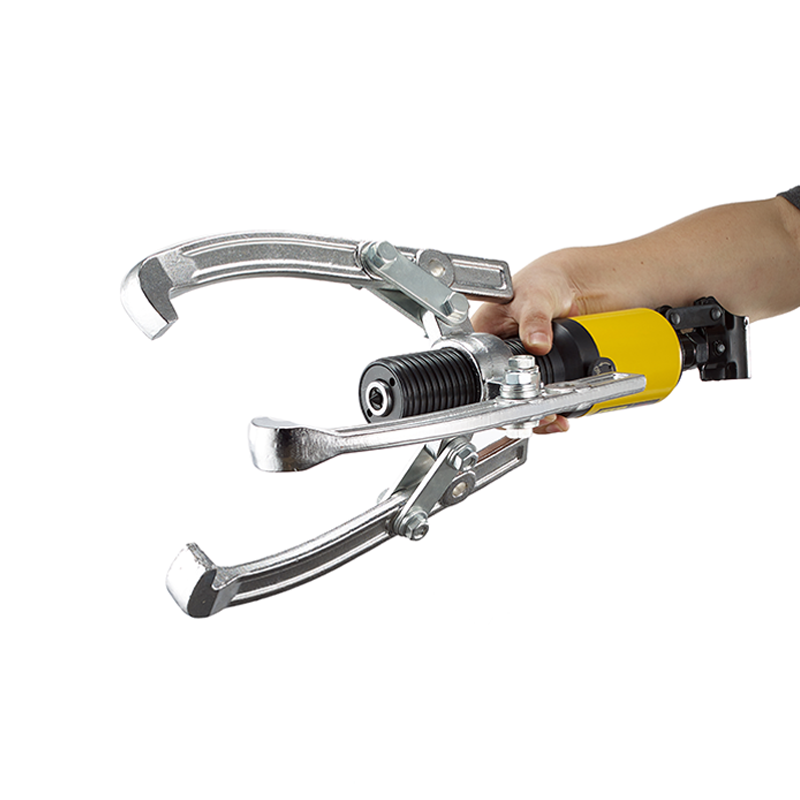

Self-Contained Hydraulic Pullers
These tools are designed for removing a wide variety of
gears, bearings, bushings, pulleys and other press-fitted parts.

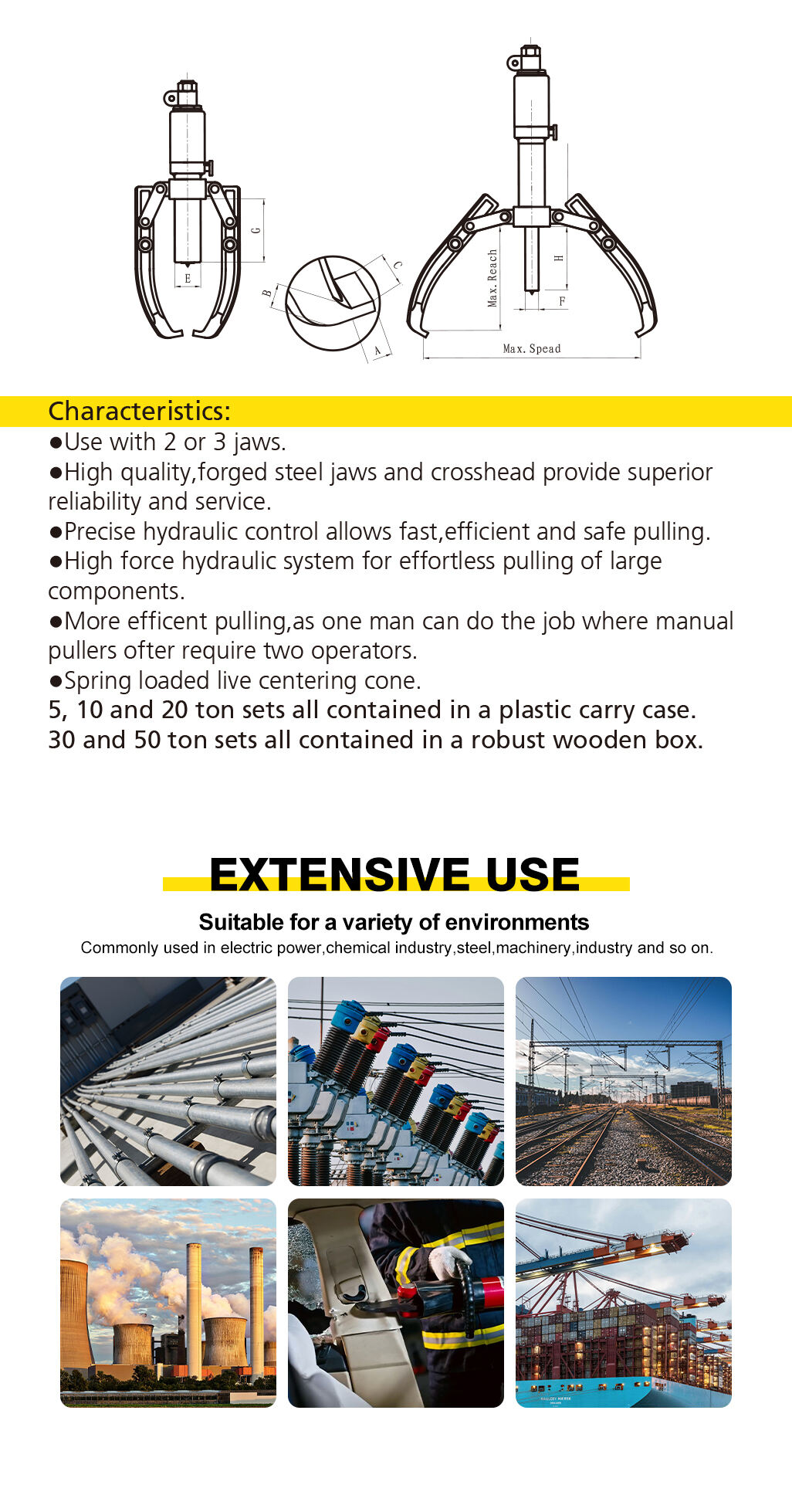

| Model | Output (Ton) |
Spread (mm) |
Max Reach (mm) |
Ram stroke (mm) |
Dimensions(mm) | Weight (Kg) |
Packing size (cm) |
|||||
| E | F | G | A | B | C | |||||||
| HHL-5 | 5 | 50-200 | 140 | 50 | 45 | 23 | 106 | 12.5 | 22.5 | 26 | 8 | 42X29X9 |
| HHL-10 | 10 | 50-250 | 170 | 60 | 56 | 26 | 97 | 14 | 30 | 30 | 12 | 43X33X11 |
| HHL-20 | 20 | 100-350 | 205 | 70 | 78 | 33 | 105 | 21 | 33.5 | 33 | 19 | 44X35X13 |
| HHL-30 | 30 | 150-400 | 220 | 70 | 90 | 38 | 103 | 26 | 36 | 35 | 25 | 48X20X18 |
| HHL-50 | 50 | 200-500 | 250 | 60 | 114 | 48 | 117 | 25 | 46 | 40 | 43 | 52X25X22 |
