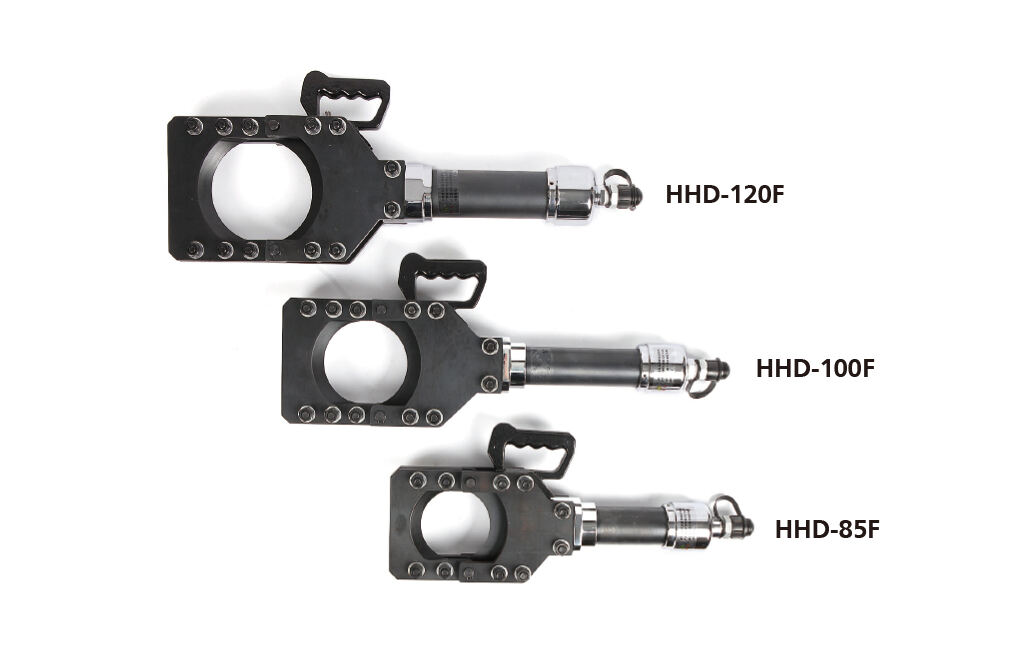

Hydraulic Cable Cutter Heads HHD-85F HHD-100F HHD-120F
The HHD-50F hydraulic cutter offers a powerful 13.5-ton output, perfect for cutting copper, aluminum, and armored cables up to Ø50mm. Its quick-sliding, specially hardened jaws save time between cuts. Lightweight and user-friendly, it operates with a hydraulic pump at 700 bar pressure. The tool comes in a durable steel storage box, making it ideal for use in electric power, chemical, and steel industries.
Description

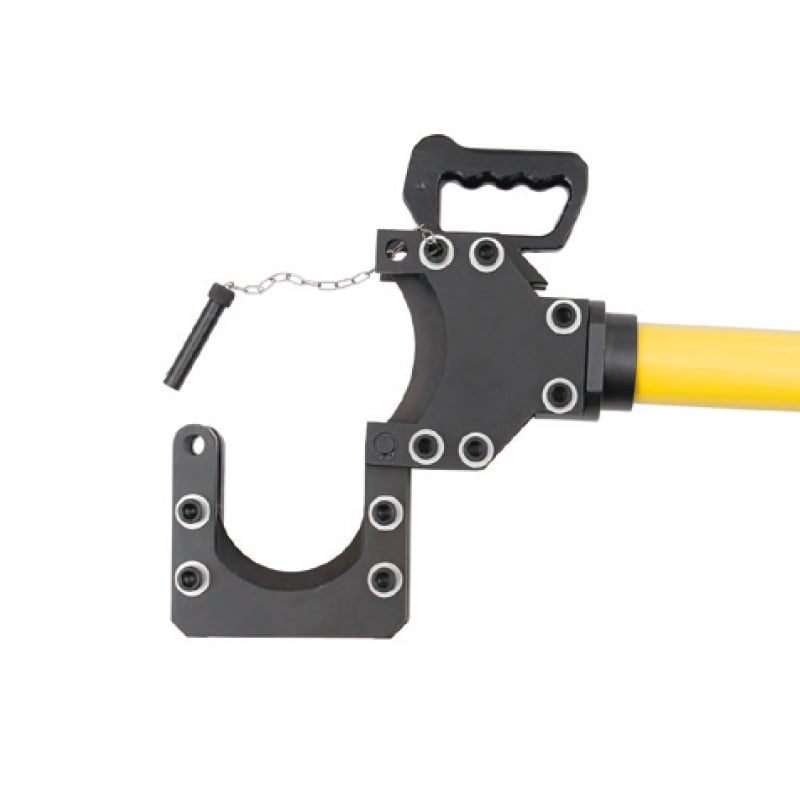

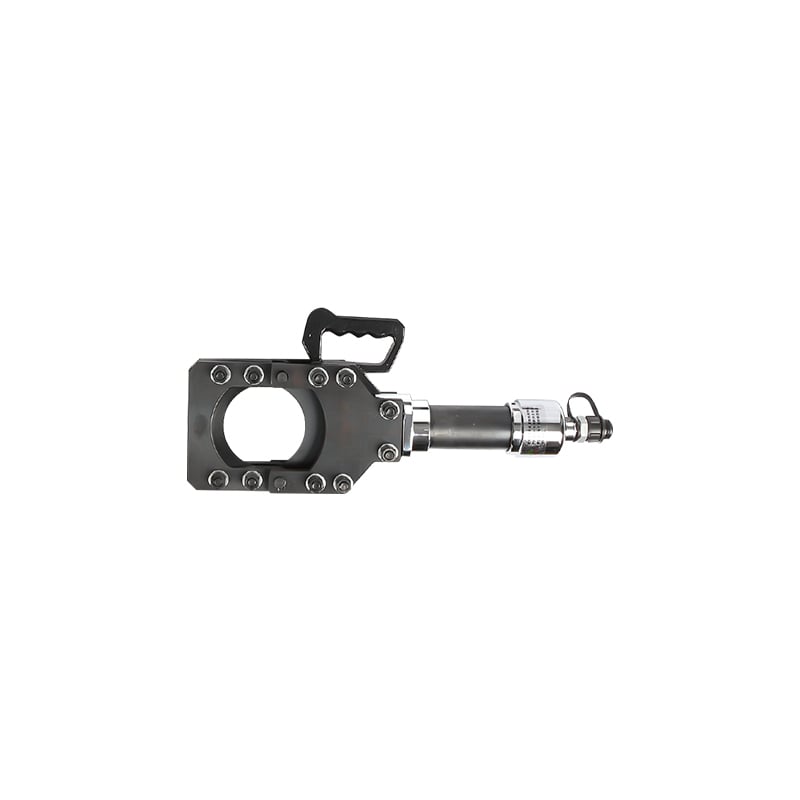

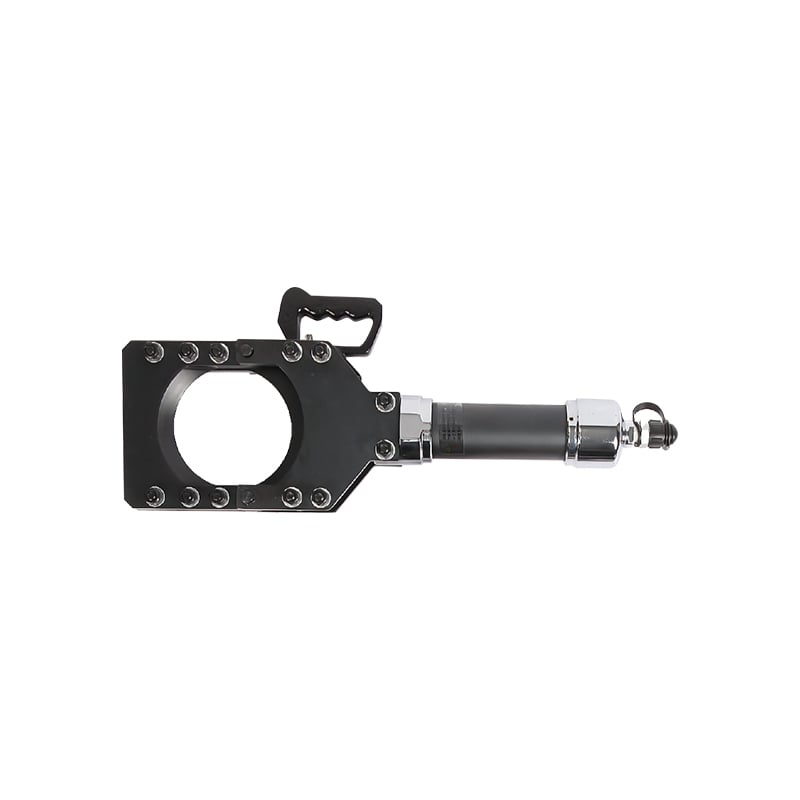

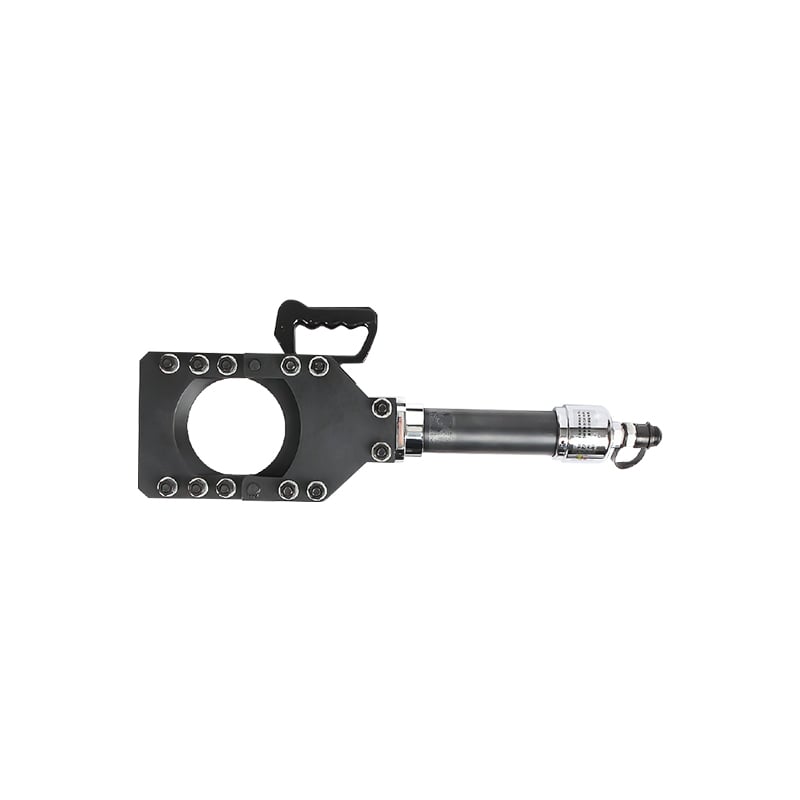

Hydraulic Cable Cutter Heads
with built-in safety valve
Cuts armoured Al and Cu cables
| Model | Output force (ton) |
Cutting range (mm) |
G.W. (Kg) |
Packing size(mm) |
| HHD-85F | 8.5 | Ø85mm(Copper,Aluminum/ armored cable) | 12.1 | 535×260×110 |
| HHD-100F | 8.5 | Ø100mm(Copper,Aluminum/ armored cable) | 14.5 | 610×210×110 |
| HHD-120F | 13.5 | Ø120mm(Copper,Aluminum/ armored cable) | 14 | 630×270×100 |
| HHD-132F | 13.5 | Ø132mm(Copper,Aluminum/ armored cable) | 15.8 | 680×280×100 |
