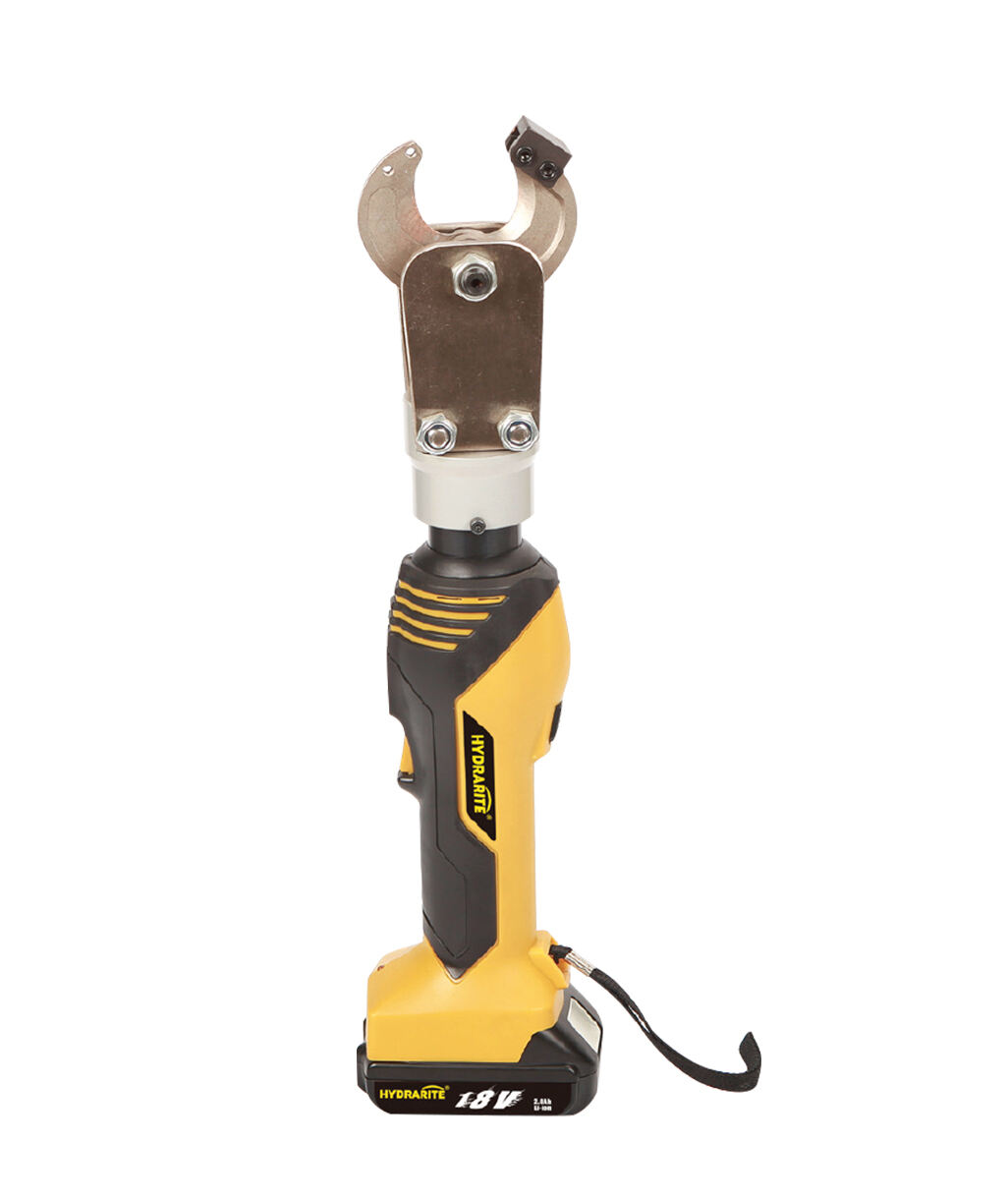

Battery Powered Hydraulic Cable Cutters HHZD-30D
This cutting tool is designed with an open cutting head, allowing for a larger cutting range and increased versatility. Its two-stage hydraulic system provides a fast feed and power stroke, optimizing efficiency by adjusting at counter pressure to save time. With a robust service life of over 10,000 cycles, it ensures long-term reliability. The tool features a manual reset button to retract the ram after cutting or in case of errors. An audible buzzer and red LED light alert users to any errors, while a quick motor stop enhances safety. Powered by a powerful 18V Li-ion battery with a low battery warning, this tool offers a combination of efficiency, safety, and convenience, making it ideal for demanding cutting tasks.
Description
Battery Powered Hydraulic Cable Cutter , HHZD-30D
Cuts armoured Al and Cu cables.
Do not cut steel ropes or ACSR conductors.
| Model | HHZD-30D |
| Hydraulic Ram Output | 6 Ton |
| Ram Stroke | 35 mm |
| Battery capacity | 90 cutting cycles |
| Cutting range | Ø40mm(Copper,Aluminum and armored cable) |
| Battery | 18V/2.0Ah Li-ion |
| Charging time | 1 hours |
| Qty of battery | 2 pcs |
| Charger | 1 pc |
| Seals | 1set |
| Weight(Kg) | 10 |
| Packing size(mm) | 690×305×115 |
