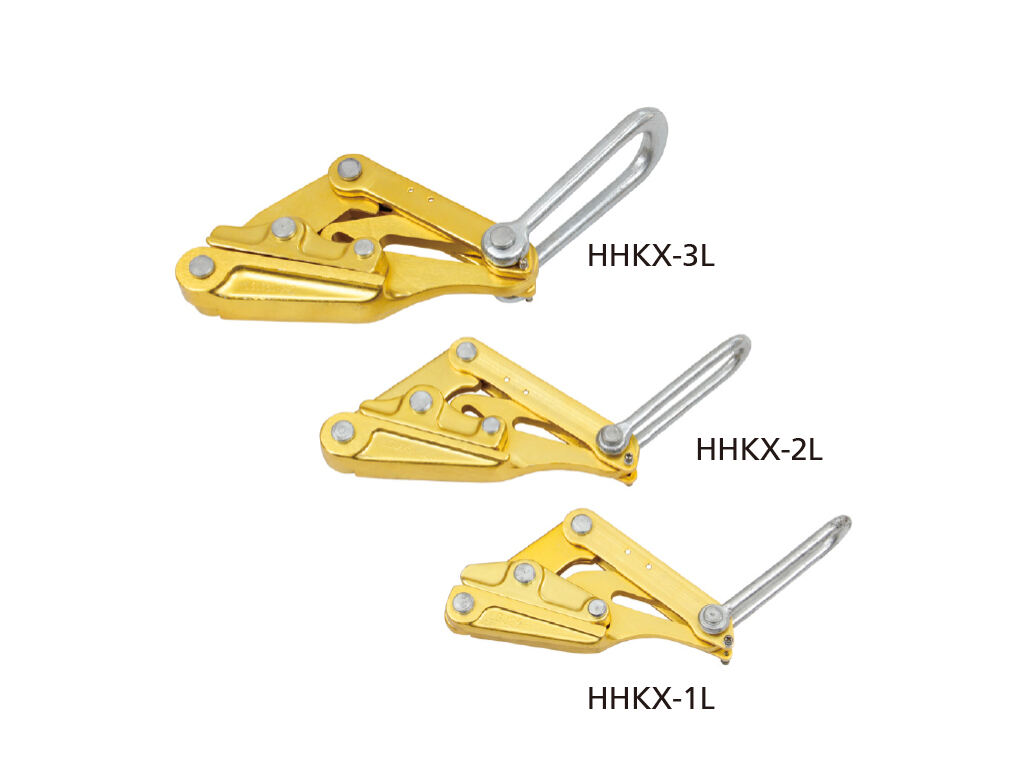

Wire Pulling Grips HHKX-1 HHKX-2 HHKX-3
These wire grips, available in models HHKX-1L, HHKX-2L, and HHKX-3L, are crafted from high-strength aluminum alloy and heat-treated for enhanced durability. They feature precision-machined jaws for proper alignment and a large-diameter eye to accommodate large hooks on hoists, winches, and tackle blocks. With rated loads ranging from 10 kN to 30 kN, they are suitable for applications like LGJ25-240. Lightweight and compact, these grips are ideal for use in electric power, chemical industries, steel, and machinery, offering reliable performance in various environments.
Description
Wire Pulling Grips
| Model | Rated load (KN) |
Application | G.W. (kg) |
Packing size (mm) |
| HHKX-1L | 10 | LGJ25-70 | 1.3 | 230 x130 x65 |
| HHKX-2L | 20 | LGJ25-120 | 1.7 | 260 x135 x65 |
| HHKX-3L | 30 | LGJ150-240 | 3.6 | 300 x180 x120 |
