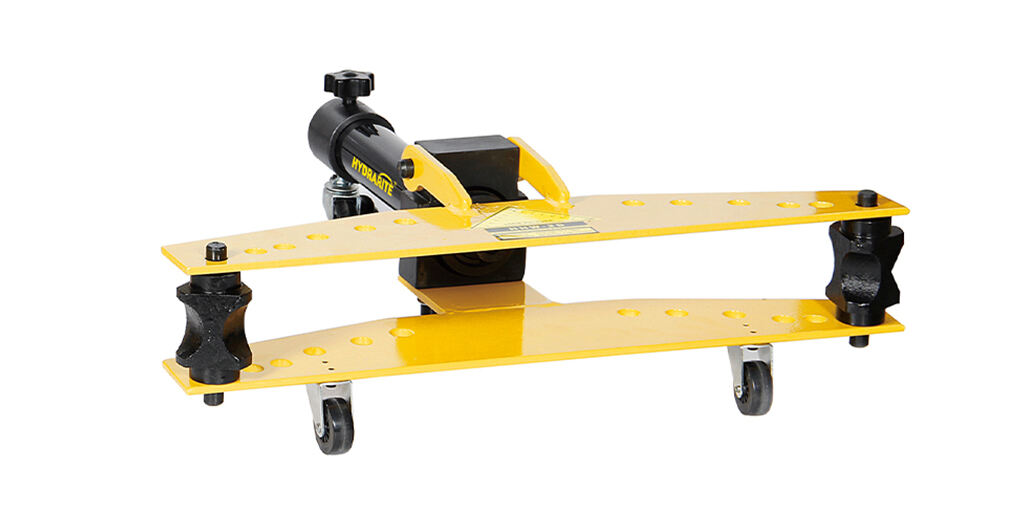

Split-type Hydraulic Pipe Bending Machine HHW-2D HHW-3D HHW-4D
The Manual Hydraulic Pipe Benders are designed for precision cold bending of thick-walled pipes (gas, water and steam pipes, non-heated black iron pipes, galvanized pipes, schedule 40 & 80) up to 90° following GB/T 3091,DIN 2440,EN 10255,BS1387 standards.
These benders are ideal for plumbing, sanitary and heating installationon on contruction sites, for apparatus and boiler making and for industrial applications.
Description

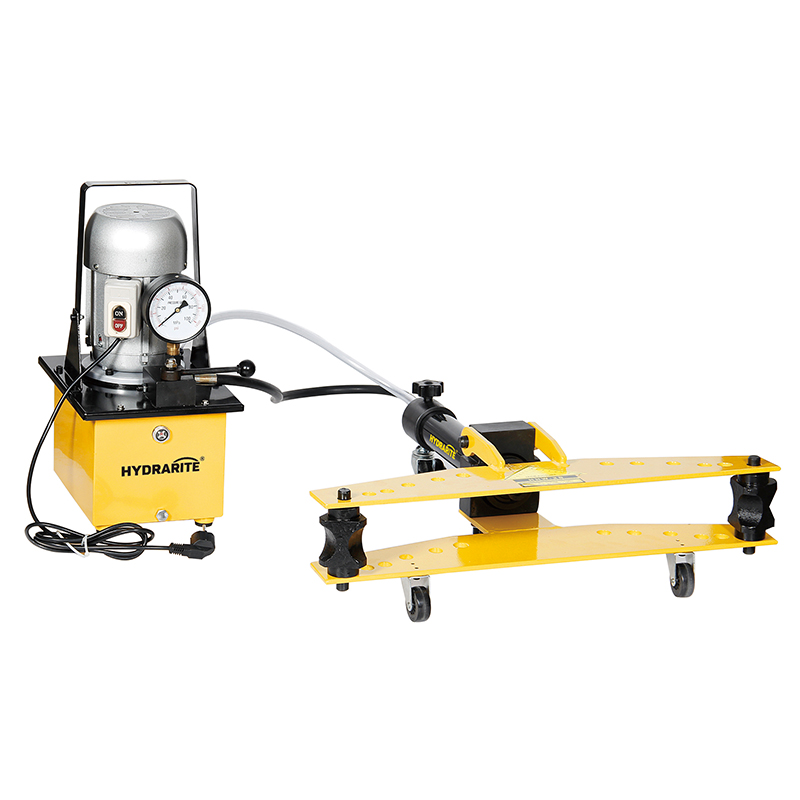

Electric Hydraulic Pipe Benders
HHW-2D, HHW-3D, HHW-4D,HHW-2E
| Model | Hydraulic Ram Output (Ton) |
Ram stroke (mm) |
Bending range(O.D.) (mm) |

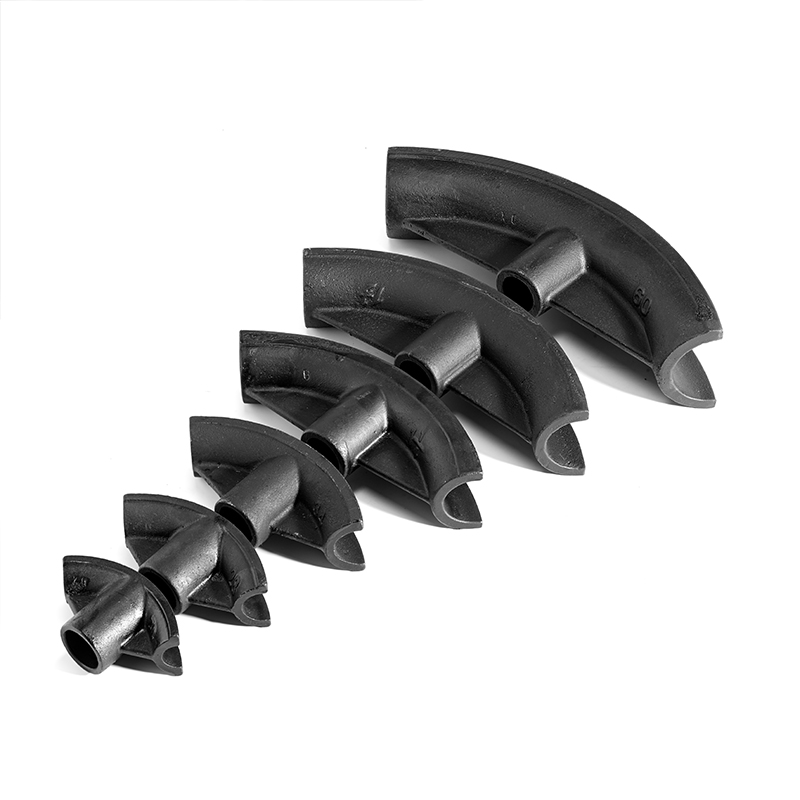

Bending shoes (inch) |
G.W. (Kg) |
Packing size (cm) |
| HHW-2D | 13 | 250 | Ø21.3-Ø60 | 1/2” 3/4” 1” 1¼” 1½” 2” | 66.9 | 96×35×28 |
| HHW-3D | 20 | 290 | Ø21.3-Ø88.5 | 1/2” 3/4” 1” 1¼” 1½” 2” 2½” 3” | 120.8 | 118×46×29 |
| HHW-4D | 20 | 370 | Ø21.3-Ø108 | 1/2” 3/4” 1” 1¼” 1½” 2” 2½” 3” 4” | 163.8 | 118×46×33 |
| HHW-2E | 13 | 250 | Ø21.3-Ø60 | 1/2” 3/4” 1” 1¼” 1½” 2” | 56 | 59×37×69 |
